LXP-VIM244Remote Car Key

© Dr. Ing. h.c. F. Porsche AG Porsche, the Porsche crest, Carrera, Tiptronic and Tequipment are registered trademarks and the distinctive shapes of Porsche automobiles are trademarks ofDr. Ing. h.c. F. Porsche AG. All rights reserved. Printed in Germany WKD 997 021 05 4/04 2Dear Owner, We would like to thank you for your purchase of a Porsche Sports car. Judging by the car you ha ve chosen, you are a mo- torist of a special breed, and you are probably no novice when it comes to automobiles. Remember however, as with any vehicle, you should take time to famili arize yourself with your Porsche and its performance characteristics. Al-ways drive within your own unique capabilities as a driver and your level of experience with your Porsche. Ensure that anyone else driving your Porsche does the same. To prevent or minimize in-jury, always use your safety belts. Never consume alcohol or drugs before or during the operation of your vehicle. This Owner’s Manual contains a host of useful in-formation. Please take the time to read this manu- al before you drive your new Porsche. Become fa-miliar with the operation of your Porsche car for maximum safety and operating pleasure. The bet-ter you know your Porsche, the more pleasure you will experience driving your new car.Always keep your Owner’s Manual in the car, and give it to the new owner if you ever sell your Porsche. A separate Maintenance Booklet explains how you can keep your Porsche in top driving condition by having it serviced regularly. A separate Warranty and Customer Informa-tion Booklet contains detailed information about the warranties covering your Porsche. For U.S. only:If you believe that your vehicle has a fault which could cause a crash, injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Porsche Cars North America, Inc. (Porsche Cars N.A.). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety prob-lem exists in a group of vehicles, it may order a re-call and remedy campaign. However, NHTSA can-not become involved in individual problems be-tween you and your dealer, or Porsche Cars N.A.. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-(800)-424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain oth-er information about motor vehicle safety from the Hotline. Your car has thousands of parts and components which have been design ed and manufactured in accordance with Porsche’s high standards of engi-neering quality and safety. Any alteration of the vehicle may negate or interfere with those safety features built into the vehicle. Your Porsche is intended to be used in a safe man-ner obeying the local laws and in the light of driv- ing conditions faced by you, and in accordance with the instructions provided in this Owner’s Man-ual. Do not misuse your Porsche by ignoring those laws and driving conditions, or by ignoring the instructions in this manual. Any alteration or misuse of the vehicle can lead to accidents and severe or fatal personal injuries. The fitting of racing tires (e.g. slicks) for sporting events is not approved by Porsche. Very high cor-nering speeds can be achieved with racing tires. However, the resulting transverse acceleration values would jeopardize the adequate supply of oil to the engine.Porsche therefore will not accept any warranty or accept any liability for damage occurring as a re-sult of non-compliance with this provision. 3 Regularly check your vehicle for signs of damage. Damaged or missing aerodynamic compo-nents such as spoilers or underside panels affect the driving behavior and therefore must be replaced immediately. Your car may have all or some of the components described in this manual. Should you have difficulty understanding any of the explanations of features or equipment installed in your vehicle, contact your authorized Porsche dealer. He/She will be glad to assist you. Also check with your dealer on other available options or equipment. Throughout this booklet, left is designated as the driver’s side of the vehicle, and right as the pas-senger’s side of the vehicle. Text, illustrations and specifications in this manual are based on the informatio n available at the time of printing. It has always been Porsche’s policy to continuous-ly improve its products. Porsche, therefore, re-serves the right to make changes in design and specification, and to make additions or improvements in its product without incurring any obligation to install them on products previously manufactured. We wish you many miles of safe and pleasurable driving in your Porsche. Important For your own protection and longer service life of your car, please heed all operating instructions and special warnings. These special warnings use the safety alert symbol, followed by the words Danger, Warning and Caution . These special warnings contain important messages regarding your safety and/or the potential for damage to your Porsche. Ignoring them could result in seri- ous mechanical failure or even physical injury. f Do not alter your Porsche. Any alteration could create dangerous conditions or defeat safety engineering features built into your car. f Do not misuse your Porsche. Use it safely, and consistently with the law, according to the driv-ing conditions, and the instructions in this man-ual. Alteration or misuse of your Porsche could cause accidents and severe or fatal personal injuries. Note to owners In Canada, this manual is also available in French. To obtain a copy contact your dealer or write to: Note aux proprietaires Au Canada on peut se procurer un exemplaire de ce Manuel en français auprès du concessionaire ou du:Porsche Cars Canada, Ltd.Automobiles Porsche Canada, LTEE5045 Orbitor DriveBuilding #8, Suite 200Mississauga, OntarioCanada L4W 4Y4 Telephone number for custom…

Text truncated - open the document above for the full version.

Response to TCB Findings 2 In addition to the TCB Findings 1 document; 2. The transponder immobiliser operating at 125kHz was not addressed in the test report. Additional test data is required to show compliance with the rules for operation at this frequency. Refer to Operational Description "The Remote Key also contains a passive transponder based immobiliser which is used for passive back up. The immobiliser system consists of a passive challenge-response (mutual authentication) transponder inside the Remote Key head and the EZS (Electronic Ignition Switch) unit". The EZS is currently under review (FCC ID: LXP-VIM234 and FCC Confirmation Number: CS01195). Additional information on the passive transponder is provided in the “Transponder Clarification” document. The transponder inside the Key head is not an active transmitter. 3. It's not clear how this duty-cycle has been added to the measurements in the report. Has duty- cycle correction been used at all? Please clarify. The fundamental frequency and spurious emissions peak readings were under the average limits. In the test report, the duty-cycle factor was not corrected. 4. Please confirm that peak readings met the average limits above 1GHz. Please also specify the detector function used in the tables of sections 4.4.1 and 4.4.2 of the report. Are they Q-Peak readings? Yes, the peak readings met the average limits for frequency range from 30 to 3150 MHz. Q-Peak readings were reported in the tables of sections 4.4.1 and 4.4.2

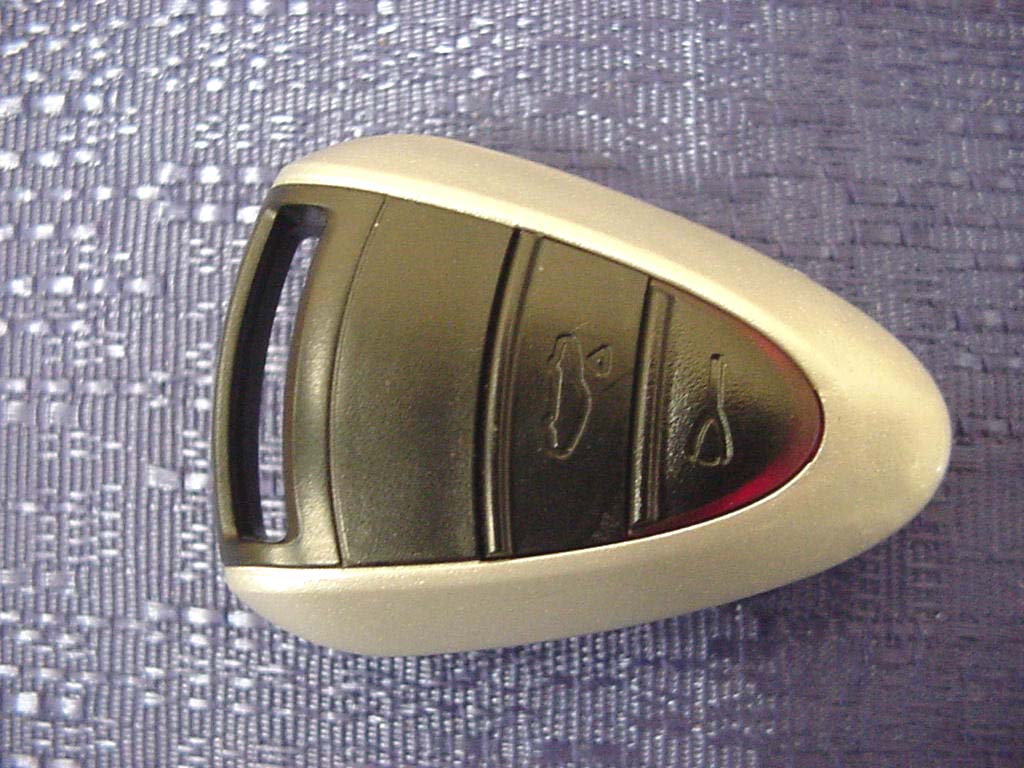

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX B1 – Test Sample external Photograph FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Porsche Remote Key Transmitters Two Button Remote FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Three Button Remote

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX F – Test Sample ( Tx ) FCC Labels FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Remote Key Transmitters (2 & 3 Button) Labelling Details Marking engraved into the housing tool.

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX B3 – Test Sample internal Photographs FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Porsche Remote Key Transmitters Two Button Remote FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Porsche Remote Key Transmitters Two Button Remote FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Porsche Remote Key Transmitters Three Button Remote FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Three Button Remote

EMI TEST REPORT for CERTIFICATION to FCC PART 15.231 & RSS-210 FCC ID: LXP-VIM244 Industry Canada ID: 2298A-VIM244 Test Sample: Porsche Remote Key Transmitters Model: VIM244 Tested for: Robert Bosch Australia Report Number: M040113_Cert_Tx Issue Date: 5 th April 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx Page 2 of 11 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.231 & RSS-210 EMC Technologies Report No. M040113_Cert_Tx Issue Date: 5 th April 2004 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMI MEASUREMENTS 4.0 RADIATED EMI MEASUREMENTS 5.0 BANDWIDTH 6.0 ANTENNA REQUIREMENT 7.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: TEST SAMPLE BLOCK DIAGRAM APPENDIX D: TEST SAMPLE SCHEMATIC APPENDIX E: TEST SAMPLE PCB LAYOUT APPENDIX F: FCC ID LABELLING APPENDIX G: GRAPHS of EMI MEASUREMENTS APPENDIX H: CHANNEL BANDWIDTH PLOTS APPENDIX I: USER MANUAL FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx Page 3 of 11 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 & RSS-210 Report Number: M040113_Cert_Tx Test Sample: Porsche Remote Key Transmitters Model: VIM244 Manufacturer: Robert Bosch (Australia) Pty Ltd FCC ID: LXP-VIM244 Industry Canada ID: 2298A-VIM244 Equipment Type: Intentional Radiator Tested for: Robert Bosch (Australia) Pty Ltd Address: Cnr Centre & McNaughton Roads, Clayton VIC 3168, Australia Phone: +613 9541 5555 Fax: +613 9544 1137 Responsible Party: Bazil Rodricks Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4 – 1992 OET Bulletin No. 63 RSS-210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices: 6.1.1: Momentarily Operated Devices Test Dates: 19 th January – 10 th March 2004 Test Officers: Chieu Huynh Jorge Lara B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx Page 4 of 11 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 & RSS-210 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the Porsche Remote Key Transmitters (2 & 3 Button), Model VIM244. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentional radiators (particularly section 15.231) Section 15.203: Antenna requirements Section 15.205: Restricted bands of operation Section 15.207: Conducted Emission Limits Section 15.209: Radiated Emission Limits (General requirements) Section 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz The test sample complied with the requirements of 47 CFR, Part 15 Subpart C - Section 15.231. The test sample also complied with the Industry Canada RSS-210 issue 5 (Low Power Licence-Exempt Radiocommunication Devices (All Frequency Bands)) clause 6.1.1 The “Porsche Body Computer System” comprises the Remote Key (Transmitter), the Base Station (Receiver) and the Electronic Ignition Switch (Immobiliser). The results for the Remote Key (Transmitter) are reported in this test report. The results for the Base Station (Receiver) and the Electronic Ignition Switch (Immobiliser) are reported separately (refer to EMC Technologies’ test reports: M040113_Cert_Rx and M040113_Cert_Immobiliser respectively). 1.1 Summary of Results FCC Part 15, Subpart C Clauses Industry Canada RSS-210 Clauses Test Performed Result 15.203 5.5 Antenna Requirement Not Applicable 15.205 6.3 Operation in Restricted Band Complies 15.207 6.6 Conducted Emissions Not Applicable 15.209 6.3 Radiated Emissions Complies 15.231 (b) 6.1.1(b) Field Strength Emissions Complies 15.231 (c) 6.1.1(c) Bandwidth Complies The measurement procedure used was in accordance with ANSI C63.4-1992 and OET Bulletin No. 96-43. The instrumentation confor…

Text truncated - open the document above for the full version.

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX G – ( Tx ) Graphs Of EMI Measurement EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040113 Test Date: 20-01-04 GRAPH No. 1 r:\PCF\m040113t_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd Porsche - 315MHz Remote (3 button) Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m040113em040113e # = Ambient Limits: Legend: Source: _ FCC231a FCC PART 15.231(a) AVERAGE LIMITS FOR 315MHz AT 3mtrs __ Vertical Ambients __ Vertical Emissions 1 2 3 4 5 14 15 16 30 31 32 33 34 17 18 19 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Jorge Lara Peaks:No Freq Peak Qp Val FCC231a dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 314.98 65.5 63.7 75.6 -11.9 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 v ^ 1 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # ## # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040113 Test Date: 20-01-04 GRAPH No. 2 r:\PCF\m040113t_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd Porsche - 315MHz Remote (3 button) Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m040113em040113e # = Ambient Limits: Legend: Source: _ FCC231a FCC PART 15.231(a) AVERAGE LIMITS FOR 315MHz AT 3mtrs __ Horizontal Ambients __ Horizontal Emissions 6 7 8 9 10 11 12 13 25 26 27 28 29 22 23 24 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Jorge Lara Peaks:No Freq Peak Qp Val FCC231a dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 314.96 70.9 69.0 75.6 -6.6 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 v ^ 1 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040113 Test Date: 20-01-04 GRAPH No. 3 r:\PCF\m040113t_3.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd Porsche - 315MHz Remote (2 button) Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m040113fm040113f # = Ambient Limits: Legend: Source: _ FCC231a FCC PART 15.231(a) AVERAGE LIMITS FOR 315MHz AT 3mtrs __ Vertical Ambients __ Vertical Emissions 1 2 3 24 29 19 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Kevin Hansen Peaks:No Freq Peak Qp Val FCC231a dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 315.00 67.9 67.9 75.6 -7.7 2 630.00 27.3 26.2 55.6 -29.4 Frequency (MHz) 231 1001 10 20 30 40 50 60 70 80 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:m040113 Test Date: 20-01-04 GRAPH No. 4 r:\PCF\m040113t_4.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Robert Bosch (Australia) Pty Ltd Porsche - 315MHz Remote (2 button) Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m040113fm040113f # = Ambient Limits: Legend: Source: _ FCC231a FCC PART 15.231(a) AVERAGE LIMITS FOR 315MHz AT 3mtrs __ Horizontal Ambients __ Horizontal Emissions 4 5 6 17 21 19 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Kevin Hansen Peaks:No Freq Peak Qp Val FCC231a dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 315.00 72.2 72.1 75.6 -3.5 2 630.00 31.4 31.4 55.6 -24.3 Frequency (MHz) 231 1001 10 20 30 40 50 60 70 80 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # #

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx Attachment 1: Duty Cycle (Pulse Train)

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx Attachment 2: Transmission Duration

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 26/09/03 26/09/04 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 09/07/03 09/07/04 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 20/08/03 20/08/04 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 11/07/03 11/07/04 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 04 N/A N/A N/A Feb 05 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX H – ( Tx ) Channel Bandwidth Plots FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Channel Bandwidth – 2 Button Remote FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Channel Bandwidth – 3 Button Remote

FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040113_Cert_Tx APPENDIX B2 – Test Setup Photograph FCC ID: LXP-VIM244 (IC: 2298A-VIM244) Report No. M040113_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Radiated Emissions Test Setup
