LXP-VIMA01SMARTRA III IMMOBILIZER

FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au APPENDIX H USER MANUAL PROTOCOL SPECIFICATION F005VP0801 ROBERT BOSCH (AUSTRALIA) PTY. LTD. A.B.N. 48 004 315 628 SMARTRA III IMMOBILISER Page 1 of 49 Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007 © THIS DRAWING IS THE EXCLUSIVE PROPERTY OF ROBERT BOSCH (AUSTRALIA) PTY. LTD. WITHOUT THEIR CONSENT IT MAY NOT BE REPRODUCED OR GIVEN TO THIRD PARTIES. DEV04205.9/I-1 By Date Signature Drawn RBAU-EB/EBS2-JL 03/10/06 Checked RBAU-EB/EBS2-VA 03/10/06 Approved RBAU-EB/EBS2 03/10/06 1. ALTERATION LIST Issue No. Alteration Number, Description Valid From By Checked 1.0 New Specification for ABIC1 Solution 03/10/06 EBS2/JL “WARNING: ANY CHANGES OR MODIFICATIONS NOT EXPRESSIVELY APPROVED BY ROBERT BOSCH (AUSTRALIA) PTY LTD COULD VOID THE USER’S AUTHORITY TO OPERATE THIS EQUIPMENT. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PROTOCOL SPECIFICATION F005VP0801 ROBERT BOSCH (AUSTRALIA) PTY. LTD. A.B.N. 48 004 315 628 SMARTRA III IMMOBILISER Page 2 of 49 Issue Number: 1.0 Dev No. 3881 Valid from: 14/2/06 Print Date: 28 March, 2007 © THIS DRAWING IS THE EXCLUSIVE PROPERTY OF ROBERT BOSCH (AUSTRALIA) PTY. LTD. WITHOUT THEIR CONSENT IT MAY NOT BE REPRODUCED OR GIVEN TO THIRD PARTIES. DEV04205.9/I-1 TABLE OF CONTENTS 1. ALTERATION LIST ..........................................................................................................................................................1 2. TABLE OF CONTENTS ....................................................................................................................................................2 3. APPLICABLE DOCUMENTS ..........................................................................................................................................5 4. INTRODUCTION ...............................................................................................................................................................5 4.1.1 Immobiliser Background ..........................................................................................................................................5 4.1.1.1 Model : Proposed Smartra3................................................................................................................................................5 4.1.2 Document description...............................................................................................................................................6 4.1.3 Diagram: Smartra communications interfaces ........................................................................................................6 4.2 EMS TO SMARTRA COMMUNICATIONS DESCRIPTION (OSI MODEL): .............................................................................7 4.2.1 Diagram: OSI model ................................................................................................................................................7 4.2.1.1 Requirements from customer .............................................................................................................................................8 4.2.2 Proposed Solution ....................................................................................................................................................8 4.2.3 Diagram Showing Proposed Design:.......................................................................................................................8 4.2.4 States of the smartra.................................................................................................................................................9 4.2.4.1 State transition Diagram: ...................................................................................................................................................9 4.2.4.1.1 States:............................................................................................................................................................................9 4.2.4.1.2 State Transitions: ..........................................................................................................................................................9 4.2.5 System security .......................................................................................................................................................10 4.2.6 Secret Encryption Key (SEK) Learning..................................................................................................................10 4.2.6.1 Diagram: Secret Key learning flow ................................................................................................................................. 10 4.3 ASSUMPTIONS MADE...................................................................................................................................................12 4.4 REFERENCES................................................................................................................................................................12 5. MESSAGE STRUCTURE BETWEEN EMS AND SMARTRA ..................................................................................13 5.1.1 Data Packet Breakdown .........................................................................................................................................13 5.2 06H - ACKNOWLEDGE..................................................................................................................................................14 5.3 53H - SOFTWARE VERSION. ......................................................................................…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: TIMCO Engineering Inc. Attention: Certification Manager No. of pages: 1 From: Donna Lennon Date: 26 th March 2007 EMC Ref: M070149_Cert_Immobiliser Subject: FCC APPROVAL – FCC ID: LXP-VIMA01 Please receive EMC Technologies’ Report M070149_Cert_Immobiliser for review. The EUT is a Smartra III Immobiliser system comprising of a passive challenge-response (mutual authentication) transponder inside the key head, the SMARTRA unit and an external antenna. The external antenna is mounted around the lock barrel. The Smartra III communicates to a Control Unit (CU) via a dedicated communications line. Documents submitted: Report Number: M070149_Cert_Immobiliser & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request and Form 731. EMC Technologies Pty Ltd is acting as agent for Robert Bosch (Australia) Pty Ltd during this product approval. Their corresponding FRN is 0004924049. The FCC ID for this application is LXP-VIMA01 Regards _____________ Donna Lennon Report Secretary EMC Technologies Pty Ltd

FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au APPENDIX F FCC LABEL

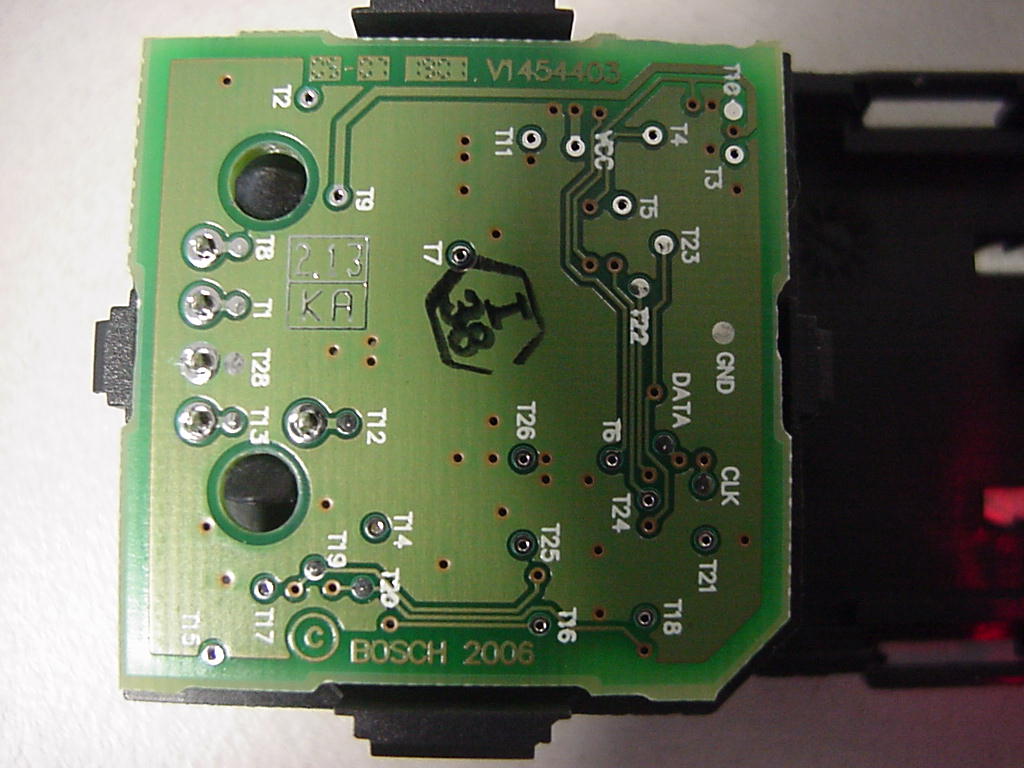

FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au APPENDIX B3 TEST SAMPLE INTERNAL PHOTOS FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser ____________________________________________________________________ EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser ____________________________________________________________________ EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au

FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8546A, Sn: 3549A00290 04/04/06 04/04/07 1 YEAR *2 ANTENNAS EMCO 93110B BICONICAL 24/06/06 24/06/07 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 15/06/06 15/06/07 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO LOOP ANTENNA 9 kHz – 30 MHz Sn: 9108-2660 29/04/05 29/04/08 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd

FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au APPENDIX G GRAPHS OF EMI MEASUREMENT EMC Technologies Pty. Ltd. - Global Product CertificationRSS-210 Job No:M070149 Test Date: 29-03-07 GRAPH No. 1 p:\PCF\M070149_17.PCF EMC Technologies (Melbourne) 176 Harrick Rd, Keilor Park, 3042, Vic, Australia Phone+(613) 9335 3333 Fax+(613) 9338 9260 Robert Bosch Smartra 3 Sample A Normal operating mode Radiated Emissions (dBuV/m) 070149_r070149_r # = Ambient Limits: Legend: Source: _ RSS-210 RSS-210 Table 7 Limits at 3m __ Parallel 17 18 19 20 21 27 28 29 30 31 Ver 5.5 Build 151setup for low frequency magnetic loop test. t:A2380307E c1:C1890507 c2:C2490107 p:NONE a:Site ID: Room#8 Test Officer:Pat Sinni Frequency (MHz) .1 1 10 .009 30.5 25 35 45 55 65 75 85 95 105 115 125 EMC Technologies Pty. Ltd. - Global Product CertificationRSS-210 Job No:M070149 Test Date: 29-03-07 GRAPH No. 2 p:\PCF\M070149_18.PCF EMC Technologies (Melbourne) 176 Harrick Rd, Keilor Park, 3042, Vic, Australia Phone+(613) 9335 3333 Fax+(613) 9338 9260 Robert Bosch Smartra 3 Sample A Normal operating mode Radiated Emissions (dBuV/m) 070149_r070149_r # = Ambient Limits: Legend: Source: _ RSS-210 RSS-210 Table 7 Limits at 3m __ Vertical Ambients __ Perpendicular 22 23 24 25 38 33 34 35 36 37 Ver 5.5 Build 151setup for low frequency magnetic loop test. t:A2380307E c1:C1890507 c2:C2490107 p:NONE a:Site ID: Room#8 Test Officer:Pat Sinni Frequency (MHz) .1 1 10 .009 30.5 15 25 35 45 55 65 75 85 95 105 115 125 EMC Technologies Pty. Ltd. - Global Product Certification Job No:M070149 Test Date: 15-03-07 GRAPH No. 3 p:\PCF\M070149f_3.PCF EMC Technologies (Melbourne) 176 Harrick Rd, Keilor Park, 3042, Vic, Australia Phone+(613) 9335 3333 Fax+(613) 9338 9260 Robert Bosch Australia Smartra3 Sample A Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) m070149r # = Ambient Limits: Legend: Source: _ FCC-B3 FCC CLASS B RAD 3M LIMITS __ Vertical Emissions 53 38 39 40 41 47 48 49 Ver 5.5 Build 151radiated emissions site 1 lerderderg t:A1360607_10M c1:C1311107 c2:C2611107 p:NONE a:NONESite ID: Room#8 Test Officer:Pat Sinni Peaks:No Freq Peak QP Val FCC-B3 dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 33.29 34.6 32.4 40.0 -7.6 2 34.78 34.1 32.3 40.0 -7.7 3 49.79 32.4 31.2 40.0 -8.8 4 52.03 32.5 30.8 40.0 -9.2 5 87.80 26.5 25.8 40.0 -14.2 6 120.07 20.7 14.9 43.5 -28.7 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 v ^ 1 ~ v ^ 2 ~ v ^ 3 ~ v ^ 4 ~ v ^ 5 ~ v ^ 6 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:M070149 Test Date: 15-03-07 GRAPH No. 4 p:\PCF\M070149f_4.PCF EMC Technologies (Melbourne) 176 Harrick Rd, Keilor Park, 3042, Vic, Australia Phone+(613) 9335 3333 Fax+(613) 9338 9260 Robert Bosch Australia Smartra3 Sample A Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) m070149r # = Ambient Limits: Legend: Source: _ FCC-B3 FCC CLASS B RAD 3M LIMITS __ Horizontal Emissions 42 43 44 45 46 50 51 52 Ver 5.5 Build 151radiated emissions site 1 lerderderg t:A1360607_10M c1:C1311107 c2:C2611107 p:NONE a:NONESite ID: Room#8 Test Officer:Pat Sinni Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

EMI TEST REPORT for CERTIFICATION to FCC PART 15.209 & RSS-210 FCC ID: LXP-VIMA01 Industry Canada ID: 2298A-VIMA01 Test Sample: Smartra III Immobiliser Tested for: Robert Bosch Australia Report Number: M070149_Cert_Immobiliser Issue Date: 26 th March 2007 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. The certificate on page 3 may be reproduced in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road KeilorPark Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser Page 2 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.209 & RSS-210 EMC Technologies Report No. M070149_Cert_Immobiliser Issue Date: 26 th March 2007 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMI MEASUREMENTS 4.0 RADIATED EMI MEASUREMENTS 5.0 ANTENNA REQUIREMENT 6.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: TEST SAMPLE BLOCK DIAGRAM APPENDIX D: TEST SAMPLE SCHEMATIC APPENDIX E: TEST SAMPLE OPERATIONAL DESCRIPTION APPENDIX F: FCC ID LABELLING APPENDIX G: GRAPHS of EMI MEASUREMENTS APPENDIX H: USER MANUAL FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser Page 3 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.209 & RSS-210 Report Number: M070149_Cert_Immobiliser Test Sample: Smartra III Immobiliser Manufacturer: Robert Bosch (Australia) Pty Ltd FCC ID: LXP-VIMA01 Industry Canada ID: 2298A-VIMA01 Equipment Type: Intentional Radiator Tested for: Robert Bosch (Australia) Pty Ltd Address: Cnr Centre & McNaughton Roads, Clayton VIC 3168, Australia Phone: + 61 3 9541 5555 Fax: + 61 3 9544 1137 Contact: James Lowe Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.209: Radiated Emission Limits, General Requirements. ANSI C63.4 – 2003 OET Bulletin No. 65 RSS-210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices. 6.3: Restricted Bands and Unwanted Emission Frequencies Test Dates: 5 th February – 16 th March 2007 Test Officers: Kevin Hansen Pat Sinni Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser Page 4 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.209 & RSS-210 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the Smartra III Immobiliser Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentional radiators (particularly section 15.209) Section 15.203: Antenna requirements Section 15.205: Restricted bands of operation Section 15.207: Conducted Emission Limits Section 15.209: Radiated Emission Limits, General Requirements The test sample complied with the requirements of 47 CFR, Part 15 Subpart C - Section 15.209: Radiated Emission Limits, General Requirements. The test sample also complied with the Industry Canada RSS-210 issue 5 (Low Power Licence-Exempt Radiocommunication Devices (All Frequency Bands)) clause 6.3: Restricted Bands and Unwanted Emission Frequencies. 1.1 Summary of Results FCC Part 15, Subpart C Clauses Industry Canada RSS-210 Clauses Test Performed Result 15.203 5.5 Antenna Requirement Not Applicable 15.205 6.3 Operation in Restricted Band Complies 15.207 6.6 Conducted Emissions Not Applicable 15.209 6.3 Radiated Emissions Complies The measurement procedure used was in accordance with ANSI C63.4-2003 and OET Bulletin No. 65. The instrumentation conformed to the requirements of ANSI C63.2-1996. 1.2 Modifications by EMC Technologies No modifications were required. 2.0 GENERAL INFORMATION (Information supplied by the Client) 2.1 Product Details Test Sample: Smartra III Immobiliser FCC ID: LXP-VIMA01 Industry Canada ID: 2298A-VIMA01 Equipment Type: Low Power Transmitter (Intentional Radiator) FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser Page 5 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed i…

Text truncated - open the document above for the full version.

FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au APPENDIX B2 TEST SETUP PHOTOS FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser _________________________________________________________________ EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Frequency Range: 30 MHz to 1000 MHz FCC ID: LXP-VIMA01 (IC: 2298A-VIMA01) Report No. M070149_Cert_Immobiliser _________________________________________________________________ EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Frequency Range: 9 kHz to 30 MHz
