M35TWHL85WIRELESS TABLET

TWHL850 (Wireless Tablet) User Manual Windows 7 / Vista / XP Driver Version 5.02 Version ：V10.07 Release Date：2010/07 Contents Chapter 1 General information ........................................................1-1 1 Overview.............................................................................1-1 2 Tablet functions...................................................................1-1 3 System requirements..........................................................1-1 4 Driver installations..............................................................1-1 5 Hardware installations .......................................................1-1 6 Verifying Hardware and driver function...............................1-2 (For Wireless Tablet).... ..............1-2 7 Usage Tips..........................................................................1-2 7.1 Wake up Digital Mouse..................................................1-2 7.2 Wake up Digital Pen......................................................1-2 7.3 Double Tapping for Digital Pen......................................1-3 7.4 Storing the digital pen ...................................................1-3 7.5 Scrolling function of digital pen......................................1-3 7.6 Using a pen without an ordinary mouse........................1-3 8 Wireless Tablet (Media Wireless Tablet) introduction.........1-3 Chapter 2 Pen tablet configuration..................................................2-1 1 The Info Tab........................................................................2-1 2 The Button Tab...................................................................2-1 2.1 Button Name..................................................................2-1 2.2 Double Click Time..........................................................2-2 2.3 Default............................................................................2-2 3 Express Keys......................................................................2-2 3.1 Default.......................................................................2-2 3.2 Re-define Express keys.................................................2-2 3.3 Common........................................................................2-2 3.4 Mouse............................................................................2-3 3.5 Multimedia.....................................................................2-3 3.6 Other..............................................................................2-3 3.7 Run................................................................................2-4 3.8 Internet...........................................................................2-4 3.9 Hot Key..........................................................................2-5 4 The Scope Tab...................................................................2-5 4.1 Full Area.........................................................................2-5 4.2 Screen Ratio..................................................................2-5 4.3 Reserve Edges..............................................................2-6 4.4 Pen Area Dimensions....................................................2-6 4.5 Pen Area Offset.............................................................2-6 4.6 Pen Area......................................................................2-6 5 Hot Cells define page.........................................................2-7 5.1 Hot Pad Layout..............................................................2-7 5.2 Hot Edges......................................................................2-7 5.3 Print...............................................................................2-7 5.4 Clear..............................................................................2-7 5.5 Define............................................................................2-7 5.5.1 Define Hot Cell - Run..............................................2-7 5.5.2 Define Hot Cell - Internet.........................................2-7 5.5.3 Define Hot Cell - Hot Key........................................2-8 5.5.4 Define Hot Cell - Other............................................2-8 5.5.5 Define Hot Cell – Multimedia..................................2-9 5.6 Load Default..................................................................2-9 6 The Pressure Tab...............................................................2-9 6.1 Pressure Test.................................................................2-9 6.2 Clear..............................................................................2-9 6.3 Click Sensitivity..............................................................2-9 Chapter 3 Storing the Digital pen and changing the Pen Battery & Tip....3-1 Chapter 4 Question & Answer .............................................4-1～4-2 *The driver may already be updated to a newer version prior to packaging. If your installation screen does not match the content of this manual, please refer to your software screen after installation. I. General Information 1-1 I. General Information 1. Overview Welcome to the world of tablet and digital pen! You are able to discover how easy to control your personal computer by using a wireless digital pen to instead of a mouse: The function of the digital pen is able to draw a line very thin, thick, light or dark (the pressure sensitivity). You also can write, sign, annotate documents, and draw, sketch or paint as easily as you would on normal paper and simulate the functions like pencil, mark pen, brush, or watercolor pen by using the commercial software packages such as Adobe® PhotoShop™, Corel® Painter™ and Paint Shop™. If MSN Messenger 8.5 or newer is installed, the user can freely create and send digital handwritings and hand drawn pictures, making communication much more fun and entertaining. If you cannot enable handwriting mode in MSN Messenger, please download the relevant handwritin…

Text truncated - open the document above for the full version.

RF_160, Issue 02 UC-Logic Technology Corp. 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.) Tel: 886-2-2278-2862 FAX: 886-2-2278-2863 Declaration of Authorization We Name: UC-Logic Technology Corp. Address: 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.) City: Taipei  . Country: Taiwan  .  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Wireless Tablet  . Type designation: TWHL850  Trademark: UC-Logic  . on our behalf. Date:  2011/01/20  . City:  Taipei  Name:  Mars Lee  (2) Function:  Manager  Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

UC-Logic Technology Corp. 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.) Tel No: 886-2-2278-2862 Fax No.: 886-2-2278-2863 Attestation for FCC Declaration of Conformity FCC ID: M35TWHL85 Data: Jan. 21, 2011 Please be notified that we, the undersigned, UC-Logic Technology Corp. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001 (111172R-RFUSP44V01 ). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114,Taiwan, R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Mars Lee / Manager UC-Logic Technology Corp. Tel: 886-2-2278-2862 Fax: 886-2-2278-2863 Email: [email protected]

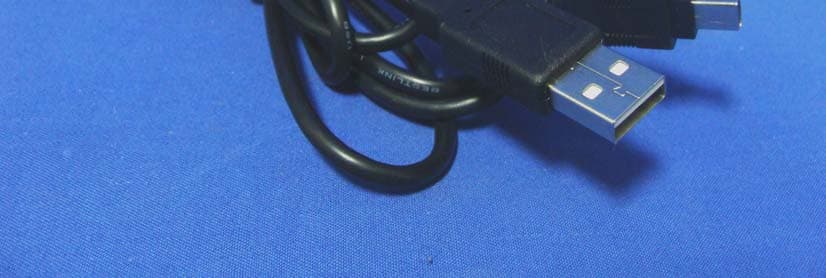

Report No.: 111172R-RFUSP44V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 111172R-RFUSP44V01 Page : 2 of 6 (3) EUT Photo (4) EUT Photo

UC-Logic Technology Corp. FCC ID.: M35TWHL85 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.).Tel : 886-2-22782862 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

UC-Logic Technology Corp. FCC ID.: M35TWHL85 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.).Tel : 886-2-22782862 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 111172R-RFUSP44V01 Page : 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 111172R-RFUSP44V01 Page : 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 111172R-RFUSP44V01 Page : 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 111172R-RFUSP44V01 Page : 6 of 6 (11) EUT Photo (12) EUT Photo

Report No. 111172R-RFUSP44V01 Page: 6 of 35 1.2. Operational Description The EUT is Wireless Tablet built-in 2.4GHz transceiver. The operation frequency is from 2402 MHz to 2479MHz with GFSK modulation. The signal will be transmitted through 2.4 GHz RF signal from the Printed on PCB antenna. DC 3V (Power by Battery) shall be provided for EUT operation.

Report No. 111172R-RFUSP44V01 Page: 1 of 33 Test Report Product Name Wireless Tablet Model No. TWHL850 FCC ID M35TWHL85 Applicant UC-Logic Technology Corp. Address 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.) Date of Receipt Jan. 03, 2011 Issued Date Jan. 18, 2011 Report No. 111172R-RFUSP44V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 111172R-RFUSP44V01 Page: 2 of 33 Test Report Certification Issued Date: Jan. 18, 2011 Report No.: 111172R-RFUSP44V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Wireless Tablet Applicant UC-Logic Technology Corp. Address 2F-9, No. 14, Lane 609, Sec. 5, Chung Hsing Rd., San-Chung Dist., New Taipei City 241, Taiwan (R.O.C.) Manufacturer UC-Logic Technology Corp. Model No. TWHL850 EUT Rated Voltage DC 3V(Power by battery) EUT Test Voltage DC 3V(Power by battery) Trade Name UC-Logic Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Joe Guo ) Approved By : ( Manager / Vincent Lin ) Report No. 111172R-RFUSP44V01 Page: 3 of 33 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of Test System ........................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Radiated Emission .......................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Radiated Emission................................................................................................12 3. Band Edge ..................................................................................................................................20 3.1. Test Equipment............................................................................................................................20 3.2. Test Setup ....................................................................................................................................21 3.3. Limits ..........................................................................................................................................22 3.4. Test Procedure .............................................................................................................................22 3.5. Uncertainty ..................................................................................................................................22 3.6. Test Result of Band Edge ............................................................................................................23 4. Duty Cycle ..................................................................................................................................24 4.1. Test Equipment............................................................................................................................28 4.2. Test Setup ....................................................................................................................................28 4.3. Uncertainty ..................................................................................................................................28 4.4. Test Result of Duty Cycle............................................................................................................29 5. EMI Reduction Method During Compliance Testing ............................................................31 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 111172R-RFUSP44V01 Page: 4 of 33 1. GENERAL INFORMATION 1.1. EUT Description Product Name Wireless Tablet Trade Name UC-Logic Model No. TWHL850 FCC ID M35TWHL85 Frequency Range 2402~2479MHz Channel Control Auto Channel Separation 1MHz Antenna Type Printed on PCB Channel Number 78 Type of Modulation MSK USB Cable Non-Shielded, 1.5m Antenna List …
