M3R-BV900Wireless Entertainment System

BroadcastVision
Wireless Entertainment System - FCC ID M3R-BV900 - BroadcastVision
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Oct 21, 1999
Application Purpose
Original Equipment
Date of Application
Aug 18, 1999
Equipment Note
Wireless Entertainment System
Frequency Range
911.47000000 - 926.98000000
Company
BroadcastVision
Country
United States

Documents & Files

Select a file to view

Users Manual

โ†—

Attestation Statements

โ†—

Block Diagram

โ†—

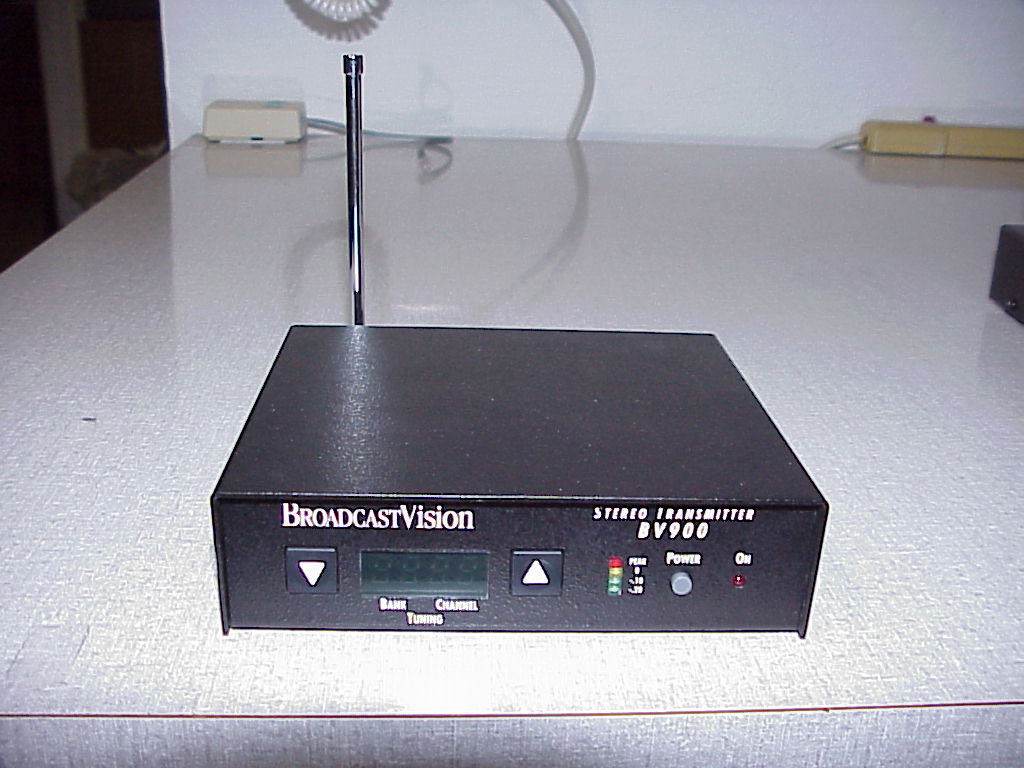

External Photos

โ†—

ID Label/Location Info

โ†—
โ†—

Internal Photos

โ†—

Operational Description

โ†—

RF Exposure Info

โ†—

Schematics

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Test Report

FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 1 of 18 FCC PART 15, SUBPART B & C TEST REPORT for 900MHZ TRANSMITTER Model: BV 900 FCC ID: M3R-BV900 Prepared for BROADCASTVISION 5126 CLARETON DRIVE, SUITE 160 AGOURA, CA 91301 COMPATIBLE ELECTRONICS INC. 2337 TROUTDALE DRIVE AGOURA, CALIFORNIA 91301 (818) 597-0600 DATE: MAY 27, 1999 REPORTAPPENDICESTOTAL BODYABCD PAGES18229839 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 2 of 18 TABLE OF CONTENTS Section / TitlePAGE GENERAL REPORT SUMMARY4 SUMMARY OF TEST RESULTS4 1. PURPOSE5 2. ADMINISTRATIVE DATA6 2.1 Location of Testing6 2.2 Traceability Statement6 2.3 Cognizant Personnel6 2.4 Date Test Sample was Received6 2.5 Disposition of the Test Sample6 2.6 Abbreviations and Acronyms6 3. APPLICABLE DOCUMENTS7 4. Description of Test Configuration8 4.1 Description of Test Configuration - EMI8 4.1.1 Cable Construction and Termination9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2 EMI Test Equipment11 6. TEST SITE DESCRIPTION12 6.1 Test Facility Description12 6.2 EUT Mounting, Bonding and Grounding12 7. Test Procedures13 7.1 RF Emissions13 7.1.1 Conducted Emissions Test13 7.1.2 Radiated Emissions Test14 7.1.3RF Emissions Test Results15 7.1.4RF Emissions Test Results (continued)16 7.1.5 Sample Calculations17 8. CONCLUSIONS18 FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 3 of 18 LIST OF APPENDICES APPENDIXTITLE AModifications to the EUT BAdditional Models Covered Under This Report CDiagrams, Charts and Photos โ€ข Test Setup Diagrams โ€ข Antenna and Effective Gain Factors โ€ข Radiated Emissions Photos DData Sheets LIST OF TABLES TABLETITLE 1 Conducted Emissions Test Results 2 Radiated Emissions Test Results 3 Spurious Emissions Tested LIST OF FIGURES FIGURETitle 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:900MHz Transmitter Model: BV 900 S/N: Prototype Product Description:This is a 900MHz Transmitter used to broadcast television sound or any music source, i.e. tape or CD player. Modifications:The EUT was not modified during the testing. Manufacturer:BroadcastVision 5126 Clareton Drive Agoura Hills, CA 91301 Test Date:Oct. 27 and Dec. 4, 1998 Test Specifications: EMI requirements FCC Title 47, Part 15 Subpart B & C Test Procedure: ANSI C63.4: 1992. Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 2Radiated RF Emissions, 30 MHz โ€“ 5000 GHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 3Radiated RF Emissions, 10 kHz to 9.26 GHz.Complies with the limits of FCC Title 47, Part 15 Subpart C. FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 5 of 18 1.PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 900MHz Transmission Model: BV 900. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined in FCC Title 47, Part 15, Subpart C, 15.249 and 15.209 and 15.205. FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 6 of 18 2.ADMINISTRATIVE DATA 2.1Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 2337 Troutdale Drive, Agoura, California 91301. 2.2Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3Cognizant Personnel BroadcastVision John CurtisVice President of Engineering Compatible Electronics, Inc. Jeremy D. WilliamsonTest Technician Ruby A. HallTest Engineer Jeff S. KlingerLab Manager 2.4Date Test Sample was Received The test sample was received on October 29, 1998. 2.5Disposition of the Test Sample The test sample remains at Compatible Electronics. 2.6Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network FCC ID: MR3-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 59โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: M3R-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C6 FRONT VIEW BROADCASTVISION 900MHZ TRANSMITTER Model: BV 900 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS โ€“ 10-27-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: M3R-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C7 BACK VIEW BROADCASTVISION 900MHZ TRANSMITTER Model: BV 900 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS โ€“ 10-27-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: M3R-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C8 FRONT VIEW BROADCASTVISION 900MHZ TRANSMITTER Model: BV 900 FCC PART 15 SUBPART B & C - CONDUCTED EMISSIONS โ€“ 12-4-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: M3R-BV900 Report Number: A81029F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C9 REAR VIEW BROADCASTVISION 900MHZ TRANSMITTER Model: BV 900 FCC PART 15 SUBPART B & C - CONDUCTED EMISSIONS โ€“ 12-4-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS

Contact Information

Applicant

Dale Kredell(President)
818 879-9780Fax: 818 879-9790

Technical Contact

Compatible ElectronicsJoey J Madlangbayan
[email protected](818) 597-0600

2337 Troutdale Drive ยท Agoura, California ยท United States

Non-Technical Contact

Compatible ElectronicsRuby A Hall
[email protected](818) 597-0600

Test Firm

Compatible ElectronicsRuby Hall
[email protected]818-597-0600Fax: 818-597-1187

Technical Specifications

#Rule PartsFrequency RangePower Output
115C911.47 MHz - 926.98 MHz-
