EXPOSITORY STATEMENT FCC ID: M3R-FM3001 The BroadcastVision BV 3001 is an FM Stereo Transmitter which is used to broadcast television sound or music from a source such as tape, CD or satellite to a wireless receiver. The receiver can be mounted to cardio fitness equipment where the listener can plug headphones in and enjoy music while working out.
In reference to 10792: The antenna complies with Section 15.203 due to its fixed antenna installation. The user does not have the option to remove it. The Highest Center Frequency is 107.9 MHz and the lowest is 88.1 MHz. Upon initial investigation, with the 1 MHz bandwidth, within the FM band 88-108 MHz, the center frequency may have been adversely affected by the presence of ambient signals. Resulting in the .05 MHz error of measurement. The center frequencies were more closely investigated when the bandwidth plots were taken to confirm the frequencies were indeed 88.1 MHz for the low end and 107.9 MHz for the high end. Thank you for your cooperation. Joey J. Madlangbayan Compatible Electronics
FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 1 of 18 FCC PART 15, SUBPART B & C TEST REPORT for FM STEREO TRANSMITTER Model: BV 3001 FCC ID: M3R-FM3001 Prepared for BROADCASTVISION 5126 CLARETON DRIVE #160 AGOURA, CA 91301 COMPATIBLE ELECTRONICS INC. 2337 TROUTDALE DRIVE AGOURA, CALIFORNIA 91301 (818) 597-0600 DATE: JANUARY 8, 1999 REPORTAPPENDICESTOTAL BODYABCD PAGES18229940 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 2 of 18 TABLE OF CONTENTS Section / TitlePAGE GENERAL REPORT SUMMARY4 SUMMARY OF TEST RESULTS4 1. PURPOSE5 2. ADMINISTRATIVE DATA6 2.1 Location of Testing6 2.2 Traceability Statement6 2.3 Cognizant Personnel6 2.4 Date Test Sample was Received6 2.5 Disposition of the Test Sample6 2.6 Abbreviations and Acronyms6 3. APPLICABLE DOCUMENTS7 4. Description of Test Configuration8 4.1 Description of Test Configuration - EMI8 4.1.1 Cable Construction and Termination9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2 EMI Test Equipment11 6. TEST SITE DESCRIPTION12 6.1 Test Facility Description12 6.2 EUT Mounting, Bonding and Grounding12 7. Test Procedures13 7.1 RF Emissions13 7.1.1 Conducted Emissions Test13 7.1.2 Radiated Emissions Test14 7.1.3RF Emissions Test Results15 7.1.4RF Emissions Test Results (continued)16 7.1.5 Sample Calculations17 8. CONCLUSIONS18 FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 3 of 18 LIST OF APPENDICES APPENDIXTITLE AModifications to the EUT BAdditional Models Covered Under This Report CDiagrams, Charts and Photos โข Test Setup Diagrams โข Antenna and Effective Gain Factors โข Radiated Emissions Photos DData Sheets LIST OF TABLES TABLETITLE 1 Conducted Emissions Test Results 2 Radiated Emissions Test Results 3 Spurious Emissions Tested LIST OF FIGURES FIGURETitle 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:FM STEREO TRANSMITTER Model: BV 3001 S/N: none Product Description:This is an FM Stereo Transmitter used to broadcast television sound or any music source, i.e. tape or CD player. Modifications:The EUT was not modified during the testing. Manufacturer:BROADCASTVISION 5126 Clareton Drive #160 Agoura Hills, CA 91301 Test Date:November 6, 1998 Test Specifications: EMI requirements FCC Title 47, Part 15 Subpart B & C Test Procedure: ANSI C63.4: 1992. Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 2Radiated RF Emissions, 30 MHz โ 1000 MHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 3Radiated RF Emissions, 10kHz to 1079 MHz.Complies with the limits of FCC Title 47, Part 15 Subpart C, 15.239 and 15.209 FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 5 of 18 1.PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the FM Stereo Transmitter Model: BV 3001. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined in FCC Title 47, Part 15, Subpart C, 15.239 and 15.209. FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 6 of 18 2.ADMINISTRATIVE DATA 2.1Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 2337 Troutdale Drive, Agoura, California 91301. 2.2Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3Cognizant Personnel BroadcastVision John CurtisVice President of Engineering Compatible Electronics, Inc. Joey J. MadlangbayanTest Engineer Jeff S. KlingerLab Manager 2.4Date Test Sample was Received The test sample was received on Nov 6, 1998. 2.5Disposition of the Test Sample The test sample remains at Compatible Electronics. 2.6Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (81โฆ
Text truncated - open the document above for the full version.

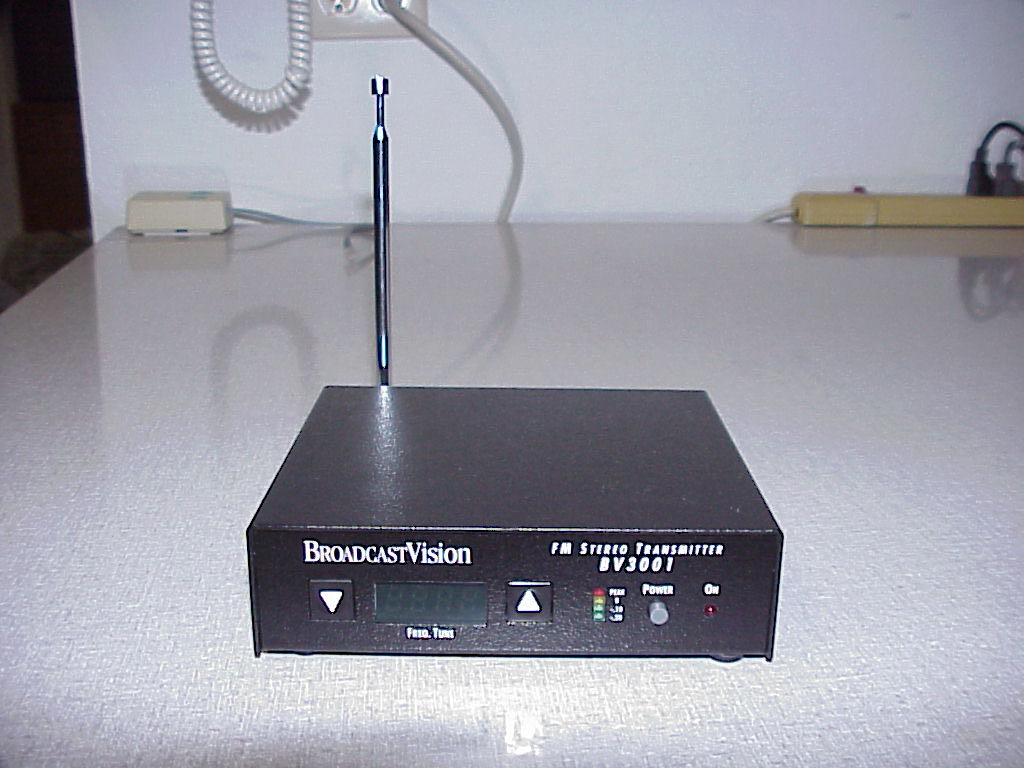

FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C5 FRONT VIEW BROADCASTVISION FM STEREO TRANSMITTER Model: BV 3001 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS โ 11-6-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C6 BACK VIEW BROADCASTVISION FM STEREO TRANSMITTER Model: BV 3001 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS โ 11-6-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C7 FRONT VIEW BROADCASTVISION FM STEREO TRANSMITTER Model: BV 3001 FCC PART 15 SUBPART B & C - CONDUCTED EMISSIONS โ 11-6-98 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: M3R-FM3001 Report Number: A81106F2 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C8 REAR VIEW BROADCASTVISION FM STEREO TRANSMITTER Model: BV 3001 FCC PART 15 SUBPART B & C - CONDUCTED EMISSIONS โ 11-6-99 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS
2337 Troutdale Drive ยท Agoura, California ยท United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 88.1 MHz - 107.9 MHz | - |

Wireless Entertainment System
Equipment Class
DXX - Part 15 Low Power Communication Device TransmitterDXX - Part 15 Low Power Communication Device Transmitter
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
