M3TWIC10Wireless Subwoofer

USER’S MANUAL Wi-Connect Wireless Subwoofer WiC-10 SAFETY NOTICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 SET UP Place Subwoofer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Placement Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Connect Wireless Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Select Receiver Options for Optimal Subwoofer Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Connect Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Select Wireless Broadcast Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Wireless Broadcast Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Adjust Subwoofer Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Use the Subwoofer’s LFE Input (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Hang the Wireless Transmitter on a Wall (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 FEATURES Protection Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 MAINTAIN Protect Subwoofer from Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Clean. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Troubleshoot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 RESOURCES Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 USA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 FCC Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 European Union (EU) Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 CEmark for Class B ITE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Radio Frequency Exposure Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Listen Responsibly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Legal Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Subwoofer Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Warranty. . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

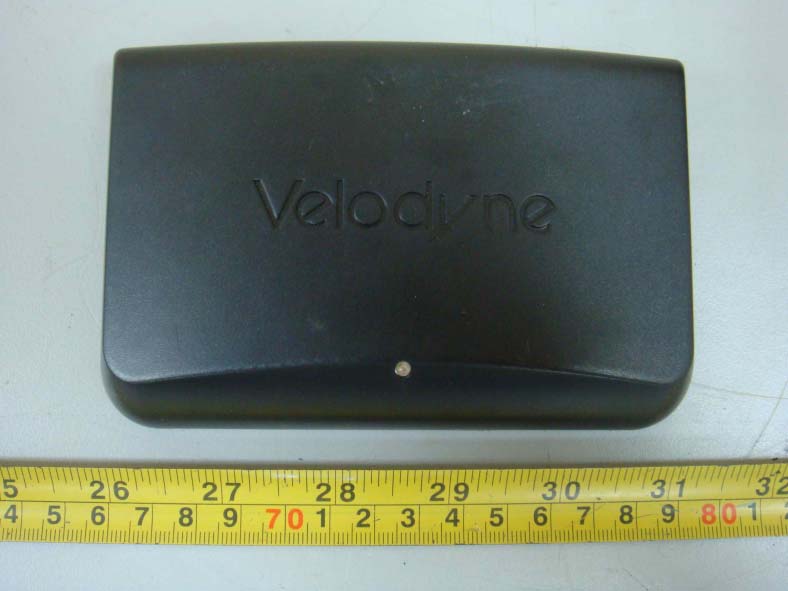

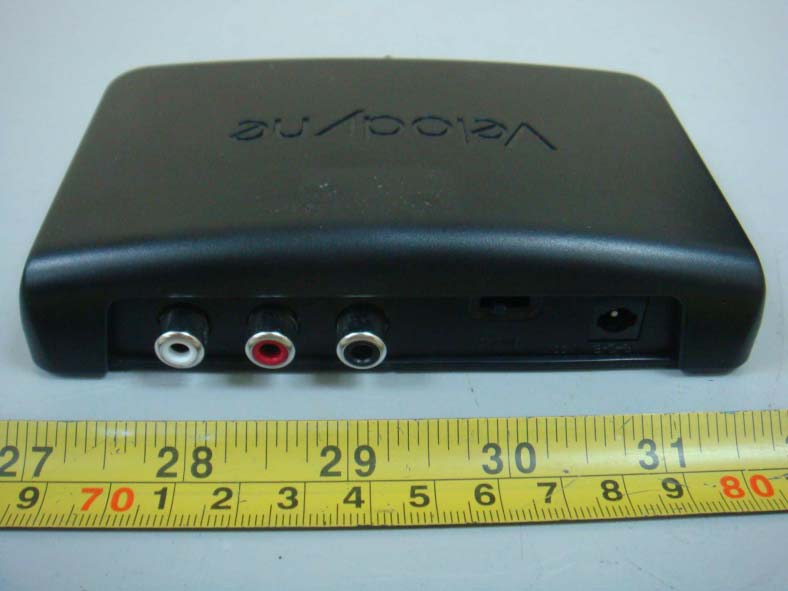

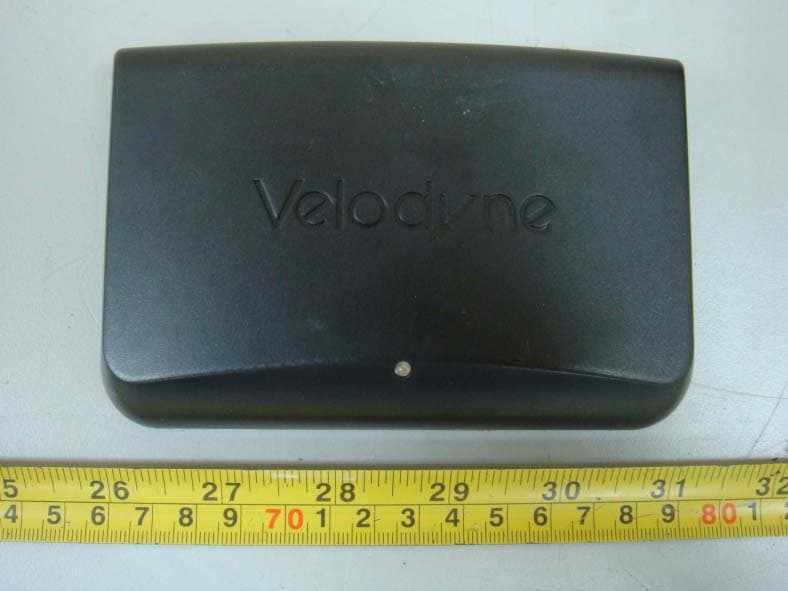

Project No.: R1006013 Page 2 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 3 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 10 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 11 of 11 Neutron Engineering Inc. R1006013

Project No.: R1006013 Page 4 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 5 of 11 Neutron Engineering Inc. R1006013 Project No.: R1006013 Page 6 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 7 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 8 of 11 Neutron Engineering Inc. R1006013 R1006013 Project No.: R1006013 Page 9 of 11 Neutron Engineering Inc. R1006013 R1006013

Report No.: NEI-FCCP-1-R1006013 Page 67 of 71 Neutron Engineering Inc. RV-xxxxxxx 11. RF EXPOSURE TEST 11.1 APPLIED PROCEDURES / LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 11.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Spectrum Analyzer R&S FSP-40 100129 Sep. 10, 2010 Remark: ” N/A” denotes No Model Name , Serial No. or No Calibration specified. 11.1.2 MPE CALCULATION METHOD E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Report No.: NEI-FCCP-1-R1006013 Page 68 of 71 Neutron Engineering Inc. RV-xxxxxxx 11.1.3 DEVIATION FROM STANDARD No deviation. 11.1.4 TEST SETUP 11.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. Report No.: NEI-FCCP-1-R1006013 Page 69 of 71 Neutron Engineering Inc. RV-xxxxxxx 11.1.6 TEST RESULTS EUT： Wireless Subwoofer Model Name ： WiC-10 Temperature： 23.5 °C Relative Humidity： 75 % Test Voltage ： AC 120V/60Hz Test Mode ： 2406MHz/2438MHz/2472MHz Frequency Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2406 MHz 2.08 1.6144 16.0300 40.0867 0.012881 1 Complies 2438 MHz 2.08 1.6144 17.2300 52.8445 0.016980 1 Complies 2472 MHz 2.08 1.6144 18.7000 74.1310 0.023820 1 Complies

Report No.: NEI-FCCP-1-R1006013 Page 1 of 71 Neutron Engineering Inc. RV-xxxxxxx Radio Test Report FCC ID: M3TWIC10 This report concerns (check one) : Original Grant Class I Change Issued Date : Sep. 21, 2010 Project No. : R1006013 Equipment : Wireless Subwoofer Model Name : WiC-10 Applicant : Elytone Electronic Co., Ltd. Address : 218, Sec. 2 Chung Cheng Road, San-hsia 23742, Taipei Hsien, Taiwan Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jul. 27, 2010 Date of Test: Jul. 27, 2010 ~ Aug. 12, 2010 Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: NEI-FCCP-1-R1006013 Page 2 of 71 Neutron Engineering Inc. RV-xxxxxxx Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R1006013 Page 3 of 71 Neutron Engineering Inc. RV-xxxxxxx Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION 15 4.1.2 MEASUREMENT INSTRUMENTS LIST 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 17 4.1.7 TEST RESULTS 18 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 22 4.2.4 DEVIATION FROM TEST STANDARD 22 4.2.5 TEST SETUP 23 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 24 4.2.8 TEST RESULTS-ABOVE 1000 MHZ 26 4.2.9 TEST RESULTS-RESTRICTED BANDS REQUIREMENTS 38 5 . NUMBER OF HOPPING CHANNEL 42 5.1 APPLIED PROCEDURES / LIMIT 42 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 42 5.1.2 TEST PROCEDURE 42 5.1.3 DEVIATION FROM STANDARD 42 5.1.4 TEST SETUP 42 5.1.5 EUT OPERATION CONDITIONS 42 Report No.: NEI-FCCP-1-R1006013 Page 4 of 71 Neutron Engineering Inc. RV-xxxxxxx Table of Contents Page 5.1.6 TEST RESULTS 43 6 . DEWLL TIME OF OCCUPANCY 46 6.1 APPLIED PROCEDURES / LIMIT 46 6.1.1 MEASUREMENT INSTRUMENTS LIST 46 6.1.2 TEST PROCEDURE 46 6.1.3 DEVIATION FROM STANDARD 46 6.1.4 TEST SETUP 47 6.1.5 EUT OPERATION CONDITIONS 47 6.1.6 TEST RESULTS 48 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 52 7.1 APPLIED PROCEDURES / LIMIT 52 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 52 7.1.2 TEST PROCEDURE 52 7.1.3 DEVIATION FROM STANDARD 52 7.1.4 TEST SETUP 52 7.1.5 EUT OPERATION CONDITIONS 52 7.1.6 TEST RESULTS 53 8 . BANDWITH TEST 55 8.1 APPLIED PROCEDURES / LIMIT 55 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 55 8.1.2 TEST PROCEDURE 55 8.1.3 DEVIATION FROM STANDARD 55 8.1.4 TEST SETUP 55 8.1.5 EUT OPERATION CONDITIONS 55 8.1.6 TEST RESULTS 56 9 . PEAK OUTPUT POWER TEST 58 9.1 APPLIED PROCEDURES / LIMIT 58 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 58 9.1.2 TEST PROCEDURE 58 9.1.3 DEVIATION FROM STANDARD 58 9.1.4 TEST SETUP 58 9.1.5 EUT OPERATION CONDITIONS 58 9.1.6 TEST RESULTS 59 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 61 10.1 APPLIED PROCEDURES / LIMIT 61 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 61 10.1.2 TEST PROCEDURE 61 10.1.3 DEVIATION FROM STANDARD 61 10.1.4 TEST SETUP 62 Report No.: NEI-FCCP-1-R1006013 Page 5 of 71 Neutron Engineering Inc. RV-xxxxxxx Table of Contents Page 10.1.5 EUT OPERATION CONDITIONS 62 10.1.6 TEST RESULTS 63 11 . RF EXPOSURE TEST 67 11.1 APPLIED PROCEDURES / LIMIT 67 11.1.1 MEASUREMENT INSTRUMENTS LIST 67 11.1.2 MPE CALCULATION METHOD 67 11.1.3 DEVIATION FROM STANDARD 68 11.1.4 TEST SETUP 68 11.1.5 EUT OPERATION CONDITIONS 68 11.1.6 TEST RESULTS 69 12 . EUT TEST PHOTO 70 Report No.: NEI-FCCP-1-R1006013 Page 6 of 71 Neutron Engineering Inc. RV-xxxxxxx 1. CERTIFICATION E q u i p m e n t : Wireless Subwoofer Brand Name : Velodyne Model Name : WiC-10 A p p l i c a n t : Elytone Electronic Co., Ltd. Date of Test : Jul. 27, 2010 ~ Aug. 12, 2010 Standards : FCC Part15, Subpart C / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R1006013) were …
