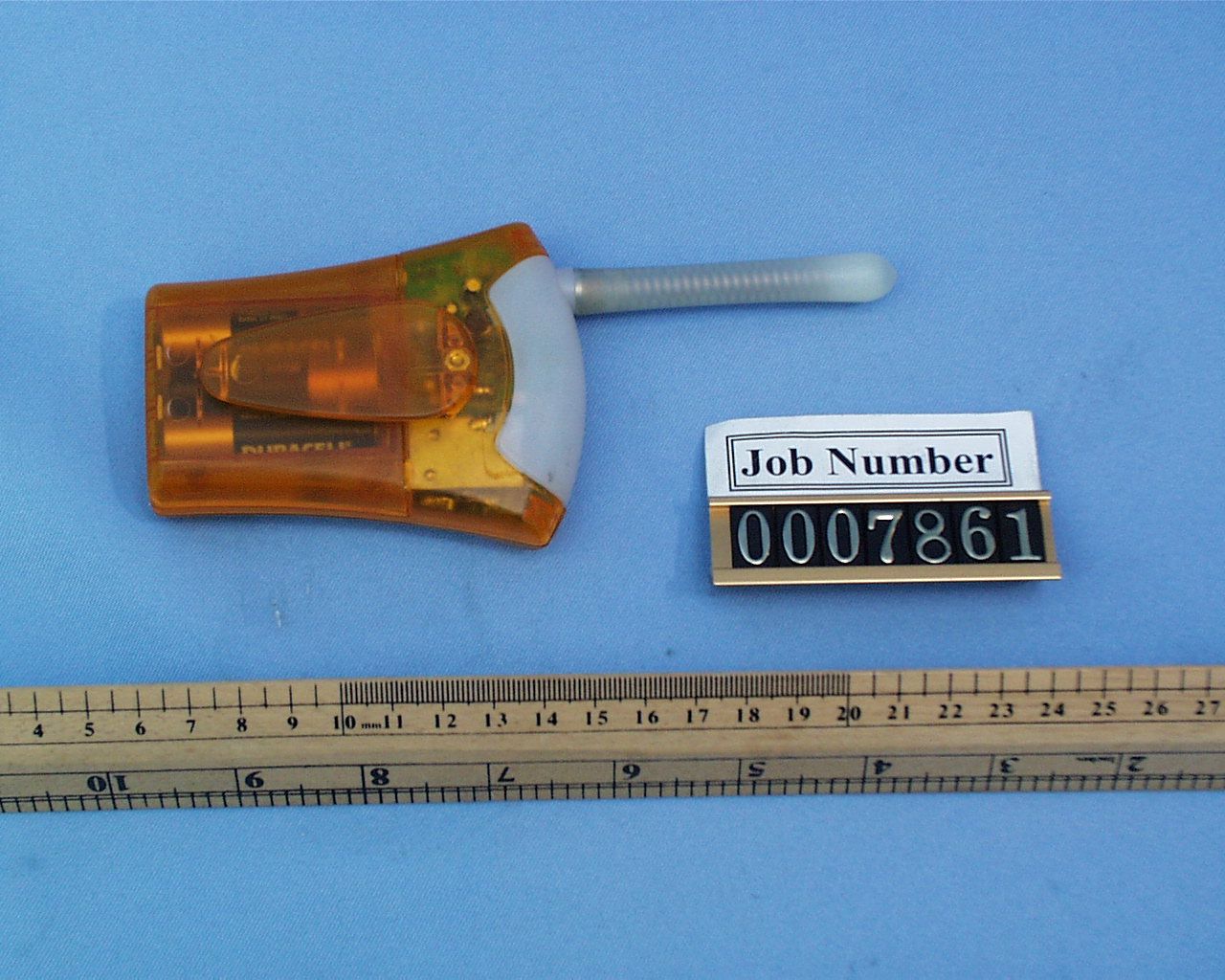

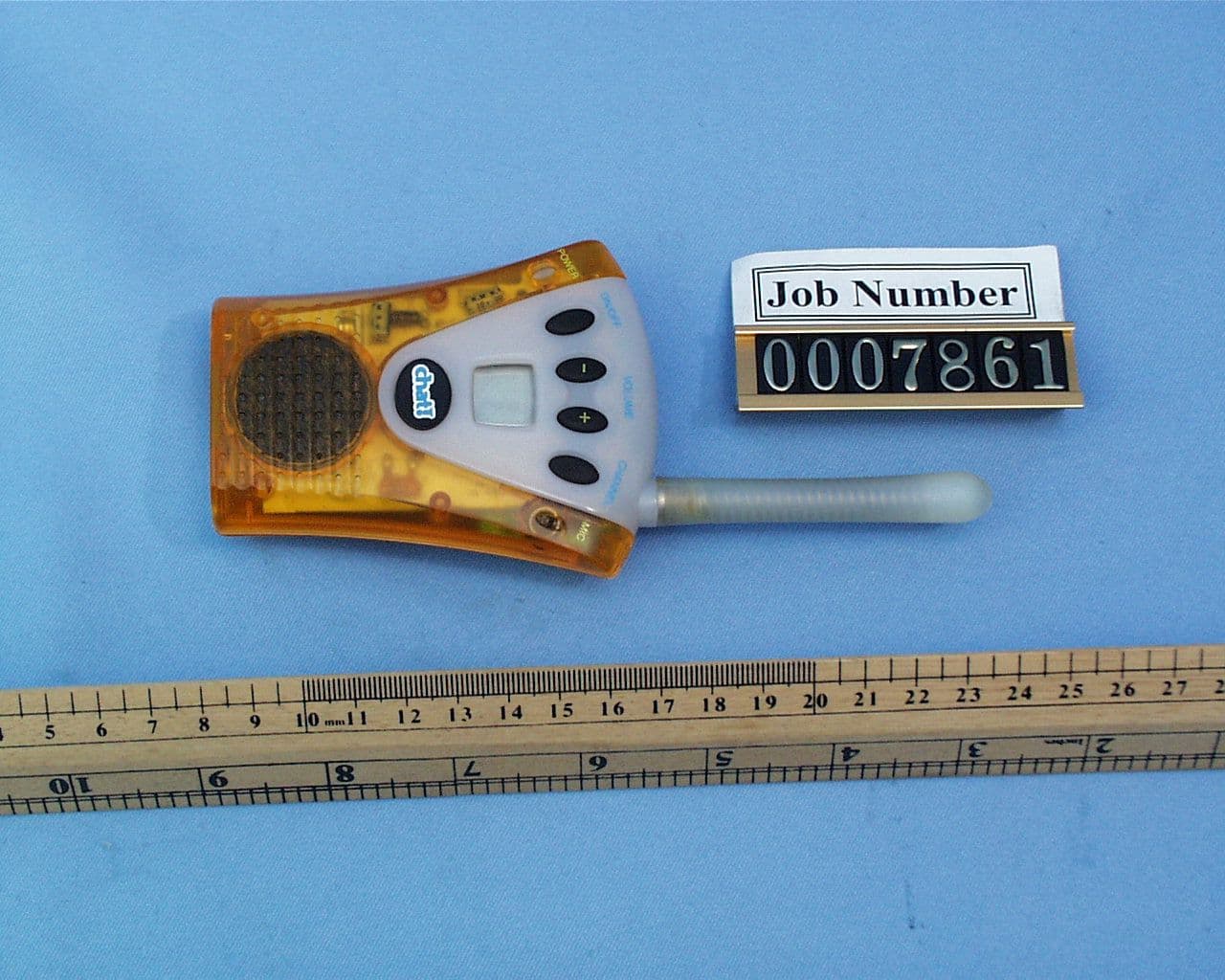

M571021114 Channel Family Radio Service (FRS)

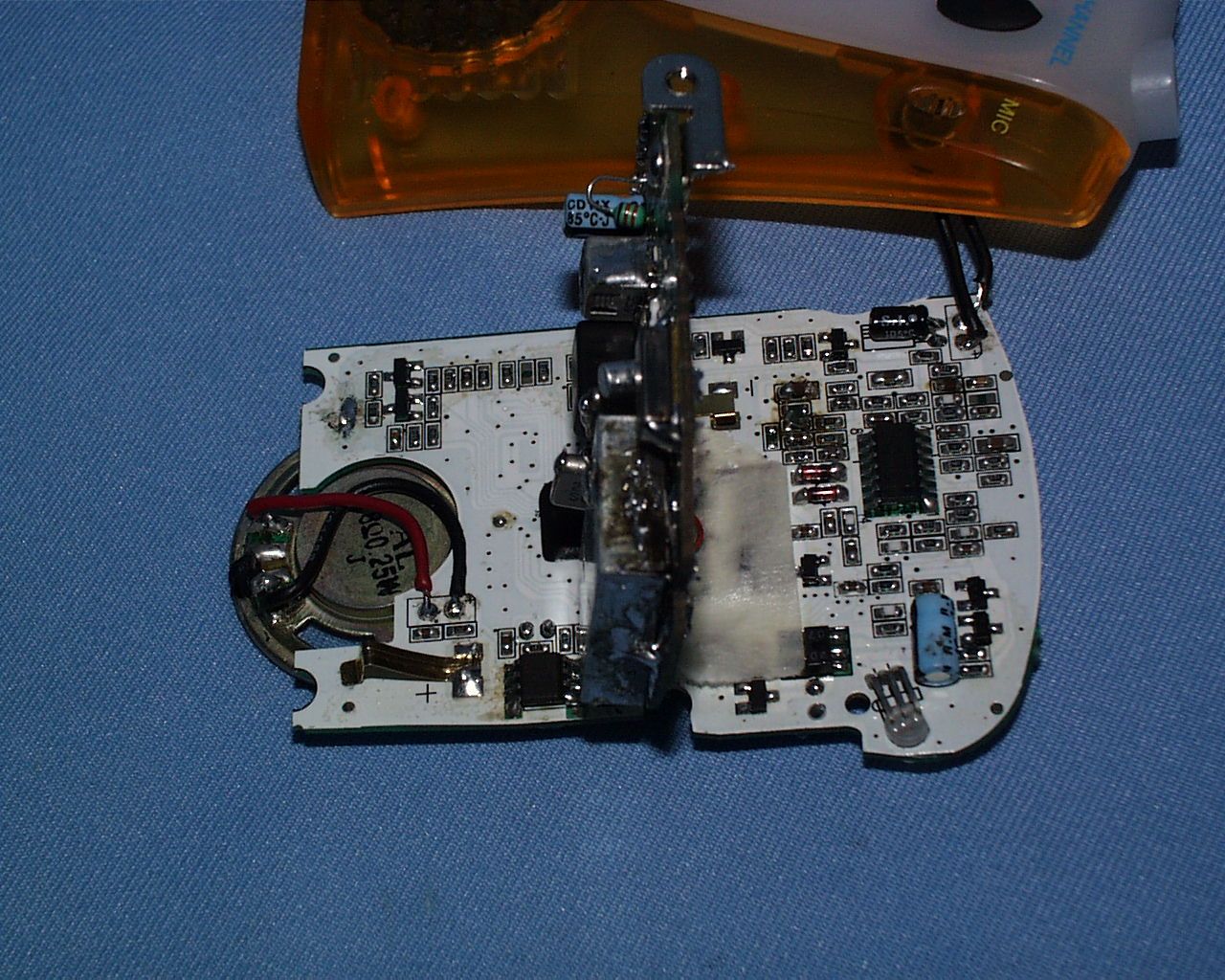

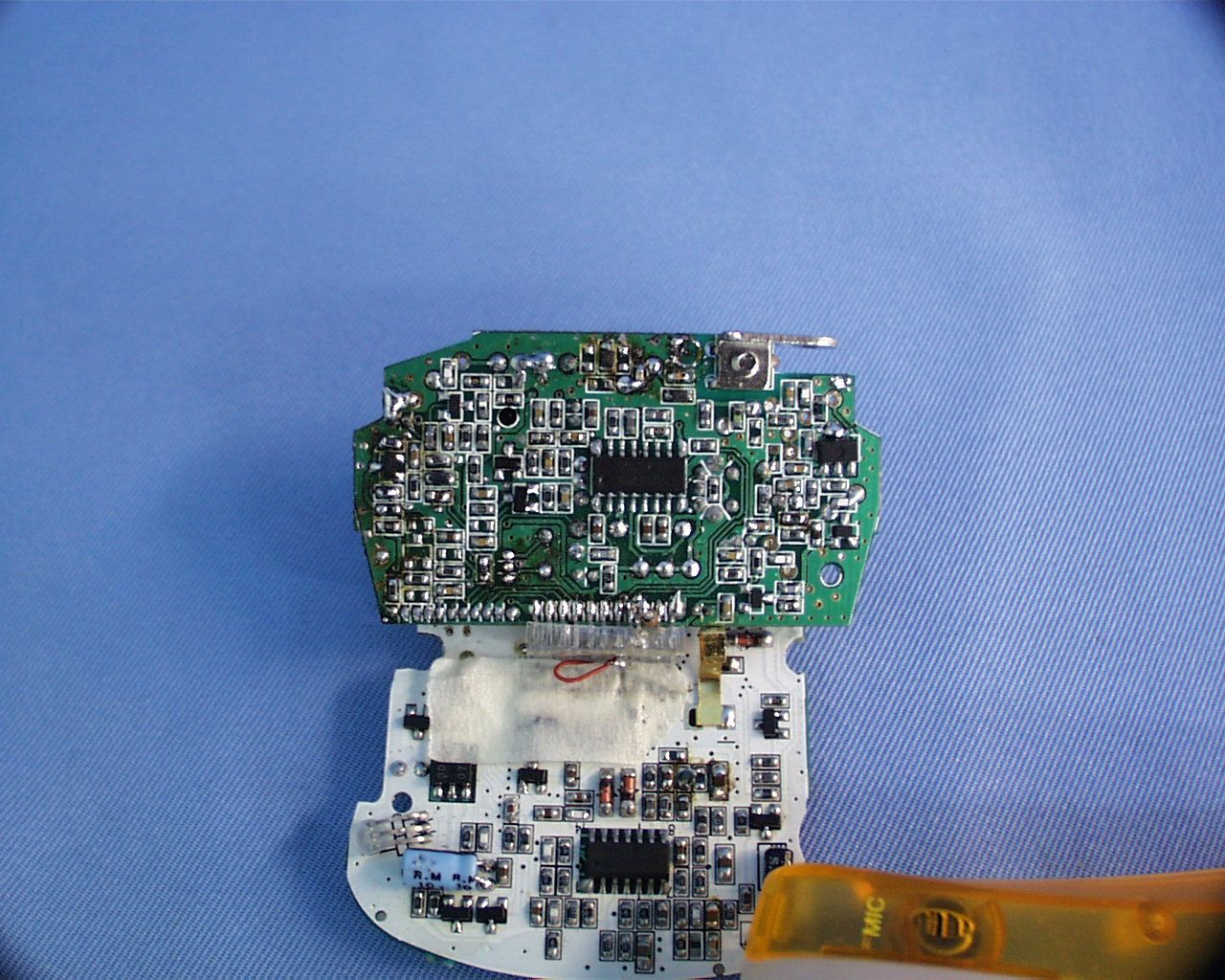

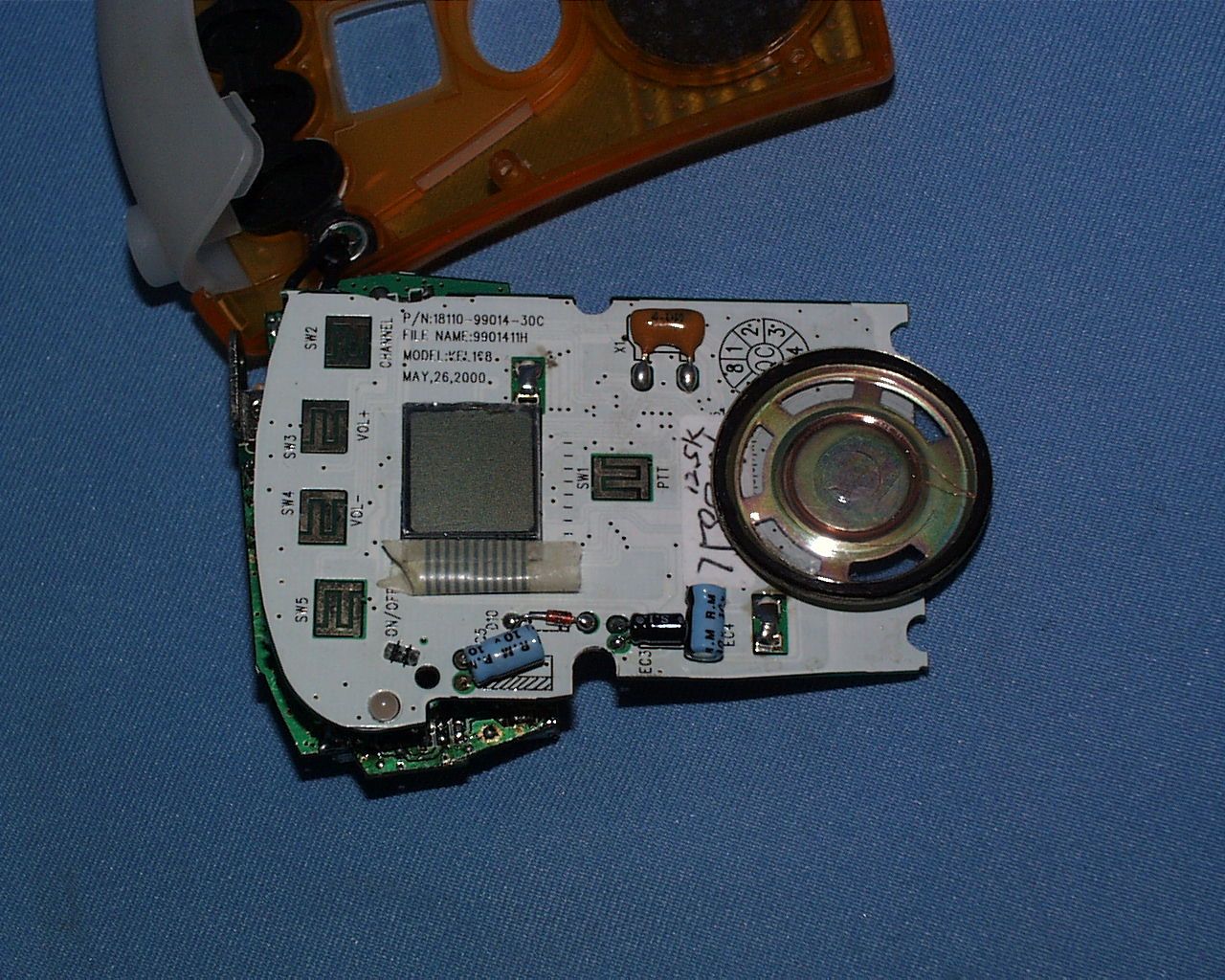

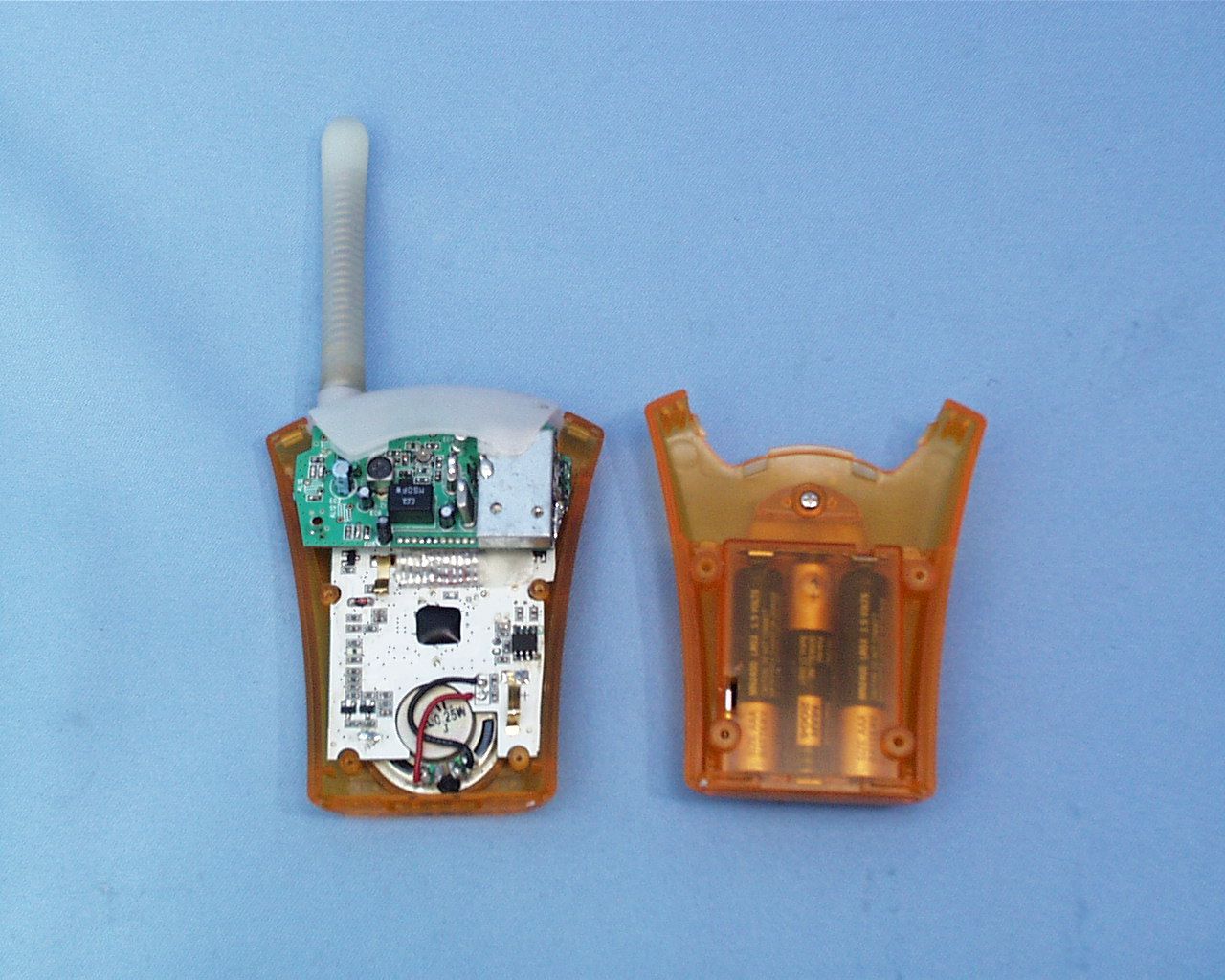

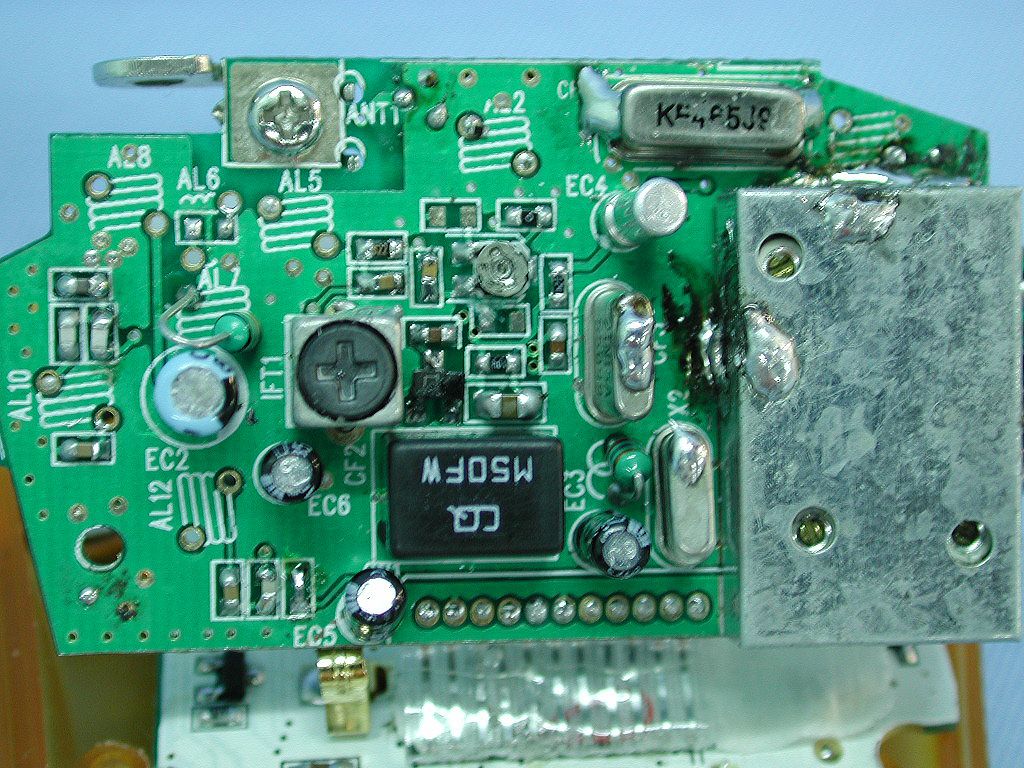

FRS Technical Description: Transmitter: The CPU programs PLL to lock tx VCO at wanted frequency when pressing Ptt key . High frequency will be enlarged by driver amp. and power amp. then will go to low pass filter and antenna switching network and to antenna. Audio signal will pass from Mic and Mic amp. to modulate to VCO. Receiver: Wanded high frequency signal come from antenna ,switching network and low pass filter ,then enlarge by low noise amp. and then go to mixer with RX VCO to generate 1 st IF signal to pass 1 st IF filter. The 1 st IF signal to mix with 2 nd local OSC. To generate 2 nd IF signal to enlarge by amp. and FM demod to recover audio signal. And then enlarge by audio amp. to speaker.

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed a refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed • For Terms And Conditions of the services, it can be p rovided up on request. FCC ID: M5710211 Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Kessel Electronics (HK) Limited Application For Certification (FCC ID: M5710211) July 10, 2000 WO# 0007960 WN/at July 10, 2000 INTERTEK TESTING SERVICES FCC ID: M5710211i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :RF Power Output EXHIBIT 4 :Modulation Characteristics EXHIBIT 5 :Occupied Bandwidth EXHIBIT 6 :Emission Spurious EXHIBIT 7 :Frequency Stability EXHIBIT 8 :Technical Specifications EXHIBIT 9 :Product Labelling EXHIBIT 10 :Photographs EXHIBIT 11: Instruction Manual INTERTEK TESTING SERVICES FCC ID: M5710211ii MEASUREMENT/TECHNICAL REPORT Application: Kessel Electronics (HK) Limited Trade Name/Model No : 14 Channel Family Radio Service Date: July 10, 2000 Sample Received Date : June 8, 2000 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Family Radio Service, FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by:Wilson Loke Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8575 Fax:852-2745-8306 INTERTEK TESTING SERVICES FCC ID: M5710211iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description ............................................................................................................2 1.2 Ralated Submittal(s) Grants ................................................................................................ 3 1.3 Test Methodology ...............................................................................................................3 1.4 Test Facility......................................................................................................................... 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification ......................................................................................................................... 5 2.2 EUT Exercising Software .................................................................................................... 6 2.3 Special Accessories .............................................................................................................6 2.4 Equipment Modification ..................................................................................................... 6 3.0 RF Output Power (Section 95.639(d)) ................................................................................... 8 4.0 Modulation Characteristics (Section 95.637(a)) ................................................................. 12 4.1 Modulation Frequiency Response ..................................................................................... 14 4.2 Modulation Limiting Characteristic................................................................................... 16 5.0 Occupied Bandwidth (Section 95.633(c) .............................................................................. 17 6.0 Spurious Emission (Section 95.635(b)) ................................................................................ 20 6.1 Field Strength of Spurious Radiation ................................................................................ 21 7.0 Frequency Stanility (Section 95.627) ................................................................................... 27 7.1 Frequency Tolerance ......................................................................................................... 28 7.2 Temperature Extreme Condition ....................................................................................... 30 7.3 Voltage Extreme Condition ............................................................................................... 33 8.0 Technical Specifications ........................................................................................................ 36 9.0 Product Labelling .................................................................................................................. 40 10.0 Equipment Photographs ..................................................................................................... 43 11.0 Instruction Mannal .............................................................................................................. 45 INTERTEK TESTING SERVICES FCC ID: M5710211 iv List of attached file Exhibit typeFile DescriptionFilename Cover LetterLetter of Agencyletter.pdf Operation DescriptionTechnical Descriptiondescri.doc Test ReportBandwidth Plotbw.pdf Test ReportModulation Frequency Responsemfr.pdf Test ReportModulation Limit Characteristicmlc.pdf Test ReportSpurious Emissionspurious.pdf Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto5.jpg External PhotoExternal Photoophoto1.jpg to ophoto2.jpg INTERTEK TESTING SERVICES FCC ID: M5710211…
