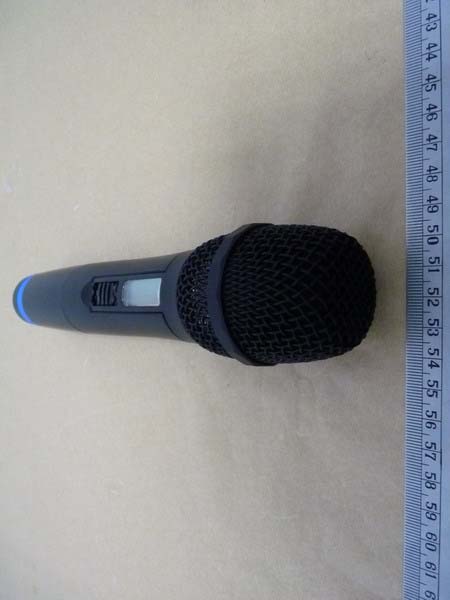

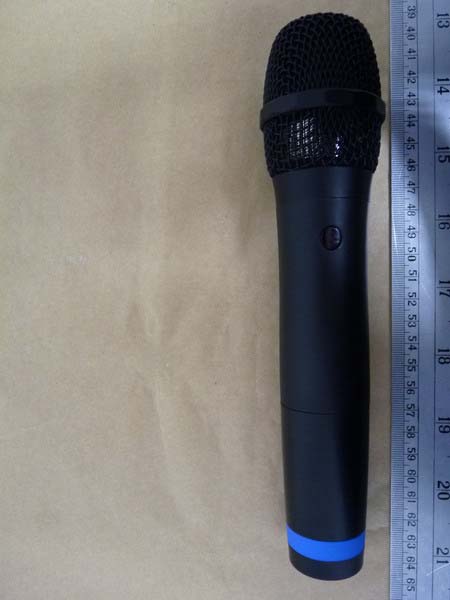

M5X-ACT30HRHandheld Transmitter Microphone

ACT-30Hr ACT-30H Handheld Transmitter Microphone User Guide MIPRO Electronics Co., Ltd. Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan. Web: www.mipro.com.tw E-mail: [email protected] As110215 Design and specifications are subject to change without prior notice 2CE401A Handheld TransmitterHandheld Transmitter 01 Profile There are two types of antenna design for the handheld transmitter microphones “built-in” and “external”. The “built-in” design is normally incorporate upper side of PCB in the housing and the microphone capsule module as transmitting antenna. The advantages are to avoid the antenna breakage due to external design, inconvenience and able to shorten the microphone housing design. However, its drawbacks are poor transmission efficiency especially when replacing microphone capsules, unstable and deteriorated transmission efficiency if it is gripped over the antenna area. The “external” design enhances transmission efficiency and stability, however, it causes inconvenience and it may be damaged by accidental crashing. MIPRO's patented design provides an ideal solution. The antenna is integrated in the battery holder at the bottom side of the housing, so it successfully combines the advantages of both “built-in” and “external” design. The matched antenna and transmitter circuit enhance transmission efficiency and stability regardless capsules and battery replacement, or change of grip positions and housing materials. Microphone capsule, audio modulation, RF output and antenna transmission constitute the perfect straight-line layout of the transmitter PCB so that it can achieve the best transmission quality and efficiency. ACT-30H/30Hr are the most evolved design model for built-in antenna transmitters nowadays. 1Profile 2Key Features 3Handheld Controls and Indicators 5O 9General Tips for Improving System Performance perating Instructions for Insertion & Removing Battery 6Operating Instructions 7Lcd Screen 8Battery Status Contents Top Grille: Protects detachable microphone capsule module and internal foam prevents breathing, wind and POP noises. LCD Screen: Displays group, channel, battery status and error codes. Remote Volume Control Buttons: Press to decrease or to increase volume wirelessly. Power On/Off Switch: Slide the power switch to the “ON” position for use or to the “OFF” position when not in use. Handheld controls and indicators 1 2 3 4 Handheld TransmitterHandheld Transmitter 23 ACT-30Hr ACT-30H (圖一) GROUPCHANNEL BAT 2 10 3 11 4567891 GROUPCHANNEL BAT 2 1011 4567891 Key Features !Proprietary anti-dismantle design prevents the separation of the microphone grille from the microphone housing. !The microphone capsule is connected to the transmitter PCB and then screwed onto the housing to prevent the potential malfunction caused by improper contact. !Modularized PCB and microphone capsule can be easily detached and assembled. Optional premium microphone capsule modules are available. !ACT-30H is constructed of sturdy plastic housing to enhance the transmission efficiency. Special coated treatment prevents from handling noise and paint stripping. !ACT-30Hr is equipped with remote-control volume buttons. !Proprietary lockable on/off switch to avoid accidental power off. !Durable construction of integrated housing and battery compartment, allowing 2 AA type batteries easily to be inserted and replaced. !Battery housing design secures the battery installation to prevent the malfunction when knocked. Multi-color rings for easy channel identification. !LCD on the housing displays working group, channel, battery level and error codes. !High-efficiency low spurious emissions UHF PLL synthesized RF technology. !An interference-free working channel can be synchronized quickly and precisely by MIPRO's proprietary ACT function. !MIPRO vocal condenser microphone capsule exhibits high fidelity, wide dynamic range, fast transient responses, low feedback howling, accurate sound image characteristics, transparent sound quality and extremely low handling noise. !Proprietary high dynamic range modulation circuitry sustains a maximum SPL of 140dB so performers can be confident it won't distort when sing loudly. !Optional MU-89b true condenser microphone capsule is ideal for natural sound reproduction. Operating instructions for Insertion & removing battery (Figure3) 8 GROUPCHANNEL BAT 1.Gently twist the microphone housing in a counter-clockwise direction 2.Remove the old batteries from the battery compartment, if any are installed. 3.Insert two new AA alkaline batteries in the battery compartment with correct polarity orientation. Handheld TransmitterHandheld Transmitter 45 Lockable On/Off Switch: Slide the switch to the “ON” position after power-on to avoid accidental power off during performance. Slide the switch to “OFF” position before power-off and conserve battery power. Housing: Upper portion connects to the microphone capsule module. Internally it holds the transmitter PCB and battery compartment. Battery Compartment: Accommodates 2 AA alkaline. Battery Compartment Cover: Protects battery compartment and holds batteries. Color-Coded Ring: Available in different colors for channel differentiation. ACT Infrared (IR) Port: Receives signals from receiver to synchronize frequencies. 6 5 7 11 8 9 10 ERR GROUPCHANNEL BAT !ERR Message: When “ERR” appears in the display it indicates that an operational error has occurred. Please refer to the following codes to diagnose which error you are experiencing. ERR no01 EEPROM is not being programmed or internal data error. ERR no02 For testing only. ERR no03 The frequency you want to program is above the switching bandwidth of the transmitter. Use a receiver with an appropriate frequency group. (At this time the microphone is still operating and the frequency remains unchanged. To clear the displayed "ERR" message, switch the handheld transmitter off and on again.) ERR no04 The frequency you want to program is below the switching bandwidth…
