M5X-ACT707TMWireless Microphone

ACT-707TMWirelessMicrophone ACT-707TMWirelessMicrophone 2CE160 InstructionManual ElectronicsCo.,Ltd. Headoffice:814,Pei-KangRoad,Chiayi,600,Taiwan. Taipeioffice:5,Lane118,Sung-tehRoad,110,Taipei,Taiwan. Web-http://www.mipro.com.tw E-mail:[email protected] 3.TransmittingAntenna:1/4transmittingantenna. 4.TransmitterHousing:PackagesthePCBandbattery. 5.Multi-FunctionLCDDisplay 6.ACTSignalReceptor:ReceivingACTsignaland adjustingfrequencyautomatically. 7.GainControl:Adjuststhedesirousinputgain. 8.GT/MTLevelSelector:SwitchtoGTpositionwhen underusageofelectricguitarorany"LineIn"audio. Whenconnectstoacondensermicrophoneora wiredmicrophone,switchtoMTpositionandthe gaincontrolcanserveasinputsensitivityadjustor. 9.BatteryCompartmentandCover:Accommodates two1.5V(AA)batteries. 10.DetachableBeltClip:Allows360degreesrotatingto suittransmittingangles.Todetachsimplyusea screwdriverata45degreeangletounfasten.see diagrambelow. 12 1.PARTSNAMEANDFUNCTIONS (Fig.1) BodypackTransmitter BodypackTransmitter 4 9 8 7 6 5 2 3 10 GROUPCHANNELBAT 1 Finelycraftedandergonomicallydesigned ACT-707TMadaptsmagnesiumalloyhousing, LCDpanel,andhigh-efficienttransmitting circuitdesignwithlowspuriousshowcases MIPRO'sprofessionalstyle. 1.AFInputJack:Connectstoeitheralavaliereora headsetmicrophone.(See5waysofconnectionon AFInputConnections) 2.PowerSwitch:SwitchtoONpositionforoperation. SwitchtoOFFpositionwhennotinuse. AATYPEBATTERY2 CARRYINGSTORAGEBAG1 INSTRUCTIONMANUAL1 FURNISHEDACCESSORIES: Yes 10mW(oraccordingtoregulations) PLLSynthesizer <-55dBc 0dBV Condenser AATYPE2 145gs 1056625 ITEM SPECIFICATIONS SPECIFICATION: 34 2.OPERATINGINSTRUCTIONS 13 4 2 GROUPCHANNELBAT OFF Lavalier Headset Pleaseaimofthe fillisterandinsert theconnector (Fig.2) BodypackTransmitter BodypackTransmitter CapsuleConnector 1.ToadjustGT/MTSwitch(9),andGainControl(7), simplypushdownbothsnaplocksonthesidesof batterycoverandflipitbackwardstoexposethe adjustmentpanel. 2.TheLEDindicatorflashesbrieflywhenpoweron indicatingnormalbatterystatus.Ifnoflashoccursit haseithernobattery,thebatteryisdrainedorinstalled incorrectly.Changeaccordingly. 3.Plugthemicrophoneconnectorintotheinputjackand tightentheconnectorscrewclockwisedirectionas shownin(Fig.2). on ACTFunction RFOutputPower OscillationMode SpuriousEmissions MaximumInputLevel MicrophoneCapsule Battery Weight(g) Dimensions(m/m) AUDIO SHIELD 4 3 2 1 PIN SHIELD AUDIO BIAS 3 4 PIN 1 2 AUDIO SHIELD 1 4 3 2 PIN SHIELD AUDIO 3 21 PIN 4 3 2 1 SHIELD AUDIO 1 3 4 2 PIN 1 3 4 2 13 4 2 1 3 4 2 13 4 2 1 3 4 2 56 3.AFINPUTCONNECTIONS (1)2-WireElectretcondenser microphoneCapsule (2)3-WireElectretcondensermicrophoneCapsule (3)DynamicMicrophone (5)Line-in(Impedance8KATT.10dB) (4)ElectricGuitar BodypackTransmitter BodypackTransmitter ERR GROUPCHANNELBAT 4.FUNCTIONSOFLCDDISPLAY 1.ERRMessage:When"ERR"appears,itmeans "OperationError".Pleaserefertothefollowingcodes todiagnosewhicherroryouareexperiencing. ERRno01EEPROMisnotbeingprogrammedor internaldataerror. ERRno02Fortestingonly. ERRno03Thefrequencyyouareabouttoprograminto thesystemexceedsmicrophone'supperlimit. (Atthistime,microphoneisstilloperatable andthefrequencyremainsunchanged.To clearthe"ERR"messageinLCDdisplay, simplyturnoffthepowerandswitchbackon.) ERRno04Thefrequencyyouareabouttoprograminto thesystemisbelowmicrophone'sfrequency lowerlimit.(Atthistime,microphoneisstill operatableandthefrequencyremains unchanged.Toclearthe"ERR"messagein LCDdisplay,simplyturnoffthepowerand switchbackon.) 2."Group"&"Channel":Whenbothitemsareshown, theyindicatethattheuseriscurrentlyusingthepre- programmedfrequencyinthereceiver. 3."Channel"Only:If"Channel"istheonlyitemshownin thedisplay,itindicatestheuserisusingthe personalizedfrequency.(Suchfrequencycanonlybe programmedviaMIPRO'sACTSoftwareandavailable onACT-707MConly.) 1.Pushingdownbothsnaplocksonthesidesofbattery covertoopenbatterycover.Takeoutthebatteries. Fig.(3). 2.Inserttwo1.5(AA)batteriesintothebattery compartmentaccordingtothecorrectpolarityas showninFig.(4).Thenpushuptoclosethebattery compartmentasshowninFig.(4). 78 5.BATTERYINSTALLATION (Fig.3) (Fig.4) 100%80%40%10%0% 4.BatteryStatus: BatteryStatus:Whenthebatteryhaslessthan10% powerremaining,batteriesmustbereplaced.If undervoltagecontinues,LCDwillshow"PoFF"andshut downthesystemtoavoidbatterybeingover-discharged. 5.SwitchOff: Whenswitchthepowerknobto"Off"position,LCD willshow"PoFF"first.Then,thesystemiscompletely shutdownandnofurthermessagewillbedisplayed. BodypackTransmitter BodypackTransmitter PS:Whenthemicrophoneisnotinuse: Makesurethepowerofthemicrophoneisoff.Ifthe microphonewillnotbeusedforsometime,please removethebatteriesfromthebatterycompartmentto avoidbatteryleakageandresultindamagedbattery springsandcircuit.Ifarechargeablebatterywas used,takeitoutandrechargeit. BodypackTransmitter NOTE: 910 Notice: Thechangesormodificationsnotexpresslyapproved bythepartyresponsibleforcompliancecouldvoidthe user'sauthoritytooperatetheequipment. IMPORTANTNOTE: TocomplywiththeFCCRFexposurecompliance requirements,nochangetotheantennaorthedeviceis permitted.Anychangetotheantennaorthedevicecould resultinthedeviceexceedingtheRFexposure requirementsandvoiduser'sauthoritytooperatethe device.

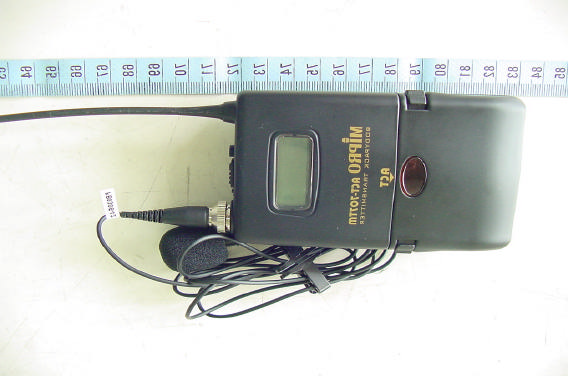

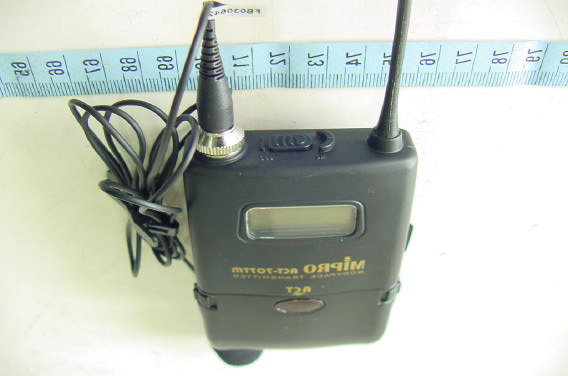

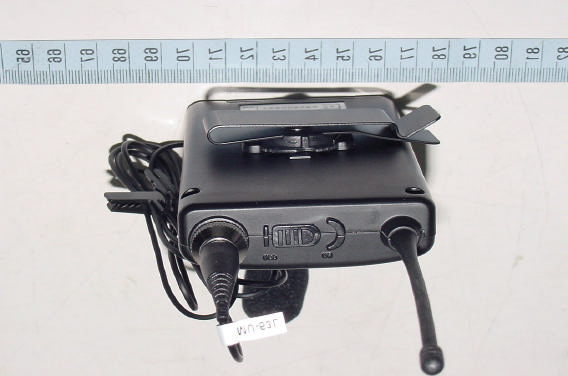

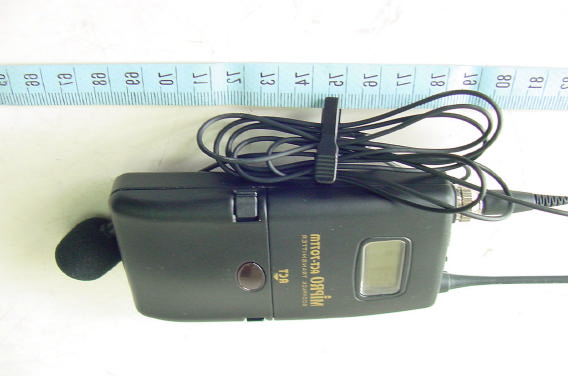

ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Rear View of EUT Rear View of EUT

MIPRO ELECTRONICS CO., LTD. Head Office: 814, Pei-kang Rd., Chiayi, Taiwan. Taipei: 5, Lane 118, Sung-teh Road, Taipei. TEL: +(886)-5-238-0809 TEL: +(886)-2-2723-4747 FAX: +(886)-5-238-0803 FAX: +(886)-2-2723-0838 MICROPHONE PROFESSIONALS Web: www.mipro.com.tw E-mail: [email protected] ISO 9001 Certificate No. 041007829 FCC ID/ IC 07/14/2003 Model : ACT-707TM FCC ID : M5X-ACT707TM IC : XXXXXX- YYYYYYYY Made in Taiwan Complies with Canada 210

ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of PCB 1 ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB 1 Solder View of PCB 1 ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Component View of PCB 2 Solder View of PCB 2 ETC Report No.:ET92R-07-058-02 FCC ID.:M5X-ACT707TM Rev. 2.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB 2

SPECIFICATIONS FOR ACT-707TM TRANSMITTER ITEM SPECIFICATIONS 1. FREQUENCY RANGE 794000 ~ 806.000MHz 2 . FREQUENCY GENERATION Phase Locked Loop (PLL) technique 3 . CHANNEL GRID 25KHz 4 . FREQUENCY STABLE 0.005% 0 ~ +50 5 . MODULATION FM 6 . RF OUTPUT POWER (50 OHMS LOAD) <10mW 7 . SPURIOUS EMISSION <4nW 8 . NOMINAL DEVIATION 40KHz 9. AUDIO FREQUENCY RANGE 80~ 18,000Hz 10 . DISTORTION (AT 1KHZ AND NOMINAL DEV) <0.3% 11 . PRE -EMPHASIS 25uS 12 . MIN. OPERATING VOLTA GE +2V DC 13 . BATTERY AA3(1.5V) 2 14 . CURRENT CONSUMPTION Approx. 80mA 15. ANTENNA Exter (1/4 ) 16 . CONNECTORS 4 PIN SCREW TYPE MINIATURE 17 . DIMENSION (m/m) 105(L)66(W )25(H) 18 . W EIGHTS Approx. 145g 19. ENVIRONMENTAL Full SPECS -10 to 60 ACT707TMI01A EQUIPMENT DESCRIPTION

TEST AND ALINGNMENT INSTRUCTIONS 1Measuring instruments and test set-up 2.Pre-set AAudio analyzer 400Hz— 14.3dBV. BDC power supply 3V OUT CSpectrum analyzer Frequency start 10MHz Frequency stop 2.9GHz ACT707TMR03A SERVICE / TECHNICAL MANUALS TEST AND ALINGNMENT INSTRUCTIONS NO MEASUREMENTA DJUSTMENT SET-UP OBSERVATION TEST POINT ADJ NORMAL VALUE 1 “BATT-LOW” LED DC POWER SUPPLY 3V “BATT-LOW” LED BAT, BAT NO LED flash one time when switch ON 2 DC TO DC DC POWER SUPPLY 3V DC VOLTAGE METER TP6 NO 6.2V 0.2V 3 VOLTAGE REAULATOR 3V DC POWER SUPPLY 3V DC VOLTAGE METER TP12 NO 3V 0.25V 4 VOLTAGE REAULATOR 5V DC POWER SUPPLY 3V DC VOLTAGE METER TP3 NO 5V 0.25V 5 CENTER FREQ TRACKING VOLTAGE SET TO CENTER FREQ DC VOLTAGE METER VC VC4 2.5V 0.1V 6 DOWN FREQ TRACKING VOLTAGE VCO SET TO DOWN FREQ DC VOLTAGE METER VC VC4 >1V 7 UPER FREQ TRACKING VOLTAGE SET TO UPER FREQ DC VOLTAGE METER VC VC4 <4V 8 RF OUTPUT POWER SPECTRUM 1.FULL SPAN 2. Att 30dB 3. CENTER FREQ SPECTRUM ANALYZET ANT VC1,VC2 1.PEAK:+10~+15dBm 2.SPURIOUS>-55dBc 9 CURRENT DISSIPATION DC POWER SUPPLY 3V CURRENT MATER BAT BAT NO 75mA85mA 10 CENTER FREQUENCY FRQUENCY COUNTER(100Hz RES) FREQUENCY COUNTER ANT VC3 Fo 2KHz 11 AF 0 dB COMPANDOR 1. SW4 switch to ”GT” 2. AUDIO ANALYZER 400Hz, -14.3dBV AUDIO ANALYZER TP7 NO 612 mV 12mV 12 MODULATION AUDIO ANALYZER 400Hz, -14.3dBV AMM (3.5K LPF) ANT VR2 40 1K 13 MT INPUT 1. SW4 switch to”MT” 2. AUDIO ANALYZER 400Hz, -39dBV AMM (3.5K LPF) ANT NO 40 4K 14 PREEMPHASIS AUDIO ANALYZER 10KHz, -14.3dBV AMM (15K LPF) ANT NO 63 4K LED3 ON 15 TONE DEF (8K DEV) 1.MIC2 (TP5 TO GND) 2.AMM(50K,60K LPF) OR SPECTRUN ANY AMM OR SPECTRUM ANALYZER MARKTO32K (NEXT PEAK) ANT VR3 8K 0.3K (AMM) -18.5 0.5dB (SPECTRUN ) 16 BATT. LOW DISPLAY DC VOLTAGE 2.2V DC VOLTAGE 2.0V LED2,LCD LED2,LCD BAT BAT NO LED OFF,LCD Batt. Status 1~2 segment LED2 ON,LCD Batt. Ststus no segment 17 BATT. LOW OFF DC VOLTAGE 1.9V LCD CURRENT METER BAT BAT NO LCD SHOW PoFF I<1mA ACT707TMR03A SERVICE / TECHNICAL MANUALS PART LIST DATE05.14.2003 NO: ACT707TMP01A PART LIST MODELACT-707TM CIRCUIT1PM0050A (1PM050A3) Computer No. Reference Value Qty Note 1CCS6P101 C6 100P 1 1 1CCS6X104 C7 104P 1 1 1CCS6P471 C8 470P 1 1 1CESHA107 C10 100μF/6.3V 1 1 1CCS6X104 C11 473P 1 1 1CTSAA106 C12 10μF/10V 1 1 1CCS6P471 C13 470P 1 1 1CCS6P068 C14 68P 1 1 1CCS6P101 C15 100P 1 1 1CCS6P471 C16 470P 1 1 1CCS6P471 C17 470P 1 1 1CCS6P471 C18 470P 1 1 1CCS6P006 C19 6P 1 1 1CCS6P471 C20 470P 1 1 1CCS6P101 C21 100P 1 1 1CCS6P010 C22 10P 1 1 1CTSAA106 C23 100μF/6.3V 1 1 1CCS6P471 C24 470P 1 1 1CCS6X103 C25 103P 1 1 1CCS6P101 C26 100P 1 1 1CTSDA104 C27 0.1μF/35V 1 1 1CESHA107 C28 100μF/6.3V 1 1 1CESHA107 C29 100μF6.3V 1 1 1CCS6P471 C31 470P 1 1 1CCS6P471 C32 470P 1 1 1CCS6P101 C34 100P 1 1 1CCS6X102 C35 102P 1 1 PART LIST DATE05.14.2003 NO: ACT707TMP01A PART LIST MODELACT-707TM CIRCUIT1PM0050A (1PM050A3) Computer No. Reference Value Qty Note 1CCS6X102 C36 102P 1 1 1CCS6P471 C37 470P 1 1 1CCS6P151 C38 150P 1 1 1CCS6P471 C39 470P 1 1 1CCS6P471 C42 470P 1 1 1CCS6P471 C43 470P 1 1 1CTSAA106 C44 10μF/10V 1 1 1CTSDA474 C45 0.47μF/35V 1 1 1CCS6P101 C46 100P 1 1 1CTSAA106 C47 10μF/10V 1 1 1CCS6P101 C49 100P 1 1 1CCS6P101 C50 100P 1 1 1CCS6P101 C51 100P 1 1 1CTSAA106 C52 10μF/10V 1 1 1CCS6P039 C53 39P 1 1 1CCS6P471 C54 470P 1 1 1CCS6X102 C55 102P 1 1 1CTSBA225 C56 2.2μF/16V 1 1 1CTSBA225 C57 2.2μF/16V 1 1 1CCS6P101 C58 100P 1 1 1CTSAA106 C59 10μF/10V 1 1 1CTSBA105 C60 1μF/16V 1 1 1CCS6P101 C61 100P 1 1 1CCS6P101 C62 100P 1 1 1CCS6P101 C66 100P 1 1 1CTSAA106 C67 10uF 1 1 1CCS8X103 C68 103P 1 1 PART LIST DATE05.14.2003 NO: ACT707TMP01A PART LIST MODELACT-707TM CIRCUIT1PM0050A (1PM050A3) Computer No. Reference Value Qty Note 1CCS6X103 C69 103P 1 1 1CCS6X473 C70 473P 1 1 1CTSAA106 C71 10μF/10V 1 1 1CTSAA106 C72 10μF/10V 1 1 1CTSAA106 C73 10μF/10V 1 1 1CTSBA225 C74 2.2μF/16V 1 1 1CTSAA475 C75 4.7μF/10V 1 1 1CTSBA225 C76 2.2μF/16V 1 1 1CCS6P101 C77 100P 1 1 1CTSAA106 C79 10μF/10V 1 1 1CCS6X104 C80 104P 1 1 1CCS6X103 C81 103P 1 1 1CTSAA106 C82 10μF/10V 1 1 1CCS6X103 C83 103P 1 1 1CTSDA104 C84 0.1μF/35V 1 1 1CCS6P222 C85 222P 1 1 1CTSBA225 C86 2.2μF/16V 1 1 1CCS8P102 C87 102P 1 1 1CTSBA225 C89 2.2μF/16V 1 1 1CCS6P020 C90 20P 1 1 1CCS6P068 C91 68P 1 1 1CTSAA106 C92 10μF/10V 1 1 1CTSAA106 C93 10μF/10V 1 1 1CTSAA475 C94 4.7μF/10V 1 1 1CTSDA474 C95 0.47μF/35V 1 1 1CTSBA225 C96 2.2μF/16V 1 1 1CTSBA225 C97 2.2μF/16V 1 1 PART LIST DATE05.14.2003 NO: ACT707TMP01A PART LIST MODELACT-707TM CIRCUIT1PM0050A (1PM050A3) Computer No. Reference Value Qty Note 1CTSBA225 C98 2.2μF/16V 1 1 1CTSBA225 C99 2.2μF/16V 1 1 1CTSBA225 C100 2.2μF/16V 1 1 1CCS8Y104 C101 104P(0805) 1 1 1CTSBA225 C102 2.2μF/16V 1 1 1CCS6P473 C103 473P 1 1 1CTSAA475 C104 4.7μF/10V 1 1 1CCSCP332 C105 332P(1206) 1 1 1CCS6P012 C106 12P 1 1 1CCS6P473 C107 473P 1 1 1CCS6P036 C108 36P 1 1 1CCS6X103 C109 103P 1 1 1CTSBA105 C110 1μF/16V 1 1 1CCS6P471 C113 470P 1 1 1CTSBA225 C116 2.2μF/16V 1 1 1CTSAA106 C118 10μF/10V 1 1 1CCS6P471 C120 470P 1 1 1CTSAA106 C121 10μF/10V 1 1 1CCS6P473 C122 473P 1 1 1CCS6P473 C124 473P 1 1 1CTSAA106 C125 10μF/10V 1 1 1CCS6P471 C126 470P 1 1 1CCS6P471 C127 470P 1 1 1CESHA337 C128 339μF/6.3V 1 1 1CESHA337 C129 339μF/6.3V 1 1 1LLS8224 L1 220nH 1 1 PART LIST DATE05.14.2003 NO: ACT707TMP01A PART LIST MODELACT-707TM CIRCUIT1PM0050A (1PM050A3) Computer No. Reference Value Qty Note 1LLS8823 L2 82nH 1 1 1LLS8224 L4 220nH 1 1 1LLS8224 L6 220nH 1 1 1LLS8224 L7 220nH 1 1 1LLS8224 L8 220nH 1 1 1LLSA476 L14 47uH 1 1 1LLSA476 L15 47uH 1 1 1LLS8224 L18 220uH 1 1 1DLNRC01 LED2 LED-R 1 1 1DLSR210 LED3 SML-210LT 1 1 1TS093AW Q1 1TS093AW 1 1 1TS01577 Q2 1TS01577 1 1 1TS0520X Q3 1TS0520X 1 1 1TS0520X Q4 1TS0520X 1 1 1TS0520X Q5 1TS0520X 1 1 1TS04097 Q6 1TS04097 1 1 1TS01577 Q7 1TS01577 1 1 1TS16212 Q8 1TS16212 1 1 1TS04097 Q9 1TS04097 1 1 1TS15113 Q10 1TS15113 1 1 1TS04097 Q11 1TS04097 1 1 1TS01577 Q12 1TS01577 1 1 1TS04097 Q13 1TS04097 1 1 1TS00508 Q14 1TS00508 1 1 1TS04097 Q15 1TS04097 1 1 PART LIST DATE05.14.2003 NO: ACT707TMP01A PART LIST MO…
