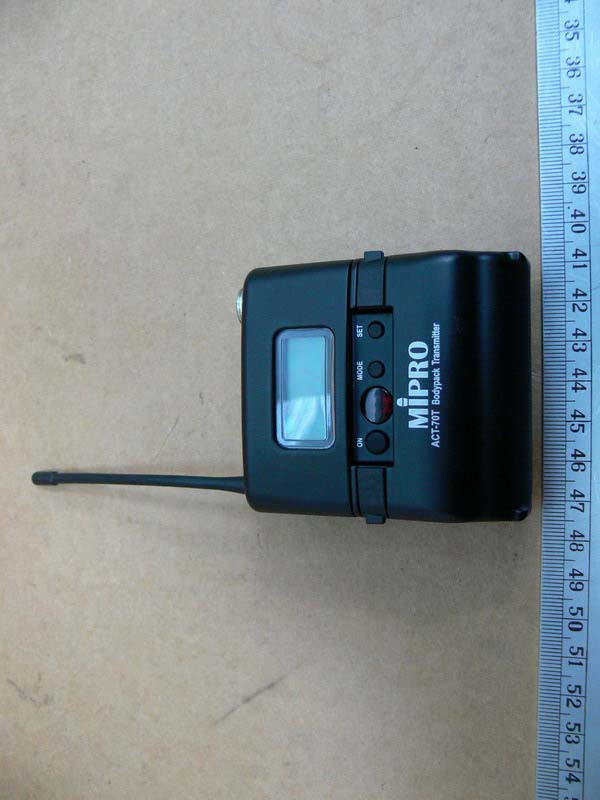

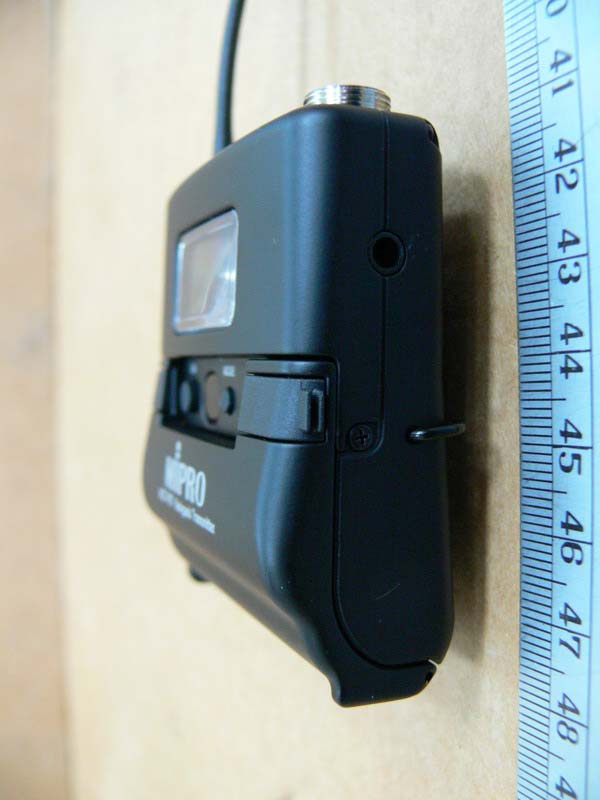

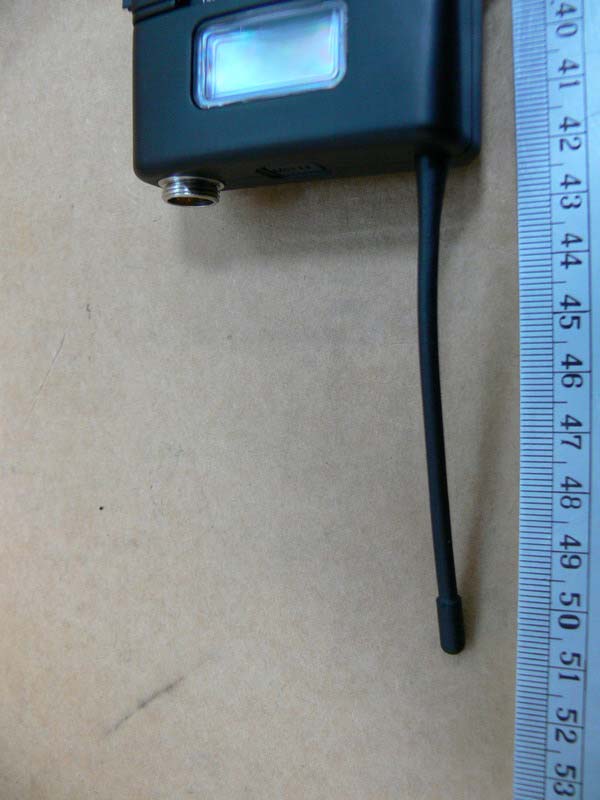

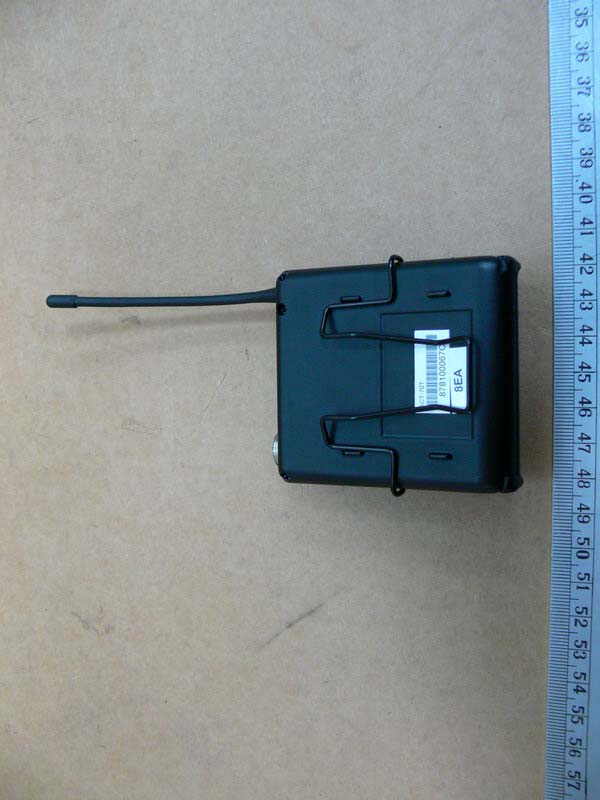

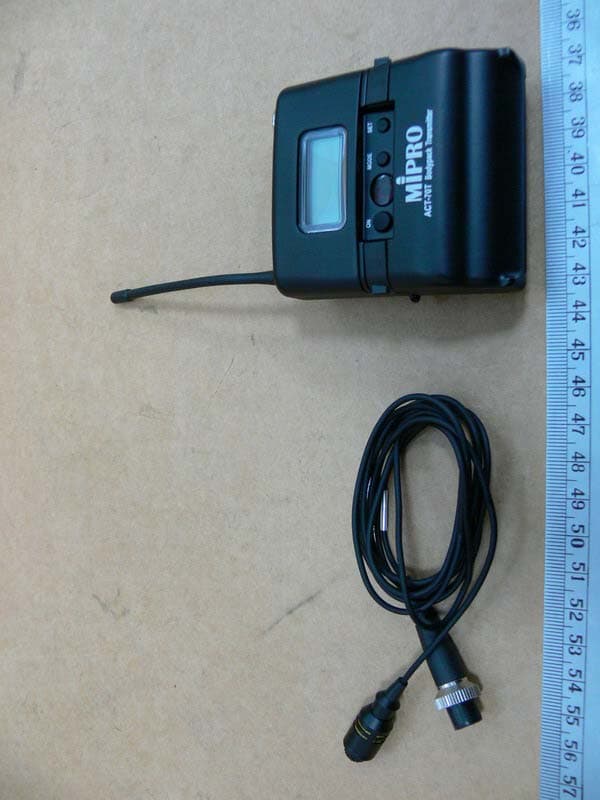

M5X-ACT70TN71A71Wideband Bodypack Transmitter

MIPRO Electronics Co., Ltd. Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan. Web: www.mipro.com.tw E-mail: [email protected] AS121015 Design and specifications are subject to change without prior notice ACT-70T Wideband Bodypack Transmitter User Guide 2CE448A 0 1 Wideband Bodypack TransmitterWideband Bodypack Transmitter ! ! ! ! ! ! ! ! ! ! ! ! Bandwidth to 72MHz for compatibility with the wideband receivers. Industry's smallest bodypack transmitter with sturdy magnesium alloy housing for 2AA batteries. Antenna, mute button and XLR input connector are located on the top of transmitter. Backlit LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute, battery status, and error codes. Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation. Mute button and remote-control jack is equipped for easy activation of mute function. High efficiency, low power consumption, low spurious emission and high stability PLL synthesized circuit is applied. An interference-free working channel can be synchronized quickly and precisely by MIPRO's patented ACT™ function. High SPL input without distortion. Can be directly matched to high-low input impedance for microphone and guitar without switching and the input sensitivity is adjustable. Mini-XLR input connector for quick-lock or screw- lock with lavaliere or headworn microphones and guitar. Adjustable belt clip allows wearing transmitter in any position. 1Features 3Bodypack Controls and Indicators 6O Display Screen ransmitter Parameters 14Battery Status 16 18AF attery Removal and Installation perating Instructions 7LCD 8T Setting MUTE Input Connections 19B FeaturesContents Audio Input Connector: TA4F mini 4-pin connector accepts any MIPRO lavalier, instrument and headset microphones and cables. (See 5 ways of connection on AF Input Connections) 11 Bodypack Controls and Indicators !USER GUIDE ×1 Furnished Accessories: 2 3 Wideband Bodypack TransmitterWideband Bodypack Transmitter 22 33 44 55 1212 1313 11 99 SET MODEON 88 66 77 1111 1010 01 01 GROUP CHAN MUTE Button: To mute and un-mute the audio signal temporary. Antenna: Flexible 1/ 4 wave transmitting antenna. Transmitter Housing: Holds PCB board and wires. LCD Panel: Display transmitter parameters. SET Button: Parameter selection button. MODE Button: Allows access to 7 available functions displaying in LCD panel. Power Button: Press and hold 2 seconds to power ON or OFF. ACT IR Port: Align and syncs the transmitter and receiver frequency automatically. Battery Compartment: Holds 2 'AA' batteries. Battery Cover: Hinged cover opens to provide access to 2 'AA' batteries. External Mute Connector: When an external mute switch cable, MJ-70 (optional) is connected, user can manually mute and un-mute the audio temporary. Belt Clip: Detachable and reversible design allows the transmitter to be worn on a belt, waistband, or guitar strap (.Figure 1) 44 55 66 77 88 99 1010 1111 1212 1313 33 22 4 5 (Figure 1) (Positive Wear)(Opposite Wear) Wideband Bodypack TransmitterWideband Bodypack Transmitter LCD Display Screen LCD Screen AF (audio) MUTE Transmitter Battery Meter 1414 1515 1616 6 7 1414 1515 1616 7UA BAND AF MUTE Operating Instructions (Figure 2) !The audio gain level is factory preset at 0dB level. !Guitar setting is recommended at -12dB level. ! ! Insert the lavalier, headset microphone or instrument cable into the audio input connector before power ON the transmitter. Tighten the connector screw clockwise direction as shown in (Figure 2) for a secured fit. The ridge on the connector must align and match the indentation on the socket when inserting for a proper fit. Capsule Connector Headset Lavalier Wideband Bodypack TransmitterWideband Bodypack Transmitter 01 01 GROUP CHAN SET MODEON !Frequency Band, Group & Channel and Frequency are factory pre-set, thus, its parameter values are displayed after it is ACT synced. Values cannot be changed. ()Frequency Band ()Group and Channel ()Frequency 8 9 Transmitter Parameters ! ! MODE button Press “MODE” button to access one of the six parameters below. SET button Press “SET” button then the changeable functions will twinkle. Change to the desired parameters during the above twinkle by pressing “SET” button. Wideband Bodypack TransmitterWideband Bodypack Transmitter Group and Channel Frequency Sensitivity Level RF Output Power Frequency Band MUTE Mode Parameters Lock & Unlock Status BB AA CC DD EE FF GG AADDBB CC FFEE GG 01 01 GROUP CHAN SET MODEON MODE SET 01 01 GROUP CHAN 775.275MHz FREQUENCY 0 dB AF GAIN 7UA BAND UNLOCK SET LOCK MANUAL MUTE MODE RF-LOW RF POWER MODEMODE MODE MODE MODEMODEMODE 7UA BAND 775.275MHz FREQUENCY 01 01 GROUP CHAN Setting RF Output Power !2 RF Output Power Levels: RF-LOW and RF-HI. !Press MODE button until RF POWER mode appears. !Press SET button once to activate function. !Press SET button to select the desired RF output power. !Press MODE button to confirm and save the change. 10 11 Setting Input Gain Level !Selectable between 12dB to -18dB with 6dB parameter up or down selection. !Press MODE button until mode appears. !Press SET button once to activate function. !Press SET button to select the desired sensitivity level. !Press MODE button to confirm and save the change. !The higher the sensitivity level, the lower the dynamic range of input signals. Meanwhile noise will increase, and the feedback problem will be getting more serious. NOTE: Guitar setting is recommended at -12dB level. AF GAIN AF GAIN Wideband Bodypack TransmitterWideband Bodypack Transmitter 0 dB AF GAIN 6 dB AF GAIN 12 dB AF GAIN 0 dB -6 dB AF GAIN AF GAIN 6 dB AF GAIN -12 dB AF GAIN -18 dB AF GAIN -12 dB AF GAIN -6 dB AF GAIN SET SET SET SET SET SET SET SET SET SET RF-HI RF POWER RF-LOW RF POWER SET 12 13 Setting LOCK !Setting LOCK can be switched to LOCK or UNLOCK mode. !Press MODE button until SET LOCK mode appears. !Press SET button to select the desired parameter. !Pres…
