M5X-ACT80HWideband Digital Handheld Transmitter

MIPRO Electronics Co., Ltd. Headquarters: 814 Pei-Kang Road, Chiayi, 60096, Taiwan. Web: www.mipro.com.tw E-mail: [email protected] AS120815 Design and specifications are subject to change without prior notice ACT-80HWideband Digital User Guide Handheld Transmitter 2CE465A Dispose of any unusable devices or batteries responsibly and in accordance with any applicable regulations. Disposing of used batteries with domestic waste is to be avoided! Batteries / NiCad cells often contain heavy metals such as cadmium(Cd), mercury(Hg) and lead(Pb) that makes them unsuitable for disposal with domestic waste. You may return spent batteries/ accumulators free of charge to recycling centres or anywhere else batteries/accumulators are sold. By doing so, you contribute to the conservation of our environment! Disposal 2005-08-13 IC: This device complies with Industry Canada licence-exempt RSS-123 ISSUE 2 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC ID label: THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. 1Key Features 3Bodypack Controls and Indicators 5Operating Instructions for Insertion & Removing Battery 6Patented Protection Cover Display Screen How to Setup Transmitter Parameters 20Battery Status 23 25 8LCD 9 Setting MUTE General Tips for Improving System Performance Contents Wideband Digital Handheld Transmitter 0 1 2 !Innovatively designed housing in MIPRO's aesthetics and ergonomic style. !Perfect combination of digital audio and wireless transmission technology creates perfect sound quality. !Metal housing shows professional elegance look and features solid grip and balanced weight. !Patented design of the grille and battery housing being integrated. It's easy to screw the grille to open the battery compartment and install 2 AA batteries. !The unique flat top multi-layered steel grille for condenser capsules and round top for dynamic capsules protect the capsule against impact, rolling and pop noise. The upper grille is able to be detached easily for cleaning and hygiene practices. !The interior grille with fine metal mesh instead of sponge foam minimizes pop noise and effectively ensures sound clarity. !Patented capsule suspension design virtually eliminates the vibrations and handling noises. !Premium detachable condenser or dynamic microphone capsule module options !True condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, low feedback howling, accurate sound image characteristics, transparent sound quality, and sustains maximum SPL. !Backlit LCD displays working band-code, group, channel, battery status, encryption status, RF and audio levels. !The bottom housing, where high-efficiency antenna is integrated inside, embedded with power switch, mute button and setup button for programmed gain, limiter, low cut and RF output power. !The bottom housing is covered by patented end- cap with color-coded channel identification clips. Detach the end-cap to operate setup button. Reverse the end-cap to shield power switch and operate the mute button during operation. !High efficiency and low spurious emissions transmitting circuit is applied. An interference- free working channel can be synchronized automatically and quickly without any error by MIPRO's patented ACT™ function. Key Features Wideband Digital Handheld TransmitterWideband Digital Handheld Transmitter Capsule Module: Protects detachable microphone capsule module and internal foam prevents breathing, wind and POP noises. Battery Compartment: Holds 2 'AA' batteries. Housing: Protects transmitter PCB, battery compartment and batteries. LCD Panel: Displays transmitter parameters. Power On/Off Switch: Slides the power switch to the “ON” position for use or to the “OFF” position when not in use. MODE Button: Allows access to 6 available functions displaying in LCD panel. SET Button: ACT Infrared (IR) Port: Receives signals from receiver to synchronize frequencies. MUTE Button: To mute and un-mute the audio signal temporary. Protection Cover: Protects power switch and prevents user has direct access to power switch. Channel ID Clip: For channel identification (Optional) Parameter selection button. 1 2 3 4 5 6 7 8 9 10 11 Wideband Digital Handheld TransmitterWideband Digital Handheld Transmitter Bodypack Controls and Indicators 0 1 0 2 G R O U P C H A N 1 2 3 8 9 4 10 11 6 7 5 3 4 Protection cover's patented design protects accidental access to power switch and its rugged material and snug fit offer protection to both power switch and PCB during accidental drop. Steps: !Remove protection cover and turn it 180-degree. !Install the protection cover after turning will cover up power switch. Mute function is open for easy acsess !When power is off, reverse-installation of protection cover will turn on the switch automatically. To turn off the system, remove the cover to turn off. !Protection cover must be attached during operation for full protection. Patented Protection Cover Wideband Digital Handheld TransmitterWideband Digital Handheld Transmitter Operating Instructions for Insertion & Removing Battery Caution: Remove the batteries if unused for a long period of time to prevent battery leakage, corrosion and causes damage to electronics. ! ! ! Turn the microphone housing and pull it toward capsule grille to expose battery compartment. Insert two new AA alkaline batteries in the battery compartment with correct polarity o…

Text truncated - open the document above for the full version.

MIPRO Electronics Co., Ltd. 814 Pei-kang Road Chia-yi 600 Taiwan, R.O.C Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2012-07-30 To whom it may concern: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: M5X-ACT80H including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Name: Solomon Chang Title: President Company: MIPRO Electronics Co., Ltd.

MIPRO Electronics Co., Ltd. 814 Pei-kang Road Chia-yi 600 Taiwan, R.O.C Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2012/7/30 Request for Confidentiality Company name: MIPRO Electronics Co., Ltd. FCC ID: M5X -ACT80H F CC Part 74 Certification To whom it may concern: In accordance with 0.459 of CFR 47, MIPRO Electronics Co., Ltd. hereby requests confidentiality of all Block Diagrams, Schematics, Operational Description and Tune Up information attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which MIPRO Electronics Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, MIPRO Electronics Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name: Solomon Chang Title: President Company: MIPRO Electronics Co., Ltd.

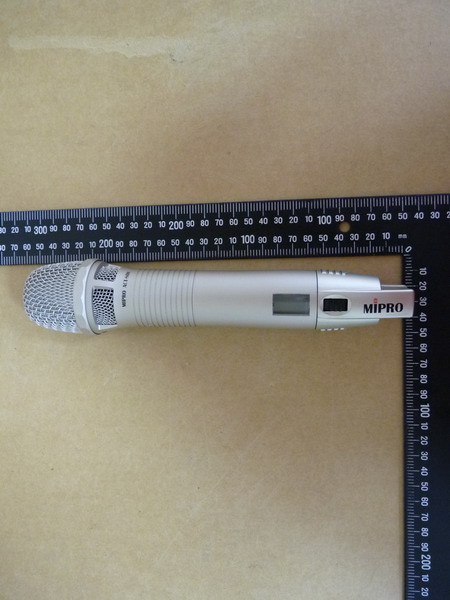

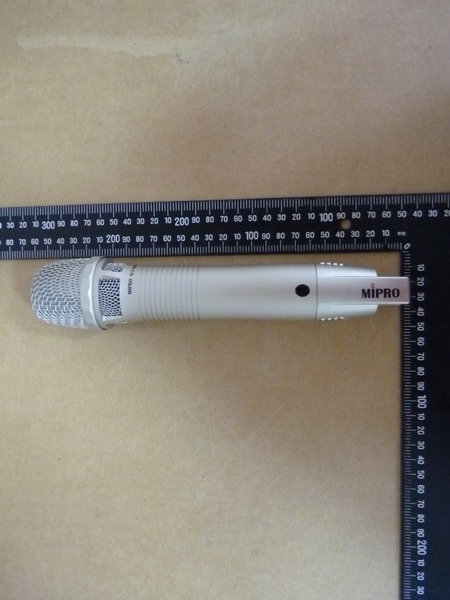

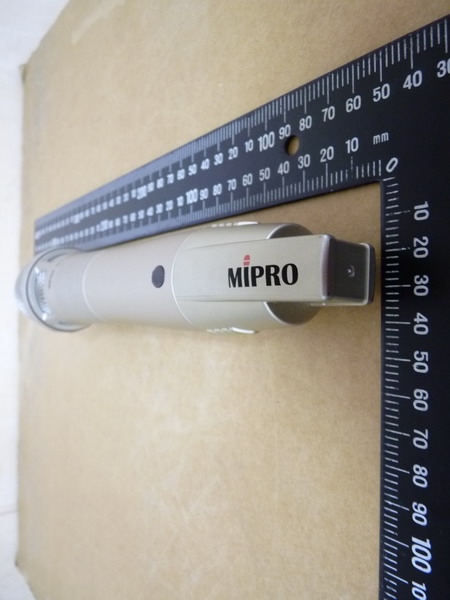

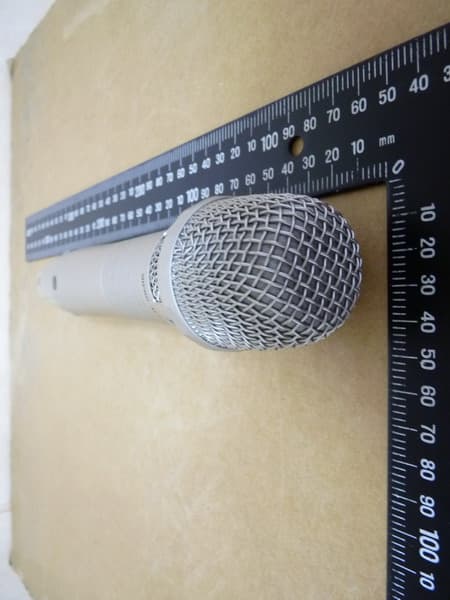

Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 31 of 52 External Photos Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 32 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 33 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 34 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 35 of 52

ACT-80H: FCC ID / IC label & location:

Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 36 of 52 Internal Photos Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 37 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 38 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 39 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 40 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 41 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 42 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 43 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 44 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 45 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 46 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 47 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 48 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 49 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 50 of 52 Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 51 of 52

SPECIFICATIONS FOR ACT-80H DIGITAL TRANSMITTER ITEM SPECIFICATIONS 1. FREQUENCY RANGE 480.1MHz~697.9MHz 2. FREQUENCY GENERATION Phase Locked Loop (PLL) technique 3. SWITCHING BANDWIDTH 60MHZ (120MHz) 4. CHANNEL GRID 25KHz 5. FREQUENCY STABLE ±0.005% 0°C~ +50°C 6. RF OUTPUT POWER (50 OHMS LOAD) <50mW，BUILD IN ANTENNA 7. SPURIOUS EMISSION <4nW 8. AUDIO FREQUENCY RANGE 20~20KHZ，SELECTABLE LOW CUT FILTER 100HZ 9. SAMPLING RATE 44.1KHZ 10. SAMPLING SIZE 24 BITS 11. TRANSDUCER; MICROPHONE TYPE INTERCHANGEABLE MICROPHONE HEADS 12. BATTERY TYPE AA3 (1.5V)×2 13. CURRENT CONSUMPTION 165mA for HI-power, 135mA for Low-power 14. OPERATION VOLTAGE 2.0V~3.0V 15. DIMENSION (M/M) 50(Φ)×248(L) 16. WEIGHTS Approx. 250g 17. ENVIRONMENTAL Full SPECS -10 to 60 °C ACT80HI01A EQUIPMENT DESCRIPTION

of Applicant: MIPRO Electronics Co., Ltd. Address: 814 Pei-kang Road Chia-yi 600 Taiwan, R.O.C Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21205-12420-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 74 TEST REPORT for Wideband Digital Handheld Transmitter Model No.: ACT-80H FCC ID: M5X-ACT80H Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 48 TABLE OF CONTENTS 1 GENERAL INFORMATION.........................................................................................................................................3 1.1 NOTES......................................................................................................................................................................3 1.2 TESTING LABORATORY.............................................................................................................................................4 1.2.1 Location ..............................................................................................................................................................4 1.2.2 Details of accreditation status ............................................................................................................................4 1.3 DETAILS OF APPROVAL HOLDER...............................................................................................................................5 1.4 APPLICATION DETAILS..............................................................................................................................................5 1.5 GENERAL INFORMATION OF TEST ITEM.....................................................................................................................5 1.6 TEST STANDARDS.....................................................................................................................................................6 2 TECHNICAL TEST........................................................................................................................................................7 2.1 SUMMARY OF TEST RESULTS.....................................................................................................................................7 2.2 TEST ENVIRONMENT.................................................................................................................................................7 2.3 TEST EQUIPMENT LIST..............................................................................................................................................8 2.4 GENERAL TEST PROCEDURE...................................................................................................................................12 3 TEST RESULTS (ENCLOSURE) ...............................................................................................................................13 4 RF POWER OUTPUT (CONDUCTED) , FCC 2.1046 (A) ; 74.861 (E)...................................................................14 4.1 TEST PROCEDURE...................................................................................................................................................14 4.2 TEST RESULTS........................................................................................................................................................14 5 RADIATED POWER....................................................................................................................................................15 5.1 TEST PROCEDURE...................................................................................................................................................15 5.2 TEST RESULTS.........................................................................................................................................................17 6 MODULATION DEVIATION , FCC 2.1047 (B) ; 74.861(E) ...................................................................................29 6.1 TEST PROCEDURE...................................................................................................................................................29 6.2 TEST RESULTS.........................................................................................................................................................29 7 AUDIO FREQUENCY RESPONSE , FCC 2.1047 (A) ..............................................................................................30 7.1 TEST PROCEDURE...................................................................................................................................................30 7.2 TEST RESULTS.........................................................................................................................................................30 8 OCCUPIED BANDWIDTH/EMISSION MASK, FCC 2.1049 (C) ; 74.861 (E)(5)..................................................31 8.1 TEST PROCEDURE...................................................................................................................................................31 8.2 TEST RESULTS........................................................................................................................................................31 8.3 LIMIT......................................................................................................................................................................36 9 SPURIOUS EMISSIONS AT ANTENNA TERMINALS FCC2.1051 ; 74.861 (E) .................................................37 9.1 TEST PROCEDURE........................................................................................................................................…

Text truncated - open the document above for the full version.

Registration number: W6M21205-12420-C-1 FCC ID: M5X-ACT80H Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 52 of 52 Set Up Photo of Radiated Emission
