M5X-GT24Transmitter

2CE542A User Guide GT-24 Guitar Transmitter All rights reserved. Do not copy or forward without prior approvals MIPRO. Specifications and design subject to change without notice. MN 015/05 0 Housing: Holds internal PCB. ACT Port: Align and sync frequency automatically with a matching receiver. Battery Indicator Lights: Shows the battery level or charging status. Power: Press and hold for 1~2 seconds to power on or off. Antenna: 1/4λtransmitting antenna. 6.3mm (1/4”) phone jack plug: Insert this adjustable plug into the electric guitar or electric bass. (a) Metal objects contact is forbidden. (b) It is forbidden to contact metal objects. Battery Charging Contact: Align contacts during charging. 1 2 3 4 5 6 7 1 1 2 3 4 5 8 6 7 9 8 9 Contents 1Transmitter Controls and Indicators 3Operating Instructions Battery Insertion MP-80 Battery Charger (Optional) 6 7 Transmitter Controls and Indicators Guitar TransmitterGuitar Transmitter 1. Power On & Off a. Press & hold for 1~2 seconds. b. Power On: battery indicator lights are lit solidly. c. Power Off: battery indicator lights are not lit. 2. Battery Indicator Lights a. Recommend to charge the battery when one single red indicator is solidly lit (25%) or replace with a fully-charged battery. Operating Instructions 75%50% (green indicator) 25% (red indicator) 100% 2 3 Battery Cover: Holds a single 18500 rechargeable battery. Battery compartment & Battery: Inserts a single 18500 rechargeable battery according to correct polarity. Insert with plus (+) polarity end of battery towards inside of the battery compartment(see above graph). Wrong polarity insertion will result in no connection and will not damage the circuitry. 8 9 Guitar TransmitterGuitar Transmitter 4 5 Guitar TransmitterGuitar Transmitter 3. Ensure both the receiver and guitar transmitter frequencies are synchronized to the same channel and power is off on the guitar transmitter before inserting the plug into the electric guitar. Power on and adjust audio levels after plug insertion. 4. A suction cup holder can be installed manually for a secured fit for electric guitar/bass where the output jack is situated in different body area. Notes 1. Refer to actual product in the event of product description discrepancy. 2. Frequency range and maximum deviation comply with the regulations of different countries. GT-24 guitar transmitter and/or an additional 18500 recharge battery can be both recharged simultaneously in MP-80. Insert one or two 18500 rechargeable batteries into MP-80 according to the correct polarity. Insert the GT-24 into a supplied battery adaptor first before place into the MP-80 for charging. GT-24 18500 Rechargeable Batteries Battery Adaptor MP-80 Battery Charger (Optional) 1.Gently push down on the battery compartment latch and swing the battery compartment door open (do not use force when opening or closing the battery door). 2. Install a freshly charged 18500 rechargeable battery with plus (+) polarity end of battery towards inside. 3. Then carefully close the battery door until the hinge is properly locked and secured. Battery Insertion Caution Remove the batteries if unused for a long period of time to prevent battery leakage, corrosion and causes possible damage to electronics. 6 7 Guitar TransmitterGuitar Transmitter Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 cm between the radiator and your body. ! ! ! ! This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IC This device complies with Industry Canada RSS-210 ISSUE 8 standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autoris…

Text truncated - open the document above for the full version.

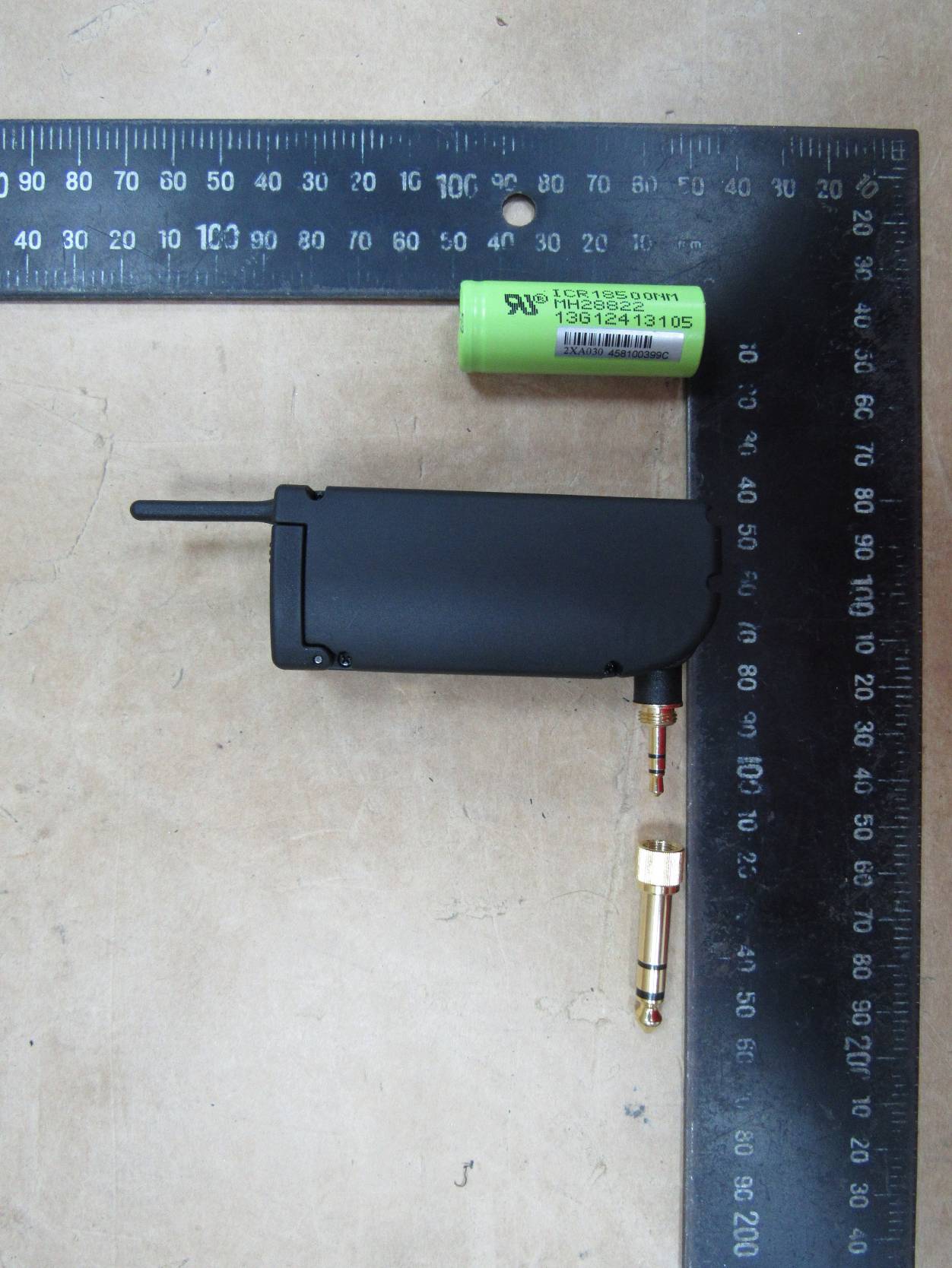

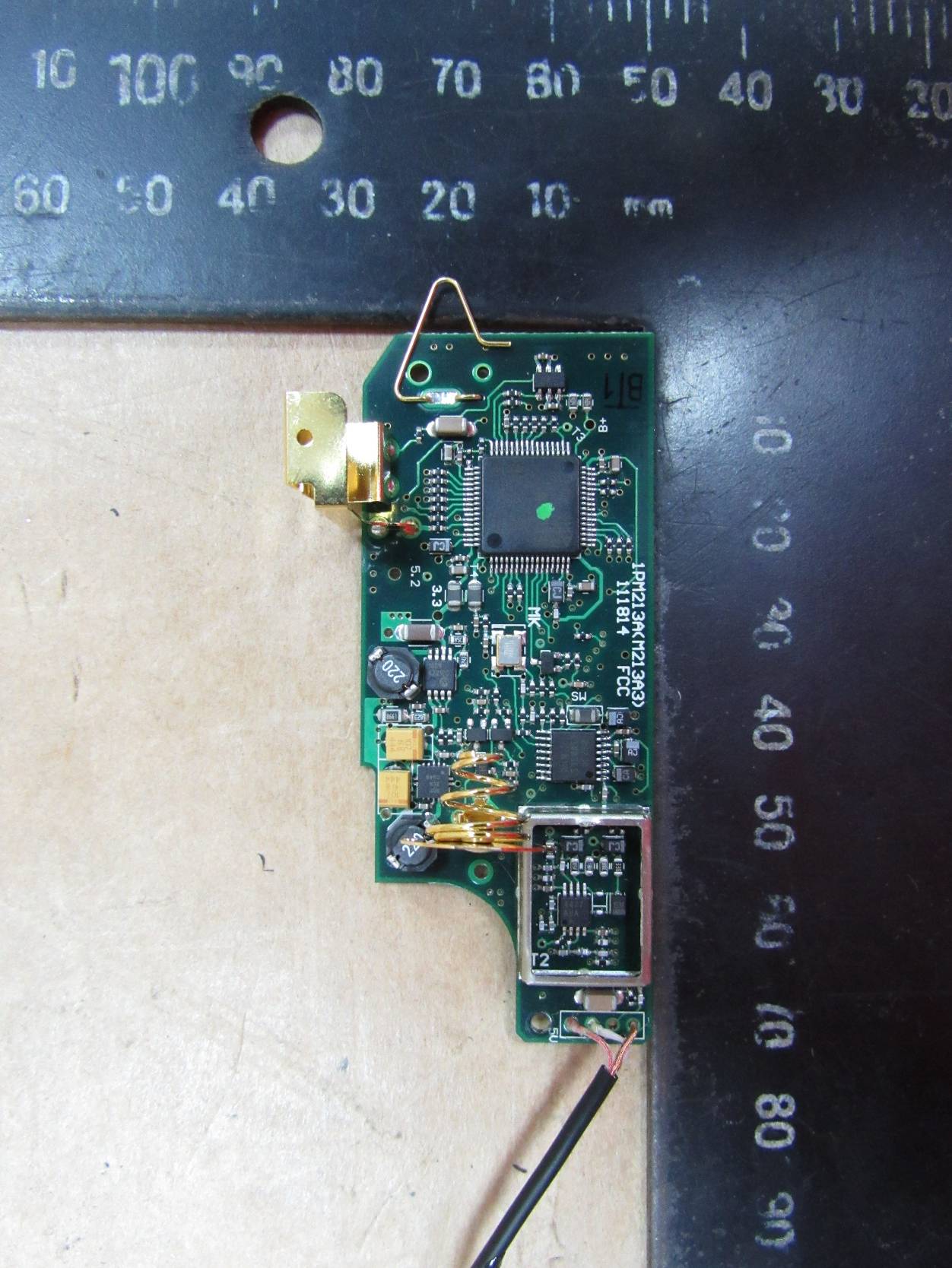

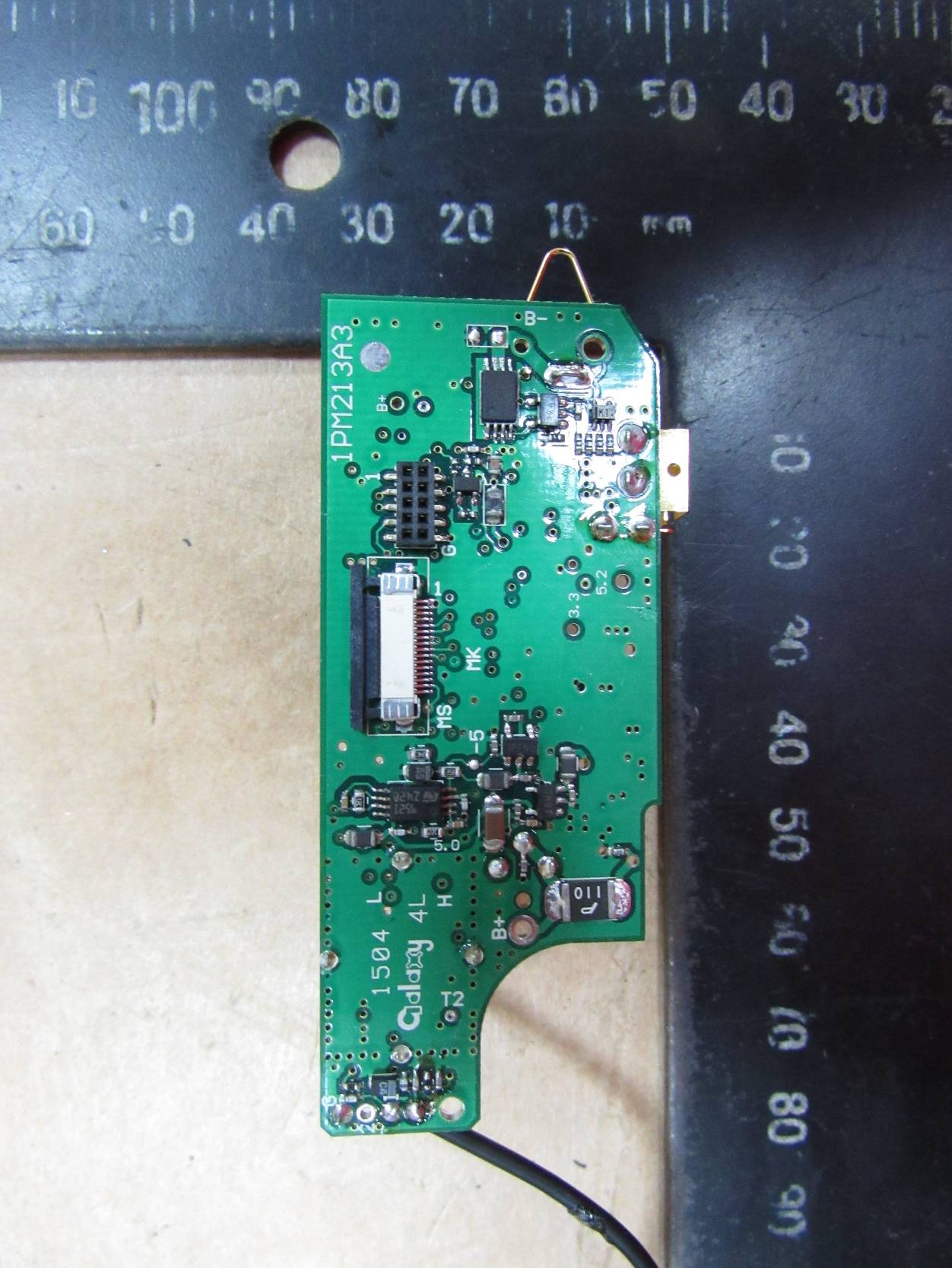

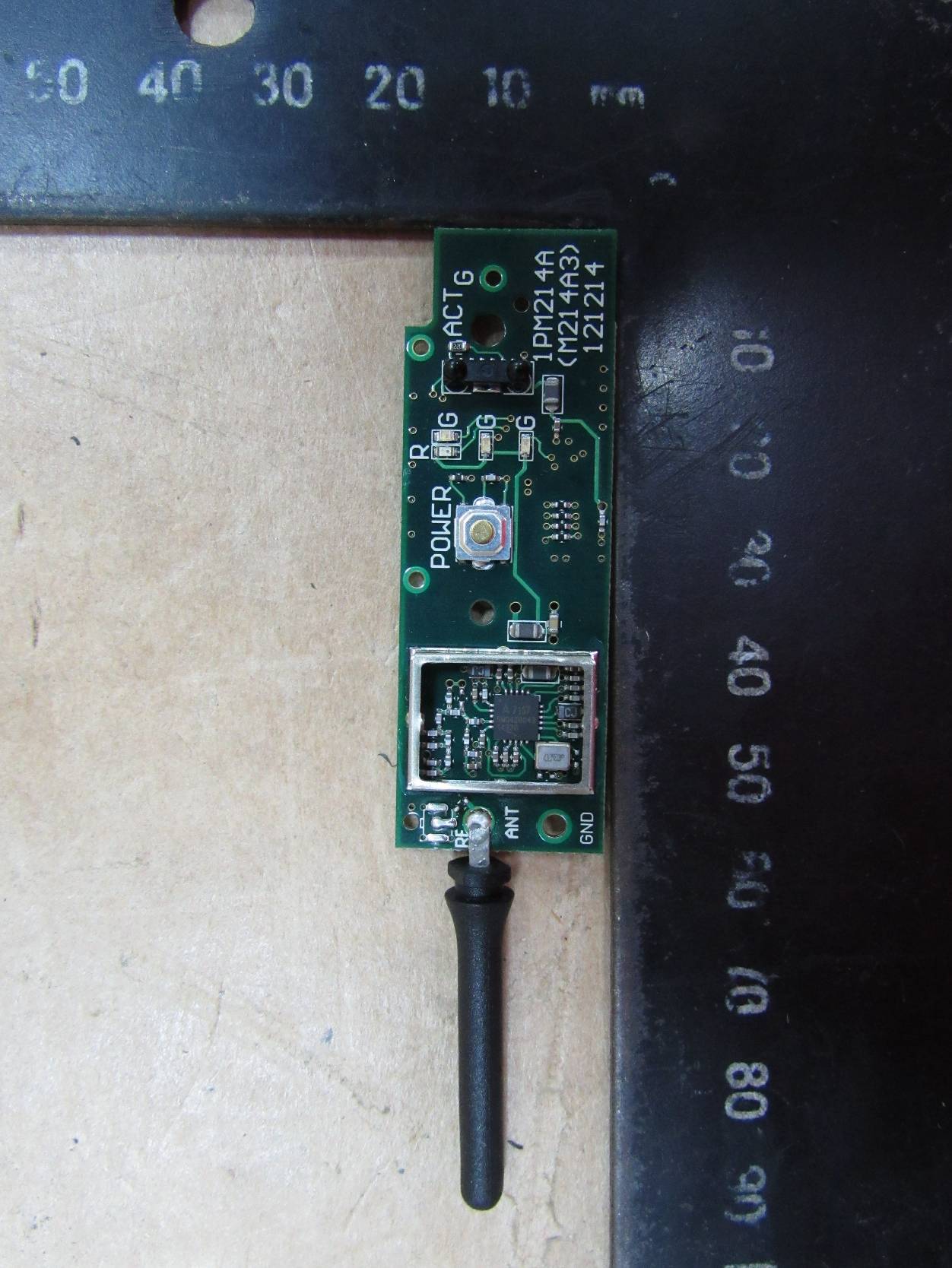

Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 14 Internal Photos Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 14 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 14 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 14 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 14 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 14 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 14

MIPRO Electronics Co., Ltd. 814 Pei-kang Road 600 Chia-yi Taiwan, R.O.C Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Transmitter Model No: GT24 The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Transmitter will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M21502-14821-C-1 and the accompanying calculations. Company: CLIMAX TECHNOLOGY CO., LTD. Address: No. 258, Sinhu 2nd Rd., Neihu District 114 Taipei City Taiwan ( R.O.C.) Date: March 23, 2015 Signature Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 31 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = 7.38 dBm + 0 dBi = 7.38 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements According to KDB447498 10 D01v05: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2402-2482 MHz Maximum Power fed to Antenna: 5.47 mW Separation distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170 180 190 mm 2450 96 196 296 396496 596 696796896996109611961296 1396 1496 mW

of Applicant: MIPRO Electronics Co., Ltd. Address: 814 Pei-kang Road Chia-yi 600 Taiwan, R.O.C Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21502-14821-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C/ IC RSS-210 TEST REPORT for Transmitter Model No.: GT-24 FCC ID: M5X-GT24 IC: 2978A-GT24 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS.................................................................................................................4 1.5 GENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 GENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 SPURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................20 3.7 M INIMUM 6 DB BANDWIDTH.....................................................................................................22 3.8 P EAK POWER SPECTRAL DENSITY.............................................................................................25 3.9 RADIATED EMISSION FROM DIGITAL PART................................................................................28 3.10 P OWER LINE CONDUCTED EMISSION.........................................................................................29 APPENDIX.............................................................................................................31 Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 31 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: April 02, 2015 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: April 02, 2015 Kevin Wang Date WTS Name Signature Registration number: W6M21502-14821-C-1 FCC ID: M5X-GT24 IC: 2978A-GT24 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 31 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) TEL:886-2-6613-0228 FAX:886-2-2791-5046 Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG R…
