M6U-PRTCTV-001Caption Decoder

Thank you for your purchase of ProtecTV. ProtecTV is going to change how you watch TV from the moment you plug it in. As much as you will like the protection that ProtecTV provides, there will be a period of adjustment for you and your family. Once you and your family adjust to your new way of watching TV you will wonder how you ever watched TV without this protection. During your adjustment period you should consider the following: • ProtecTV will mute the audio during phrases containing offensive language. • If you choose to use closed captioning, ProtecTV will display a series of X’s in place of the chosen phrase, and when the spoken phrase is completed the sound is restored. Examples: The phrase “Shut the hell up”, is muted and “Shut the XXXX up” is displayed on the closed captioning. The phrase “I don’t give a rat’s a—!”, is muted and “I don’t give a rat’s xxx” is displayed on the closed captioning. •ProtecTV can only be as accurate as the closed captioning. If the closed caption- ing on a particular TV show or movie is inaccurate it will cause the ProtecTV sys- tem to be inaccurate. If a word is not captioned correctly the ProtecTV system will not be able to filter it. OTHER IMPORTANT THINGS YOU SHOULD KNOW: •How it works-ProtecTV uses CC+ patented technology. This technology was developed for the hearing impaired to be able to read what was being said on the bottom of the TV screen. Each word in a particular show is checked against a database of over 400 words. When an offensive word is detected, the CC+ tech- nology automatically mutes the sound, and turns the sound back on when the word is completed. •Virtually all scripted programs (videos, dvds, TV series, TV movies) are filtered. NOTE: Although Universal Studios videos are filtered by ProtecTV, Universal DVDs are not filtered. Universal Studios does not follow the established standard for closed-captioning on their DVDs.) •Live programming (news, sporting events, talk shows, soap operas) are not filtered. User’s Manual WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CONNECTIONS: This manual will provide you with many ways to connect your unit up based on what you are using. There may not be one exactly like the system that you have at home, but one or more of the diagrams will most likely be close to what you have and can be used as a guide. Connection Types ProtecTV can be connected to your TV using either AUDIO/VIDEO (RCA type cable) jacks or RF jacks (coaxial cable). Using a simple RF coaxial cable connection gives you a good picture with mono sound quality. This connection (diagram A) must be used if AUDIO/VIDEO connec- tions are not available for your TV. When using the coaxial cable connection your TV should be turned to either channel. If your TV has AUDIO/VIDEO connections, it is highly recommended that you use them to achieve better picture quality and HI-FI stereo sound. When using the AUDIO/VIDEO connections your TV must be set to the proper input, not channel 3 or 4. Normally, the proper input can be selected using your TV’s remote by pressing the INPUT button. However, you may need to select it on your TV’s front panel but- tons, or through your TV’s menu system. It might also be selected by tuning to chan- nel 00, 90, 91, 92, 93, VID1, or VID2. The proper input’s name and selection method varies from TV to TV. Surround Sound Systems ProtecTV does work with ProLogic surround-sound. Simply follow the instructions for stereo connections in this manual. DVD Players ProtecTV does work with DVD players. Connect your DVD player in the same meth- ods described in this manual for VCRs. ProtecTV does not support Dolby Digital 5.1. We recommend using the stereo connections illustrated in this manual for both audio and video. ProtecTV also does not support connections for S-Video or Component Video. We may recommend using RCA-type video connections illustrated. Although not recom- mended, you may still use the S-Video or Component Video connections, if support- ed by your DVD player and TV. Simply make the connections as diagrammed for RCA-type connections, plus connect the S-Video or Component Video cables direct- ly from your DVD player to your TV, bypassing ProtecTV. TVG will still mute the audio at the appropriate moments, however, it will not display the modified profanity- free text. ProtecTV does work with most DVD players. A few DVD players, however, have been discovered to strip out the closed captioning text required by ProtecTVto detect the foul language. Connection Requirements ProtecTV must be connected between your VCR/cable box/satellite receiver/DVD player, and your TV and stereo/home theater system (if applicable). To have both TV programs and videos filtered, ProtecTV must be connected to your VCR as illustrated in the following diagrams. Your VCR will need to stay on when your watching TV. Your TV must be turned to either channel 3, 4 or aux/video input depending on whether you’re using a coaxial connection from the ProtecTV to your TV. CHANGING CHANNELS – you will not change the channel on your TV. You will use your VCR to change the channels, unless you have a satellite receiver or cable box. If you do have a satellite receiver or cable box it will be used to change channels, and your VCR should be turned to channels 3, 4 or the proper input station, if appli- cable. CONNECTION DIAGRAMS: Depending on the particular type of equipment you have in your home, you may have to refer to more than one of the diagrams in this manual. Please use them as a guide. You may also want to refer to the manuals for your VCR, DVD player, satellite receiver and TV. If you’ve tried your best, but did not succeed please call us for installation assistance between 9:00 AM and 5:00PM ET at 866-ProtecTV. STANDARD (MONO) CONNECTIONS (DIAGRAM A) RECOMMENDED FOR TVs WITH ONLY A RF COAXIAL JACK. THIS CONNECTION IS NOT RECOMMENDED IF YOUR TV HAS AUDIO/VIDEO CONNECTI…

Text truncated - open the document above for the full version.

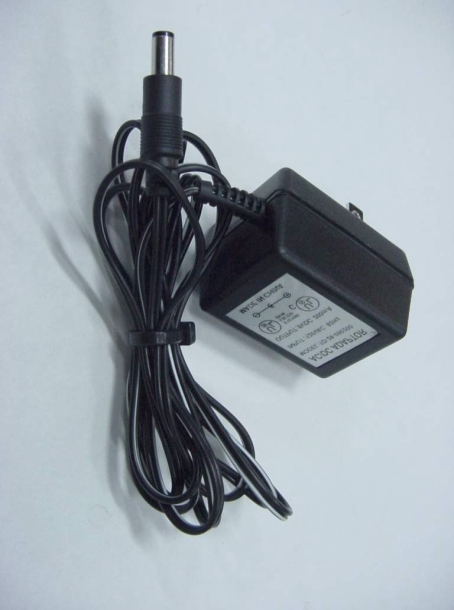

Block Diagram [Protect TV Decoder] VIDEO IN BOX VIDEO OUT C_SYNC RED HSYNC CONTROL COMP_SYNC VIDEO DATA OUT AUDIO VIDEO SYNC AC9V IN DC5V OUT AUDIO MUTE AUDIO LEFT IN AUDIO LEFT OUT AUDIO RIGHT IN AUDIO RIGHT OUT Z86129 NTSC LINE 21 DECODER NJM2207 VIDEO IMPOSER MICOM PIC16C73B CAPTION ON/OFF SW XTAL 20MHz AUDIO SIGNAL SW AUDIO SIGNAL SW POWER REGULATOR 3CH RF MODULATOR COMPERATOR
