M7CMID009MID

1208741 MID-7113CM BOXCHIP A13方案 封面封底印彩色，70g书纸,135x102mm,钉装 TP屏有按键 ENGLISH MANUAL Table of Contents Table of Contents......................................P1 Features..................................................P2 Unit at a Glance .......................................P3 Getting Started....................................P4-P5 About Applications...............................P5-P6 Preinstalled Applications...........................P6 Connect to a Wi-Fi network....................P7-P8 Optional Connections................................P9 Specifications.........................................P10 1 Features 2 Browse the Web. Visit your favorite websites Check your e-mail Keep in touch with friends and family Watch YouTube™ videos Browse the world’s most popular video- sharing community Read your favorite books Download thousands of books with the included E-book reader * Discover thousands of apps for Android™ Games, applications, and more with marketplace(need for customer installed) Connect to the Internet wirelessly High-speed Wi-Fi 802.11 b/g/n networking Enjoy your media library anywhere Portable powerhouse plays popular music, video,and photo formats microSD memory card reader Increase your storage capacity (up to 32 GB supported) Built-in camera Convenient front-facing camera Automatic orientation detection Read any way you want; the display adjusts automatically! Reading books in the ePub format requires the included E-book reader application. Unit at a Glance 3 1 2 3 4 5 6 8 7 9 1. VOL-/VOL+ Press VOL- to decrease the volume level. Press VOL+ to increase the volume level. 2. Power Press to turn the unit on, or to turn the screen on or off. Press and hold to access the Power Off menu. 3.Camera Use it to take pictures or capture videos. 4. Touch Key Return: return to the previous page. Home: return to the main page directly. Menu: show the menu or change setting. 5. MIC Use internal MIC to record voice. 6. Headphone Audio output connection for headphones. 7.Mini USB OTG Connect to a USB device or a computer to transfer data (e.g. music, videos,photos, files). 8. Adapter In Charge and power the tablet with adapter. 9.TF Card Load external TF memory cards here. Getting Started Turning the Tablet on or off 2. Touch ok the screen to turn off the tablet. Turning the Screen On or off (Standby) When the tablet is on, you can turn off the screen to conserve battery power. Simply press the Power key once to turn the screen off. Press the Power key again to turn the screen back on. To turn the tablet on: Press and hold the Power key until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use. To turn the tablet off: 1.Press and hold the Power key until the Device Options menu appears. To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 1 minute and 30 minutes). This Screen timeout option can be found in the Display menu. 4 Getting Started 5 Unlocking the Screen About Applications To open an application, touch the application icon on the home screen or in the Launcher where you can tap the icon right up on the home screen to get in.. Launcher screen: The screen shown above is for illustrative purposes only. Reserves the right to modify and improve the final list of applications available on the tablet. When the screen turns off, you will have to unlock the screen when you turn it back on. To unlock the screen, drag the lock icon across the screen towards the lock icon. . About Applications 6 Preinstalled Applications Some applications have been installed on your tablet for your convenience. These applications include: Browse the web. Perform simple mathematical operations. Take pictures or videos with the frontfacing camera. Check your e-mail. Play music. Access the Settings menu to adjust the tablet’s options. Preinstalled Applications Installing Applications You can also download an install additional applications from the device’s applications marketplace, the web browser, or other sources. The tablet must be set to allow installation of applications from non-Market sources. The Unknown sources option can be set in the Application settings menu. 7 Connect to a Wi-Fi network The Notification bar displays icons that indicate your tablet’s Wi-Fi status. Notification that an open Wi-Fi network is in range. Connected to a Wi-Fi network (waves indicate connection strength). When Wi-Fi is on, the tablet will look for and display a list of available Wi-Fi networks. [no icon] There are no Wi-Fi networks in range, or the Wi-Fi radio is off. 1. Turn on the Wi-Fi radio if it is not already on. To turn on Wi-Fi: a.Go to the Home screen: Press the Home key. b.Open the Settings menu: tap the icon right up on the home screen to get into the launcher, then touch Settings icon. c.Open the Wireless & networks menu: Slide the icon to ON status. If a network that you have connected to previously is found, the tablet will connect to it.If you don’t see your network in the list, you can force the tablet to re-scan. To scan for networks, tap the Menu key, and then touch Scan. WIFI 0001 WIFI 0002 8 Connect to a Wi-Fi network To learn about how to add a Wi-Fi network when it is not in range or when the router is set to obscure the network name (SSID); or to configure advanced Wi-Fi options, please refer to the manual. When you have successfully connected to a Wi-Fi network, the Notifications bar at the the low of the screen will show a Wi-Fi signal indicator. 2. Select an available Wi-Fi network to connect to: In the same Wi-Fi settings menu above,touch a network in the list. If the network is open,the tablet will prompt you to confirm connection to the network. Touch Connect to confirm. If the network is secured (as indicated by a Lock icon),the tablet will prompt you to enter a password or other credentials.Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password…

Text truncated - open the document above for the full version.

Authorization Letter We, (the approval holder) Com pany name Hena Digital Technology (Shenzhen) Co., Ltd. Addresss 3F, South Tower, Jiuzhou Electric Building, Southern No, 12Rd, High-tech Industrial Park, Nanshan District, Shenzhen City Shenzhen Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description MID Type or Model(s) MID7113CM Tradename or Brand(s) HENA, GPX Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2012/10/22 Chen Yong Manager

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Hena Digital Technology (Shenzhen) Co., Ltd. Addresss 3F, South Tower, Jiuzhou Electric Building, Southern No, 12Rd, High-tech Industrial Park, Nanshan District, Shenzhen City Shenzhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: M7C MID009 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2012/10/22 Chen Yong Manager

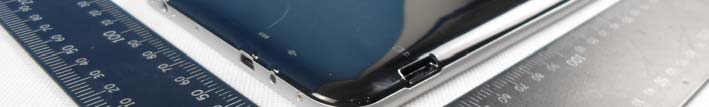

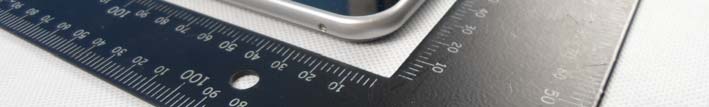

Page 25 of 31 Report No.: NTEK-2012NT1009052E ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Page 26 of 31 Report No.: NTEK-2012NT1009052E Photo 3 Photo 4 Page 27 of 31 Report No.: NTEK-2012NT1009052E Photo 5 Photo 6

9*3

Page 28 of 31 Report No.: NTEK-2012NT1009052E Photo 7 Photo 8 Page 29 of 31 Report No.: NTEK-2012NT1009052E Photo 9 Photo 10 Page 30 of 31 Report No.: NTEK-2012NT1009052E Photo 11 WiFi Module Photo 12 WiFi Module Page 31 of 31 Report No.: NTEK-2012NT1009052E Photo 13 WiFi Antenna

Page 1 of 29 Report No.: NTEK-2012NT1009052E FCC EMC Test Report FCC ID: M7CMID009 Product： MID Trade Name： HENA,GPX Model Number： MID7113CM Serial Model： MID7113RM, MID7113CE, MID7113RE, MID71**CM, MID71**RM, MID71**CE, MID71**RE (**can be 01-99) Prepared for Hena Digital Technology (Shenzhen) Co., Ltd. 3F, South Tower, Jiuzhou Electric Building, Southern No, 12Rd, High-tech Industrial Park, Nanshan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website: www.ntek.org.cn Page 2 of 29 Report No.: NTEK-2012NT1009052E TEST RESULT CERTIFICATION Applicant’s name................. : Hena Digital Technology (Shenzhen) Co., Ltd. Address ................................. : 3F, South Tower, Jiuzhou Electric Building, Southern No, 12Rd, High-tech Industrial Park, Nanshan District, Shenzhen, China Manufacturer's Name.......... : Hena Digital Technology (Shenzhen) Co., Ltd. Address ................................. : 3F, South Tower, Jiuzhou Electric Building, Southern No, 12Rd, High-tech Industrial Park, Nanshan District, Shenzhen, China Product description Product name ........................... : MID Model and/or type reference : MID7113CM Serial Model .............................. : MID7113RM, MID7113CE, MID7113RE, MID71**CM, MID71**RM, MID71**CE, MID71**RE (**can be 01-99) Standards............................. : FCC Part15B:2012 ANSI C63.4:2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 09 Oct. 2012 ~22 Oct. 2012 Date of Issue...........................................: 22 Oct. 2012 Test Result...............................................: Pass Testing Engineer : (Jason Chen) Technical Manager : (Jim He) Authorized Signatory : (Bovey Yang) Page 3 of 29 Report No.: NTEK-2012NT1009052E Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 DESCRIPTION OF TEST SETUP 8 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.5 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 3.2.2 TEST PROCEDURE 15 3.2.3 TEST SETUP 16 3.2.4 EUT OPERATING CONDITIONS 16 3.2.5 TEST RESULTS 17 3.2.6 TEST RESULTS(Above 1GHz) 19 4 . EUT TEST PHOTO 21 ATTACHMENT PHOTOGRAPHS OF EUT 23 Page 4 of 29 Report No.: NTEK-2012NT1009052E 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark Conducted Emission Class B PASS FCC Part15B:2012 ANSI C63.4: 2009 Radiated Emission Class B PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report (2) For client’s request and manual description, the test will not be executed. Page 5 of 29 Report No.: NTEK-2012NT1009052E 1.1 TEST FACILITY Shenzhen NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration Number:238937; IC Registration Number:9270A-1 CNAS Registration Number:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKC01 ANSI150 KHz ~ 30MHz 3.2 B. Radiated Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE NTEKA01 ANSI30MHz ~ 1000MHz 4.7 1GHz ~6GHz 5.0 Page 6 of 29 Report No.: NTEK-2012NT1009052E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment MID Model Name MID7113CM Serial No MID7113RM, MID7113CE, MID7113RE, MID71**CM, MID71**RM, MID71**CE, MID71**RE (**can be 01-99) Model Difference Only Model name is different. Product Description The EUT is a MID Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification please refer to the User's Manual. Operating frequency: 24MHz Connecting I/O port: USB, Earphone Port Power Source Model: SEF050200A1BA, AC Power Input: 100-240V~, 50/60Hz, 0.5A Output: 5.0V 2000mA Power Rating DC 5V Battery DC 3.7V Page 7 of 29 Report No.: NTEK-2012NT1009052E 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 Downloading Mode For Conducted Test Final Test Mode Description Mode 1 Downloading Mode For Radiated Test Final Test Mode Description Mode 1 Downloading Mode Page 8 of 29 Report No.: NTEK-2012NT1009052E 2.3 DESCRIPTION OF TEST SETUP Mode 1 E-2 EUT E-3 Earphone E-1 Adapter E-4 PC AC Line C-2 C-1 C-3 Page 9 of 29 Report No.: NTEK-2012NT1009052E 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL The EUT has been tes…

Text truncated - open the document above for the full version.

Page 21 of 29 Report No.: NTEK-2012NT1009052E 4. EUT TEST PHOTO Radiated Measurement Photos Mode 1 Page 22 of 29 Report No.: NTEK-2012NT1009052E Conducted Measurement Photos
