M8QF81627TXRadio Control for Toy Cars

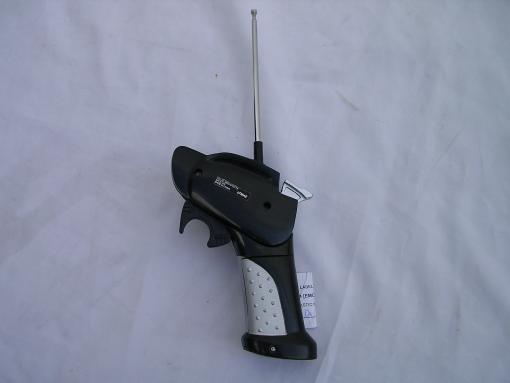

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID :M8QF81627TX Circuit Description The 27.145 MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by IC. The output of Q3 has the matching network consisting of L4 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 39.2 cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery. Operation Descriptions The transmitter is a controller for a toy car operating at 27.145 MHz band. The transmitter is powered by a 3Vdc battery (AA x 2) and the transmitting frequency is crystal controlled. There are 2- joystick to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 27.145MHz carrier frequency. Remarks: The transmitter is a 2 - joystick transmitter. The EUT continues to transmit while joystick is being pressed. It is pulse transmitter, modulation by IC and type is pulse modulation.

1 2 3 4 ABCD 4 3 2 1 D CBA 1 1 1 A D:\DATA\RAN\EP01620A.SCH Title Size: Number: Date: File: Revision: Sheet of A4 1 APPROVALS: APPRD BY:CHKD BY:DRAWN BY: NKT NK Technology Inc. 300C27MHz 2004.11.03 L3 11.5T R810 C1122P C10150P C9 103 C8 47P L2 2.2uH Q3 C945 R7 10K C7 47P C6 47P C547P L1 2.2uH Q2 C945 Y1 27.145M R6 220 R5 100K D2LED R3 220 C1 104 ANT S1 MC00252 RIGHTB 1 TESTB 2 GND 3 BACK 4 FOR 5 TURBOB 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 OFF 13 LEFTB 14 IC1 SCTX-2 S2 MC00252 R2 240K B1 3V + C247uF C12 16P C13 16P L4 4.7uH K SS12D23VG3 C3 103

Date: 2005-09-15 TEST REPORT Page 2 of 17 No.: HM152714 CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 Date: 2005-09-15 TEST REPORT Page 3 of 17 No.: HM152714 Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 Date: 2005-09-15 TEST REPORT Page 4 of 17 No.: HM152714 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Ngai Keung Metal & Plastic Manufactory Ltd. Rm 8-12, 11/F., Harbour Crystal Ctr., 100 Granville Road, TST East, Kowloon, Hong Kong HKSTC Code Number for Applicant NGK002 Manufacturer Ngai Keung Metal & Plastic Manufactory Ltd. Rm 8-12, 11/F., Harbour Crystal Ctr., 100 Granville Road, TST East, Kowloon, Hong Kong Date: 2005-09-15 TEST REPORT Page 5 of 17 No.: HM152714 1.3 Equipment Under Test [EUT] Description of Sample Model Name: 1:16 Full Function Radio Control Car (Transmitter 27MHz) Manufacturer: Ngai Keung Metal & Plastic Manufactory Ltd. Brand Name: NKOK INC Model Number: 81624 Input Voltage: 3Vd.c. (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Ngai Keung Metal & Plastic Manufactory Ltd., 1:16 Full Function Radio Control Car (Transmitter 27MHz). The transmitter is a 2 - Joystick transmitter. The EUT continues to transmit while joystick is being pressed. Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2004-10-18 1.5 Submitted Sample(s): 3 Samples per model 1.6 Test Duration 2004-10-29 1.7 Country of Origin China Date: 2005-09-15 TEST REPORT Page 6 of 17 No.: HM152714 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable Date: 2005-09-15 TEST REPORT Page 7 of 17 No.: HM152714 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.227 Test Method: ANSI C63.4:2003 Test Date: 2004-10-29 Mode of Operation: Tx mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 607756. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2005-09-15 TEST REPORT Page 8 of 17 No.: HM152714 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [ μ V/m] [ μ V/m] 26.96-27.28 100,000 10,000 Results: FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB/m 27.1548.121.970.03,162.3100,000Vertical Field Strength Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength FrequencyAdjusted byCorrectionLimit @3mE-Field Duty CycleFactorPolarity MHzdBdB/m 27.1544.0-4.121.965.91,972.410,000Vertical Field Strength Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty : 30MHz to 1GHz ±4.1dB Date: 2005-09-15 TEST REPORT Page 9 of 17 No.: HM152714 Limits for Radiated Emissions [FCC 47 CFR 15.209]: Frequency Range Quasi-Peak Limits [MHz] [μV/m] 30-88 100 88-216 150 216-960 200 Above960 500 The emission limits shown in the above table are based on measurement employing a CISPR quasi- peak detector and above 1000MHz are based on measurements employing an average detector. Results : FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB/m 54.2925.810.135.962.4100Vertical 81.44<1.08.5<9.5<3.0100Vertical 108.58<1.08.9<9.9<3.1150Vertical 135.73<1.07.7<8.7<2.7150Vertical 162.87<1.010.1<11.1<3.6150Vertical 190.02<1.011.5<12.5<4.2150Vertical 217.16<1.012.9<13.9<5.0200Vertical 244.31<1.014.0<15.0<5.6200Vertical 271.45<1.014.5<15.5<6.0200Vertical Radiated Emissions Quasi…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
