M8QF8827TXRemote Control Toy Transmitter

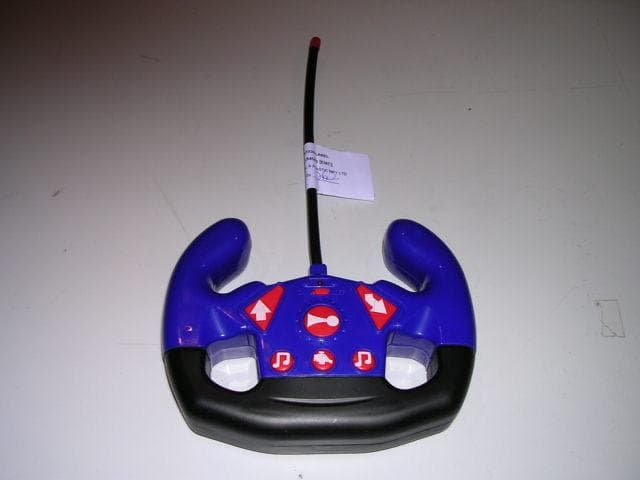

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: M8QF8827TX Circuit Description The 27.145MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by IC. The output of Q3 has the matching network consisting of L2 and C8 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 19.4cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

1 2 3 4 ABCD 4 3 2 1 D CBA 1 1 1 1 EP20051.sch Size: Number: Date: File: Revision: Sheet of A4 APPROVALS: APPRD BY:CHKD BY:DRAWN BY: NKT 19-MAY-2005 128 80000 TX CIRCUIT DIAGRAM (27MHz) R247K R347K R425.5KR127K C1333M C2333M C7 100P C6 47P C4103 C547P C3103P C8 33P D1IN4148 R5 100 Kb1 MC00230 Ka1 MC00230 Y27.145MHz L1 2.2uH T11.5T R639K ANT Q1 2SC945P Q22SC945P Q3 2SA733Q + 1 - 2 E1+9V LED 3mm R71k power SS-13D02-VG3 Kf MC00230 Kc MC00230 Ka2 MC00230 Kb2 MC00230 Kd MC00230 C10104P R9390K R8620R Q4M28S SP 8R/0.25W(40mm) -+ E1 3.0V(2*AA) Ke MC00230 C11100uF/10VC9100uF/10V L2 6.8uH PWM2/COUT 14 GND1 4 PRA0 6 PRA1 3 PRA2 17 PRA3 15 PRB0 12 PRB1 2 VDD 16 OSC 9 CHIP EP0300C(AM4EC0317) R01 0 R02 0 J1 J2 J3 J4 J5 40mm 40mm 40mm 40mm 40mm

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 1 of 18 No. : HM154063 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Ngai Keung Metal & Plastic Manufactory Ltd. Room 8-12, 11/F., Harbour Crystal Centre, 100 Granville Road, Tsimshatsui East, Kowloon, Hong Kong. Description of Samples: Model name: Radio Control Vehicle Model no.: 80007 Brand name: NKOK Inc. FCC ID: M8QF8827TX Date Samples Received: 2005-04-26 Date Tested: 2005-05-06 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 5. K C Lee, EMD for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 2 of 18 No. : HM154063 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Samples Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 1.8 Additional Information of EUT Page 6 of 18 2.0 Technical Details 2.1 Investigations Requested Page 7 of 18 2.2 Test Standards and Results Summary Page 7 of 18 3.0 Test Results 3.1 Emission Page 8-11 of 18 3.2 Bandwidth Measurement Page 12-13 of 18 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 3 of 18 No. : HM154063 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 14 of 18 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 18 Appendix C Photographs Page 17-18 of 18 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 4 of 18 No. : HM154063 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Ngai Keung Metal & Plastic Manufactory Ltd. Room 8-12, 11/F., Harbour Crystal Centre, 100 Granville Road, Tsimshatsui East, Kowloon, Hong Kong. HKSTC Code Number for Applicant NGK002 Manufacturer Ngai Keung Metal & Plastic Manufactory Ltd. Room 8-12, 11/F., Harbour Crystal Centre, 100 Granville Road, Tsimshatsui East, Kowloon, Hong Kong. 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 5 of 18 No. : HM154063 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Radio Control Vehicle Manufacturer: Ngai Keung Metal & Plastic Manufactory Ltd. Brand Name: NKOK Inc. Model Number: 80007 Additional Model Number: 80000, 80001, 80002, 80003, 80004, 80005, 80006, 80008, 80009 Input Voltage: 9Vd.c (“6F22” size battery x 1) 3Vd.c (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Ngai Keung Metal & Plastic Manufactory Ltd., Radio Control Vehicle. The transmitter is a 7 button transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. and type is pulse modulation. 1.4 Date of Order 2005-04-26 1.5 Submitted Sample(s): 3 Samples per model 1.6 Test Duration 2005-05-06 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 6 of 18 No. : HM154063 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-06-10 TEST REPORT Page 7 of 18 No. : HM…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
