MC6TDC6100Single-Mode Cellular CDMA Phone

Telson Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Oct 16, 2001
Application Purpose: Original Equipment
Date of Application: Aug 14, 2001
Equipment Note: Single-Mode Cellular CDMA Phone
Frequency Range: 824.70000000 - 848.31000000
Company: Telson Electronics Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn & Hand-held Speaker Operation This device was tested for typical body-worn & mouth (rear speaker) operations with the back of the phone and the antenna kept at a minimum distance of 1.0 cm. from the body. To maintain compliance with FCC RF exposure requirements: 1. Use only with a 1.0cm spacing between the belt-clip, holster or similar accessories that maintain a 1.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt- clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. 2. Hold the transmitter and antenna at least 1.0cm from your face and speak in a normal voice, with the antenna pointed up and away from the face. WARNING! Read this information before using your phone

Attestation Statements

TELSON ELECTRONICS CO., LTD. 17~~ FLOOR, TELSON VENTURE TOWER, 949-3, DOGOK-DONG, KANG NAM-Gu, SEOUL, KOREA TEL : t822-2140.1233 FAX : t822-884-4273 E-mail : [email protected] DATE: August 10, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter will authorize the appointment of PCTEST ENGINEERING LABORATORY INC. to act as out Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of Anti-Drug Abuse Act of 1988,21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signature Name : D.H.KIM Title : General Manager Company : TELSON ELECTRONICS Co.,Ltd TELSON ELECTRONICS CO., LTD. %- - I tlOl\l II 17~~ FLOOR, TELSON VENTURE TOWER, 949-3, DOGOK-DONG, KANG NAM-Gu, SEOUL, KOREA TEL : t822-2140.1233 FAX : t822-884-4273 E-mail : [email protected] Date: August 10, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : TELSON ELECTRONICS Co.,Ltd FCC ID : MC6TDC6100 FCC Part 22Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, TELSON ELECTRONICS Co.,Ltd hereby requests Confidentiality of the Block Diagra m, Circuit Diagrams, Circuit Description, Parts List, Tune-up Procedure, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information About the product in which TELSON ELECTRONICS Co.,Ltd considers to be proprietary, confidential and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, TELSON ELECTRONICS Co.,Ltd considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name : J.H.KWEON Title : Project Manager Company : TELSON ELECTRONICS Co.,Ltd TELSON ELECTRONICS CO., LTD. 17TH FLOOR, TELSON VENTURE TOWER, 949-3, DOGOK-DONG, KANG NAM-Gu, SEOUL, KOREA TEL : t822-2140-1233 FAX : t822-884-4273 E-mail : [email protected] DATE: August 10, 2001 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone (FCC ID: MC6TDC6100) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Signature Name : J.H.KWEON Title : Project Manager Company : TELSON ELECTRONICS Co.,Ltd I TELSON ELECTRONICS CO., LTD. 17~~ FLOOR, TELSON VENTURE TOWER, 949-3, DOGOK-DONG, KANG NAM-Gu, SEOUL, KOREA I TEL : t822-2140-1233 FAX : +822-884-4273 E-mail : [email protected] DATE : August 10,2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: TELSON ELECTRONICS CO., LTD. FCC ID: MC6TDC6100 RF EXPOSURE WARNING LOCATION Gentlemen: TELSON ELECTRONICS CO., LTD. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Signature Name : CHOllLWON Title : Manager Company : TELSON ELECTRONICS Co.,Ltd

Cover Letter(s)

August 10, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: TELSON ELECTRONICS CO., LTD. FCC ID: MC6TDC6100 Part 22 Certification Gentlemen: Attached herewith, on behalf of TELSON ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID: MC6TDC6100 TRADE / MODEL(s): TELSON TDC-6100 EUT TYPE: Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range: 824.70 — 848.31 MHz Rx Freq. Range: 869.70 — 893.31 MHz Max. RF Output Power: 0.283 W ERP (24.504 dBm) Max. Peak SAR: 1.160 mW/g Cellular CDMA Head SAR; 0.988 mW/g Cellular CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Don Heo Product Manager TELSON ELECTRONICS CO., LTD.

Cover Letter(s)

October 11, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Telson Electronics Co. Ltd. FCC ID: MC6TDC6100 731 Confirmation No.: EA102030 Correspondence Reference No.: 20845 Request for Tech. Info.: 10/05/01 Dear Joe: Transmitted herewith, on behalf of Telson Electronics Co. Ltd. is an amendment provided in response to the request for technical information dated October 5, 2001. 1. Please find the attached user’s manual with RF warning statement. 2. The liquid depth is 15cm for the brain and 15.5cm for the body. 3. The measured tissue parameters are as follows: Dielectric Constant Conductivity Brain 41.0 0.92 Muscle 54.9 0.98 4. The dipole plot dates for brain and muscle were August 9, 2001 and August 10, 2001 respectively. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Telson Electronics Co. Ltd.

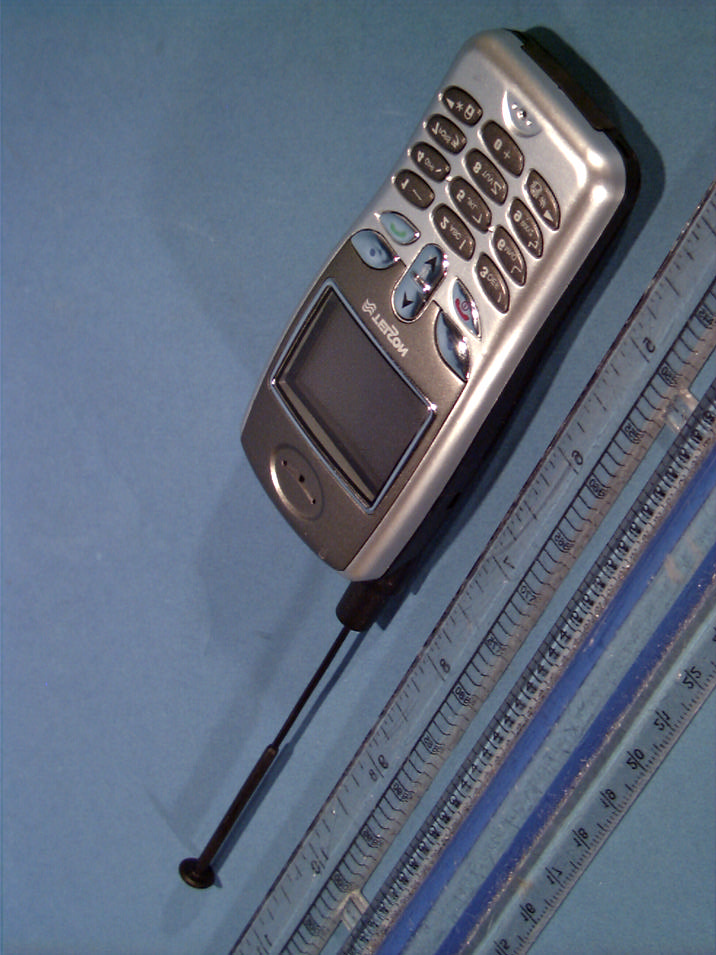

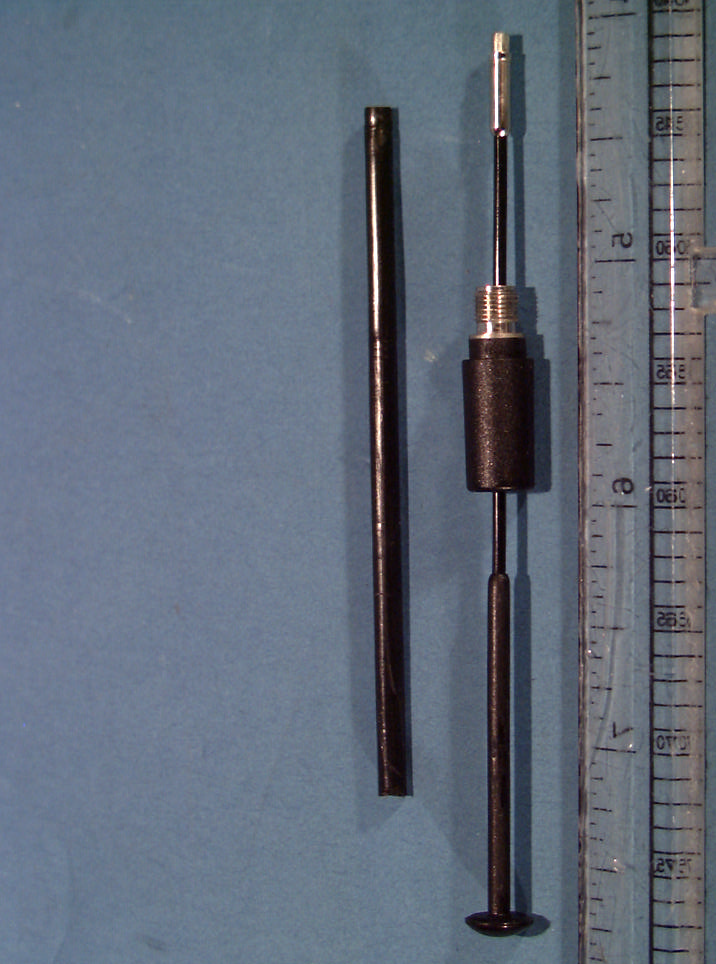

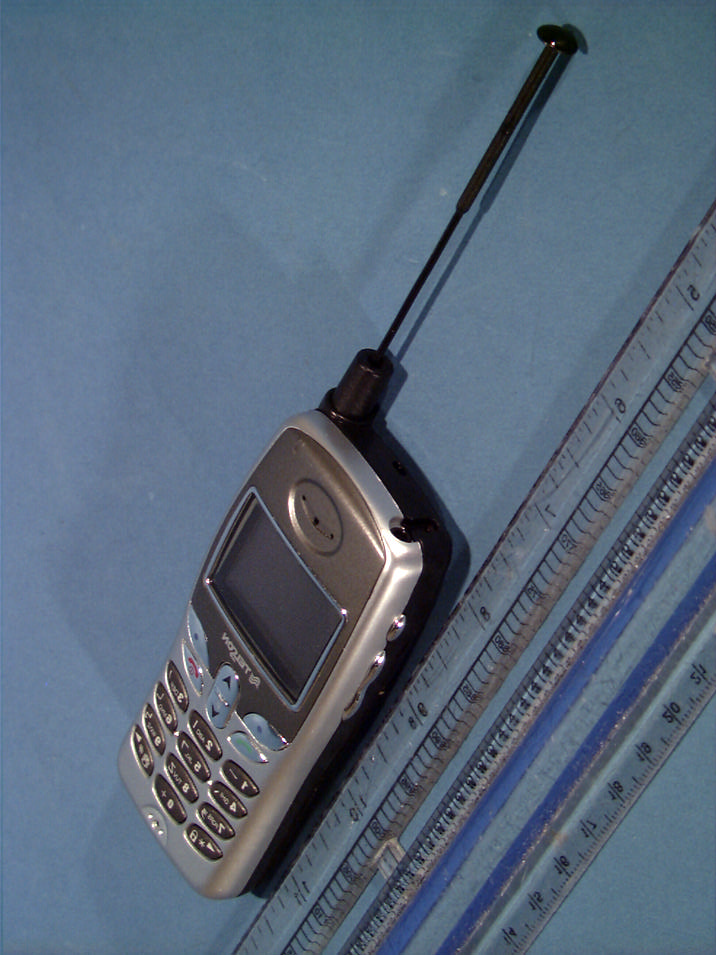

External Photos

ID Label/Location Info

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SYM ZON R EVI SI 0 N S REV NO CHG DATE CHECK 1 1 M0DEL:TDC-6100 @-l APPR Telson Electronics CO.. LTD PORTABLE COMA CELLULAR TELEPHONE SERIAL NO.: FCC ID: MC6TDC6100 DRAWN BY CHECKED BY APPROVED BY MADE IN KOREA (WITH KOREA & IMPORTED COMPONENT SCALE 2/1 NAME LABEL ASSEMBLY (SCALE= 1 : 1 ) Q'TY/SET PART NAME NAME LABEL I MATERIAL END FINISH TDC-6100 MODEL NAME ASS'Y NAME M.T.KIM I I UNIT I MM W 7. 13. 2001 4 ZLECTRONICS CO., LTI PART NO DRAWING NO PAGE 1 OF 1

Internal Photos

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) TELSON Information & Communications Co., Ltd. Dates of Tests: August 09-10 & 13, 2001 16 th Floor, Telson Venture Tower, 949-3 Test Report S/N: SAR.210808475.MC6 Dogok-Dong, Kang Nam-Gu Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA Attn: Mr. Don Heo Product Manager FCC ID MC6TDC6100 APPLICANT TELSON Information & Communications Co., Ltd. EUT Type: Single-Mode Cellular CDMA only Phone Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.283 W ERP CDMA (24.504 dBm) Max. SAR Measurement: 1.160mW/g CDMA Head SAR; 0.988 mW/g CDMA Body SAR Trade Name/Model(s): TDC-6100 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C [July 2001] Application Type: Certification Antenna Manufacturer: E.M.W. ANTENNA Co., Ltd Model No.: BAA-00-T6100 Antenna Dimensions: Length = 9.6 cm. [Helical / Whip] This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528 (Draft Aug.2000). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210808475.MC6 SAR Measurement Report FCC Part 22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 HEAD SAR TEST POSITIONS OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-18 14.1 SAR TEST EQUIPMENT LIST 19 15.1 CONCLUSION 20 16.1 REFERENCES 21 Test Report S/N: SAR.210808475.MC6 SAR Measurement Report Test Date(s): August 08-09 & 13, 2001 FCC Part 22 Certification © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) 1 Single Mode Cellular CDMA only Phone (CDMA) SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: TELSON Information & Communications Co., Ltd. Address: 16 th Floor, Telson Venture Tower, 949-3 Dogok-Dong, Kang Nam-Gu Seoul, KOREA Attention: Mr.DonHeo Product Manager • EUT Type: Single-Mode Cellular CDMA only Phone • Trade Name / Model: TDC-6100 • FCC IDENTIFIER: MC6TDC6100 • Tx Frequency: 824.70 — 848.31 MHz (CDMA) • Rx Frequency: 869.70 — 893.31 MHz (CDMA) • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • Modulation(s): CDMA • Max. RF Output Power: 0.283 W ERP - CDMA (24.504 dBm) • Max SAR Measurement: 1.160mW/g CDMA Head SAR; 0.988mW/g CDMA Body SAR • Antenna Manufacturer: E.M.W. ANTENNA Co., Ltd Model No.: BAA-00-T6100 Antenna Dimensions: Length = 9.6 [Helical / Whip] • Application Type: Certification • FCC Rule Part(s): §2.1093, OET Bulletin 65, Supplement C (July 2001) • Dates of Tests: August 09-10 & 13, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210808475.MC6 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210808475.MC6 SAR Measurement Report Test Date(s): August 08-09 & 13, 2001 FCC Part 22 Certification © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) 2 Single Mode Cellular CDMA only Phone (CDMA) 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethe…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA) © 2001 PCTEST Lab TELSON FCC ID: MC6TDC6100 (Model: TDC-6100) NVLAP Lab Code: 100431-0 Single Mode Cellular CDMA only Phone (CDMA)

RF Exposure Info

TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.683 mW/g, SAR (10g): 0.467 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 6.51E-2 1.95E-1 3.26E-1 4.56E-1 5.86E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.940 mW/g, SAR (10g): 0.641 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 8.99E-2 2.70E-1 4.50E-1 6.29E-1 8.09E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.721 mW/g, SAR (10g): 0.488 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.0383 [836.49MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 6.58E-2 1.97E-1 3.29E-1 4.61E-1 5.92E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.12 mW/g, SAR (10g): 0.765 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.0383 [836.49MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 1.06E-1 3.17E-1 5.27E-1 7.38E-1 9.49E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.703 mW/g, SAR (10g): 0.478 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 6.48E-2 1.94E-1 3.24E-1 4.54E-1 5.83E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.07 mW/g, SAR (10g): 0.732 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.0777 [848.31MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 1.01E-1 3.02E-1 5.03E-1 7.04E-1 9.05E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.735 mW/g, SAR (10g): 0.500 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.0383 [836.49MHz]; Standard Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 6.81E-2 2.04E-1 3.41E-1 4.77E-1 6.13E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.08 mW/g, SAR (10g): 0.742 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.0383 [836.49MHz]; Standard Battery Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 08/09/2001 SAR Tot [mW/g] 1.03E-1 3.08E-1 5.14E-1 7.20E-1 9.25E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.715 mW/g, SAR (10g): 0.452 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Ear/15degree Tilt position Test Date -- 08/09/2001 SAR Tot [mW/g] 5.89E-2 1.77E-1 2.94E-1 4.12E-1 5.30E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.912 mW/g, SAR (10g): 0.591 mW/g TELSON Cellular CDMA Only phone Model:TDC-6100 Cellular CDMA Mode, Ch.1013 [824.70MHz]; Extended Battery Conducted Power = 24.0dBm; Left Head Phantom, Ear/15degree Tilt position Test Date -- 08/09/2001 SAR Tot [mW/g] 7.67E-2 2.30E-1 3.84E-1 5.37E-1 6.90E-1 PCTEST Engineering Laboratory, Inc. TELSON FCC ID:MC6TDC6100 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Prob…

Text truncated - open the document above for the full version.

RF Exposure Info

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

RF Exposure Info

835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.09 mW/g, SAR (10g): 1.40 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.08E-1 6.25E-1 1.04E+0 1.46E+0 1.88E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.13 mW/g, SAR (10g): 1.44 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.13E-1 6.38E-1 1.06E+0 1.49E+0 1.91E+0 PCTEST Engineering Laboratory, Inc.

Test Report
