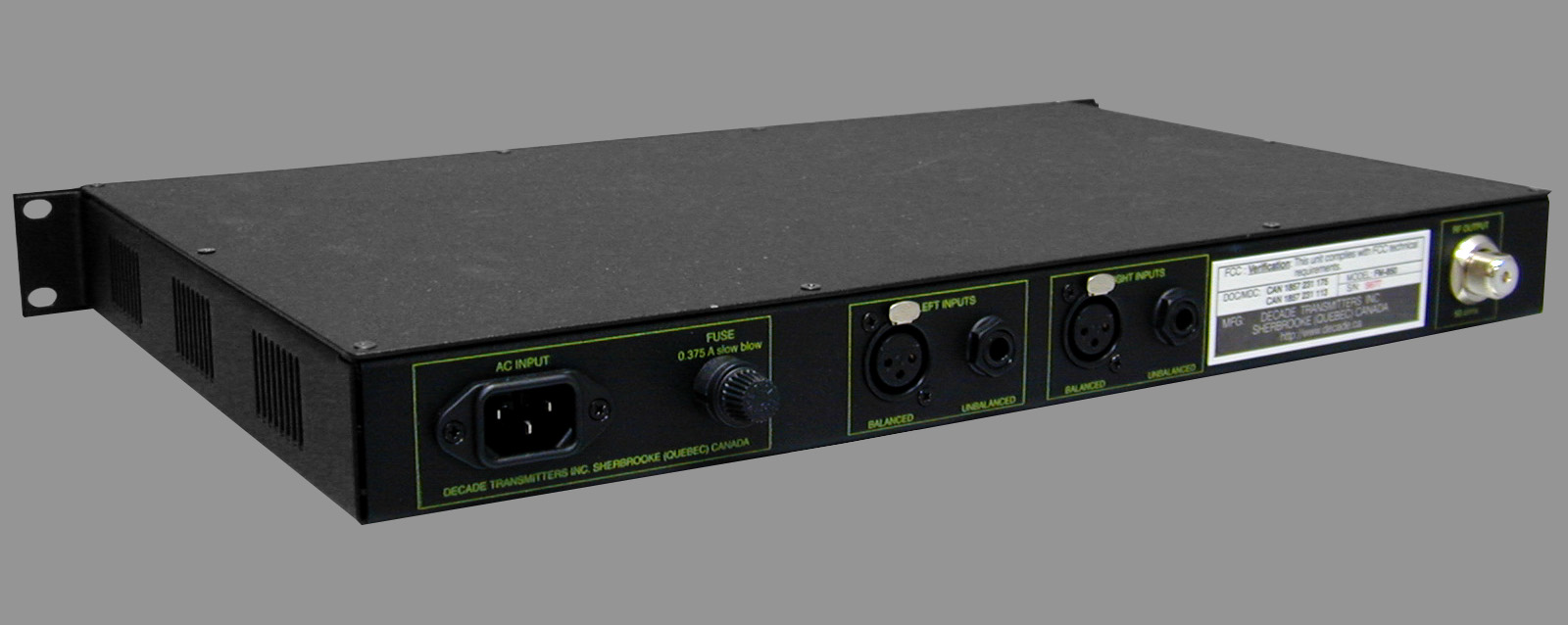

HI-FI MONO/ STEREO FM TRANSMITTERS FM-800 / FM-850 INSTRUCTION MANUAL In conformity with FCC part 73 regulations (Verification only) 1 9902-800/850 DECADE TABLE OF CONTENT PAGE SECTION 1: GENERAL INFORMATIONS.........................................2 A) Introduction ...............................................................2 B) Description ................................................................2 C) Warranty...................................................................2 D) Warning ....................................................................3 E) Technical specifications.............................................3 SECTION 2: FRONT & BACK PANEL DIAGRAMS............................4 A) Front & back panel diagrams.....................................4 B) Front & back panel description ..................................5 SECTION 3: INSTALLATION............................................................6 A) Introduction ...............................................................6 B) Receiving inspection..................................................6 C) Connections..............................................................6 D) Location of the transmitter and antenna.....................6 SECTION 4: OPERATION.................................................................7 A) Controls and indicators..............................................7 B) Input and output connectors......................................7 C) Optimal input level....................................................8 SECTION 5: MAINTENANCE AND PROGRAMMATION....................8 A) Maintenance..............................................................8 B) Frequency programmation ........................................8 C) RF power level programmation ..................................9 SECTION 6: APPLICATIONS............................................................ 10 ANNEXES ! FM-800 technical specifications............................. 11 ! FM-850 technical specification.............................. 12 2 SECTION 1 GENERAL INFORMATIONS A) Introduction Thank you for purchasing one of the fine products made by DECADE transmitters. Your new FM-800 or FM-850 HI-FI STEREO FM TRANSMITTER is a very high performance and high reliability piece of equipment. Before using it, please read this manual carefully in order to obtain the best possible results from your transmitter. The manual contains installation, operation and programmation procedures for DECADE FM-800 (1.8 Watts) Hi-Fi mono and FM-850 (1.8 Watts) of Hi-Fi Stereo FM Transmitters. B) Description FM-800 and FM-850 transmitters include a high precision crystal controlled VCO, a digital stereo generator (FM-850 only), an RF power amplifier and a spurious filter. They accept left and right audio signals on two types of input connectors: !XLR3: 600 Ohms balanced inputs, with signal levels of -4dBm min. !1/4": 6 to 10K Ohms unbalanced inputs, with signal levels of - 10dBm min. Input level can be ajusted from the INPUT LEVEL control on the front panel, in order to get the optimum modulation level. That useful feature makes DECADE transmitters very versatile, allowing them to accept audio signals from many sources. C) Warranty FM-800 and FM-850 tranmitters come with a two (2) years warranty that covers parts replacement and labor required to repair any defects resulting from the manufacturing process. All claims must be authorized by DECADE prior to shipment of a faulty unit for repairs and a copy of the invoice must be included in the shipment. Shiping fees are assumed by the client and DECADE will pay for the return of the repaired unit. 3 D) Warning DECADE transmitters operate on the 87.9 MHz - 107.9 MHZ commercial FM broadcast band, so signals transmitted by them can be received on any standard FM receiver. Thus, some care should be taken in the use made out of these transmitters. DECADE transmitters inc. is not responsible for any loss of profit or laws violation during the utilisation of their transmitters. The FCC legislate the use of FM transmitters.A license or special permit from FCC is required for the operation of these units. E) Technical specifications Refer to annexes, Technical specifications of FM-800 and FM-850 . 4 5 FM-850HI- FI STEREO FM TRANSM ITTER TUNING LOC K OVER NORMAL MODULATION STEREO BASS BOOST POWER INPUT LEVEL POWER FREQUENCY (MHz) POWER ( WATTS) FM-800HI-FI FM TRANSMITTER TUNING LOC K OVER NORMAL MODULATION POWER INPUT LEVEL POWER FREQUENCY (MHz) POWER ( WATTS) (FRONT & BACK PANEL DIAGRAMS) AC INPUT DECADE TRANSM ITTERS INC. SHERBROOKE ( QUEBEC) CANADA FUSE 0.5 A sl ow bl ow LEFT INPUTS BALANCED UNBALANCED RIGHT INPUTS BALANCED UNBALANCED RF OUTPUT 50 ohms FCC ID: Verification : This unit complies with FCC technical requirements. DOC/MDC: CAN 1857 231 175 CAN 1857 231 113 MODEL : FM-800S/N : 0000 MFG : DECADE TRANSMITTERS INC. SHERBROOKE (QUEBEC) CANADA http://www decade ca 8 9 10 7 1 5 13 14 4 2 3 6 11 12 1 5 13 14 4 2 3 6 11 12 15 16 17 19 18 20 21 6 FRONT & BACK PANEL DESCRIPTION Frequency display: Displays the programmed Power LED: Indicates that the AC power FM frequency (87.9 -107.9MHz) has bee n activated. Input level: Controls the audio level that is Frequency programmation switches: Directly dial the applied to the transmitter’s audio section. FM frequency. .Power display: Displays the programmed RF power Power switch: Controls the AC power to the in Watts. transmitter. Power programmation switches: Directly dial the RF power . AC input: This is where you plug the AC extension (furnished with the transmitter). Modulation LEDs : Indicates the status of audio signal being Fuse outlet: Main AC input fuse holder. modulated.Green led (5) indicates normal modulation(100%and less).Red led (6) indicates over modulation(100% and more) .Bass boost switch: When activated,the bass boost switch enable Balanced inputs: Accept a low impedance, a circuitry that will produce a 6dB gain from 20Hz to 150Hz . bal…

Text truncated - open the document above for the full version.

Offices in Ottawa (Canada), USA, Norway, England, Germany, Italy, Korea, Taiwan, China and Shanghai June 21, 2002 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA Nemko Canada Inc. 303 River Road RR #5 Ottawa, Ontario Canada K1V 1H2 Tel: 613-737-9680 Fax: 613-737-9691 Toll Free: 1-800-563-6336 Email: [email protected] Internet: www.nemkoca.com Dear Sir/Madam:Our File Ref. 2W04773 FCC ID: MCHFM-800 Applicant: Decade Transmitters Equipment: FM-800 & FM-850 FCC Confirmation no.: EA367959 Re: To Correct Frequency Tolerance of FCC Form 731 The frequency tolerance submitted on the Form 731 is incorrect. It should have stated .0008% and not .8% as submitted. Please make the necessary changes. Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Submissions Specialist Nemko Canada Inc. [email protected] Encl.

1.) What was the audio power (voltage RMS) for the 15 KHz tone? If I understand the question correctly, using the equation, P=V 2 /R, 0.001 watts (0 dBm) = V 2 /600 ohms V 2 = 0.001x600 = 0.6 V rms = 0.775 V rms 2.) Verify that this device was modulated with the maximum audio level. Correct. The device was modulated per the requirements of 2.1049 and output modulation was adjusted to maximum level using the control on the transmitter.

6/21/02 FM800SN.DOCDECADE TRANSMITTERS INC. FM-800 AND FM850 IDENTIFICATION LABEL FCC ID: MCHFM-800 DOC/MDC: CAN 1857 231 175 MODEL: FM-800 CAN 1857 231 113 S/N : 0000 MFG: DECADE TRANSMITTERS INC. SHERBROOKE (QUEBEC) CANADA http://www.decade.ca FCC ID: MCHFM-800 DOC/MDC: CAN 1857 231 175 MODEL: FM-850 CAN 1857 231 113 S/N : 0000 MFG: DECADE TRANSMITTERS INC. SHERBROOKE (QUEBEC) CANADA http://www.decade.ca trame 60% trame 60%

6/21/02 FM-800 PACKING Page 1 PARLIST - FM-800 PACKING DESCRIPTION VENDOR UNIT PRICE MIN ORDER CATALOG NUMBER MFG QTY TOTAL PRICE DIE CUT BOX FM SERIES CAN $2.0700 1000 3615 Cannelex 1 $2.07 INSTRUCTION MANUAL FM SERIES DECADE $1.2000 1 IME-FM-800 Decade 1 $1.20 STICKER FM SERIES MANUAL DECADE $0.5000 0 STIC-FM-MAN Decade STICKER FACTORY PRESET TO 98.5 MHz DECADE $0.1000 0 STIC-98.5 Decade 1 $0.10 FM-800 FM TRANSMITTER DECADE $566.3244 FM-800 Decade 1 $566.32 AC CABLE 120V FAI $3.5000 100 535B Alpha 1 $3.50 * PACKING CHARGE DECADE $2.5000 1 $2.50 TOTA L $575.69 fm-800.xls Decade Transmitters inc.

6/21/02 FM-850 PACKING Page 1 PARLIST - FM-850 PACKING DESCRIPTION VENDOR UNIT PRICE MIN ORDER CATALOG NUMBER MFG QTY TOTAL PRICE DIE CUT BOX FM SERIES CAN $2.0700 1000 3615 Cannelex 1 $2.07 INSTRUCTION MANUAL FM SERIES DECADE $1.2000 1 IME-FM-800 Decade 1 $1.20 STICKER FM SERIES MANUAL DECADE $0.5000 0 STIC-FM-MAN Decade STICKER FACTORY PRESET TO 98.5 MHz DECADE $0.1000 0 STIC-98.5 Decade 1 $0.10 FM-850 FM TRANSMITTER DECADE $640.8956 FM-850 Decade 1 $640.90 AC CABLE 120V FAI $3.5000 100 535B Alpha 1 $3.50 * PACKING CHARGE DECADE $2.5000 1 $2.50 TOTAL $650.27 fm-850.xls Decade Transmitters inc.

Master: ktlPT24BASE Date: April 19, 1999 Nemko Test Report No.: 2L0311RUS1 Applicant: Decade Transmitters 3232 Richard St. Unit 04 Sherbrooke, QC J1L 1Y2 Equipment Under Test: FM-800 Mono Transmitter FM-850 Stereo Transmitter In Accordance With:FCC Part 73, Subpart G FM Broadcast Transmitters Tested By: Nemko Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date: 6/19/02 Total Number of Pages: 35 Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 2 of 35 Table of Contents Section 1. Summary of Test Results........................................................................................3 Section 2. General Equipment Specification.............................................................................5 Section 3. RF Power Output....................................................................................................7 Section 4. Occupied Bandwidth.............................................................................................10 Section 5. Spurious Emissions at Antenna Terminals.............................................................14 Section 6. Field Strength of Spurious.....................................................................................18 Section 7. Powerline Conducted Emissions............................................................................21 Section 8. Test Equipment List..............................................................................................27 ANNEX A - TEST DETAILS...................................................................................................28 ANNEX B - TEST DIAGRAMS..............................................................................................33 Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 3 of 35 Section 1.Summary of Test Results Manufacturer:Decade Transmitters Model No.:FM-800 and FM-850 Serial No.:647 & S677 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 73, Subpart G. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. Nemko Dallas, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Dallas, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 4 of 35 Summary Of Test Data NAME OF TESTPARA. NO.SPEC.RESULT RF Power Output73.8111 watt min.Complies Occupied Bandwidth73.317MaskComplies Spurious Emissions at Antenna Terminals73.317-13 dBmComplies Field Strength of Spurious Emissions73.317-13 dBmComplies Footnotes: Measurement uncertainty is expressed to a confidence level of 95%. Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 5 of 35 Section 2.General Equipment Specification Supply Voltage Input: 115 Vac Operating Frequency: 87.9 to 107.9 MHz Channel Spacing: 200 kHz Number of Channels: 100 Type of Modulation and Designator: 180KF3E Frequency Modulation Output Impedance: 50 ohms RF Output (Rated): 1.8 Watts at antenna terminals. Frequency Selection: SoftwareManual Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 6 of 35 System Description The DecadeFM-800 Mono transmitter and the FM-850 Stereo transmitter are transmitters designed to operate in commercial FM broadcast band, LP10 Services. System Diagram Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 7 of 35 Section 3.RF Power Output NAME OF TEST: RF Power OutputPARA. NO.: 73.267(b)(2) TESTED BY: David LightDATE: 6/6/2002 Test Results:Complies. Measurement Data: EUT Measured Output Power (dBm) Measured Output Power (W) Measured/Rated Output Power (dB) FM-80032.321.7060.948 FM-85032.551.7990.999 Equipment Used: 1036-1064-1065-1045 Measurement Uncertainty: +/- 1.6dB Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 8 of 35 Test Plots – RF Power Output Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of2 CompleteX Job No.:2L0311Date:6/6/2002Preliminary: Specification:73.267(b)(2)Temperature(°C):24 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 & 2 Location:Lab 1RBW:2 kHzMeasurement Detector Type:PeakVBW:2 kHz Distance: NAm Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1045 Filter: Cable #2: Receiver:1036Cable #3: Attenuator #11064Cable #4: Attenuator #2:1065Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes:FM-850 RF Power Output Decade transmitters Tx FULL POWER Nemko Dallas FCC PART 73, SUBPART G FM Broadcast Transmitters EQUIPMENT: FM-800 & FM-850 REPORT NO.: 2L0311RUS1 Page 9 of 35 Test Plots – RF Power Output Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 2 of 2 Job No.:2L0311Date:6/6/2002 Specification: 73.267(b)(2) Temperature(°C):24 Tested By: David Light Relative Humidity…

Text truncated - open the document above for the full version.

Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of 3 CompleteX Job No.:2L0311Date:9/20/2002Preliminary: Specification:73.317Temperature(°C):24 Tested By:David LightRelative Humidity(%)40 E.U.T.: Configuration: Sample Number:1 & 2 Location:Lab 1RBW: 3 kHzMeasurement Detector Type:PeakVBW: 3 kHz Distance: m Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1045 Filter: Cable #2: Receiver:1036Cable #3: Attenuator #11064Cable #4: Attenuator #2: Mixer: Additional equipment used: Measurement Uncertainty:+/-1.7 dB Notes: Occupied Bandwidth FM-850 STEREO TRANSMITTER STEREO OPERATION DECADE FM TRANSMITTERS TX AUDIO SIGNAL FULL POWER 272171.XLS Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 2 of 3 Job No.:2L0311Date: 9/20/2002 Specification: 73.3 Temperature(°C): 24 Tested By: David Light Relative Humidity(%) 40 E.U.T.: Configuration: Notes: Occupied Bandwidth FM-850 STEREO TRANSMITTER MONO OPERATION DECADE FM TRANSMITTERS TX AUDIO SIGNAL FULL POWER 272171.XLS Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 3 of 3 Job No.:2L0311Date: 9/20/2002 Specification:73.317Temperature(°C): 24 Tested By:David LightRelative Humidity(%) 40 E.U.T.: Configuration: Notes: FM-800 MONO TRANSMITTER Occupied Bandwidth DECADE FM TRANSMITTERS TX AUDIO SIGNAL FULL POWER 272171.XLS
