MCL-BAGELXX1Media Center

HON HAI Precision Ind. Co., Ltd. Date: 2014.3.17 Federal Communications Commission Authorization and Evaluation Division FCC ID: MCL-BAGELXX1 ATTESTATION FCC ID: MCL-BAGELXX1 Product: IP-STB Model: Bagel We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Mrs. Rio Chen / Compliance Deputy Manager HON HAI Precision Ind. Co., Ltd.

RF_160, Issue 02 HON HAI Precision Ind. Co., Ltd. We Name: HON HAI Precision Ind. Co., Ltd. Address: 5F-1, 5, Hsin-An Road, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan City: Hsinchu ............................................................................ Country: China ............................................................................ Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country China is authorized to apply for Certification of the following product(s): Product description: IP-STB ............ Type designation: Bagel .................. Trademark: GITV on our behalf. Date: ...... 2014-03-17.............. City: ...... Hsinchu .......................... Name: ...... Mrs. Rio Chen ................................ Function: ...... Compliance Deputy Manager ............................ Signature: ... ............................................................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HON HAI Precision Ind. Co., Ltd. Date：2014.3.17 Federal Communications Commission Authorization and Evaluation Division FCC ID: MCL-BAGELXX1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Sincerely, __________________ Mrs. Rio Chen / Compliance Deputy Manager HON HAI Precision Ind. Co., Ltd.

HON HAI Precision Ind. Co., Ltd. 5F-1, 5, Hsin-An Road, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan Attestation for FCC Declaration of Conformity FCC ID: MCL-BAGELXX1 Date: 2014/04/02 Please be notified that we, the undersigned, HON HAI Precision Ind. Co., Ltd.declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 1410379R-ITUSP01V02 Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely __________________ Mrs. Rio Chen / Compliance Deputy Manager HON HAI Precision Ind. Co., Ltd.

HON HAI Precision Ind. Co., Ltd. Date: 2014.3.17 Federal Communications Commission Authorization and Evaluation Division FCC ID: MCL-BAGELXX1 ATTESTATION FCC ID: MCL-BAGELXX1 Product: IP-STB Model: Bagel We print the user manual information on the packaging, clients can see it clearly when it sells in USA. Sincerely, __________________ Mrs. Rio Chen / Compliance Deputy Manager HON HAI Precision Ind. Co., Ltd.

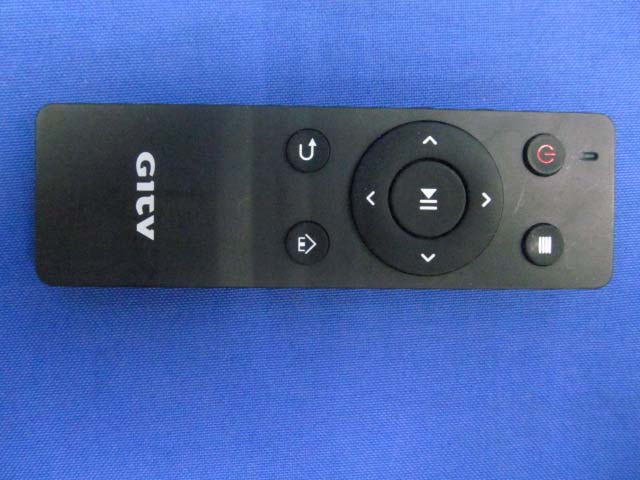

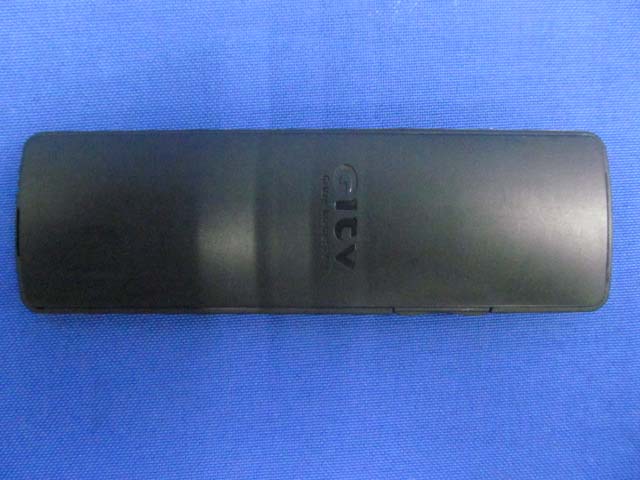

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo

EUT Photograph (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

RF Exposure Evaluation Declaration Product Name : IP-STB Model No. : Bagel FCC ID : MCL-BAGELXX1 Applicant : HON HAI Precision Ind. Co., Ltd. Address : 5F-1, 5, Hsin-An Road, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan Date of Receipt : Jan. 17, 2014 Issued Date : Mar. 07, 2014 Report No. : 1410379R-RF-US-P20V01 Report Version : V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 1410379R-RF-US-P20V01 Page: 2 of 5 Test Report Certification Issued Date : Mar. 07, 2014 Report No. : 1410379R-RF-US-P20V01 Product Name : IP-STB Applicant : HON HAI Precision Ind. Co., Ltd. Address : 5F-1, 5, Hsin-An Road, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan Manufacturer : Ambit Mircosystems (Shanghai) LTD. Address : 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China 201613 Model No. : Bagel FCC ID : MCL-BAGELXX1 EUT Voltage : 5V/2A Brand Name : GITV Applicable Standard : KDB 447498D01V05V02 FCC Part1.1310(b) Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1410379R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC Japan :VCCI China :CNAS Report No: 1410379R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 1410379R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : IP-STB Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.21dBi in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n(20MHz) 2412~2462 100.2305 0.041757 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2. The End

Test Report FCC Part15 Subpart C Product Name : IP-STB Model No. : Bagel FCC ID : MCL-BAGELXX1 Applicant : HON HAI Precision Ind. Co., Ltd. Address : 5F-1, 5, Hsin-An Road, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan Date of Receipt : Jan. 17, 2014 Test Date : Jan. 17, 2014~Feb. 16, 2014 Issued Date : Mar. 07, 2014 Report No. : 1410379R-RF-US-P05V01 Report Version : V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 1410379R-RF-US-P05V01 Page: 2 of 113 Test Report Certification Issued Date : Mar. 07, 2014 Report No. : 1410379R-RF-US-P05V01 Product Name : IP-STB Applicant : HON HAI Precision Ind. Co., Ltd. Address : 5F-1, 5, Hsin-An Road, Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan Manufacturer : Ambit Mircosystems (Shanghai) LTD. Address : 1925, Nanle Road, Songjiang Export Processing Zone, Shanghai, China 201613 Model No. : Bagel FCC ID MCL-BAGELXX1 EUT Voltage : 5V/2A Brand Name : GITV Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009 KDB 558074 D01 DTS Meas Guidance v03r01 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No: 1410379R-RF-US-P05V01 Page: 3 of 113 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No: 1410379R-RF-US-P05V01 Page: 4 of 113 TABLE OF CONTENTS Description Page 1. General Information ........................................................................................................ 6 1.1. EUT Description ...................................................................................................... 6 1.2. Mode of Operation ................................................................................................... 8 1.3. Tested System Details ............................................................................................. 9 1.4. Configuration of Tested System ............................................................................. 10 1.5. EUT Exercise Software .......................................................................................... 11 2. Technical Test ............................................................................................................... 12 2.1. Summary of Test Result ......................................................................................... 12 2.2. Test Environment ................................................................................................... 13 3. Conducted Emission .................................................................................................... 14 3.1. Test Equipment ...................................................................................................... 14 3.2. Test Setup.............................................................................................................. 14 3.3. Limit ....................................................................................................................... 15 3.4. Test Procedure ...................................................................................................... 15 3.5. Uncertainty ............................................................................................................ 15 3.6. Test Result ............................................................................................................. 16 4. Radiated Emission ....................................................................................................... 18 4.1. Test Equipment ...................................................................................................... 18 4.2. Test Setup.............................................................................................................. 19 4.3. Limit ....................................................................................................................... 20 4.4. Test Procedure ...................................................................................................... 20 4.5. Uncertainty ...............................…

Text truncated - open the document above for the full version.

Test Setup Photograph for Part 15.247 Description: Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 30MHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for 1~18GHz Description: Radiated Emission Test Setup for Above 18GHz
