MCLABALONE200Cellular Phone

1 SeaQuad 200 User Guide version 1.0, 2004/05/07 2 Contents 1. Security Rules ................................................... 4 2. Getting Started ................................................... 5 3. Quick start .................................................... 7 4. Introduction ................................................... 10 5. Introduction of menu ................................................... 14 6. Menu tree ................................................. 23 7. Specific Absorption Rate ................................................. 27 3 1. Security Rules Please read the handbook carefully. The manipulation that does not agree with the handbook may bring dangers or violate the law. 1.1. Safety Information ƒ The safety of driving Please do not use the handset when you are driving. This behavior will violate the law in some countries. ƒ Power off the phone first when you are supplying the energy Be sure not to use handset near the gas station, fuel, or chemical. ƒ Power off the phone when you are in the airplane The wireless phone will lead to communication confliction. Use the handset in the airplane is dangerous and illegal. ƒ Power off the phone when you are in the hospital. Please obey the rules of the hospital and power off the phone near the medical machines. ƒ Obey the rule Obey the forbidden rules anywhere to avoid conflictions and dangers (such as in the hospital). ƒ Conflictions Any wireless phone may encounter the wireless confliction and affect the performance. ƒ Choose the qualified service Only the qualified staffers can fix the phone. ƒ Use naturally Please use the phone naturally and avoid touching the antenna when powering on. ƒ Emergency call Be sure that the phone is powered on and in service. After calling the emergency number, you should show your position and not power off your phone. ƒ Ionization radiation Keep away from the antenna when using the phone. ƒ Note Be sure to use the normal accessories and batteries. Otherwise, it would be dangerous. 1.2. Battery Information ƒ In lower temperature condition In lower temperature condition, LCD’s showing speed become slower. This phenomenon is 4 normal. The phone may stop working when the battery is too hot or too cold. ƒ Charging the new battery * The new battery for user may be uncharged. * In order to make full use of battery, the first charging time length is preferred beyond 15 hours, but lower 24 hours. * The battery may be charged and discharged for hundreds of time, but it would be invalidate in the end. When its using time is too short, we should use new battery. * When the charger is unusedwe should switch off electrical source.， ƒ Attention * Just use the suitable charger. * Keep away from the fire. Do not disassemble the charge by authenticated person. * Do not throw phone. This will affect battery’s life. * The performance of battery mostly depends on networks. * If it is unused, the charged battery will auto discharge in a mouth. * If battery is not used continuously, you’d better discharge it completely and place it in the cool, no-sunshine, and thirty place. * Do not place the phone or the battery in hot situation(beyond 60), such as the sun°C-shine window. * Clear the phone with the prevent-electrostatic cloth. Do not use the dry or electrostatic cloth. * Old battery should be discarded at the pointed place and not throw away freely. 5 2. Getting Started 2.1. SIM card You need to register as a subscriber of a network operator and receive a SIM (Subscriber Identity Module) card. A SIM card contains a micro computer chip which can track of phone number, services included in your subscription, phone book and etc. A default PIN (Personal Identity Number) code is provided by the SIM card from your operator and must be entered when switch on this mobile phone. 2.2. Install SIM card and battery 2.2.1. Install SIM card 1. Press key to turn off the phone. Push the catch up and then remove the battery. 2. Insert your SIM card into SIM card slot as figure below. 3. Make sure that the golden connectors are facing downward and that the beveled corner is on the left. 4. Replace the battery into its place. 2.2.2. Remove the SIM card 1. Press key to turn off the phone. Push the battery lock up and then pick up the battery. 2. Slide the SIM card out of the slot carefully. 2.2.3. Replace the battery 1. The battery is at the back of the phone. 2. Push the battery down to match the slot on it to the tabs at the bottom of the phone. 3. Press the battery down until it click into place. 6 2.2.4. Remove the battery 1. Push the catch above the battery towards the top of the phone and hold it in the position. 2. Lift the battery away as shown. 2.3. Charging the battery 1. Connect the battery to the base of the phone. 2. Connect the adapter to the mains. The battery charging icon appears on the screen. 3. The battery icon stops blinking after battery full. 4. When charging is finished, unplug the adapter from both the power outlet and the charger. 5. When charging the phone, the battery might be hotter. This is normal situation. 2.4. Power management Battery Status Standard Battery Charging times 2 hours Ta l k t i m e 2~3 hours Standby time 100~150 hours Battery Capacity 600 mAh Notice: ƒ Variation in operating times will occur depending on SIM card, network and usage settings, usage style and environments. ƒ The actual charging times depend on the adapter. 7 3. Quick start 3.1. Switching the phone on and off 3.1.1. Power on Figure Steps Description 1. Open the flip 2. Press and hold end key Switch on the phone 3. Display idle mode screen after power on. 4. Enter the PIN code if PIN code request is enabled. The ‘*’ mark is displayed instead of number input while entering PIN code. Notice: ƒ If you key in an incorrect PIN code three times in succession, SIM card will be locked. Key in the PUK code to unlock it. ƒ PIN code is usually supplied with SIM card. ƒ The PUK code may be supplied with the SIM car…

Text truncated - open the document above for the full version.

Hon Hai Precision Ind. Co., Ltd. 1/1 May 21, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID：MCLABALONE200 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Part list 2. Block Diagram 3. Tune-up procedures 4. Schematics 5. Operational Description The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely yours, Te Pi Wang/ Deputy Manager Applicant: Hon Hai Precision Ind. Co., Ltd. ADDRESS: 6F-1, No. 20, Tai Yuan St., Jubei City, Hsinchu, Taiwan R.O.C. TEL: 886-3-552-6286 FAX: 886-3-552-6287

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 24, 2004 RE: Hon Hai Precision Inc. Co., Ltd. FCC ID: MCLABALONE200 After a review of the submitted information, I have a few comments on the above referenced Application. Administrative Issues: 1) External photographs do not appear to show the phone in an open position. Please provide additional photos as necessary to show this. 2) Please provide photographs of the inside of the top portion of the device as well. 3) It can not be determined how the circuitry in the top clam-shell connect to the circuitry in the bottom. Are all boards shown from the bottom clam-shell? Please provide further photos as necessary. 4) The parts list provided is an upper level assembly BOM, and does not contain the parts list for the boards. Please provide parts list of the PCB’s 5) The tune up procedure does not appear to provide any target values for power. Please update to include. 6) Users manual should include specific instructions regarding body worn conditions (distance, non- metallic devices, etc.) Please adjust. Technical Issues: 7) Page 10 of 49 mentions 200 kHz bandwidth. This appears incorrect given the measured value, and theoretical value of 300 kHz. 8) Transmitter conducted measurements should be provided for up through the 10 th harmonic and comparing to the -13 dBm limit as well. Please provide. 9) It appears that a filter may have been used during radiated testing. However this is not listed in the equipment list, nor calibration information. Please explain. 10) All test data shows a crest factor of 8.3. However, the operational description states that this device supports Class 12 GPRS (crest factor of 2). It is also uncertain if this device is capable of using these modes in both Head and Body positions. Please clarify and as necessary provide additional test data. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Response for MCLABALONE200 1. Photo has been updated and re-uploaded. 2. the same as item 1 3. they are connected by flexible cable and a connector, they are shown in the original photos, pls double check. 4. it has 3 pages in this file, it does include the part list for the boards (reply from client). 5. updated 6. updated 7. changing channel bandwidth to channel spacing 8. has been uploaded as a separate file 9. has been uploaded as a separate file 10. crest factor 8.3 is correct. The phone has no GPRS function. The operational description has been updated.

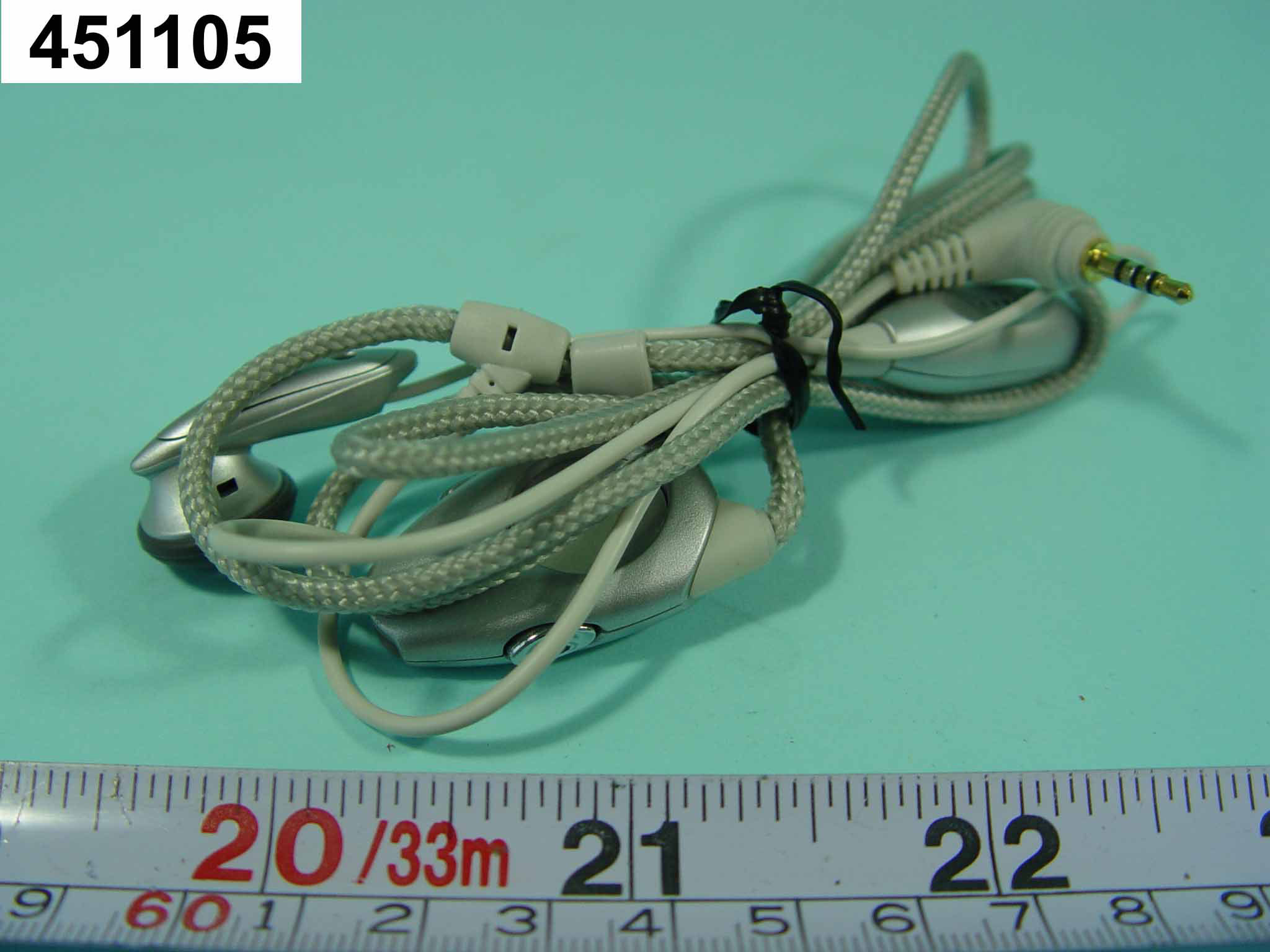

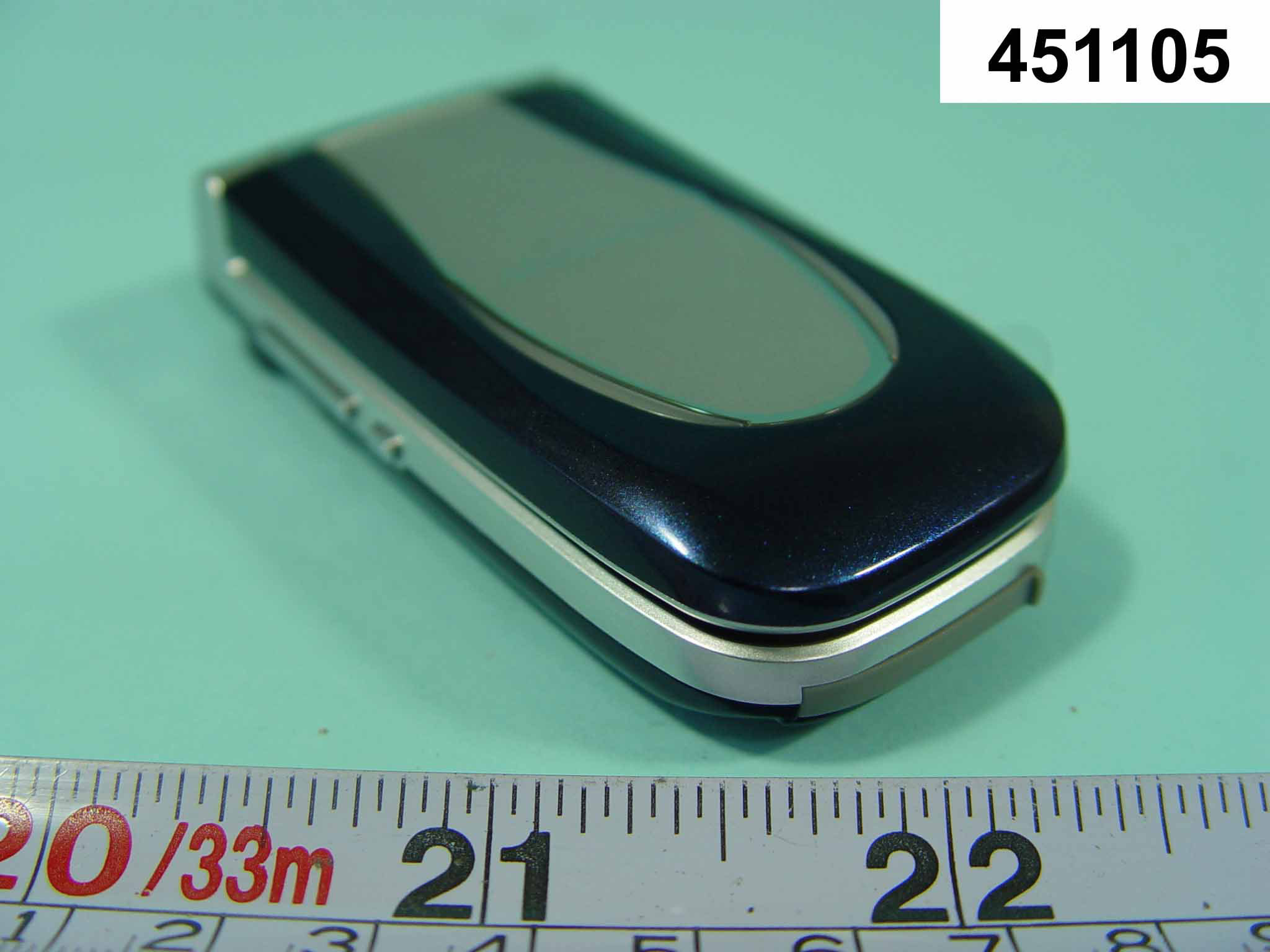

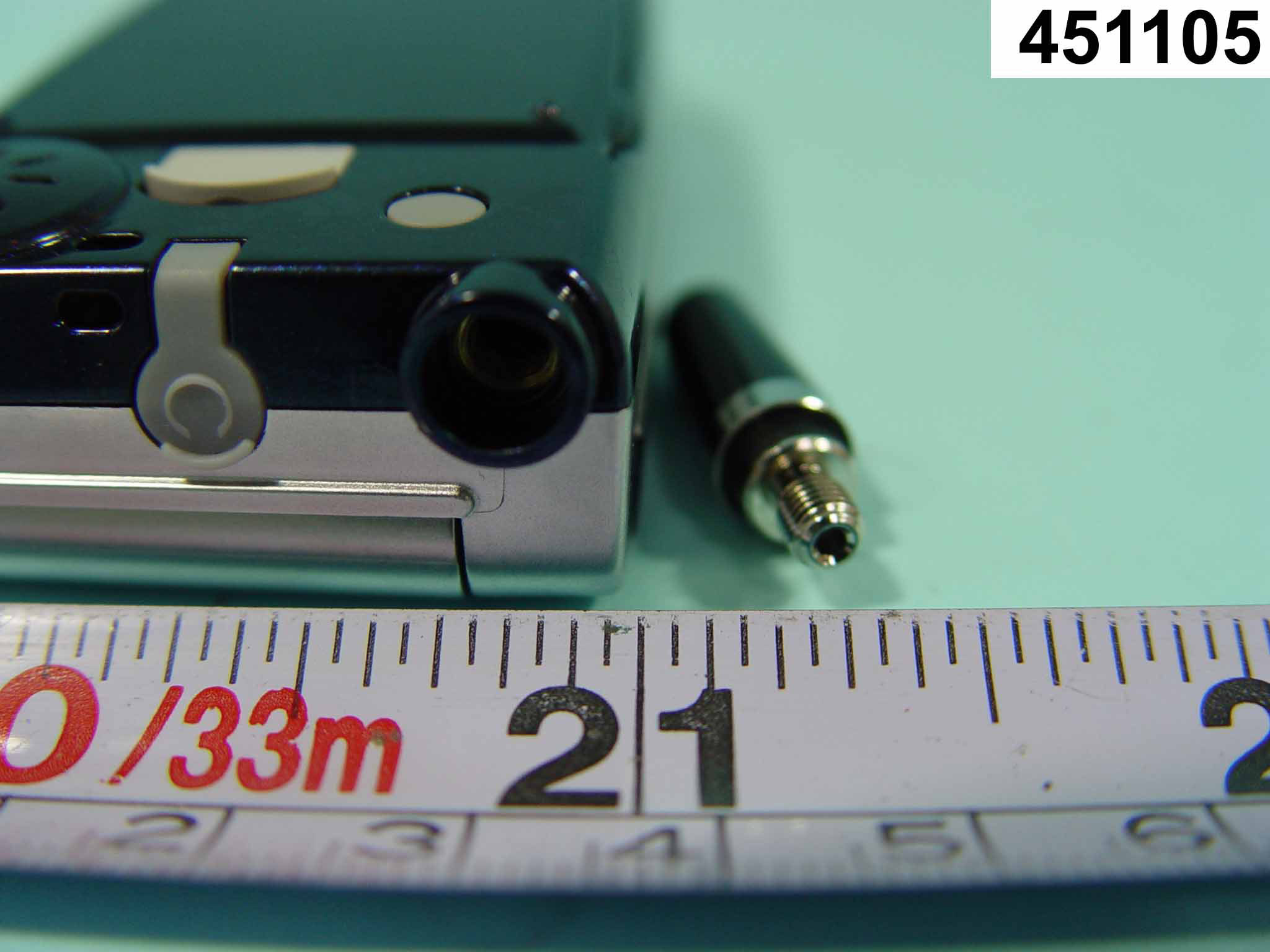

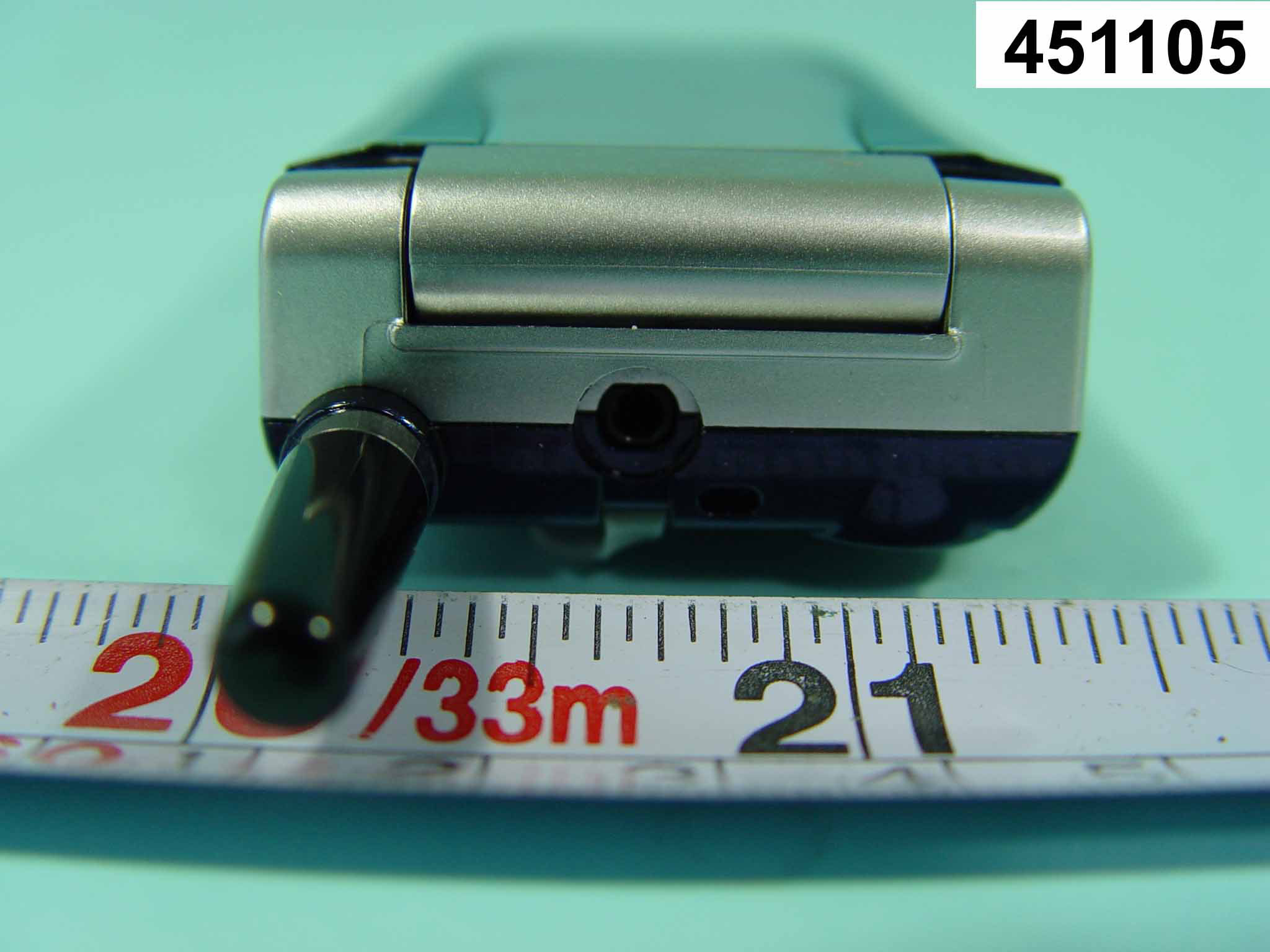

FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255

Label Abalone 200

FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A1 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A2 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A3 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A4 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A5 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A6 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A7 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A8 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A9 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A10 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A11 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A12 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : May 21, 2004 FAX : 886-2-2696-2255

©2004 SPORTON International Inc..SAR Testing Lab Page 0 of 36 This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 Specific Absorption Rate (SAR) Test Report for SeaQuad Logistics Inc. on the GSM phone Report No. : O451105-1-2-01 Trade Name : SeaQuad Model Name : Abalone 200 FCC ID : MCLABALONE200 Date of Testing : May 11~12, 2004 Date of Report. : May 14, 2004 Date of Review : May 17, 2004 ‚ The test results refer exclusively to the presented test model/sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. © 2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 Table of Contents 1. Statement of Compliance --------------------------------------------------------------------------------------- 1 2. Administration Data---------------------------------------------------------------------------------------------- 2 2.1 Testing Laboratory--------------------------------------------------------------------------------------------- 2 2.2 Detail of Applicant--------------------------------------------------------------------------------------------- 2 2.3 Detail of Manfacturer----------------------------------------------------------------------------------------- 2 2.4 Application Detail---------------------------------------------------------------------------------------------- 2 3.General Information ----------------------------------------------------------------------------------------------- 3 3.1 Description of Device Under Test (DUT)------------------------------------------------------------------- 3 3.2 Applied Standards:--------------------------------------------------------------------------------------------- 5 3.3 Device Category and SAR Limits---------------------------------------------------------------------------- 6 3.4 Test Conditions:------------------------------------------------------------------------------------------------ 6 3.4.1 Ambient Condition------------------------------------------------------------------------------------- 6 3.4.2 Test Configuration------------------------------------------------------------------------------------- 6 4.Specific Absorption Rate (SAR)------------------------------------------------------------------------------- 7 4.1 Introduction----------------------------------------------------------------------------------------------------- 7 4.2. SAR Definition------------------------------------------------------------------------------------------------- 7 5. SAR Measurement Setup--------------------------------------------------------------------------------------- 8 5.1.DASY4 E-Field Probe System-------------------------------------------------------------------------------- 9 5.1.1.ET3DV6 E-Field Probe Specification-------------------------------------------------------------- 10 5.1.2 ET3DV6 E-Field Probe Calibration---------------------------------------------------------------- 10 5.2 DATA Acquisition Electronics (DAE)----------------------------------------------------------------------- 11 5.3 Robot------------------------------------------------------------------------------------------------------------ 12 5.4 Measurement Server------------------------------------------------------------------------------------------ 12 5.5 SAM Twin Phantom------------------------------------------------------------------------------------------- 12 5.6. Device Holder for SAM Twin Phantom-------------------------------------------------------------------- 14 5.7 Data Storage and Evaluation-------------------------------------------------------------------------------- 15 5.7.1 Data Storage------------------------------------------------------------------------------------------- 15 5.7.2 Data Evaluation--------------------------------------------------------------------------------------- 15 5.8. Test Equipment List------------------------------------------------------------------------------------------ 18 6. Tissue Simulating Liquids------------------------------------------------------------------------------------- 19 7. Uncertainty Assessment ---------------------------------------------------------------------------------------- 21 8. SAR Measurement Evaluation------------------------------------------------------------------------------- 23 8.1 Purpose of System Performance check--------------------------------------------------------------------- 23 8.2 System Setup--------------------------------------------------------------------------------------------------- 23 8.3Validation Results---------------------------------------------------------------------------------------------- 25 9. Description for DUT Testing Position--------------------------------------------------------------------- 26 10. Measurement Procedures------------------------------------------------------------------------------------- 31 10.1 Spatial Peak SAR Evaluation------------------------------------------------------------------------------ 31 10.2 Scan Procedures--------------------------------------------------------------------------------------------- 32 10.3 SAR Averaged Methods------------------------------------------------------------------------------------- 32 © 2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 11. SAR Test Results-----------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O451105-1-2-01

Plotting for Conducted Emission

FCC TEST REPORT Report No. : F451114 SPORTON International Inc. FCC ID HFS-N101 TEL : 886-2-2696-2468 Pa ge No. 1 of 49 FAX : 886-2-2696-2255 Issued Date Ma y 18, 2004 FCC TEST REPORT for 47 CFR Part 24E Equipment : GSM Phone Model No. : Abalone 200 FCC ID : MCLABALONE200 Filing Type : Certification Applicant : Hon Hai Precision Inc. Co., Ltd. 5F-1, 5 Hsin-An Road, Hsinchu, Science-Base Industrial Park, Taiwan R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F451114 SPORTON International Inc. FCC ID HFS-N101 TEL : 886-2-2696-2468 Pa ge No. 2 of 49 FAX : 886-2-2696-2255 Issued Date Ma y 18, 2004 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC TEST REPORT Report No. : F451114 SPORTON International Inc. FCC ID HFS-N101 TEL : 886-2-2696-2468 Pa ge No. 3 of 49 FAX : 886-2-2696-2255 Issued Date Ma y 18, 2004 Table of Contents Rule Description Page Test Report 4 2.1033(c) General Information Required 5 2.1033(c)(14) Rule Summary 9 General Information 10 Standard Test Conditions and Engineering Practices 11 2.1046(a) EIRP Carrier Power (Radiated) 12 2.1051, 2.1049(c), 24, 24.238(b). Transmitter Conducted Measurements 17 2.1053(a) Field Strength of Spurious Radiation 23 2.1055(a)(1) Frequency Stability (Temperature Variation) 43 2.1055(b)(1) Frequency Stability (Voltage Variation) 46 Antenna Factor & Cable Loss 47 List of Measuring Equipments 48 Uncertainty of Test Site 49 Appendix A External Product Photograph Appendix B Internal Photograph Appendix C Set up Photograph FCC TEST REPORT Report No. : F451114 SPORTON International Inc. FCC ID HFS-N101 TEL : 886-2-2696-2468 Pa ge No. 4 of 49 FAX : 886-2-2696-2255 Issued Date Ma y 18, 2004 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report b) Laboratory: Sporton International Inc. No.52, Hwa-Ya 1 st RD., Hwa Ya Technology Park, Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. c) Report Number: F451105 d) Client: Hon Hai Precision Inc. Co., Ltd. 5F-1, 5 Hsin-An Road, Hsinchu, Science-Based Industrial Park, Taiwan R.O.C. e) Identification: Model Name: Abalone 200 FCC ID : MCLABALONE200 Description: GSM 1900 Radio f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 21, 2004 EUT Received: May 11, 2004 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with Sporton internal quality manual. m) Supervised by: Hendry Yang n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Accessories Used During Testing: Type Model EUT Abalone 200 Earpiece N/A Laptop N/A FCC TEST REPORT Report No. : F451114 SPORTON International Inc. FCC ID HFS-N101 TEL : 886-2-2696-2468 Pa ge No. 5 of 49 FAX : 886-2-2696-2255 Issued Date Ma y 18, 2004 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 24E, Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: Hon Hai Precision Inc. Co., Ltd. 5F-1, 5 Hsin-An Road, Hsinchu, Science-Based Industrial Park, Taiwan R.O.C. Manufacturer HonXun Electrical Industry (HangZhou) Co. Hang Zhou Economic & Technology Development Zone Road No. 1. (c)(2): FCC ID: MCLABALONE200 Model Number: Abalone 200 (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: 300 KGXW (c)(5): FREQUENCY RANGE, MHz: 1850.2 to 1909.8 (c)(6): Power Rating, Watts: 0.809 (conducted) 0.204 (EIRP) x Switchable Variable N/A (c)(7): Maximum Power Rating, Watts: 1 FCC TEST REPORT Report No. : F451114 SPORTON International Inc. FCC ID HFS-N101 TEL : 886-2-2696-2468 Pa ge No. 6 of 49 FAX : 886-2-2696-2255 Issued Date Ma y 18, 2004 Subpart 2.1033 (continued) (c)(8): Voltages & Currents in All Elements in Final RF Stage, Including Final Transi…

Text truncated - open the document above for the full version.

EquipmentBrand Name Model NameS/N GSM850 notch filter EWTEWT-14-0039 D1 PCS notch filterEWTEWT-14-0042 D1 1.5GHz highpass filt eEWTEWT-14-0009 D2 3GHz highpass filter REACTEL8HS-3/18-S11 SN02-2

FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Miay 21, 2004 FAX : 886-2-2696-2255 APPENDIX C. Setup Photograph For Radiated Emission FRONT VIEW FCC TEST REPORT REPORT NO. : F451105 SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Miay 21, 2004 FAX :…

Text truncated - open the document above for the full version.
