MCLBCM92046USB Bluetooth Module

1 BCM92046 Manual 2 FCC/IC Warning Statement • Federal Communication Commission Interference State ment • This equipment has been tested and found to comply with the limits for a Class B digital device, purs uant to Part 15 of the FCC Rules. These limits are designed to provid e reasonable protection against harmful interferenc e in a residential installation. This equipment generates , uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may c ause harmful interference to radio communications. However, there is no guarantee that interference will not oc cur in a particular installation. If this equipmen t does cause harmful interference to radio or television reception, whic h can be determined by turning the equipment off an d on, the user is encouraged to try to correct the interference by on e of the following measures: • - Reorient or relocate the receiving antenna. • - Increase the separation between the equipment and receiver. • - Connect the equipment into an outlet on a circuit different from that to which the receiver is connec ted. • - Consult the dealer or an experienced radio/TV tec hnician for help. • FCC/IC Caution: Any changes or modifications not e xpressly approved by the party responsible for comp liance could void the user's authority to operate this equipment . • This device complies with Part 15 of the FCC/RSS-2 10 or IC Rules. Operation is subject to the followi ng two conditions: (1) This device may not cause harmful i nterference, and (2) this device must accept any in terference received, including interference that may cause und esired operation. • This equipment complies with FCC/IC RF radiation e xposure limits set forth for an uncontrolled environ ment. To maintain compliance with FCC/IC RF exposure complia nce requirements, please avoid direct contact to th e transmitting antenna during transmitting. 3 FCC/IC Warning Statement for Module • This device is intended only for OEM integrators un der the following conditions: • The antenna must be installed such that 20 cm is m aintained between the antenna and users, and • The transmitter module may not be co-located with any other transmitter or antenna, • For all products market in US/Canada, OEM has to l imit the operation channels in CH1 to CH79(2402~248 0MHz) of Bluetooth for 2.4G band by supplied firmware progra mming tool. OEM shall not supply any tool or info t o the end- user regarding to Regulatory Domain change. • As long as 3 conditions above are met, further tra nsmitter test will not be required. However, the OEM integra tor is still responsible for testing their end-product for any additional compliance requirements required wi th this module installed (for example, digital device emissions, P C peripheral requirements, etc.). • IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and th e FCC ID can not be used on the final product. In these circumstance s, the OEM integrator will be responsible for re-ev aluating the end product (including the transmitter) and obtaini ng a separate FCC authorization. • End Product Labeling • This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The fi nal end product must be labeled in a visible area w ith the following: “Contains FCC ID:MCLBCM92046”. • Manual Information To the End User • The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product w hich integrates this module. • The end user manual shall include all required reg ulatory information/warning as show in this manual. 4 NCC 警語 • 經型式認證合格之低功率射頻電機 ，非經許可 ，公司 、商號或使 用者均不得擅自變更頻率 、加大功率或變更原設計之特性及功 能。 • 低功率射頻電機之使用不得影響飛航安全及干擾合法通信 ；經發 現有干擾現象時 ，應立即停用 ，並改善至無干擾時方得繼續使 用。前項合法通信 ，指依電信法規定作業之無線電通信 。低功率 射頻電機須忍受合法通信或工業 、科學及醫療用電波輻射性電機 設備之干擾 。 • 本模組於取得認證後將依規定於模組本體標示審合格籤 ，並要求 平台上標示 「本產品內含射頻模組 ： ID 編號 」 5 Product Specification 0 ~ +55 degree C Operation temperature range Gain:2.2 dBi Brand :ethertronics / Model:GB04001-A01 Type ： PIFA / Connector ： NA Antenna Type, Gain and Connector Type USB2.0 I/O Port or data cable if any 3.3V+/-5% Power Rating (DC/AC, Volt rating) Bluetooth: 1.09dBm Maximum output power to Antenna, power control valu e f=2402+k MHz ,k=0,1,2,3.....,78 Carrier frequency of each channel Channel for USA ,Europe and most other countries as below: f=2402+k MHz ,k=0,1,2,3.....,78 Number of channels FHSS, GFSK, π/4-DQPSK,8DPSK Modulation type BT V2.1+EDR Bluetooth standard Contents Items 6 To execute ActivePerl 7 select it 8 Select it Click it 9 select it 10 select it 11 Select it 12 Select it 13 14 15 1.To execute BlueToolInstall (Version:V.0.8.7.2) Execute below BluetoolInstall Click it 16 Choice that. Click it. 17 Click it. 18 Click it. 19 Click it 20 Click it 21 2. Driver in BTWUSB After inserting the bluetooth module, it will searc h driver of BTWUSB as below. 22 Then Select the Driver location and press “Next” 23 24 25 3.How to use Bluetool • Open Log window 26 27 Click HCI control in Transport to launch Bluetooth Module Select HCI control 28 Select USB 0 29 Choose 0-Vendor-specific Commands(0 key) 30 Click Set_TX_Carrier_Frequency_2045 for Transmitter Testing 31 Select frequency Select Mode Select Modulation Type Select TX_Power_Level (We select 0dBm) Select Carrier on 32 Click Write_Receive_Only for Receiving Testing 33 Select Frequency

FCC ID: MCLBCM92046 ADT No. 970218H05 Modular Approval Request Letter Advance Data Technology March 21, 2008 Dear Application Examiner, Hon Hai PRECISION IND.CO.,LTD’s USB Bluetooth Module, FCC ID: MCLBCM92046, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM2046. 3. “The modular transmitter must have its own power supply regulation.” The regulator is built in chip BCM2046. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLBCM92046 ADT No. 970218H05 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, May Chen Deputy Manager of Hsinchu Certification Service Div. Advance Data Technology

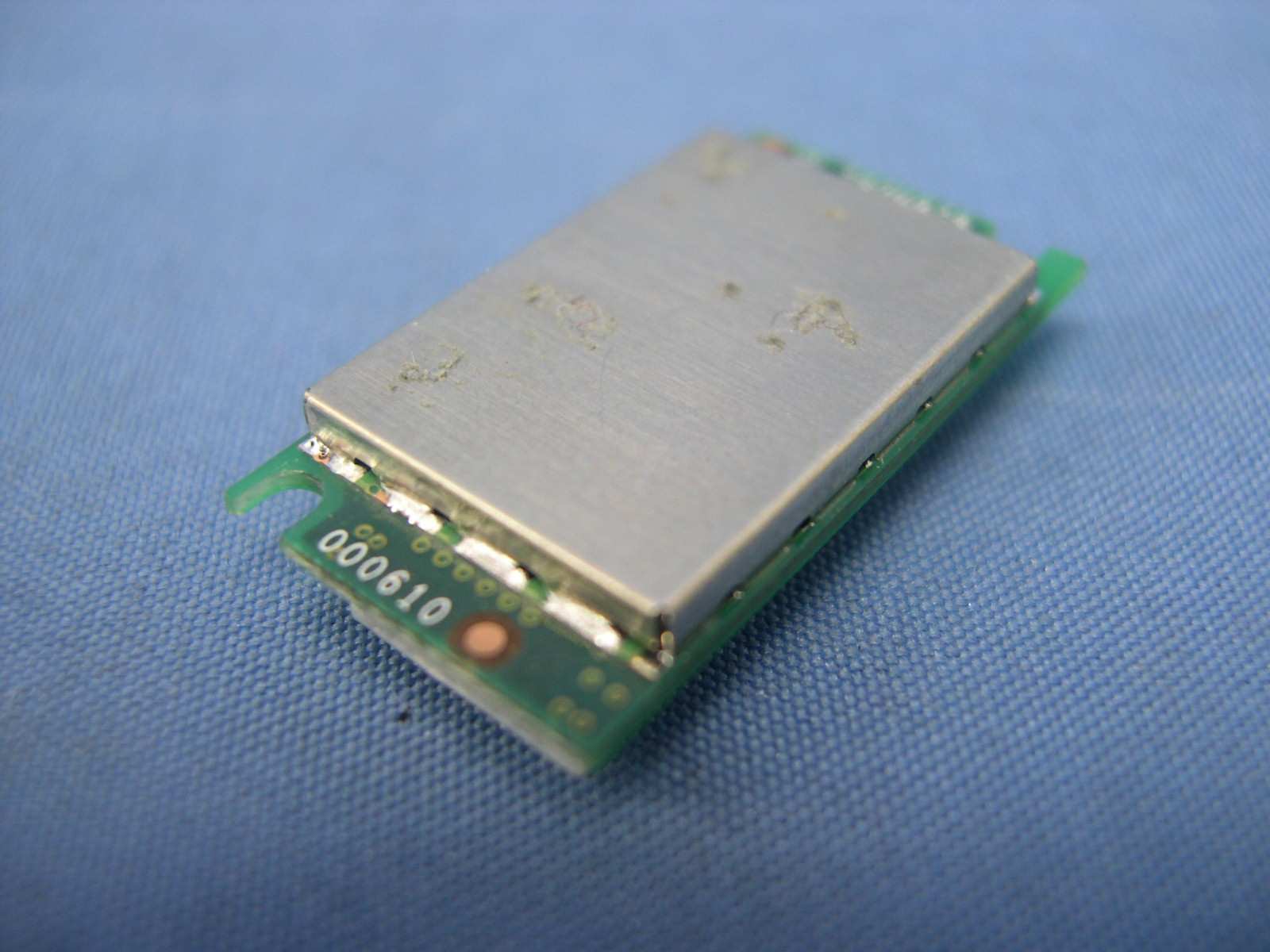

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: MCLBCM92046 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

HON HAI PRECISION IND. CO., LTD. SIGNATURE AB 4 3 2 1 PART NO. CUSTOMER PART NO. DESIGNED APPROVED A B DATE C MARK ECR/ECN NO. REV. D E F SCALE SHEET MODEL SIZE CUSTOMER MODEL PART NAME UNIT 5.00 0.80 USR 5.00 2.00 3.00 CTN Label 0.20 0.50 0.30 0.25 0.20 0.60 3.00 3.00 0.1 0.20 0.50 0.40 0.30 1.0 EPS 0.50 0.50 2.00 EPE 0.50 1.0 0.50 2.00 20.00 BAG 3.00 5.00 10.00 15.00 Select FINISH 0.500.30 0~6 6~30 0.05 0.15 0.40 0.30 0.20 Tol. 0.05 0.1 0.25 0.20 0.15 450~600 300~450 120~300 30~120 Dim. MATERIAL (SPEC.) 4 3 2 1 C D EF DRAFT TOLERANCECRITICAL DIM. MARK 0.2 + * UPDATE DESCRIPTION CNSBG 1:1 1/1 MM A4 0 N/AN/AFirst Release 2007.8.29 Amy AF1 LABEL Amy 500.00XXX.005 U58H086.00 XXXX IC: XXXX-XXXX CCXXxxYYyyyZzW 188227 FCC ID: XXXXXXXX 2.4 DS-OF 4 XXXXXXXXXXXXXX XXXXXXXXXXXXXX VM!Wfoeps!Dpef 188227 NXXXXX logo height >= 3mm letter height >=1mm logo height >= 5mm logo height >=5mm 35mm 30mm 4-R0.5 1:1 2:1 NXXXXX Cisco Model Name: XXXXXXX XXXX IC: XXXX-XXXX CCXXxxYYyyyZzW 188227 FCC ID: XXXXXXXX 2.4 DS-OF 4 XXXXXXXXXXXXXX XXXXXXXXXXXXXX NXXXXX Cisco Model Name: XXXXXXX FCC ID:MCLBCM92046 IC:2878D-BCM92046 Model name: BCM92046

Page 2 Page 3 Page 4 Page 5

FCC ID: MCLBCM92046 Report No.:SA970218H05 1 RF EXPOSURE REPORT REPORT NO.: SA970218H05 MODEL NO.: BCM92046 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : Hon Hai PRECISION IND. CO., LTD ADDRESS : 5F-1, 5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: MCLBCM92046 Report No.:SA970218H05 2 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.402 2.480 2.441 24.19 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 1.09 1.285 2.2 2.13 Threshold for no SAR evaluation is 24.19 mW Maximum TX Power is 1.285 mW Conducted and 2.13 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

Report No.: RF970218H05 1 Report Format Version 2.1.0 FCC TEST REPORT REPORT NO.: RF970218H05 MODEL NO.: BCM92046 RECEIVED: Feb. 18, 2008 TESTED: Feb. 25 to March 04, 2008 ISSUED: March 07, 2008 APPLICANT: Hon Hai PRECISION IND. CO., LTD ADDRESS: 5F-1, 5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970218H05 2 Report Format Version 2.1.0 TABLE OF CONTENTS 1 CERTIFICATION................................................................................................................4 2 SUMMARY OF TEST RESULTS.........................................................................................5 2.1 MEASUREMENT UNCERTAINTY......................................................................................6 3 GENERAL INFORMATION.................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................................7 3.2 DESCRIPTION OF TEST MODES......................................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:.......................................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................................11 3.5 DESCRIPTION OF SUPPORT UNITS...............................................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST.................................................................12 4 TEST PROCEDURES AND RESULTS..............................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT.....................................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................13 4.1.2 TEST INSTRUMENTS.......................................................................................................13 4.1.3 TEST PROCEDURES.......................................................................................................14 4.1.4 TEST SETUP....................................................................................................................14 4.1.5 EUT OPERATING CONDITIONS.......................................................................................15 4.1.6 TEST RESULTS................................................................................................................16 4.2 NUMBER OF HOPPING FREQUENCY USED..................................................................18 4.2.1 LIMIT OF HOPPING FREQUENCY USED.........................................................................18 4.2.2 TEST INSTRUMENTS.......................................................................................................18 4.2.3 TEST PROCEDURES.......................................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD..............................................................................19 4.2.5 TEST SETUP....................................................................................................................20 4.2.6 TEST RESULTS................................................................................................................20 4.3 DWELL TIME ON EACH CHANNEL..................................................................................22 4.3.1 LIMIT OF DWELL TIME USED..........................................................................................22 4.3.2 TEST INSTRUMENTS.......................................................................................................22 4.3.3 TEST PROCEDURES.......................................................................................................23 4.3.4 DEVIATION FROM TEST STANDARD..............................................................................23 4.3.5 TEST SETUP....................................................................................................................23 4.3.6 TEST RESULTS................................................................................................................24 4.4 CHANNEL BANDWIDTH...................................................................................................28 4.4.1 TEST INSTRUMENTS.......................................................................................................28 4.4.2 TEST PROCEDURE..........................................................................................................29 4.4.3 DEVIATION FROM TEST STANDARD..............................................................................29 4.4.4 TEST SETUP....................................................................................................................29 4.4.5 EUT OPERATING CONDITION.........................................................................................29 4.4.6 TEST RESULTS................................................................................................................30 4.5 HOPPING CHANNEL SEPARATION.................................................................................34 4.5.1 LIMIT OF HOPPING CHANNEL SEPARATION..................................................................34 4.5.2 TEST INSTRUMENTS.......................................................................................................34 4.5.3 TE…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
