MCLJ07H081ThinkPad Bluetooth with Enhanced Data Rate

FCC ID: MCLJ07H081 ADT No. 940606H08 Modular Approval Request Letter Advance Data Technology June 22, 2005 Dear Application Examiner, HON HAI PRECISION IND. CO., LTD.’s ThinkPad Bluetooth with Enhanced Data Rate, FCC ID: MCLJ07H081, would like to have your authorization as a Full Modular Approval for portable exposure condition. The requ irements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM2045-95PIN. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.5VDC powered. The USB interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is BCM2045-95PIN. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLJ07H081 ADT No. 940606H08 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

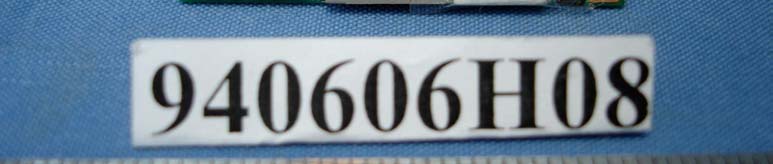

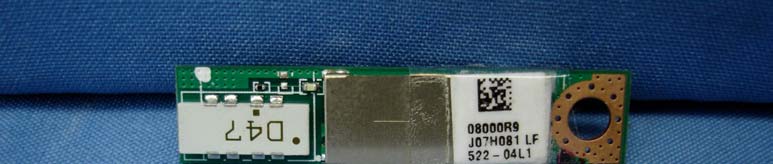

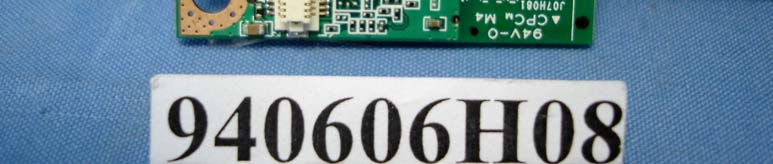

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: MCLJ07H081 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

94.06.07 1:1 2:1 MEX SCT XXXXXX Tested To Comply With FCC Standards For FCC ID : MCLJ07H081 ZXXX J07H081 XXXNYXXXXX HON HAI PRECISION IND. CO., L TD. 2.4FH1 ARG CNC:XXXXX Complies with IDA S tandards DA00562 TEXX/XX APPROVED NXXXX CMII ID: XXXXXXXX XX-XXX/XXXX-XX-XXXX IC:2878D-J07H081 188227 MEX SCT XXXXXX Tested To Comply With FCC Standards For FCC ID : MCLJ07H081 ZXXX J07H081 XXXNYXXXXX HON HAI PRECISION IND. CO., LTD. 2.4FH1 ARG CNC:XXXXX Complies with IDA Standards DA00562 TEXX/XX APPROVED NXXXX CMII ID: XXXXXXXX XX-XXX/XXXX-XX-XXXX IC:2878D-J07H081 188227

Page 2

FCC ID: MCLJ07H081 ADT No.: 940606H08 Operational Description The transmitter of the EUT (ThinkPad Bluetooth with Enhanced Data Rate) is powered by 3.3V from host equipment, and employing 1 Mbps: GFSK/2 Mbps(EDR): /4-DQPSK/ 3 Mbps(EDR):8DPSK modulation with 79 channels in 2.4 GHz Band. The antenna is Printed antenna and there is no antenna connector used. The other instruction, please have a look at the users manual.

FCC ID: MCLJ07H081 ADT No.: 940606H08 1 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) LowF(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.4022.4802.44124.58 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 4.903.092.004.90 Threshold for no SAR evaluation is 24.58 mW Maximum TX Power is 3.09 mW Conducted and 4.90 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

FCC ID: MCLJ07H081 Report No.: RF940606H081Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940606H08 MODEL NO.:J07H081 RECEIVED:June 06, 2005 TESTED:June 06 to 16, 2005 ISSUED: June 21, 2005 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 91 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: MCLJ07H081 Report No.: RF940606H082Report Format Version 2.0.1 TABLE OF CONTENTS 1CERTIFICATION ............................................................................................5 2SUMMARY OF TEST RESULTS....................................................................6 3GENERAL INFORMATION ............................................................................7 3.1GENERAL DESCRIPTION OF EUT...............................................................7 3.2DESCRIPTION OF TEST MODES.................................................................8 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: .................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ..............................10 3.5DESCRIPTION OF SUPPORT UNITS......................................................... 11 3.6CONFIGURATION OF SYSTEM UNDER TEST ..........................................12 4TEST PROCEDURES AND RESULTS ........................................................13 4.1CONDUCTED EMISSION MEASUREMENT ...............................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 13 4.1.2TEST INSTRUMENTS ................................................................................ 13 4.1.3TEST PROCEDURES................................................................................. 14 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 14 4.1.5TEST SETUP .............................................................................................. 15 4.1.6EUT OPERATING CONDITIONS................................................................ 15 4.1.7TEST RESULTS.......................................................................................... 16 4.2NUMBER OF HOPPING FREQUENCY USED ............................................18 4.2.1LIMIT OF HOPPING FREQUENCY USED ................................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 18 4.2.3TEST PROCEDURES................................................................................. 19 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 19 4.2.5TEST SETUP .............................................................................................. 20 4.2.6TEST RESULTS(MODE A) ......................................................................... 20 4.2.7TEST RESULTS(MODE B) ......................................................................... 22 4.2.8TEST RESULTS(MODE C) ......................................................................... 24 4.3DWELL TIME ON EACH CHANNEL ............................................................26 4.3.1LIMIT OF DWELL TIME USED ................................................................... 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURES................................................................................. 27 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 27 4.3.5TEST SETUP .............................................................................................. 27 4.3.6TEST RESULTS.......................................................................................... 28 4.4CHANNEL BANDWIDTH .............................................................................32 4.4.1TEST INSTRUMENTS ................................................................................ 32 4.4.2TEST PROCEDURE ................................................................................... 33 4.4.3DEVIATION FROM TEST STANDARD ....................................................... 33 4.4.4TEST SETUP .............................................................................................. 33 FCC ID: MCLJ07H081 Report No.: RF940606H083Report Format Version 2.0.1 4.4.5EUT OPERATING CONDITION .................................................................. 33 4.4.6TEST RESULTS(MODE A) ......................................................................... 34 4.4.7TEST RESULTS(MODE B) ......................................................................... 37 4.4.8TEST RESULTS(MODE C) ......................................................................... 40 4.5HOPPING CHANNEL SEPARATION ...........................................................43 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION .......................................... 43 4.5.2TEST INSTRUMENTS ................................................................................ 43 4.5.3TEST PROCEDURES................................................................................. 44 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 44 4.5.5TEST SETUP ..................................................................................…

Text truncated - open the document above for the full version.

FCC ID: MCLJ07H081 Report No.: RF940606H0883Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLJ07H081 Report No.: RF940606H0884Report Format Version 2.0.1 FCC ID: MCLJ07H081 Report No.: RF940606H0885Report Format Version 2.0.1 RADIATED EMISSION TEST (X axis) FCC ID: MCLJ07H081 Report No.: RF940606H0886Report Format Version 2.0.1 FCC ID: MCLJ07H081 Report No.: RF940606H0887Report Format Version 2.0.1 RADIATED EMISSION TEST (Y axis) FCC ID: MCLJ07H081 Report No.: RF940606H0888Report Format Version 2.0.1 FCC ID: MCLJ07H081 Report No.: RF940606H0889Report Format Version 2.0.1 RADIATED EMISSION TEST (Z axis) FCC ID: MCLJ07H081 Report No.: RF940606H0890Report Format Version 2.0.1
