MCLJ20H027Wireless Access Point Module

J20H027 Wireless Access Point Module 802.11 a/b/g User’s Manual CHAPTER 1 ABOUT THE WIRELESS ACCESS POINT MODULE .................. 3 1-1 I NTRODUCTION.......................................................................................................... 3 1-2 U SING A WIRELESS LOCAL AREA NETWORK.............................................................. 3 1-3 F EATURES AND REQUIREMENTS................................................................................. 4 CHAPTER 2 NETWORK CONFIGURING AND PLANNING ............................. 5 2-1 A D-HOC NETWORK................................................................................................... 5 2-2 A CCESS POINT (INFRASTRUCTURE) NETWORK.......................................................... 6 CHAPTER 3 ATHEROS CLIENT UTILITY INSTALLATION.......................... 7 3-1 A THEROS CLIENT UTILITY INSTALLATION.................................................................. 7 CHAPTER 4 ATHEROS CLIENT UTILITY (ACU) CONFIGURATION ......... 10 4-1 A THEROS CLIENT UTILITY ICON............................................................................... 10 4-2 C URRENT STAT U S TAB............................................................................................. 11 4-3 P ROFILE MANAGEMENT.......................................................................................... 13 4-3-1 C REATE OR MODIFY A PROFILE............................................................................ 14 4-3-2 S ECURITY SETTINGS IN PROFILE MANAGEMENT.................................................. 16 4-3-3 A DVANCED SETTINGS IN PROFILE MANAGEMENT................................................. 20 4-4 D IAGNOSTIC TAB..................................................................................................... 21 4-5 A CTION MENU......................................................................................................... 22 4-5-1 E NABLE/DISABLE RADIO..................................................................................... 22 4-5-2 ENABLE/DISABLE TRAY ICON............................................................................... 22 CHAPTER 5 WIRELESS CONFIGURATION USING WINDOWS XP ................. 23 5-1 C ONFIGURING YOUR WIRELESS NETWORKING SETTINGS....................................... 23 5-2 A DVANCED WIRELESS SETTINGS............................................................................. 23 5-3 D ISABLING THE RADIO............................................................................................ 24 5-4 H ELP AND SUPPORT INFORMATION........................................................................... 24 APPENDIX A – ATHEROS CLIENT UTILITY UNINSTALL PROCESS .............. 25 APPENDIX B - GLOSSARY ......................................................................................... 28 APPENDIX C –WIRELESS NOTICES ....................................................................... 29 Chapter 1 About the Wireless Access Point Module 1-1 Introduction The Wireless Access Point Module allows you to access Wireless Local Area Networks (WLANs), share a local printer and files with others in your network, access the Internet, and roam about the office—wirelessly. This wireless Local Area Network solution is designed for both large and small businesses, and it is scalable so that you can add users and new network features as your networking needs grow. The Wireless Access Point Module is a dual band WLAN device that allows for access to both 2.4GHz and 5GHz WLAN technologies. The Wireless Access Point Module will operate with at a maximum data rate of 11Mbps with 802.11b (2.4GHz), 54Mbps with 802.11g (2.4GHz) wireless networks and a maximum data rate of 54Mbps with 802.11a (5GHz) wireless networks. The Wireless Access Point Module will automatically detect and seamlessly roam between 802.11b (2.4GHz), 802.11g (2.4GHz) and 802.11a (5GHz) wireless networks 1-2 Using a Wireless Local Area Network A wireless LAN provides the same functionality of a wired network, but it eliminates the need to install networking cables and other networking equipment. Not only is a wireless LAN easier to deploy, but it also allows for mobility through “roaming.” For example the Wireless Access Point Module can roam from a conference room to an office without being disconnected from the network. 1-3 Features and Requirements The Wireless Access Point Module includes the following features: Wireless Features • Support for the IEEE 802.11a standard • Support for the IEEE 802.11b standard • Operates within the 2.4-GHz band • Operates within the 5GHz band • Maximum data rate of up to 54 Mbps (802.11a/g) • Maximum data rate of up to 11 Mbps (802.11b) Interoperability • WiFi certified at 5GHz to ensure wireless interoperability with other WiFi (802.11a) certified devices. • WiFi certified at 2.4GHz to ensure wireless interoperability with other WiFi (802.11b) certified devices. Security • Cisco Client Extension compatibility (including LEAP) • Wired Equivalent Privacy (WEP) encryption, operating with 64bit, 128bit or 152 bit encryption • AES-CCM Encryption support • Support for Windows 802.1X supplicants Chapter 2 Network Configuring and Planning A wireless LAN can be configured for two different modes of operation. While each method has its advantages, one may be better suited for your needs. Review the following configurations to determine which mode is best for you. • Ad-Hoc Network • Access Point (Infrastructure) Network 2-1 Ad-Hoc Network An Ad-Hoc network is the simplest to deploy and is ideal for small offices. Ad-Hoc wireless networks can be comprised of two or more wireless client configured to communicate with one another. All Ad-hoc clients communicate directly with each other without using an access point (AP). As a user on this type of network, you are able to quickly build up a wireless network in order to share files with other employees, print to a shared office printer, and a…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. FCC ID: MCLJ20H027 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL:(02) 22676511 FAX: (02) 22676512 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, , HON HAI PRECISION IND. CO., LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Note: Product name: Wireless Access Point Module Model name: J20H027 Sincerely yours, Signature: Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL:(02) 22676511 FAX: (02) 22676512 E-mail: [email protected]

FCC ID: MCLJ20H027 Report No. RF950116H01 Modular Approval Request Letter Advance Data Technology Jan. 26, 2006 Dear Application Examiner, HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE’s Wireless Access Point Module, FCC ID: MCLJ20H027, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5413A. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The MiniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AR5413A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLJ20H027 Report No. RF950116H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

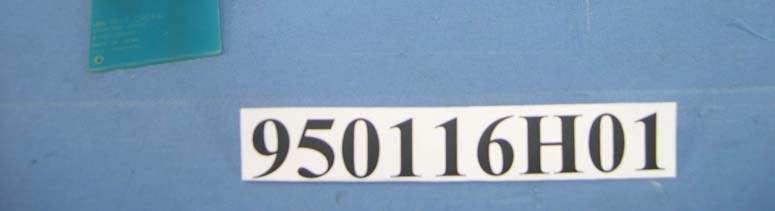

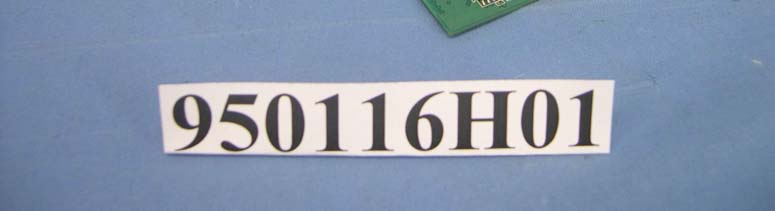

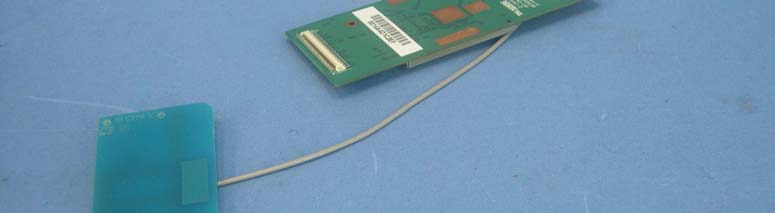

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: MCLJ20H027 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

The above is for Canada IC Label drawing. The above is for USA FCC Label drawing. IC: 2878D-J20H027 Contains FCC ID: MCLJ20H027

Page 2 Page 3 Page 4 Page 5

FCC ID: MCLJ20H027 Report No. 950116H01 Technical Description This device is a Wireless Access Point Module operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps. The transmitter of the EUT is powered by DC 3.3V from host equipment. The antenna is PCB antenna with HRS connector. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA950116H011Issued: Jan. 24, 2006 RF EXPOSURE REPORT REPORT NO.: SA950116H01 MODEL NO.: J20H027 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950116H012Issued: Jan. 24, 2006 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950116H013Issued: Jan. 24, 2006 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950116H014Issued: Jan. 24, 2006 6 Test Results 6.1 Antenna Gain For 2.4GHz The maximum Gain of the antenna is 2.02dBi or 1.592(numeric). For 5GHz The maximum Gain of the antenna is 2.05dBi or 1.603(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412125.8930.0401.0 62437138.0380.0441.0 112462134.8960.0431.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412100.0000.0321.0 62437288.4030.0911.0 112462117.4900.0371.0 For 5GHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 15180 49.0910.01571.0 45240 48.6410.01551.0 55260 241.5460.07701.0 85320 178.2380.05681.0

Report No.: RF950116H011Report Format Version 2.0.4 FCC TEST REPORT (15.247) REPORT NO.: RF950116H01 MODEL NO.: J20H027 RECEIVED: Jan. 17, 2006 TESTED: Jan. 20 to 23, 2006 ISSUED: Jan. 24, 2006 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science- Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation TEST LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950116H012Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION........................................................................................... 4 2.SUMMARY OF TEST RESULTS .................................................................. 5 3.GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT........................................................................6 3.2DESCRIPTION OF TEST MODES..........................................................................7 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:............... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................10 3.4DESCRIPTION OF SUPPORT UNITS.................................................................. 11 3.5CONFIGURATION OF SYSTEM UNDER TEST................................................... 11 4.TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).... 12 4.1CONDUCTED EMISSION MEASUREMENT........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 12 4.1.2 TEST INSTRUMENTS................................................................................ 12 4.1.3 TEST PROCEDURES ................................................................................ 13 4.1.4 DEVIATION FROM TEST STANDARD....................................................... 13 4.1.5 TEST SETUP ........................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS ............................................................... 14 4.1.7 TEST RESULTS ......................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT .............................................................17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 17 4.2.2 TEST INSTRUMENTS................................................................................ 18 4.2.3 TEST PROCEDURES ................................................................................ 19 4.2.4 DEVIATION FROM TEST STANDARD....................................................... 19 4.2.5 TEST SETUP ........................................................................................... 20 4.2.6 EUT OPERATING CONDITIONS ............................................................... 20 4.2.7 TEST RESULTS ......................................................................................... 21 4.36dB BANDWIDTH MEASUREMENT ....................................................................28 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................... 28 4.3.2 TEST INSTRUMENTS................................................................................ 28 4.3.3 TEST PROCEDURE................................................................................... 29 4.3.4 DEVIATION FROM TEST STANDARD....................................................... 29 4.3.5 TEST SETUP ........................................................................................... 29 4.3.6 EUT OPERATING CONDITIONS ............................................................... 29 4.3.7 TEST RESULTS ......................................................................................... 30 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................36 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT........... 36 Report No.: RF950116H013Report Format Version 2.0.4 4.4.2 INSTRUMENTS .......................................................................................... 36 4.4.3 TEST PROCEDURES ................................................................................ 37 4.4.4 DEVIATION FROM TEST STANDARD....................................................... 37 4.4.5 TEST SETUP ........................................................................................... 37 4.4.6 EUT OPERATING CONDITIONS ............................................................... 37 4.4.7 TEST RESULTS ......................................................................................... 38 4.5POWER SPECTRAL DENSITY MEASUREMENT ................................................40 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2 TEST INSTRUMENTS................................................................................ 40 4.5.3 TEST PROCEDURE................................................................................... 41 4.5.4 DEVIATION FROM TEST STANDARD....................................................... 41 4.5.5 TEST SETUP ........................................................................................... 41 4.5.6 EUT OPERATING CONDITION.................................................................. 41 4.5.7 TEST RESULTS .............................…

Text truncated - open the document above for the full version.

Report No.: RF950116H0158Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950116H0159Report Format Version 2.0.4 Report No.: RF950116H0160Report Format Version 2.0.4 RADIATED EMISSION TEST Report No.: RF950116H0161Report Format Version 2.0.4
