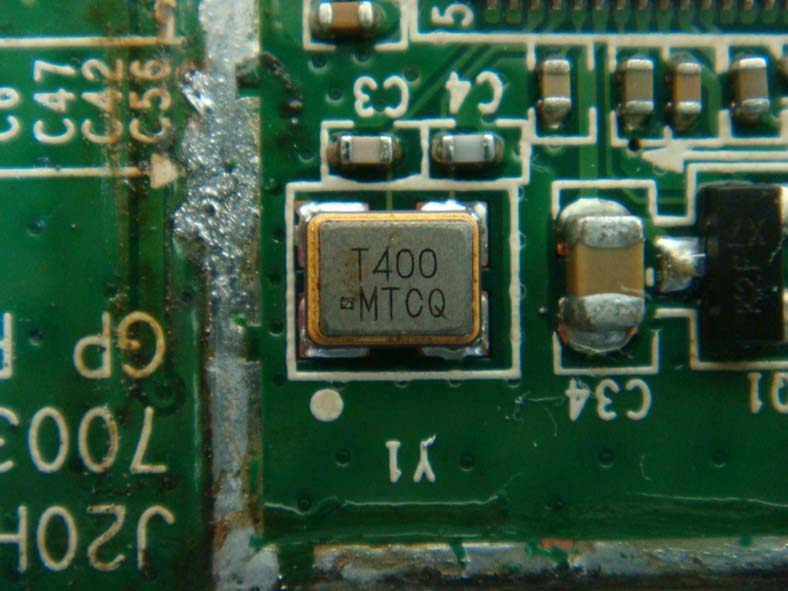

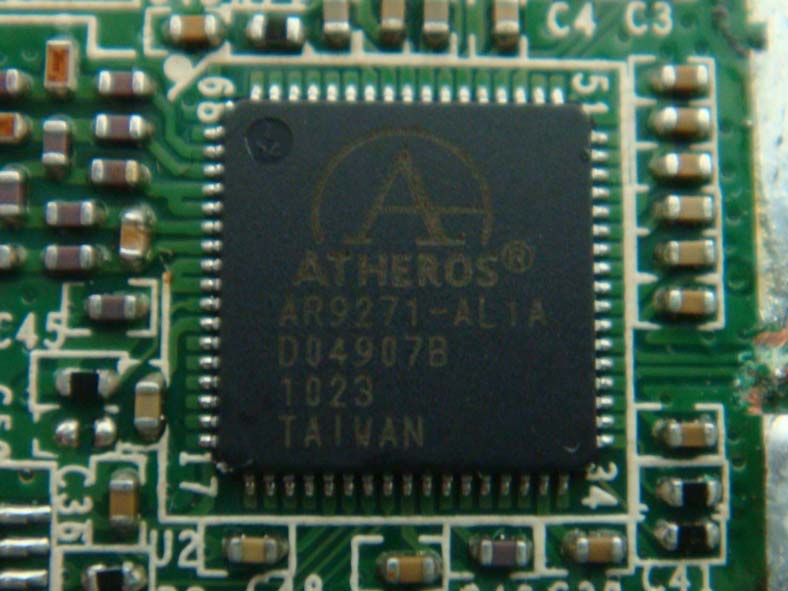

MCLJ20H049RF Module

1 U S E R ’ S M A N U A L J20H049 USB2.0 WLAN CARD 2 Contents SECTION ONE: INTRODUCTION ............................................................................................ 3 1.INTRODUCTION................................................................................................................................3 1.1 SCOPE........................................................................................................................................... 3 1.2 FUNCTION...................................................................................................................................... 3 2.PRODUCT SPECIFICATION........................................................................................................... 4 2.1 HARDWARE SPECIFICATION.......................................................................................................... 4 3. PRODUCT REQUIREMENTS......................................................................................................... 5 3.1 HARDWARE REQUIREMENTS......................................................................................................... 5 3.2 HARDWARE ARCHITECTURE......................................................................................................... 5 4 FCC NOTICE...................................................................................................................................... 6 END PRODUCT LABELING............................................................................................................... 6 MANUAL INFORMATION THAT MUST BE INCLUDED............................................................ 6 5 CANADA NOTICE............................................................................................................................. 8 SECTION TWO: WINDOWS XP WIRELESS UTILITY AND INSTALL ............................. 9 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. HON HAI PRECISION IND. CO., LTD. 3 Section one: Introduction 1.Introduction Project Name: 802.11b/g/n (1x1) card based on IC Atheros AR9271(UB91) with QFN package. 802.11b/g/n module provides wireless modem functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. The typical use model for this embedded device is to allow the host device to be connected to an 802.11b/g/n 1x1 wireless network with infrastructure mode or to serve as an ad-hoc (peer-to-peer) data path. 1.1 Scope The Wireless Atheros AR9271(UB91) available 11n solution in the 2.4-GHz band, compatible with the IEEE 802.11b standard , 802.11g standard and 11n standard. The 802.11g data rate provides for 54, 48, 36, 24, 18, 12, 9, 6Mbps, and 802.11b data rate provides for 11, 5.5, 2, 1Mbps. In addition, 11n provide 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps for HT20. 1.2 Function • RoHS and Green Compliant. • 802.11b/g/n 1x1 based on Atheros AR9271(UB91) IC • Modulation type: DBPSK, DQPSK and CCK with 802.11b mode. OFDM, QPSK, BPSK, 16-QAM, and 64-QAM with 802.11g/n mode. • USB 2.0 Interface, High and Full Speeds supported. • Module is powered by the host with a 5.0V +/- 10% supply (300mVpp ripple). • Module’s clock source is provided by the on board XTAL Oscillator of 40 MHz (+/- 10ppm). • Module connected to motherboard with approximately 30cm cable. • Unit dependent RF parameters are programmed into each module EEPROM at production test time by the manufacturer. HON HAI PRECISION IND. CO., LTD. 4 2.Product Specification 2.1 Hardware Specification Wireless LAN Standards IEEE802.11b/g/n compatible ARIB STD-T66 compatible ETSI 300.328 compatible FCC 15.247 compatible FCC 15.407 compatible Operating Frequency 2.400~2.4835GHz Channel Numbers 1~11 channels active 12,13 channels passive 14 channels no need WLAN Data Rate 802.11g: 54Mbps with fall back of 48, 36, 24, 18, 12, 9, 6Mbps. 802.11b: 11Mbps with fall back rates of 5.5, 2, and 1Mbps 11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps for HT20 Transmitter Output Power Typical 15dBm for 11b Typical 15dBm for 11g Typical 15dBm for HT20 Receiver Sensitivity (ANT2) Typical –73dBm for MCS7 (HT20) @10%PER Typical –93dBm for MCS0 (HT20) @10%PER Typical –76dBm for 54Mbps @ 10% PER Typical –91dBm for 6Mbps @ 10% PER Typical –89dBm for 11Mbps @ 8% PER Typical –96dBm for 1Mbps @ 8% PER Receiver Sensitivity (ANT1) Typical –69dBm for MCS7 (HT20) @10%PER Typical –89dBm for MCS0 (HT20) @10%PER Typical –72dBm for 54Mbps @ 10% PER Typical –87dBm for 6Mbps @ 10% PER Typical –85dBm for 11Mbps @ 8% PER Typical –92dBm for 1Mbps @ 8% PER HON HAI PRECISION IND. CO., LTD. 5 3. Product Requirements 3.1 Hardware Requirements Host Interface USB 2.0 PCB 2-layer FR4 Antenna port: ANT1 for TX/RX , ANT2 for RX Diversity 3.2 Hardware Architecture This specification describes an embedded 802.11b/g/n WiFi interface PCA ‘module’ for embedded device products. The module has two on-board connector. This module is powered from the host (5.0V) and interfaces to the host with USB 2.0 signals. No switches, indicators or related user interface signals are provided on this module. An on-board 40 MHz XTAL is included. PIN DEFINE Pin No. Name Type Description 1 GND - Ground 2 VCC POWER+5V 3 DP I/O USB Data+ 4 DM I/O USB Data- 5 GND - Ground HON HAI PRECISION IND. CO., LTD. 6 4 FCC Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may …

Text truncated - open the document above for the full version.

TYPE THICKNESS BASIC WEIGHT 0.05±0.005 (mm) Acrylic (3R) 0.023±0.002 (mm) COLOR TYPE THICKNESS COLOR 70±5 (g/m^2) 23±2 (g/m^2) DRY COATING WEIGHT 0.2~0.6 (kgf/inch) 180° PEEL FORCE 12±8 (gf/inch) RELEASE FORCE 5~125 (°C) TEMPERATURE RANGE 10.12.09 N/A N/A J20H049.00 500.01174.005 Sunny Wu George 1/2 MM 1:1 Black Must compliant with SS-00259 requirement Notes: XXXXXXXXXXXX COFETEL: XXXXXXXXX-XXXX MCLJ20H049 2878D-J20H049 SIZE: 20*20 mm 2.4 DS-OF 4 Foxconn J20H049 Made In China BASEMATERIAL ADHESIVE PRINTING PTT LABEL

RV-0000000 Project No.: R1011008 Page 3 of 3 6 Neutron Engineering Inc. R1011008 R1011008 RV-0000000 Project No.: R1011008 Page 4 of 3 6 Neutron Engineering Inc. R1011008 R1011008

Report No.: NEI-FCCP-1-R1011008 Page 154 of 161 Neutron Engineering Inc. RV-1012033 9. RF EXPOSURE TEST 9.1 APPLIED PROCEDURES / LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 9.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter Anritsu ML2487A 6K00004714 Feb. 10, 2011 2 Power Meter Sensor Anritsu MA2491A 34138 Feb. 10, 2011 Remark: ” N/A” denotes No Model Name , Serial No. or No Calibration specified. 9.1.2 MPE CALCULATION METHOD E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Report No.: NEI-FCCP-1-R1011008 Page 155 of 161 Neutron Engineering Inc. RV-1012033 9.1.3 DEVIATION FROM STANDARD No deviation. 9.1.4 TEST SETUP 9.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. Report No.: NEI-FCCP-1-R1011008 Page 156 of 161 Neutron Engineering Inc. RV-1012033 9.1.6 TEST RESULTS EUT： RF Module Model Name ： J20H049 Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11b (APM6P-700096) Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 2.99 1.9907 19.6200 91.6220 0.036304 1 2437 2.99 1.9907 19.9000 97.7237 0.038721 1 2462 2.99 1.9907 19.8200 95.9401 0.38015 1 EUT： RF Module Model Name ： J20H049 Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11g (APM6P-700096) Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 2.99 1.9907 25.1800 329.6097 0.130602 1 2437 2.99 1.9907 25.0800 322.1069 0.127629 1 2462 2.99 1.9907 25.3200 340.4082 0.134881 1 EUT： RF Module Model Name ： J20H049 Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11n HT20 Single TX (APM6P-700096) Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 2.99 1.9907 24.9200 310.4560 0.123013 1 2437 2.99 1.9907 25.0800 322.1069 0.127629 1 2462 2.99 1.9907 24.0800 255.8586 0.101380 1 Report No.: NEI-FCCP-1-R1011008 Page 157 of 161 Neutron Engineering Inc. RV-1012033 EUT： RF Module Model Name ： J20H049 Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11b (WDAN-1PA92101-1F) Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 2.52 1.7865 19.6200 91.6220 0.032580 1 2437 2.52 1.7865 19.9000 97.7237 0.034750 1 2462 2.52 1.7865 19.8200 95.9401 0.034115 1 EUT： RF Module Model Name ： J20H049 Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11g (WDAN-1PA92101-1F) Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 2.52 1.7865 25.1800 329.6097 0.117206 1 2437 2.52 1.7865 25.0800 322.1069 0.114538 1 2462 2.52 1.7865 25.3200 340.4082 0.121046 1 EUT： RF Module Model Name ： J20H049 Temperature： 13°C Relative Humidity： 64% Test Voltage： AC 120V/60Hz (System) Test Mode ： 802.11n HT20 Single TX (WDAN-1PA92101-1F) Frequency (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) 2412 2.52 1.7865 24.9200 310.4560 0.110395 1 2437 2.52 1.7865 25.0800 322.1069 0.114538 1 2462 2.52 1.7865 24.0800 255.8586 0.090981 1

Report No.: NEI-FCCP-1-R1011008 Page 1 of 161 Neutron Engineering Inc. RV-1012033 FCC Radio Test Report FCC ID: MCLJ20H049 This report concerns (check one) : Original Grant Class I Change Issued Date : Dec. 27, 2010 Project No. : R1011008 Equipment : RF Module Model Name : J20H049 Applicant : HON HAI Precision IND. CO., LTD. Address : 5F-1, 5 Hsin-An Road, Hsinchu Science-Based Industri, Hsin Chu, Taiwan Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 22, 2010 Date of Test: Nov. 22, 2010 ~ Dec. 20, 2010 Testing Engineer : ( Gary Chou) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: NEI-FCCP-1-R1011008 Page 2 of 161 Neutron Engineering Inc. RV-1012033 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R1011008 Page 3 of 161 Neutron Engineering Inc. RV-1012033 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 13 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF RADIATED EMISSION TESTED 14 3.5 DESCRIPTION OF SUPPORT UNITS 15 4 . EMC EMISSION TEST 16 4.1 CONDUCTED EMISSION MEASUREMENT 16 4.1.1 POWER LINE CONDUCTED EMISSION 16 4.1.2 MEASUREMENT INSTRUMENTS LIST 16 4.1.3 TEST PROCEDURE 17 4.1.4 DEVIATION FROM TEST STANDARD 17 4.1.5 TEST SETUP 17 4.1.6 EUT OPERATING CONDITIONS 17 4.1.7 TEST RESULTS 18 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 23 4.2.8 TEST RESULTS - ABOVE 1000MHZ 27 4.2.9 TEST RESULTS-RESTRICTED BANDS REQUIREMENTS 99 5 . BANDWITH TEST 123 5.1 APPLIED PROCEDURES / LIMIT 123 5.1.1 MEASUREMENT INSTRUMENTS LIST 123 5.1.2 TEST PROCEDURE 123 5.1.3 DEVIATION FROM STANDARD 123 5.1.4 TEST SETUP 123 5.1.5 EUT OPERATION CONDITIONS 123 Report No.: NEI-FCCP-1-R1011008 Page 4 of 161 Neutron Engineering Inc. RV-1012033 Table of Contents Page 5.1.6 TEST RESULTS 124 6 . PEAK OUTPUT POWER TEST 130 6.1 APPLIED PROCEDURES / LIMIT 130 6.1.1 MEASUREMENT INSTRUMENTS LIST 130 6.1.2 TEST PROCEDURE 130 6.1.3 DEVIATION FROM STANDARD 130 6.1.4 TEST SETUP 130 6.1.5 EUT OPERATION CONDITIONS 130 6.1.6 TEST RESULTS 131 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 134 7.1 APPLIED PROCEDURES / LIMIT 134 7.1.1 MEASUREMENT INSTRUMENTS LIST 134 7.1.2 TEST PROCEDURE 134 7.1.3 DEVIATION FROM STANDARD 134 7.1.4 TEST SETUP 134 7.1.5 EUT OPERATION CONDITIONS 134 7.1.6 TEST RESULTS 135 8 . POWER SPECTRAL DENSITY TEST 147 8.1 APPLIED PROCEDURES / LIMIT 147 8.1.1 MEASUREMENT INSTRUMENTS LIST 147 8.1.2 TEST PROCEDURE 147 8.1.3 DEVIATION FROM STANDARD 147 8.1.4 TEST SETUP 147 8.1.5 EUT OPERATION CONDITIONS 147 8.1.6 TEST RESULTS 148 9 . RF EXPOSURE TEST 154 9.1 APPLIED PROCEDURES / LIMIT 154 9.1.1 MEASUREMENT INSTRUMENTS LIST 154 9.1.2 MPE CALCULATION METHOD 154 9.1.3 DEVIATION FROM STANDARD 155 9.1.4 TEST SETUP 155 9.1.5 EUT OPERATION CONDITIONS 155 9.1.6 TEST RESULTS 156 10 . EUT TEST PHOTO 158 11 . HISTORY 161 Report No.: NEI-FCCP-1-R1011008 Page 5 of 161 Neutron Engineering Inc. RV-1012033 1. CERTIFICATION E q u i p m e n t : RF Module Brand Name : FOXCONN Model Name : J20H049 A p p l i c a n t : HON HAI Precision IND. CO., LTD. Date of Test : Nov. 22, 2010 ~ Dec. 20, 2010 Standards : FCC Part15, Subpart C / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R1011008) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-R1011008 Page 6 of 161 Neutron Engineering Inc. RV-1012033 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) …

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-1-R1011008 Page 158 of 161 Neutron Engineering Inc. RV-1012033 10. EUT TEST PHOTO Conducted Measurement Photos Ant.: APM6P-700096 Report No.: NEI-FCCP-1-R1011008 Page 159 of 161 Neutron Engineering Inc. RV-1012033 Radiated Measurement Photos Ant.: APM6P-700096 Report No.: NEI-FCCP-1-R1011008 Page 160 of 161 Neutron Engineering Inc. RV-1012033 Radiated Measurement Photos Ant.: WDAN-1PA92101-1F
