MCLJ20H066Bluetooth Module

Confidential 1 J20H066 Bluetooth Module User Manual Revision History Date Revision Description 2012/07/09 0.0 Initial released Confidential 2 Content 1. PRODUCT OVERVIEW........................................................................................................................................3 2. INTERFACE PIN DEFINE....................................................................................................................................4 2.1 ANALOG AUDIO I/F MODULE PIN DEFINE.............................................................................................................4 2.2 DIGITAL AUDIO I/F MODULE PIN DEFINE.............................................................................................................5 3. ELECTRICAL SPECIFICATION ........................................................................................................................5 3.1 ABSOLUTE MAXIMUM RATING............................................................................................................................5 3.2 BLUETOOTH RF SPECIFICATION.......................................................................................................................5 4. BLUETOOTH TOOL UTILITY AND INSTALL @ WINDOW XP................................................................7 4.1 INSTALL BLUESUITE TOOL...................................................................................................................................7 4.2 RUN BLUETEST..................................................................................................................................................7 4.3 SET PROTOCOL.................................................................................................................................................8 4.4 TX COMMAND......................................................................................................................................................8 4.5 RX COMMAND.....................................................................................................................................................9 Confidential 3 1.Product overview This documentation outlines the Bluetooth Module. It is designed for Bluetooth 2.4GHz systems. The module provides a fully compliant Bluetooth v2.1/ v3.0+ EDR specification system for data and voice. And it support below function: 1. Bluetooth 1.1 Operating Frequency: 2402MHz ~ 2480 MHz 1.2 Carrier Spacing: 1.0MHz 1.3 Duplexing: TDD 1.4 Modulation: FHSS GFSK BT=0.5, π/4-DQPSK, 8DPSK 1.5 Symbol Rate: 1Mbps (GFSK), 2Mbps (π/4-DQPSK), 3Mbps (8DPSK) 2. This project includes 4 Foxconn part numbers, and they have different feature in Bluetooth specification version.This is realized by software. Customer Part No. Foxconn Part No. Feature 1-490-558-11 J20H066.00 Analog Audio Bluetooth v2.1 + EDR 1-490-558-21 J20H066.01. Digital Audio Bluetooth v2.1 + EDR 1-490-558-31 J20H066.02 Analog Audio Bluetooth v3.0 + EDR 1-490-558-41 J20H066.03 Digital Audio Bluetooth v3.0 + EDR 3. Below figure1 shows function block diagram of the Bluetooth module. Figure 1: Module Functional Block Diagram Confidential 4 2. Interface Pin define This module has 2 different signal interfaces for supporting analog signal and digital signal. Figure 2: Key component is shown as below marks 2.1 Analog Audio I/F module pin define Pin NO. Pin Type Description Remark 1 - Ground B_J2 2 I BT_RST B_J2 3 Power BT_VDD33 B_J2 4 I URT_CTS B_J2 5 O URT_RTS B_J2 6 I URT_RX B_J2 7 O URT_TX B_J2 8 O MUTE B_J2 9 - Ground B_J2 10 O LCH_N B_J2 11 O LCH_P B_J2 12 O RCH_P B_J2 13 O RCH_N B_J2 14 - Ground B_J2 Confidential 5 2.2 Digital Audio I/F module pin define Pin NO. Pin Type Description Remark 1 - Ground B_J3 2 I BT_RST B_J3 3 Power BT_VDD33 B_J3 4 I URT_CTS B_J3 5 O URT_RTS B_J3 6 I URT_RX B_J3 7 O URT_TX B_J3 8 O MUTE B_J3 9 - Ground B_J3 10 - Ground B_J3 11 O PCM_SYNC B_J3 12 O PCM_CLK B_J3 13 O PCM_OUT B_J3 14 - Ground B_J3 3. Electrical Specification 3.1 Absolute Maximum Rating Symbol Condition Min. Typ. Max . Unit VDD33 VDD33 Respect to GND 3.0 3.3 3.6 V Operating Temperature -- -10 25 70 °C Storage Temperature -- -40 25 85 °C 3.2 Bluetooth RF Specification Test station Test item Test Condition Test Spec and Comments Program Customer Specific FW N/A Pass Write BD Address N/A Pass Standby 0.0005~0.005A Current Consumption Max Consumption (Continuous Tx ) 0.036~0.054A Output power test(class 2) Channel 0, 39, 78 -2dBm ≤ Output Power ≤ +3.0dBm Power control Channel 39 2dBm<∆<8dBm Initial Carrier Frequency Tolerance Test Channel 39 -25KHz<∆<25KHz Carrier Frequency Drift Test Channel 78 Drift Rate/50us: -20KHz<∆<20KHz DH1: -25KHz<∆<25KHz DH3: -40KHz<∆<40KHz DH5: -40KHz<∆<40KHz PT Multi-slot Sensitivity Test Channel 0,39,78 (BER<0.1%) ≤ -84dBm Confidential 6 Modulation Characteristics Test Channel 0 140kHz ≤ Δf1avg ≤ 175kHz Δf2max ≥ 115kHz Δf2avg/Δf1avg ≥ 0.8(80%) Maximum Input Power Channel 0, 39, 78 (BER<0.1%) ≥ -20dBm Test Station Test Items Test Condition Test Spec and Comments EDR Relative Tx Power (3Mbps only) Channel 0, 39, 78 P[GFSK]-4dB<P[DPSK]< P[GFSK]+1dB Channel 0, 39, 78 -75 kHz <ωi < 75 kHz Channel 0, 39, 78 -10kHz<ω0 <10kHz Channel 0, 39, 78 RMS DEVM<=0.13 for all 8DPSK Channel 0, 39, 78 Peak DEVM<=0.25 for all 8DPSK EDR Carrier Frequency Stability and Modulation Accuracy (3Mbps only) Channel 0, 39, 78 99% DEVM<=0.2 for 99% 8DPSK EDR Sensitivity (3Mbps only) Channel 0, 39, 78 -78dBm PT Check BD Address N/A Match with the ID in Label Confidential 7 4. Bluetooth tool Utility and install @ Window XP 4.1 Install Bluesuite tool 4.2 Run BlueTest Confidential 8 4.3 Set Protocol 4.4 Tx command Confidential 9 4.5 Rx command

Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) 1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et 2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the Canada authorization is no longer considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization. NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC: 2878D- J20H066”. Plaque signalétique du produit final Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des IC: 2878D- J20H066". Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Manuel d'information à l'utilisateur final L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final qui intègre ce module. Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et avertissements comme indiqué dans ce manuel. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from tha…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Date: July 20, 2012 Confidentiality Request FCC ID: MCLJ20H066 Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until January. 1st, 2013 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo Thank you! Sincerely yours, ------------------------------------------------------- Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. AGENCY AUTHORIZATION LETTER Date: 2012/7/17 To whom it may concern: We, the undersigned, , HON HAI PRECISION IND. CO., LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

FCC ID: MCLJ20H066 Report No.: RF 120706E03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch August 7, 2012 Dear Application Examiner, HON HAI Precision Ind. Co., Ltd., device: a Bluetooth Module, FCC ID: MCLJ20H066 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input. It is integrated in chip BC57E687C-GITB-E4. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BC57E687C-GITB-E4.. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLJ20H066 Report No.: RF 120706E03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

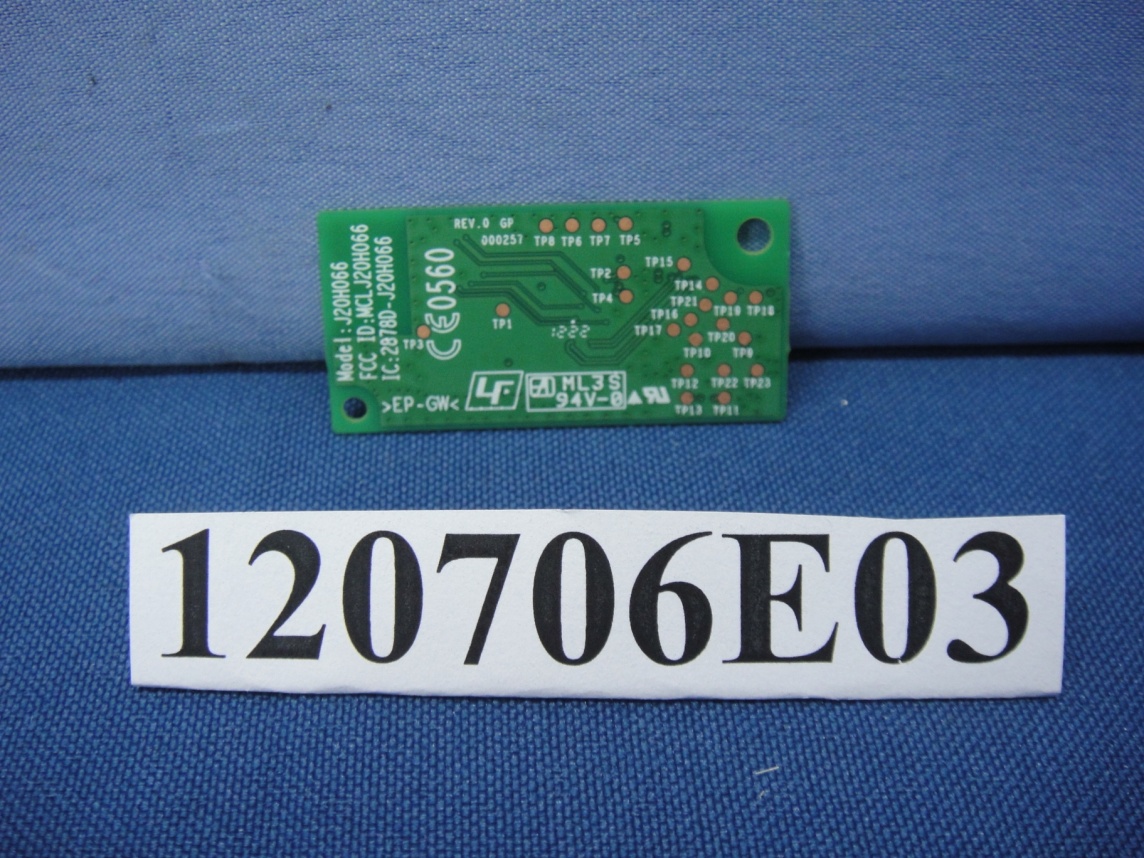

Report No.: 120706E03 1 of 2 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: MCLJ20H066 FCC LABEL LOCATION The FCC ID will be printed on J20H066 PCB board.

Report No.: 120706E03 2 of 2

FCC ID: MCLJ20H066 Report No.: RF 120706E03 Operational Description This device is a Bluetooth Module. The transmitter of the EUT is powered by 3.3Vdc from host equipment. The antenna is Printing antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA120706E03 1 of 5 Report Format Version 5.0.0 Cancels and replaces the report No.: SA120623E01dated Apr. 10, 2012 RF EXPOSURE REPORT REPORT NO.: SA120706E03 MODEL NO.: J20H066 FCC ID: MCLJ20H066 RECEIVED: July 06, 2012 TESTED: July 10, 2012 ISSUED: Aug. 06, 2012 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1, Hsin-An Road, Hsinchu, Science Industrial Park, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA120706E03 2 of 5 Report Format Version 5.0.0 Cancels and replaces the report No.: SA120623E01dated Apr. 10, 2012 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. EVALUATION RESULT ........................................................................................... 5 Report No.: SA120706E03 3 of 5 Report Format Version 5.0.0 Cancels and replaces the report No.: SA120623E01dated Apr. 10, 2012 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120706E03 Original release Aug. 06, 2012 Report No.: SA120706E03 4 of 5 Report Format Version 5.0.0 Cancels and replaces the report No.: SA120623E01dated Apr. 10, 2012 1. CERTIFICATION PRODUCT: Bluetooth Module BRAND NAME: FOXCONN MODEL NO.: J20H066 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Hon Hai PRECISION IND.CO.,LTD TESTED DATE: July 10, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: J20H066) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Aug. 06, 2012 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: Aug. 06, 2012 ( May Chen, Deputy Manager ) Report No.: SA120706E03 5 of 5 Report Format Version 5.0.0 Cancels and replaces the report No.: SA120623E01dated Apr. 10, 2012 2. EVALUATION RESULT No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High 60/f SAR Limitation (mW) 2.402 2.480 24.19 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 1.66 1.466 1.07 1.875 Threshold for no SAR evaluation is 24.19 mW Maximum TX Power is 1.466 mW Conducted and 1.875 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold --- END ---

Report No.: RF120706E03 1 of 51 Report Format Version 5.0.0 FCC TEST REPORT REPORT NO.: RF120706E03 MODEL NO.: J20H066 FCC ID: MCLJ20H066 RECEIVED: July 06, 2012 TESTED: July 10 to 20, 2012 ISSUED: Aug. 06, 2012 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1, Hsin-An Road, Hsinchu, Science Industrial Park, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120706E03 2 of 51 Report Format Version 5.0.0 Table of Contents RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION ........................................................................................................... 5 1. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 6 2. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 9 3.3 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 12 4. TEST TYPES AND RESULTS .................................................................................... 13 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................. 13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 13 4.1.2 TEST INSTRUMENTS ................................................................................................ 13 4.1.3 TEST PROCEDURES ................................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 14 4.1.5 TEST SETUP .............................................................................................................. 15 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 15 4.1.7 TEST RESULTS ......................................................................................................... 16 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................... 18 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 18 4.2.2 TEST INSTRUMENTS ................................................................................................ 19 4.2.3 TEST PROCEDURES ................................................................................................ 20 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 20 4.2.5 TEST SETUP .............................................................................................................. 21 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 21 4.2.7 TEST RESULTS ......................................................................................................... 22 4.3 NUMBER OF HOPPING FREQUENCY USED .......................................................... 29 4.3.1 LIMIT OF HOPPING FREQUENCY USED ................................................................. 29 4.3.2 TEST INSTRUMENTS ................................................................................................ 29 4.3.3 TEST PROCEDURES ................................................................................................ 29 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 29 4.3.5 TEST SETUP ......…

Text truncated - open the document above for the full version.

Report No.: 120706E03 1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120706E03 2 of 3 RADIATED EMISSION TEST Report No.: 120706E03 3 of 3
