MCLJ20H081802.11ac/abgn/BT wireless module

! 2! Project Name WiFi+BT module Approval Sheet Rev. 1.2 Foxconn Part No. J20H081.00 Prepared by Reviewed by Approved by Clon Liu Eddie Huang Ambit Microsystems (Shanghai) LTD. No 1925, Nanle Road Songjiang Export Processing Zone Shanghai, China Tel :86-21-61206688 Ext:22165 FAX:86-21-57749230 User Manual of J20H081 ! 3! CONTENTS 1 REVISION HISTORY!/////////////////////////////////////////////////////////////////////!4 2 MANUFACTURING INFORMATION!////////////////////////////////////////////////////////!5 3 PRODUCT OVERVIEW!///////////////////////////////////////////////////////////////////!6 3.1 APPLICATION SCOPE!////////////////////////////////////////////////////////////////////!6 4 MODULE HARDWARE OVERVIEW!////////////////////////////////////////////////////////!7 4.1 BLOCKDIAGRAM!///////////////////////////////////////////////////////////////////////!7 4.2 FEATURES!////////////////////////////////////////////////////////////////////////////!7 4.3 INTERFACE AND CONNECTOR!/////////////////////////////////////////////////////////////!7 5 ELECTRICAL SPECIFICATION!////////////////////////////////////////////////////////////!9 5.1 ABSOLUTE MAXIMUM RATING!/////////////////////////////////////////////////////////////!9 5.2 RECOMMENDED OPERATING RATING!///////////////////////////////////////////////////////!9 5.3 DC CHARACTERISTICS!//////////////////////////////////////////////////////////////////!9 5.4 ESD INFORMATION!/////////////////////////////////////////////////////////////////////!9 5.5 ENVIRONMENT STORAGE CONDITION!///////////////////////////////////////////////////////!9 6 RF SPECIFICATION!////////////////////////////////////////////////////////////////////!21 6.1 IEEE802.11B!////////////////////////////////////////////////////////////////////////!21 6.2 IEEE802.11G!////////////////////////////////////////////////////////////////////////!22 6.3 802.11NHT20!///////////////////////////////////////////////////////////////////////!23 6.4 802.11A!/////////////////////////////////////////////////////////////////////////////!25 6.5 802.11ANHT20!//////////////////////////////////////////////////////////////////////!26 6.6 802.11ANHT40!//////////////////////////////////////////////////////////////////////!27 6.7 802.11ACHT80!//////////////////////////////////////////////////////////////////////!28 6.8 BLUETOOTH 3.0!///////////////////////////////////////////////////////////////////////!29 6.9 ANTENNAELECTRICAL SPECIFICATION/////////////////////////////////////////////////////!2: 7 MECHANICAL SPECIFICATIONS/////////////////////////////////////////////////////////!31 7.1 SHIELDING COVERDIMENSION!///////////////////////////////////////////////////////////!31 7.2 PCB ASSEMBLY DIMENSION!/////////////////////////////////////////////////////////////!32 ! 4! 1 Revision History ! Date Document revision Change Description 2013/08/31 1.0 Initial release 2013/10/14 1.1 Add BT specification and modify Wifi specification 2013/10/15 1.2 Modify BT standard from V3.0+HS standard to V3.0 standard Add specification of Aux antenna ! ! 5! 2 Manufacturing Information Manufacture Country: Made in China Manufacturer: Ambit Microsystems (Shanghai) LTD. Manufacture Address: No 1925, Nanle Road Songjiang Export Processing Zone Shanghai, China ! 6! 3 Product Overview The J20H081.00 802.11a/b/g/n/ac and BT3.0 module provides wireless modem functionality utilizing direct sequence spread spectrum and OFDM/CCK technology. This module is based on MTK MT7650U solution .It fully complies with IEEE 802.11n,IEEE 802.11 a/b/g and ,IEEE 802.11 ac standards,!Bluetooth v2.1+EDR, v3.0 standard, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor. 3.1 Application scope The wireless LAN is compliant to IEEE 802.11n,IEEE 802.11 a/b/g and IEEE 802.11 ac standards . The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps. The data rate of 802.11a/g is up to 54Mbps and fallback rates of 48,36,24,18,12,9, 6Mbps. The data rate of 802.11n HT20 is up to 65Mbps and fallback rates of 58.5, 52, 39, 26, 19.5, 13, 6.5Mbps; The data rate of 802.11n HT40 is up to 130Mbps and fallback rates of 117, 104, 78, 52, 39, 26, 13Mbps; The data rate of 802.11ac VHT80 is up to 433.3Mbps and fallback rates of 390,325,292.5,260,195,130,97.5,65,32.5Mbps; ! The BT Module is compliant to Bluetooth 3.0 and EDR standard: Carrier Frequency: 2402MHz ~ 2480 MHz Carrier Spacing: 1.0MHz Duplexing: TDD Modulation: FHSS GFSK, pi/4-DQPSK, 8DPSK Symbol Rate: 1Mbps (GFSK), 2Mbps (pi/4-DQPSK), 3Mbps (8DPSK) ! 7! 4 Module Hardware Overview 4.1 Block Diagram The general HW architecture is shown below Figure: . Module Block Diagram 4.2 Features  IEEE802.11a/b/g/n/ac (1X1) based on MTK MT7650U solution.  Support BT3.0  USB 2.0 Interface, High and Full Speeds supported.  Module is powered by the host with a 5.0V +/- 5% supply.  External PCB printed antennas.  4 layers through hole PCB design with FR4 material 4.3 Interface and Connector Pin definition: Vendor: JST Vendor P/N: SM05B-GHS-TB ! 8! Pin Number Symbol Name Status Pin definition 1 GND Ground 2 DP I/O USB positive data 3 DM I/O USB negative data 4 UV+ P USB +5V power input 5 GND Ground S1 GND Ground S2 GND Ground ! 9! 5 Electrical Specification 5.1 Absolute maximum rating ! Element Symbol MinTyp MaxUnit DC supply voltage UV+ 5.0 6.5 (V) 5.2 Recommended operating rating ! Element Symbol MinTyp MaxUnit DC supply voltage UV+ 4.5 5.0 5.5 (V) 5.3 DC Characteristics Symbol Parameter MinTyp. MaxUnit UV+ Supply voltage 4.5 5.0 5.5 (V) 2.4GHz Tx Current(1M/15dBm) 200 (mA) 2.4GHz Tx Current(11M/15dBm) - (mA) 2.4GHz Tx Current(6M/15dBm) - (mA) 2.4GHz Tx Current(54M/15dBm) 220 (mA) 2.4G…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Date: 2013/9/14 GENERAL DECLARATION We, HON HAI PRECISION IND. CO., LTD. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: MCLJ20H081 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Declaration for DFS client devices Date: 2013/9/14 FCC ID: MCLJ20H081 IC: 2878D‐J20H081 Dear Examiner: Per KDB# 848637, We, Hon Hai PRECISION IND.CO.,LTD declare that following description truly represent our product in consideration. Please do not hesitate to contact us, if further info is required. Thanks. a). A channel/frequency plan for the device showing the channels that have active scanning or passive scanning. Active scanning is where the device can transmit a probe (beacon) and passive scanning is where the device can listen only without probes. Below is the channel / frequency plan for the device b). For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) or in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies), or modular devices that configure the modes of operations through software; the applicant must provide in the application software and operations description that discuss how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by an end user or an installer. Also, include an attestation that the device complies with the requirements for software configuration control as discussed in KDB #594280. On DFS channels, the WLAN driver on the device operates under the control of an AP at all times, CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427243224372442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 40 44 48 52 56 60 64 Frequency (MHz) 5180 5200 5220 5240526052805300 5320 Scan Type Active Active Active Active Passive Passive Passive Passive CH 100 104 108 112 116 132 136 140 Frequency (MHz) 5500 5520 5540 5560558056605680 5700 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive CH 149 153 157 161 165 Frequency (MHz) 5745 5765 5785 58055825 Scan Type Active Active Active Active Active except when in ad-hoc mode, on US non-DFS channels. As described in the answer to question a, the device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is locked by proprietary password and cannot be changed or modified by end user. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Date: October 21, 2013 Confidentiality Request FCC ID: MCLJ20H081 Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until 11/30/2013 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo Thank you! Sincerely yours, ------------------------------------------------------- Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Date:2013/9/14 FCC ID: MCLJ20H081 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. AGENCY AUTHORIZATION LETTER Date: 2013/9/14 To whom it may concern: We, the undersigned, HON HAI PRECISION IND. CO., LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+15E approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

FCC ID: MCLJ20H081 Report No.: RF130904E05 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch October 21, 2013 Dear Application Examiner, Hon Hai PRECISION IND.CO.,LTD., 802.11ac/abgn/BT wireless module, FCC ID: MCLJ20H081, would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip MT7650U. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MT7650U. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

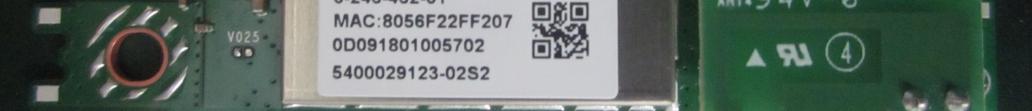

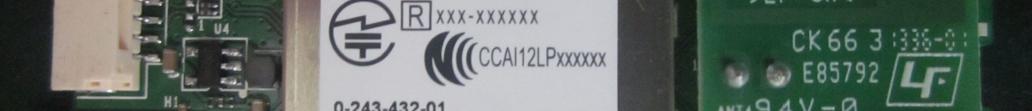

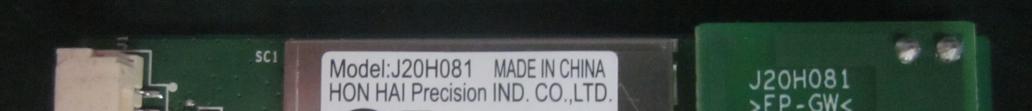

Report No.: 130904E05 Page 1 CONSTRUCTION PHOTOS OF EUT 130904E05 130904E05

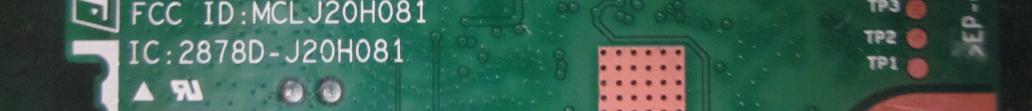

(Fig. 1) FCC ID: MCLJ20H081 FCC LABEL LOCATION The FCC ID will be printed on J20H081 PCB board.

Report No.: 130904E05 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130904E05 Page 2

FCC ID: MCLJ20H081 Report No.: RF130904E05 Operational Description This device is a 802.11ac/abgn/BT wireless module, which operates in both of the 5GHz and 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be up to 433.3Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 433.3Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered DC 5V±5%. The antennas provided to the EUT, please refer to the following table: The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA130904E05 1 of 7 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130904E05 MODEL NO.: J20H081 FCC ID: MCLJ20H081 RECEIVED: Sep. 04, 2013 TESTED: Sep. 16 to 26, 2013 ISSUED: Oct. 18, 2013 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1, Hsin-An Road, Hsinchu, Science Industrial Park, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130904E05 2 of 7 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130904E05 3 of 7 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130904E05 Original release Oct. 18, 2013 Report No.: SA130904E05 4 of 7 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 802.11ac/abgn/BT wireless module BRAND NAME: FOXCONN MODEL NO.: J20H081 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Hon Hai PRECISION IND.CO.,LTD TESTED DATE: Sep. 16 to 26, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: J20H081) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Oct. 18, 2013 ( Phoenix Huang, Specialist ) APPROVED BY : , DATE: Oct. 18, 2013 ( May Chen, Manager ) Report No.: SA130904E05 5 of 7 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130904E05 6 of 7 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 245.471 0.28 20 0.05209 1.00 For WLAN: 15.247(5GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 - 5825 456.037 1.12 20 0.11742 1.00 For WLAN: 15.407(5GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 -5240, 5260 - 5320, 5500 – 5580, 5660 - 5700 153.462 1.12 20 0.03951 1.00 For Bluetooth: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 2.213 0.28 20 0.00047 1.00 Report No.: SA130904E05 7 of 7 Report Format Version 5.0.0 CONCLUSION: Both of the Bluetooth and 5GHz WLAN can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.11742 / 1 + 0.00047 / 1 = 0.118, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF130904E05-4 1 of 26 Report Format Version 5.2.0 DFS TEST REPORT REPORT NO.: RF130904E05-4 MODEL NO.: J20H081 FCC ID: MCLJ20H081 RECEIVED: Sep. 04, 2013 TESTED: Oct. 01, 2013 ISSUED: Oct. 18, 2013 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130904E05-4 2 of 26 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION ...........................................................................................4 2. EUT INFORMATION .....................................................................................5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT...........................5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ............................................5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT ..........................5 2.4 EUT MAXIMUM CONDUCTED POWER ......................................................6 2.5 EUT MAXIMUM EIRP POWER .....................................................................7 2.6 TRANSMIT POWER CONTROL (TPC) .........................................................8 2.7 STATEMENT OF MAUNFACTURER ............................................................8 3. U-NII DFS RULE REQUIREMENTS .............................................................9 3.1 WORKING MODES AND REQUIRED TEST ITEMS ....................................9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS .................................10 4. TEST & SUPPORT EQUIPMENT LIST .......................................................13 4.1 TEST INSTRUMENTS ................................................................................13 4.2 DESCRIPTION OF SUPPORT UNITS ........................................................13 5. TEST PROCEDURE ...................................................................................14 5.1 BVADT DFS MEASUREMENT SYSTEM: ...................................................14 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: .....................15 5.3 DEVIATION FROM TEST STANDARD .......................................................16 5.4 CONDUCTED TEST SETUP CONFIGURATION ........................................16 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .......................................16 6. TEST RESULTS ..........................................................................................17 6.1 SUMMARY OF TEST RESULTS .................................................................17 6.2 DETAILED TEST RESULTS ........................................................................18 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. ..................................................................................18 6.2.1.1 DFS DETECTION THRESHOLD ................................................................18 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME ......19 6.2.1.3 NON- OCCUPANCY PERIOD ....................................................................20 6.2.1.4 NON-ASSOCIATED TEST .........................................................................22 6.2.1.5 NON- CO-CHANNEL TEST ........................................................................22 7. INFORMATION ON THE TESTING LABORATORIES ................................23 8. APPENDIX-A ..............................................................................................24 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ......................................................26 Report No.: RF130904E05-4 3 of 26 Report Format Version 5.2.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF130904E05-4 Original release Oct. 18, 2013 Report No.: RF130904E05-4 4 of 26 Report Format Version 5.2.0 1. CERTIFICATION PRODUCT: 802.11ac/abgn/BT wireless module BRAND NAME : FOXCONN MODEL NO.: J20H081 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Hon Hai PRECISION IND.CO.,LTD TESTED: Oct. 01, 2013 STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (Model: J20H081) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and was in compliance with the requirement of the above standards. The test record, data ev…

Text truncated - open the document above for the full version.

Report No.: RF130904E05-2 1 of 52 Report Format Version 5.0.0 FCC TEST REPORT (BLUETOOTH) REPORT NO.: RF130904E05-2 MODEL NO.: J20H081 FCC ID: MCLJ20H081 RECEIVED: Sep. 04, 2013 TESTED: Sep. 12 to 28, 2013 ISSUED: Oct. 18, 2013 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise …
