HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE O3 WIFI MODULE J27H020 USER’S MANUAL HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE Contents INTRODUCTION ................................................................................................................................................................... 3 1.1 WLAN FEATURES .......................................................................................................................................................... 3 1.2 FCC NOTICE .................................................................................................................................................................. 4 1.3 CANADA NOTICE ............................................................................................................................................................ 5 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE Introduction O3 WIFI Module is compliance with IEEE802.11,IEEE 802.11b and IEEE 802.11g Standards. 1.1 WLAN Features Operating Frequency 2400 ~ 2483.5 MHz ISM band Modulation Schemes 802.11: DPSK, DBPSK 802.11g: OFDM, DQPSK, DBPSK and CCK 802.11b: DQPSK, DBPSK and CCK Channel Numbers IEEE 802.11 compliant: 1 ~ 13 channels for United States, Europe and Japan IEEE 802.11b/g compliant: 1 ~ 11 channels for United States 1 ~ 13 channels for Europe, Japan WLAN Data Rate 802.11g: Up to 54 Mbps with auto fallback to 48, 36, 24, 18, 12, 9 and 6 Mbps. 802.11b: Up to 11 Mbps with auto fallback to 5.5, 2 and 1Mbps. 802.11 legacy: Up to 1Mbps and 2Mbps Media Access Protocol CSMA/CA with ACK Transmitter Output Power Item Condition Min Typ. Max Unit Transmit power level 802.11 legacy 1Mbps -1.5 0 1 dBm 2Mbps -1.5 0 1 dBm 802.11g 6Mbps 3.5 5 6 dBm 9Mbps 3.5 5 6 dBm 12Mbps 3.5 5 6 dBm 18Mbps 3.5 5 6 dBm 24Mbps 3.5 5 6 dBm 36Mbps 2.5 4 5 dBm 48Mbps 2.5 4 5 dBm HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE 54Mbps 2 3.5 4.5 dBm 802..11b 1Mbps 4 5.5 6.5 dBm 2Mbps 4 5.5 6.5 dBm 5.5Mbps 4 5.5 6.5 dBm 11Mbps 4 5.5 6.5 dBm Antenna Type Single antenna connector for off board antenna; Operating Voltage 1.8 VDC and 3.3 VDC Operating Systems Windows 98/Me/2000/XP 1.2 FCC Notice Federal Communication Commission Interference Statement : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FOXCONN declared that J27H020 802.11b/g module is limited in CH1~11 from 2412 to 2462 MHz by specified firmware controlled in USA. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labelling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labelled in a visible area with the following: “Contains FCC ID: MCL J27H020. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end us…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1, 5 Hsin-An Road, Hsinchu Science-Based Industrial Park, Taiwan, R.O.C. Date: March 15, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; HON HAI PRECISION IND. CO., LTD. 5F-1, 5 Hsin-An Road, Hsinchu Science-Based Industrial Park, Taiwan, R.O.C. f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

HON HAI PRECISION IND. CO., LTD. 5F-1, 5 Hsin-An Road, Hsinchu Science-Based Industrial Park, Taiwan, R.O.C. Date: March 15, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: MCLJ27H020 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD.

Applicant/Grantee HON HAI PRECISION IND. CO., LTD. FCC ID: MCLJ27H020 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Device is equipped with Metal shielding to cover RF section. Refer to external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic U1 inputs. Refer to Block Diagram. Y 3 The modular transmitter must have its own power supply regulation. 3.3 V and 1.8V regulated DC voltage are fed from the host. N 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna (KK23017-01-7F (Hon Hai Precision) or 20279-001E-01 (I-PEX)) connector. Refer to external photos ・ Y 5 The modular transmitter must be tested in a stand- alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). Device was tested inside of the final product for limited modular approval. Refer to setup photos. N 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: MCLJ27H020” shall be placed on the outside of final host system. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Meet RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

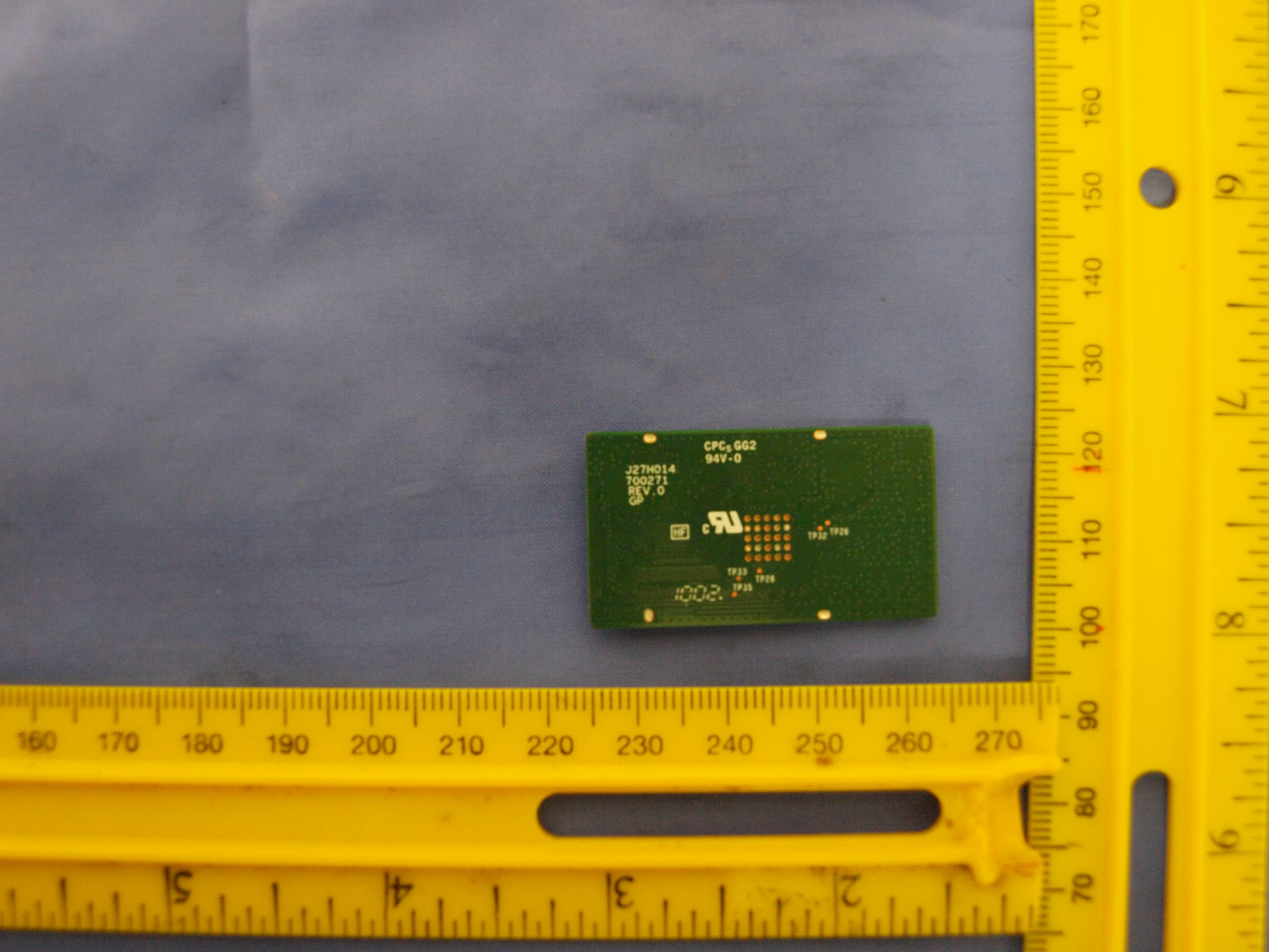

External Photo FCC ID: MCLJ27H020 IC: 2878D-J27H020

Internal Photo FCC ID: MCLJ27H020 IC: 2878D-J27H020

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR O3 WIFI MODULE MODEL NUMBER: J27H020 FCC ID: MCLJ27H020 IC: 2878D-J27H020 REPORT NUMBER: 10J13094-1, Revision A ISSUE DATE: MARCH 22, 2010 Prepared for HON HAI PRECISION IND. CO., LTD. 5F-1, 5 HSIN-AN ROAD HSINCHU SCIENCE-BASED INDUSTRIAL PARK TAIWAN, R.O.C. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 2 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 03/10/10 Initial Issue T. Chan A 03/22/10 Revised Section 5.3 by adding Mitsumi antenna information and Section 5.5 to “EUT stand-alone host, no laptop connection” instead of “EUT stand- alone”; Also added “EUT stand-alone host” into Setup Photo Section. T. Chan REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 3 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1. 802.11 MODE IN THE 2.4 GHz BAND........................................................................ 12 7.1.1. 6 dB BANDWIDTH .............................................................................................. 12 7.1.2. 99% BANDWIDTH .............................................................................................. 15 7.1.3. OUTPUT POWER ............................................................................................... 18 7.1.4. AVERAGE POWER ............................................................................................ 21 7.1.5. POWER SPECTRAL DENSITY .......................................................................... 22 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 25 7.2. 802.11b MODE IN THE 2.4 GHz BAND...................................................................... 29 7.2.1. 6 dB BANDWIDTH .............................................................................................. 29 7.2.2. 99% BANDWIDTH .............................................................................................. 32 7.2.3. OUTPUT POWER ............................................................................................... 35 7.2.4. AVERAGE POWER ............................................................................................ 38 7.2.5. POWER SPECTRAL DENSITY .......................................................................... 39 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 42 7.3. 802.11g MODE IN THE 2.4 GHz BAND...................................................................... 46 7.3.1. 6 dB BANDWIDTH .............................................................................................. 46 7.3.2. 99% BANDWIDTH .............................................................................................. 49 7.3.3. OUTPUT POWER ............................................................................................... 52 7.3.4. AVERAGE POWER ............................................................................................ 55 7.3.5. POWER SPECTRAL DENSITY .......................................................................... 56 7.3.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 59 8. RADIATED TEST RESULTS .............................................................................................. 63 REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 4 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TE…

Text truncated - open the document above for the full version.

REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 152 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO (802.11) ANTENNA PORT CONDUCTED PHOTO (802.11 bg) REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 153 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION TWL-001 HOST X-AXIS PHOTO Y-AXIS PHOTO REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 154 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. REPORT NO: 10J13094-1A DATE: MARCH 22, 2010 FCC ID: MCLJ27H020 IC: 2878D-J27H020 Page 155 of 159 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BEN…
