MCLT60198Wireless High Rate PC Card

COMPANY CONFIDENTIAL User’s Manual Ver 0.1 11Mbps Wireless High Rate PC Card T60L198.00 Ambit Microsystems Corporation 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: [email protected] COMPANY CONFIDENTIAL User’s Manual........................................................................................................................1 11Mbps Wireless High Rate PC Card............................................................................1 1.Introduction....................................................................................................................3 1.1Package Contents...........................................................................................3 2.2 Features....................................................................................................................4 2.3 Requirements............................................................................................................4 3.4 Usage Model.............................................................................................................4 2.Installation for Windows 95 and 98...............................................................................5 2.1Software Installation......................................................................................5 2.2Hardware Installation.....................................................................................5 3.Technical Specifications.................................................................................................6 4.Declaration of Compliance.............................................................................................7 5.Trouble Shooting............................................................................................................7 COMPANY CONFIDENTIAL 1. Introduction AMBIT 11Mbps Wireless High Rate PC Card (Model Name: T60L198.00) complied with IEEE 802.11b Standard, it can be used to provide a variety of low-cost wireless network interface card to connect your wireless LAN via fitting into the type II PC Card slot. The 11Mbps Wireless High Rate PC Card that complies with this specification and combines networking with high-speed Internet access will let people connect to the Internet anywhere, anytime. With seamless roaming, fully interoperability and advanced security with WEP standard, 11Mbps Wireless High Rate PC Card can allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. 1.1 Package Contents l AMBIT 11Mbps Wireless High Rate PC Card l T60L198.00 drivers and utilities contained on CD-ROM or floppy diskettes l User’s Manual l Warranty Card COMPANY CONFIDENTIAL Figure 1. AMBIT 11Mbps Wireless High Rate PC Card 2.2 Features l Compatible with IEEE 802.11b high rate standard to provide wireless Ethernet speeds of 11Mbps data rate l Dynamic data rate switching with 11, 5.5, 2 and 1Mbps l Allows auto fallback data rate for optimized reliability, throughput and transmission range l Supports wireless data encryption with 40-bit WEP standard for security l Integrated Microstrip dual diversity antennas for the multi-path environment l One-piece PC Card design to fully support PCMCIA type II defined mechanical and environmental stress conditions 2.3 Requirements l AMBIT 11Mbps Wireless High Rate PC Card l Windows drivers and utilities l A notebook computer with the following requirements ÿ Pentium or above processor ÿ Running Microsoft Windows 95, 98, Millennium, NT or 2000. ÿ PCMCIA type II slot. ÿ CD-ROM drive. 3.4 Usage Model l Ad-hoc Networking Ad-hoc network also is called Peer-to-Peer network. Without Access Point, notebook users with each 11Mbps Wireless High Rate PC card can build a Ad-hoc Peer-to-Peer wireless networks to share files with each other, share a public office printer and other peripheral resources, and even access the Internet via a modem. l Infrastructure Networking 802.11b-compatible Access Point is a bridge or router for connect to the wired Ethernet network and wireless network. Through the deployment of Access Point, wireless LAN can be extended to the reach of a wired network. Therefore, A notebook COMPANY CONFIDENTIAL user with 11Mbps Wireless High Rate PC Card can access to fixed local network resources. 2. Installation for Windows 95 and 98 2.1 Software Installation l Windows find a new hardware described as INTERSIL-HFA384x/IEEE and then show a dialog to ask for the driver of this new hardware. l Please insert the CD-ROM labeled 11Mbps Wireless High Rate PC Card. l If your CD-ROM Drive is located in the D drive. Please execute the setup program on CD-ROM. For examples, D:\Setup <Enter> l The first dialog display PRISM 802.11 – Wireless LAN – Installation. l Display the dialog of Welcome and press Next icon. l Display the dialog of Software License Agreement. If you agree this agreement, please press Yes icon. l Then, the dialog shows Enter the System ID of your Wireless LAN. The default string of SSID is IEEE 802.11 LAN. You can change this name at any time via the task bar. l The next dialog shows Enter the Network Mode. Please choose Infrastructure if the wireless communication is done via an 802.11 Access Point. Otherwise, choose Ad Hoc network. l Continue to follow all directions to install drivers and utilities. l Finally, the dialog requests to restart the computer. Click Finish. 2.2 Hardware Installation l Make sure the LED indicator of 11Mbps Wireless High Rate PC Card is on the top side. l Turn off your laptop and insert this PC Card into an available PCMCIA slot of your PC. l Make sure the LED light on when the PC Card installed properly. l The operating system will automatically detect the Wireless High Rate PC card and show a small icon at the right-bottom corner of the screen when using Microsoft Windows. l The icon look like a small monitor with an antenna on …

Text truncated - open the document above for the full version.

AMBIT MICROSYSTEMS CORPORATION FCC ID: MCLT60198 731 Confirmation Number: TC99574 Correspondence Reference Number: 1298 Mr. Errol Chang: The applicant has provided the following information. 1) Chipping Rate: 11M-chip/s Spreading Rate:11,5,2,1 Mbps Data Rate:8bits(=1byte) 2) I have uploaded a pdf file that shows the antenna that the EUT utilizes. 3) I have uploaded a pdf file that provides the peak power data. 4) The receiver part was tested in report â€00AH023F†(report number did not translate) subjected to Part 15 paragraph 15.5 certified under DECLARATION OF CONFORMITY.

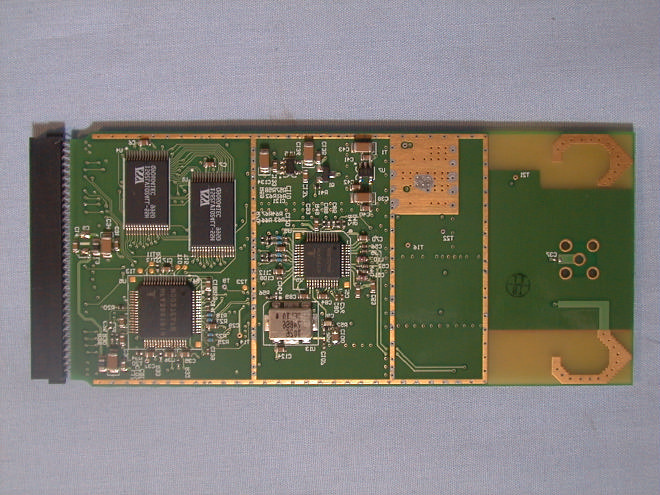

QuieTek Corporation Page: 4 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 6 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo (6) EUT Photo

QuieTek Corporation Page: 4 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo QuieTek Corporation Page: 5 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (8) EUT Photo

QuieTek Corporation Page: 5 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 7 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo QuieTek Corporation Page: 8 of 5 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (8) EUT Photo

COMPANY CONFIDENTIAL Figure2. Insert the Wireless High Rate PC Card into a PCMCIA slot. 3. Technical Specifications Radio TechnologyIEEE 802.11b Direct Sequence Spread Spectrum Operating Frequency2400 ~ 2497MHz ISM band Modulation SchemesDQPSK, DBPSK and CCK Channel NumbersIEEE 802.11b compliant 11 channels for United States 13 channels for Europe Countries 14 channels for Japan Data Rate11Mbps with fall back rates of 5.5, 2, and 1Mbps Spreading11-chip Barker Sequence Media Access ProtocolCSMA/CA with ACK Transmitter Output Power12.5dBm typically Receiver SensitivityMin. –76dBm for 11Mbps @ 8% PER Min. –80dBm for 2Mbps @ 8% PER Antenna TypeIntegrated Microstrip dual diversity antennas

QuieTek Corporation Page: 1 of 21 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : AMBIT Microsystems Corporation Equipment Type : Wireless High Rate PC Card Model : T60L198.00 FCC ID : MCLT60198 Report No. : 00AH023FI QuieTek Corporation Page: 3 of 21 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................5 1.1 EUT Description .................................................................................................................................................5 1.2 Tested System Details..........................................................................................................................................6 1.3 EUT Configuration ..............................................................................................................................................9 1.4 EUT Exercise Software .......................................................................................................................................9 1.5 Test performed ....................................................................................................................................................9 1.6 Test Facility....................................................................................................................................................... 10 2. CONDUCTED EMISSION............................................................................................................................. 11 2.1 Test Equipment List........................................................................................................................................... 11 2.2 Test Setup.......................................................................................................................................................... 11 2.3 Limits................................................................................................................................................................ 11 2.4 Test Procedure................................................................................................................................................... 12 2.5 Test Results ....................................................................................................................................................... 12 3. RADIATED EMISSION.................................................................................................................................. 13 3.1 Test Equipment.................................................................................................................................................. 13 3.2 Test Setup.......................................................................................................................................................... 13 3.3 Test Condition ................................................................................................................................................... 14 3.4 Limits................................................................................................................................................................ 14 3.5 Test Procedure................................................................................................................................................... 15 3.6 Test Results ....................................................................................................................................................... 15 4. OCCUPIED BANDWIDTH............................................................................................................................ 16 4.1 Test Equipment.................................................................................................................................................. 16 4.2 Test Setup.......................................................................................................................................................... 16 4.3 Test Condition ................................................................................................................................................... 16 4.4 Standard Reqirement ......................................................................................................................................... 16 4.5 Occupied Bandwidth Data ................................................................................................................................. 16 5. PEAK POWER OUTPUT ............................................................................................................................... 17 5.1 Test Equipment.................................................................................................................................................. 17 5.2 Test Setup.......................................................................................................................................................... 17 5.3 Test Condition ................................................................................................................................................... 17 5.4 Standard Reqirement ......................................................................................................................................... 17 5.5 Peak Power Output Data.................................................................................................................................... 17 6. TRANSMITTER POWER DENSITY............................................................................................................ 18 6.1 Test Equipment.................................................…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 17 of 51 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Peak Power Output Data Date of Test : Oct. 26, 2000 EUT : Wireless High Rate PC Card Test Mode : Normal Test Site : Open Site 2 HORIZONTAL Channel No. Frequency(MHz) Measurement Margin Required Limit Result 1 2413.00 5.85 dBm -24.15dB 1Watt= 30 dBm Pass 6 2438.70 4.26 dBm -25.74 dB 1Watt= 30 dBm Pass 11 2463.00 3.14 dBm -26.86 dB 1Watt= 30 dBm Pass VERTICAL Channel No. Frequency(MHz) Measurement Margin Required Limit Result 1 2413.00 7.16 dBm -22.84dB 1Watt= 30 dBm Pass 6 2437.90 5.17 dBm -24.83dB 1Watt= 30 dBm Pass 11 2463.10 4.86 dBm -25.14dB 1Watt= 30 dBm Pass REMARK: P = E 2 R 2 / 30G = E 2 3 2 / 30G P= the equivalent isotropic radiated power in watts E= the maximum measured field strength in V/m R= the measurement range (3 meters) G= the numeric gain of the transmit antenna relates to an isotropic radiator

QuieTek Corporation Page: 1 of 3 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test Back View of Conducted Test QuieTek Corporation Page: 2 of 3 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test Back View of Radiated Test QuieTek Corporation Page: 3 of 3 FCC Report No.: 00AH023FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Horn)
