MCLT60H42400Mini PCI IIIB Wireless LAN Card

Contents Chapter 1 About the T60H424 MiniPCI Card 1-1 Features 1-2 Applications 1-3 Product Kit Chapter 2 Network Configuration and Planning 2-1 Network Topology 2-2 Roaming Chapter 3 Installing and Navigating the PRISM Configuration Utility 3-1 LAN-Express Configuration Utility - Installation 3-2 LAN-Express Configuration Utility - Navigation Appendix A Troubleshooting Appendix B Glossary Chapter 1 About the T60H424 MiniPCI Card The IEEE 802.11 T60H424 MiniPCI Card is compatible with any standard, notebook computer Type II or Type III PCMCIA slot / Type III MiniPCI slot. As a Plug-and-Play device, Windows 95/98/2000 will automatically recognize the T60L198 PCMCIA and initiate the installation process. Upon successful installation, the T60H424 MiniPCI card will communicate seamlessly with other T60H424 wireless home and office networking products. 1-1 FEATURES 1. Supports up to 11 Mbps data rate: T-1 line alternative/replacement that dramatically cuts costs. 2. Working range up to 800 ft. in an open environment enhances mobility. 3. Supports point-to-point and point-to-multipoint access provides increased flexibility. 4. Seamless connectivity to wired Ethernet and PC network LAN’s offers quick, trouble-free integration with existing networks. 5. Robust Direct Sequence Spread Spectrum (DSSS) technology provides secure, interference-resistant wireless connection. 6. Wireless connections eliminate the hassle and cost of cabling. 7. Supports a wide range of LAN (Local Area Network) Network Operating Systems (NOS) including Windows ® 98 and Windows ® 2000 8. Easy Plug and Play installation(T60L198). 9. Omni - directional antenna included 10. Greater flexibility to locate or move networked PC’s 1-2 APPLICATIONS T60H424 products offer a fast, reliable, cost-effective solution for wireless client access to the network the following applications and environments: ƒ Remote access to corporate network information ƒ E-mail, file transfer and terminal emulation ƒ Difficult-to-wire environments ƒ Historic or older buildings ƒ Buildings with asbestos insulation ƒ Open areas where wiring is difficult to employ ƒ Frequently changing environments ƒ Retailers, manufacturers or other organizations that frequently rearrange the workplace or relocate ƒ Temporary LANs for special projects or peak time usage ƒ Trade shows, exhibitions and construction sites that employ temporary networks. Retailers, airline and shipping companies that need additional workstations for a peak period and Auditors that require workgroups at customer sites. ƒ Access to database for mobile workers ƒ Medical, Technical and Retail specialists that require roaming access to a database or other network resources. ƒ SOHO (Small Office and Home Office) users ƒ Perfect for users that need a small, easy-to-install network that deploys rapidly. ƒ Inter-building connection ƒ Wireless building-to-building networks are quickly and easily installed, require no monthlylease fees, and provide the flexibility to reconfigure easily. 1-3 PRODUCT KIT The T60H424 product kit includes the following items. Ensure that the items in the following list have been included. If any of the listed items are missing, please contact your local dealer. ƒ 1 X T60L198 PCMCIA Type II Adapter or Type III T60H424 MiniPCI Adapter ƒ 1 X Driver ƒ 1 X User Manual & Utility Chapter 2 Network Configuring and Planning The T60H424 supports legacy Ethernet LAN network configuration options as defined by the IEEE 802.11 standards committee. The T60H424 can be configured as: . Ad-Hoc for departmental or SOHO LANs. . Infrastucture for enterprise LANs. . LAN-Interconnection for to point-to-point link as a campus backbone. 2-1 Network Topology Ad-Hoc Wireless LAN Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Fig.1 Ad-Hoc Wireless LAN An Ad-Hoc wireless LAN is a group of computers. Each equipped with on T60H424 adapter, connected as an independent wireless LAN.Computers in a specific Ad-Hoc wireless LAN must be configured to share the same radio channel. Ad-Hoc wireless LAN configurations are appropriate for branch level departments or SOHO operations. 乙太網路 File Server Desktop PC Desktop PC Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Access PointAccess Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig.2 Infrastructure Wireless LAN Configuration Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 The T60H424 provides access to a wired LAN for wireless workstations.An integrated wireless and wired LAN is called an Infrastructure configuration. A group of T60H424 PC users and an Access Point compose a Basic Service Set (BSS).Each T60H424 can talk to any computer in the wired LAN infrastructure via the Access Point. An Infrastructure configuration extends the accessibility of a T60H424 equipped PC to a wired LAN and doubles the effective wireless transmission range for 2 T60H424 PCs. Since the Access Point is able to forward data within its BSS, the effective transmission range in an infrastucture LAN is doubled. Ad-Hoc Infrastructure Access Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig 3 The effective transmission ranges 2-2 Roaming Infrastructure mode also supports roaming capabilities for mobile users More than one BSS can be configured as an Extended Service Set (ESS). The continuous network allows users to roam freely within an ESS. All T60H424 PCs and Access Point within one ESS must be configured with the same ESSID and use the same radio channel. Ess BSS1 BSS2 乙太網路 File Server Desktop PC Desktop PC Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Access PointAccess Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig.4 Roaming in an Extended Service Set (ESS) Before enabling an ESS with roaming capability, choosing a feasible radio channel …

Text truncated - open the document above for the full version.

T60H424 Block Diagram 748MHz/ Intersil ISL3183 FLASH/ 128K*8/ SST SRAM/ 128K*16/ ICSI 44MHz/ 25PPM/ TXC 32.768kHz /100PPM/ EPSON ISL 3874A Baseband Processor & MAC T60R416T01 RF Module IF LO ISL 3783 I/Q Modulator ISL 3685 RF/IF Converter ISL 3984 PA MINIPCI HOST INTERFACE VCO RF LO SAW/ TAI-SAW 2038 ~ 2110MHz/MARUWA BPF/ SOSHIN BPF/ SOSHIN BPF/ SOSHIN LPF/ TOKO T/R SW/ Alpha RX Diversity SW/Alpha

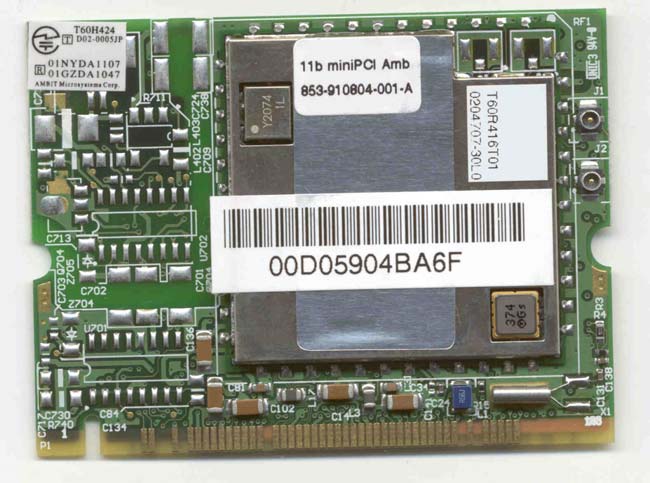

EUT PHOTOGRAPHS Component View Solder View Shield Removed Component View

FCC ID LABEL INFORMATION Proposed FCC ID Label 2.1875”L x 1.0”W Proposed Label Location on EUT Solder Side of EUT/FCC ID Label FCC ID: MCLT60H42400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,

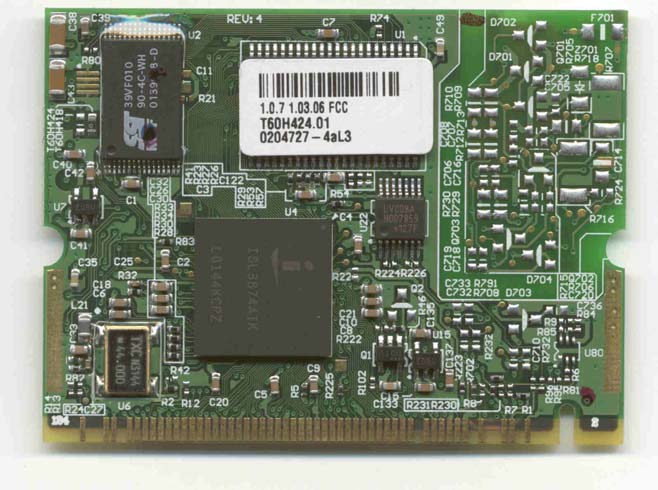

EUT PHOTOGRAPHS Component View Solder View Shield Removed Component View

COMPANY CONFIDENTIAL REV.0.1 4/15/200211 1 T60H424.00 MRS.doc T60H424.00 MINIPCI IIIB Wireless LAN Card Marketing Requirements Specification June 22, 2001 COMPANY CONFIDENTIAL REV.0.1 4/15/200211 2 T60H424.00 MRS.doc 0. REVISION HISTORY ............................................................................................................................................. 3 1. INTRODUCTION .................................................................................................................................................... 4 1. INTRODUCTION .................................................................................................................................................... 4 1.1 SCOPE................................................................................................................................................................... 4 1.2 WIRELESS LAN FUNCTION.................................................................................................................................. 4 2. PRODUCT REQUIREMENTS............................................................................................................................... 5 2.1 GENERAL ELECTRICAL SPECIFICATIONS............................................................................................................... 5 2.2 HARDWARE ARCHITECTURE................................................................................................................................. 6 2.3 MECHANICAL REQUIREMENTS.............................................................................................................................. 6 2.4 WEIGHT................................................................................................................................................................ 6 2.5 ANTENNA CONNECTION....................................................................................................................................... 6 3. RELIABILITY, MAINTAINABILITY AND QUALITY ....................................................................................7 3.1 RELIABILITY......................................................................................................................................................... 7 3.2 MAINTAINABILITY................................................................................................................................................ 7 3.3 QUALITY............................................................................................................................................................... 7 4. ENVIRONMENTAL REQUIREMENTS .............................................................................................................. 7 4.1 TEMPERATURE...................................................................................................................................................... 7 4.1.1 Operating Temperature Conditions ............................................................................................................. 7 4.1.2 Non-Operating Temperature Conditions ..................................................................................................... 7 4.2 HUMIDITY............................................................................................................................................................. 7 4.2.1 Operating Humidity Conditions................................................................................................................... 7 4.2.2 Non-Operating Humidity conditions............................................................................................................ 7 COMPANY CONFIDENTIAL REV.0.1 4/15/200211 3 T60H424.00 MRS.doc 0. Revision History Date: June 11, 2001 REV.0.1 Date: June 22, 2001 REV.0.2 COMPANY CONFIDENTIAL REV.0.1 4/15/200211 4 T60H424.00 MRS.doc 1. Introduction Project Name : MINIPCI IIIB Wireless LAN Card Project Code : T60H424.00 This documentation describes the marketing requirements specification of the Ambit MINIPCI IIIB Wireless LAN card using a RF Module based on Intersil’s Prism 2.5 chipsets. It is a confidential document of AMBIT. 1.1 Scope AMBIT MINIPCI IIIB WLAN Card complied with IEEE 802.11b 11Mbps Standard. The WLAN application is implemented via a RF module. This RF module is developed for Wireless LAN application complied with IEEE 802.11b 11Mbps standard in ISM band. It can be used to provide a variety of low-cost wireless network interfaces to build your wireless connection via simply SMT procedure to speed the time to market. Three Intersil’s chips are implemented in the RF module including ISL3984, ISL3685, HFA3783. 1.2 Wireless LAN Function z Compatible with IEEE 802.11b high rate standard to provide wireless Ethernet speeds of 11Mbps data rate z Dynamic data rate switching with 11, 5.5, 2 and 1Mbps z Allows auto fallback data rate for optimized reliability, throughput and transmission range z Supports wireless data encryption with 64/128-bit WEP standard for security z Dual diversity antenna connectors supported for the multi-path environment z Drivers supports Windows 95, 98, 98SE, NT, ME, 2000, Win XP . COMPANY CONFIDENTIAL REV.0.1 4/15/200211 5 T60H424.00 MRS.doc 2. Product Requirements 2.1 General Electrical Specifications Radio Technology IEEE 802.11b Direct Sequence Spread Spectrum Operating Frequency 2400 ~ 2497MHz ISM band Modulation Schemes DQPSK, DBPSK and CCK Channel Numbers IEEE 802.11b compliant 11 channels for United States 13 channels for Europe Countries 14 channels for Japan Data Rate 11Mbps with fall back rates of 5.5, 2, and 1Mbps Spreading 11-chip Barker Sequence Media Access Protocol CSMA/CA with ACK Transmitter Output Power 15dBm typically Receiver Sensitivity Typical –85dBm for 11Mbps @ 8% PER Typical –90dBm for 2Mbps @ 8% PER Antenna Type Integrated diversity switch with HRS connectors for connecting dual diversity antennas Operating Volt…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For Ambit Microsystems Corporation 4-1, Ming Shen Street, Tu Chen Industrial District. Tu Chen, Taipei Hsien 236, Taiwan, R.O.C. FCC ID: MCLT60H42400 April 9, 2002 This Report Concerns: Original Report Equipment Type: MiniPCI IIIB Wireless LAN Card Test Engineer: Benjamin Min Test Date: March 18, 2002 Reviewed By: John Y. Chan - Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Ambit Microsystems Corporation FCC ID: MCLT60H42400 Report # R0203066 FCC 15.247 Test Report Page 2 of 31 TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................4 1.2 OBJECTIVE.............................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................5 1.4 TEST METHODOLOGY............................................................................................................................................5 1.5 TEST FACILITY.......................................................................................................................................................5 1.6 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 1.7 HOST SYSTEM CONFIGURATION LIST AND DETAILS..............................................................................................6 1.8 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................7 1.9 EXTERNAL I/O CABLING LIST AND DETAILS.........................................................................................................7 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................8 2.1 JUSTIFICATION.......................................................................................................................................................8 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................8 2.3 SPECIAL ACCESSORIES...........................................................................................................................................8 2.4 SCHEMATICS / BLOCK DIAGRAM...........................................................................................................................8 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................8 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................9 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................9 3 - SUMMARY OF TEST RESULTS........................................................................................................................10 4 - PEAK OUTPUT POWER MEASUREMENT ....................................................................................................11 4.1 STANDARD APPLICABLE......................................................................................................................................11 4.2 MEASUREMENT PROCEDURE................................................................................................................................11 4.3 MEASUREMENT RESULT......................................................................................................................................11 5 - SPURIOUS EMISSION.........................................................................................................................................13 5.1 STANDARD APPLICABLE......................................................................................................................................13 5.2 MEASUREMENT PROCEDURE................................................................................................................................13 5.3 MEASUREMENT DATA..........................................................................................................................................13 6 - PEAK POWER SPECTRAL DENSITY ..............................................................................................................17 6.1 STANDARD APPLICABLE......................................................................................................................................17 6.2 MEASUREMENT PROCEDURE................................................................................................................................17 6.3 TEST RESULTS.....................................................................................................................................................17 7 - 6 DB BANDWIDTH...............................................................................................................................................19 7.1 STANDARD APPLICAB…

Text truncated - open the document above for the full version.

CONDUCTED AND RADIATED SETUP PHOTOGRAPHS Conducted Emission Test Setup - Front View Conducted Emission Test Setup - Rear View Radiated Emission Test Setup - Front View Radiated Emission Test Setup - Rear View
