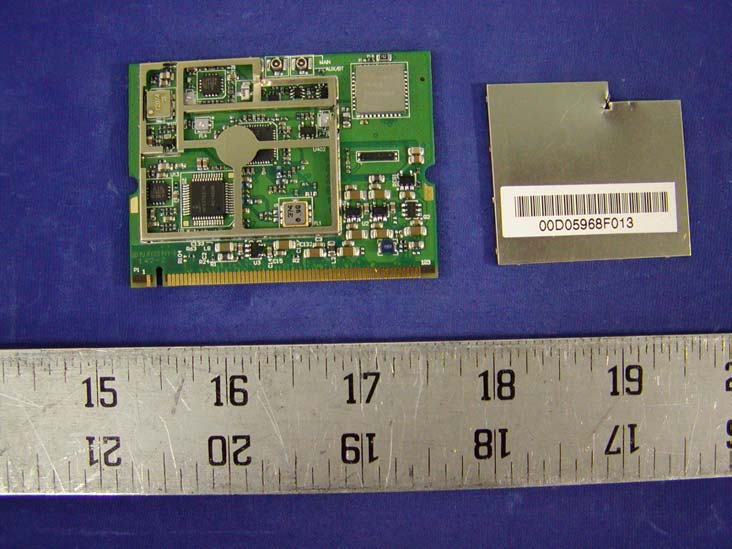

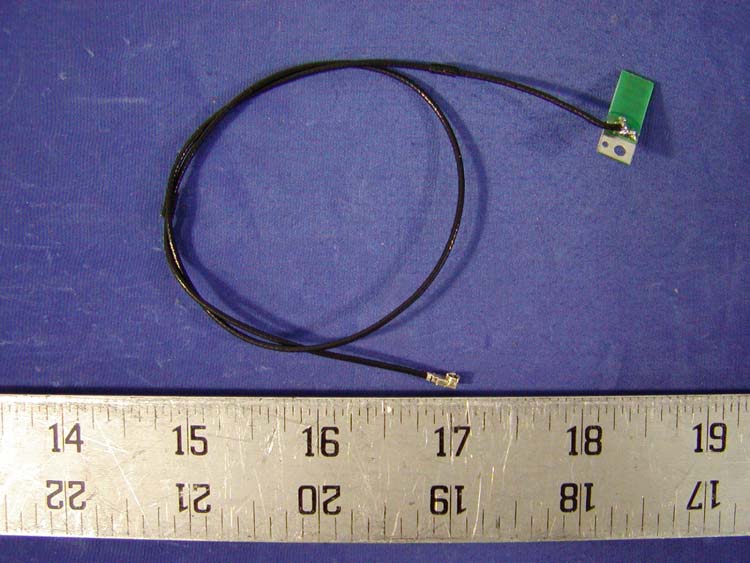

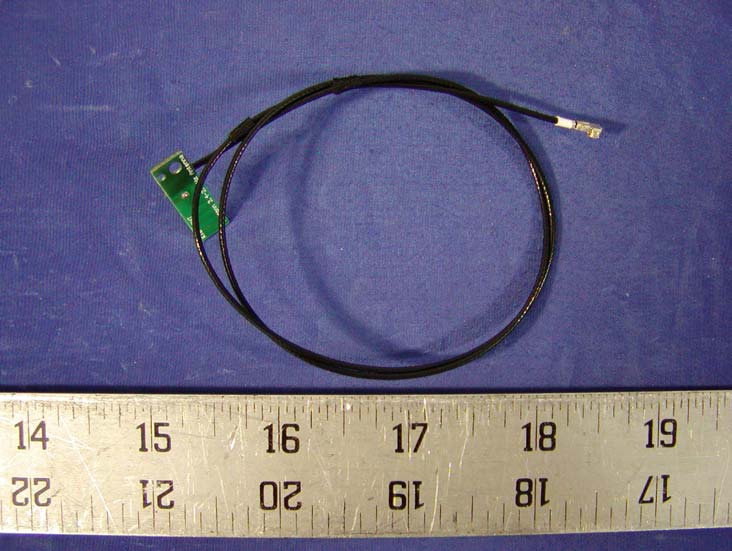

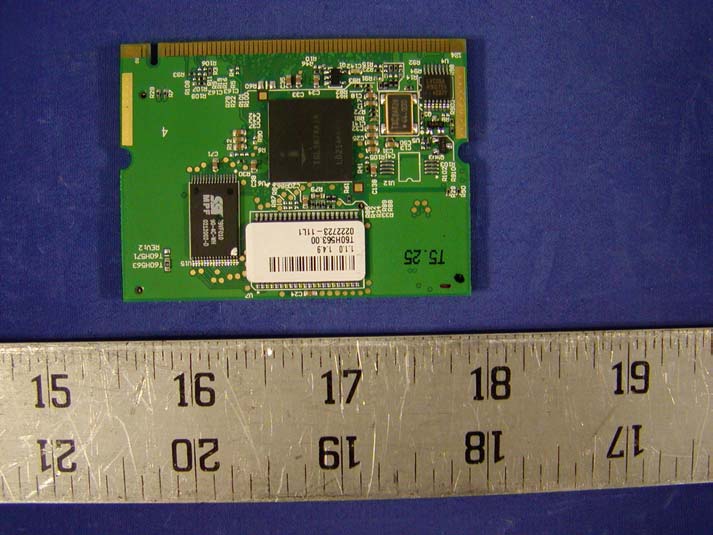

MCLT60H563Bluetooth and 802.11b Combo Module

1 U S E R ’ S M A N U A L T60H563 MiniPCI WLAN/Bluetooth Combo Module Ambit Microsystems Corporation 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 2 Contents SECTION ONE: INTRODUCTION ............................................................................................ 1 1.1 F EATURES .............................................................................................................................. 1 1.1.1 WLAN HARDWARE SPECIFICATION ............................................................ 1 1.1.2 B LUETOOTH H ARDWARE S PECIFICATIONS .......................................................................... 1 1.1.3 SOFTWARE SPECIFICATION ................................................................................................... 2 1.2 P ACKAGE C ONTENTS .............................................................................................................. 2 SECTION TWO: BLUETOOTH INSTALLATION .......................................................................... 3 2.1 D RIVER I NSTALLATION .......................................................................................................... 3 SECTION THREE: WIRELESS LAN INSTALLATION ............................................................. 8 3-1 S YSTEM R EQUIREMENTS ................................................................................................................ 8 3-2 I NSTALLATION AND U NINSTALL P ROCESS ...................................................................................... 8 SECTION 4 WIRELESS UTILITY AND CONFIGURATION ............................................... 14 4-1 W INDOWS 98/ME/2000 W IRELESS U TILITY ................................................................................ 14 4-2 W INDOWS XP W IRELESS U TILITY ............................................................................................... 17 APPENDIX A GLOSSARY ............................................................................................................... 24 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. 1 Section One: Introduction AMBIT MINIPCI 3B WLAN/Bluetooth Combo Module complied with IEEE 802.11b 11Mbps Standard. The WLAN/Bluetooth application is implemented via a Intersil Prism 2.5 RF circuit. This RF circuit is developed for Wireless LAN application complied with IEEE 802.11b 11Mbps standard in ISM band. It can be used to provide a variety of low-cost wireless network interfaces to build your wireless connection via simply SMT procedure to speed the time to market. Three Intersil’s chips are implemented including ISL3984, ISL3685, HFA3783. With Bluetooth technology, the Bluetooth part can achieve internet connection rates up to 721 kbits/s. The Notebook communicate with Bluetooth by MiniPCI Interface Reserve pin. The WLAN/Bluetooth combo card mechanical complies with MINIPCI 3B from factor. 1.1 Features 1.1.1 WLAN Hardware Specification Form Factor & Bus Interface MiniPCI Type IIIB, compliant to MiniPCI 1.0 Wireless LAN Compliance IEEE 802.11b Radio Technology Direct Sequence Spread Spectrum Operating Frequency 2.4 ~ 2.4835GHz ISM band Modulation Schemes DQPSK, DBPSK and CCK Channel Numbers IEEE 802.11b compliant 1 ~ 11 channels for United States WLAN Data Rate 11Mbps with fall back rates of 5.5, 2, and 1Mbps Spreading 11-chip Barker Sequence Media Access Protocol CSMA/CA with ACK Transmitter Output Power Typ. 15 dBm (ERP) Receiver Sensitivity Typ. –82 dBm for 11Mbps @ 8% PER Typ. –85 dBm for 1Mbps @ 8% PER Antenna Type Integrated diversity switch with Hirose compliant connectors(U-FL) for connecting dual diversity antennas 1.1.2 Bluetooth Hardware Specifications Bluetooth Module Chip Set CSR BlueCore 02 2 Supply Voltage 2.7V to 3.3V Power Features Host wake-up on the module Detach the module from host Frequency Range 2.400-2.497 GHz Antenna Load 50 Ohm Receive Sensitivity –80 [email protected]% BER Maximum Receiver Signal -20 dBm TX Power (ERP) 4 dBm maximum (class 2 and class 3) RF Power Control Step Size 2 dB Range 10 meters at 0 dBm TX power (class 2) Radio Compliant with Bluetooth standard version 1.1 Pico Net 1 master to 7 slaves Operating Channels 79 channels of 1 MHz BW Security Full support of Bluetooth security provisions including hardware support for full length 128 bit encryption keys. Host Interface (USB) USB specification 1.1 compliant 1.1.3 Software Specification OS - Supports Windows 98SE, ME, 2000, XP Configuration - User interface for configuration and status monitoring WLAN Standard Compliance - 802.11b,- 802.1X for Windows XP Bluetooth Standard - Bluetooth Specification 1.1 Site Survey - Auto scan to find APs nearby and show signal strength for each channel (for WLAN only) 1.2 Package Contents Make sure you have received the following items in your package: 3 One Mini-PCI Type IIIB WLAN/Bluetooth Module One Phone Cable (Bluetooth) User Manual Section Two: Bluetooth Installation The following steps provide instructions for installing Bluetooth. 1. Make sure your MiniPCI WLAN/BT Combo card already insert into the slot. 2. Insert the connector of Antenna cable into the antenna connector of MiniPCI Module . The antenna connector assembly need to be performed by well trained engineer to cause antenna connector mismatch then degrade Bluetooth connection performance. Please find your vendor to help this connector assembly. 2.1 Driver Installation Your Bluetooth is using the Plug and Play (PnP) capabilities of you computer. PnP is a set of specifications that define the ability for the computer hardware and operating system to automatically configure all compliant devices that…
