MCLT60H656Wireless LAN mini PCI card

1 U S E R ’ S M A N U A L T60H656 Mini-PCI Type IIIB WLAN CARD Ambit Microsystems Corporation 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: [email protected] 2 Contents SECTION ONE:INTRODUCTION.............................................................................................1 1.1F EATURES...............................................................................................................................1 1.1.1 W IRELESS LAN FUNCTION.....................................................................................................1 1.2:FCC N OTICE...................................................................................................................................2 1.2.1 FCC C OMPLIANCE......................................................................................................................... 1.2.2 FCC C LASS B STATEMENT.........................................................................................................2 SECTION TWO:WIRELESS LAN INSTALLATION ...............................................................3 2-1 S YSTEM REQUIREMENTS................................................................................................................3 2-2 I NSTALLATION AND UNINSTALL PROCESS.......................................................................................3 SECTION THREE: WIRELESS UTILITY AND CONFIGURATION .....................................9 3-1 W INDOWS 98/ME/2000 WIRELESS UTILITY...................................................................................9 SECTION FOUR:WINDOWS XP WIRELESS UTILITY AND CONFIGURATION ...........15 4-1 W INDOWS XP WIRELESS UTILITY................................................................................................15 APPENDIX A GLOSSARY ................................................................................................................22 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. 1 Section One:Introduction Ambit Wireless Mini-PCI Module complied with IEEE 802.11b 11Mbps Standard, it can be used to provide a variety of low-cost wireless network interface card to connect your wireless LAN via fitting into the MiniPCI Type III slot. The Wireless MiniPCI Module that complies with this specification and combines networking with high- speed Internet access will let people connect to the Internet anywhere, anytime. With seamless roaming, fully interoperability and advanced security with WEP standard, Wireless MiniPCI Module can allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. 1.1 Features 1.1.1 Wireless LAN Function Form Factor & Bus InterfaceMiniPCI Type IIIB, compliant to MiniPCI Specification Rev 1.0 Wireless LAN ComplianceIEEE 802.11b Radio TechnologyDirect Sequence Spread Spectrum Operating Frequency2.4 ~ 2.497GHz ISM band Modulation SchemesDQPSK, DBPSK and CCK Channel NumbersIEEE 802.11b compliant 1 ~ 11 channels for United States 1 ~ 13 channels for Europe 1 ~ 13 or 14 channels for Japan WLAN Data Rate11, 5.5, 2, and 1Mbps Spreading11-chip Barker Sequence Media Access ProtocolCSMA/CA with ACK Transmitter Output PowerTyp. 13+/-1 dBm Receiver SensitivityTyp. –82 dBm for 11Mbps @ 8% PER Typ. –85 dBm for 1Mbps @ 8% PER Antenna Type Integrated diversity switch with Hirose compliant connectors(U-FL) for connecting dual diversity antennas 2 Operating Voltage3.3VDC RadioOn / Off Dynamic Rate ShiftingAutomatic fallback Network ArchitectureAd-hoc, Infrastructure Operating SystemsWindows 98/Me/2000/XP Mechanical Requirements Mini-PCI Type IIIB dimension. 1.2:FCC Notice 1.2.1 FCC Class B Statement This equipment has been tasted and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interferencr by one or more of the following measures: ! Reorient or relocate the receiving antenna ! increase the separation between the equipment and the receiver ! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ! Consult the dealer or an experienced radio/TV technician for help IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). The OEM integrato…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H656 ADT No.911122R04 Modular Approval Request Letter Advance Data Technology Dec. 20, 2002 Dear Application Examiner, AMBIT Microsytems Corporation’s Wireless module, FCC ID: MCLT60H656, would like to have your authorization as a limited modular approval specific to the mobile device such as Notebook with antenna mounted around the LCD panel. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3872. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is RT9167-18. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCI to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLT60H656 ADT No.911122R04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Line Manager of Hsinchu Certification Service Div. Advance Data Technology

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 24, 2002 RE: Ambit Microsystems FCC ID: MCLT60H656 I have a few short comments on this Application. 1.) There are references to six antennas in this Application. Please identify them by type (dipole, inverted “F”, etc.) and their respective gain. 2.) Please show RF Exposure information for highest gain antenna of each type. 3.) Please provide language to be included in Manual showing the requirements of 15.21. 4.) Which antenna was used for the radiated band edge test of 4.6.6? I am unsure of which one was utilized during testing. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

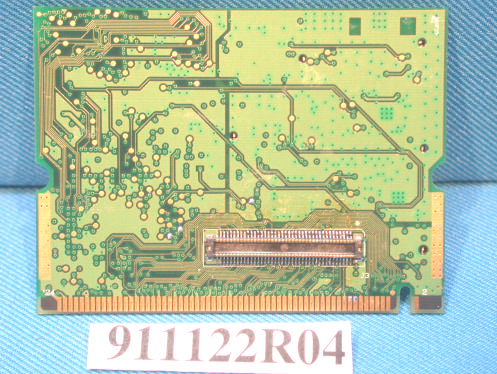

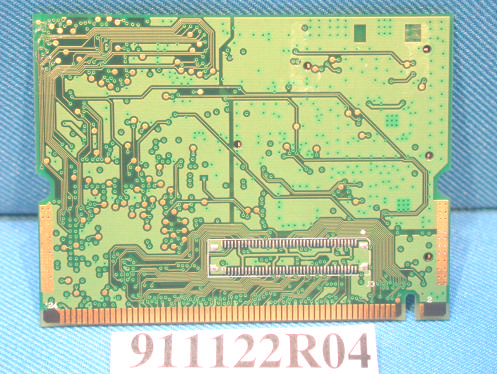

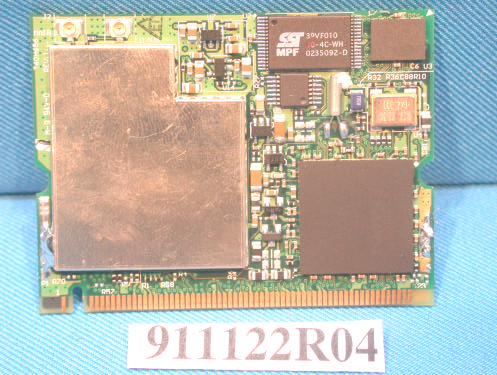

Page 1 CONSTRUCTION PHOTOS OF EUT Interface I Page 2 Interface II

(Fig. 1) FCC ID: MCLT60H656 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

IC : 2878C – T60H656 Ambit T60H656 The above is for Canada Label drawing. Contains FCC ID : MCLT60H656 Ambit T60H656 The above is for USA Label drawing.

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna No. 1 Page 2 Antenna No. 2 Page 3 Page 4 Antenna No. 3 Page 5 Antenna No. 4 Page 6 Antenna No. 5 Page 7 Page 8 Antenna No. 6 Page 9

FCC ID: MCLT60H656 ADT No.911122R04 Operational Description The transmitter of the EUT, 802.11b Wireless LAN MiniPCI Card, is powered by mini- PCI interface. The antennas are PIFA and Inverted F Antennas, and the antenna connector type is UFL. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This project is seeking the authorization of limited module approval specific to the mobile device such as Notebook with antenna mounted around the LCD panel. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: MCLT60H656 Report No.: RF911122R041Issued: Dec. 20, 2002 ADT No.: 911122R04 FCC TEST REPORT REPORT NO.: RF911122R04 MODEL NO.: T60H656 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AMBIT Microsytems Corporation ADDRESS: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu- Cheng City, Taipei,Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MCLT60H656 Report No.: RF911122R042Issued: Dec. 20, 2002 ADT No.: 911122R04 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: MCLT60H656 Report No.: RF911122R043Issued: Dec. 20, 2002 ADT No.: 911122R04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: MCLT60H656 Report No.: RF911122R044Issued: Dec. 20, 2002 ADT No.: 911122R04 6. Test Results 6.1 Antenna Gain Antenna 5: (Antenna Type: Inverted-F) The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 2.0 (numeric). Antenna 6: (Antenna Type: PIFA) The maximum Gain measured in Fully Anechoic Chamber is -1.35dBi or 0.73 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: Antenna 5: (Antenna Type: Inverted-F) CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241212.361.40 6243714.131.50 11246213.491.47 Antenna 6: (Antenna Type: PIFA) CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241212.360.85 6243714.130.91 11246213.490.89 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: MCLT60H656 Report No.: RF911122R041Issued: Dec. 20, 2002 ADT No.: 911122R04 FCC TEST REPORT REPORT NO.: RF911122R04 MODEL NO.: T60H656 RECEIVED: Nov. 22, 2002 TESTED: Dec. 11 to 18, 2002 APPLICANT: AMBIT Microsytems Corporation ADDRESS: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu-Cheng City, Taipei,Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MCLT60H656 Report No.: RF911122R042Issued: Dec. 20, 2002 ADT No.: 911122R04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1TEST INSTRUMENTS.............................................................................................9 4.1.2TEST PROCEDURES...........................................................................................10 4.1.3DEVIATION FROM TEST STANDARD...............................................................10 4.1.4TEST SETUP..........................................................................................................11 4.1.5EUT OPERATING CONDITIONS........................................................................11 4.1.6TEST RESULTS (A)...............................................................................................12 4.1.7TEST RESULTS (B)...............................................................................................18 4.2RADIATED EMISSION MEASUREMENT..........................................................24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................24 4.2.2TEST INSTRUMENTS...........................................................................................25 4.2.3TEST PROCEDURES...........................................................................................26 4.2.4DEVIATION FROM TEST STANDARD...............................................................26 4.2.5TEST SETUP..........................................................................................................27 4.2.6EUT OPERATING CONDITIONS........................................................................27 4.2.7TEST RESULTS (A)...............................................................................................28 4.2.8TEST RESULTS (B)...............................................................................................32 4.2.9TEST RESULTS (C)...............................................................................................36 4.2.10TEST RESULTS (D)...............................................................................................40 4.2.11TEST RESULTS (E)...............................................................................................44 4.2.12TEST RESULTS (F)...............................................................................................48 4.36dB BANDWIDTH MEASUREMENT..................................................................52 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................52 4.3.2TEST INSTRUMENTS...........................................................................................52 4.3.3TEST PROCEDURE..............................................................................................53 4.3.4DEVIATION FROM TEST STANDARD...............................................................53 4.3.5TEST SETUP..........................................................................................................53 FCC ID: MCLT60H656 Report No.: RF911122R043Issued: Dec. 20, 2002 ADT No.: 911122R04 4.3.6EUT OPERATING CONDITIONS........................................................................53 4.3.7TEST RESULTS......................................................................................................54 4.4MAXIMUM PEAK OUTPUT POWER..................................................................58 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............58 4.4.2TEST INSTRUMENTS...........................................................................................58 4.4.3TEST PROCEDURES...........................................................................................59 4.4.4DEVIATION FROM TEST STANDARD...............................................................59 4.4.5TEST SETUP..........................................................................................................59 4.4.6EUT OPERATING CONDITIONS........................................................................59 4.4.7TEST RESULTS......................................................................................................60 4.5POWER SPECTRAL DENSITY MEASUREMENT............…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H656 Report No.: RF911122R0472Issued: Dec. 20, 2002 ADT No.: 911122R04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60H656 Report No.: RF911122R0473Issued: Dec. 20, 2002 ADT No.: 911122R04 FCC ID: MCLT60H656 Report No.: RF911122R0474Issued: Dec. 20, 2002 ADT No.: 911122R04 RADIATED EMISSION TEST FCC ID: MCLT60H656 Report No.: RF911122R0475Issued: Dec. 20, 2002 ADT No.: 911122R04 FCC ID: MCLT60H656 Report No.: RF911122R0476Issued: Dec. 20, 2002 ADT No.: 911122R04 FCC ID: MCLT60H656 Report No.: RF911122R0477Issued: Dec. 20, 2002 ADT No.: 911122R04
