MCLT60H65600802.11b Wireless LAN MiniPCI Card

1 U S E R ’ S M A N U A L T60H656 Mini-PCI Type IIIB WLAN CARD Ambit Microsystems Corporation 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: [email protected] 2 Contents SECTION ONE:INTRODUCTION.............................................................................................1 1.1F EATURES...............................................................................................................................1 1.1.1 W IRELESS LAN FUNCTION.....................................................................................................1 1.2:FCC N OTICE...................................................................................................................................2 1.2.1 FCC C OMPLIANCE......................................................................................................................... 1.2.2 FCC C LASS B STATEMENT.........................................................................................................2 SECTION TWO:WIRELESS LAN INSTALLATION ...............................................................4 2-1 S YSTEM REQUIREMENTS................................................................................................................4 2-2 I NSTALLATION AND UNINSTALL PROCESS.......................................................................................4 SECTION THREE: WIRELESS UTILITY AND CONFIGURATION .....................................6 3-1 W INDOWS 98/ME/2000 WIRELESS UTILITY...................................................................................6 SECTION FOUR:WINDOWS XP WIRELESS UTILITY AND CONFIGURATION .............6 4-1 W INDOWS XP WIRELESS UTILITY..................................................................................................6 APPENDIX A GLOSSARY ..................................................................................................................6 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. 1 Section One:Introduction Ambit Wireless Mini-PCI Module complied with IEEE 802.11b 11Mbps Standard, it can be used to provide a variety of low-cost wireless network interface card to connect your wireless LAN via fitting into the MiniPCI Type III slot. The Wireless MiniPCI Module that complies with this specification and combines networking with high- speed Internet access will let people connect to the Internet anywhere, anytime. With seamless roaming, fully interoperability and advanced security with WEP standard, Wireless MiniPCI Module can allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. 1.1 Features 1.1.1 Wireless LAN Function Form Factor & Bus InterfaceMiniPCI Type IIIB, compliant to MiniPCI Specification Rev 1.0 Wireless LAN ComplianceIEEE 802.11b Radio TechnologyDirect Sequence Spread Spectrum Operating Frequency2.4 ~ 2.497GHz ISM band Modulation SchemesDQPSK, DBPSK and CCK Channel NumbersIEEE 802.11b compliant 1 ~ 11 channels for United States 1 ~ 13 channels for Europe 1 ~ 13 or 14 channels for Japan WLAN Data Rate11, 5.5, 2, and 1Mbps Spreading11-chip Barker Sequence Media Access ProtocolCSMA/CA with ACK Transmitter Output PowerTyp. 13+/-1 dBm Receiver SensitivityTyp. –82 dBm for 11Mbps @ 8% PER Typ. –85 dBm for 1Mbps @ 8% PER Antenna Type Integrated diversity switch with Hirose compliant connectors(U-FL) for connecting dual diversity antennas 2 Operating Voltage3.3VDC RadioOn / Off Dynamic Rate ShiftingAutomatic fallback Network ArchitectureAd-hoc, Infrastructure Operating SystemsWindows 98/Me/2000/XP Mechanical Requirements Mini-PCI Type IIIB dimension. 1.2:FCC Notice 1.2.1 FCC Class B Statement This equipment has been tasted and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interferencr by one or more of the following measures: ! Reorient or relocate the receiving antenna ! increase the separation between the equipment and the receiver ! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ! Consult the dealer or an experienced radio/TV technician for help IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). The OEM integrator is required to label their end product using this module by the warning statement such as “This product integrate an RF module with FCC ID: MCLT60H65600”. The OEM integrator is not allowed to use the an…

Text truncated - open the document above for the full version.

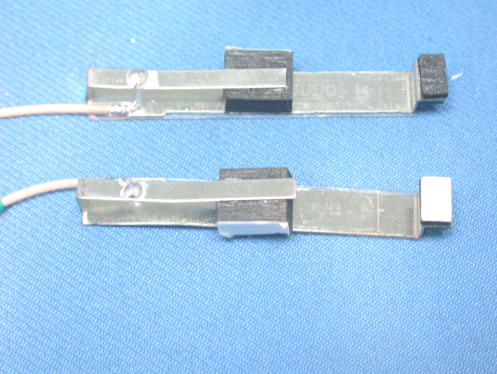

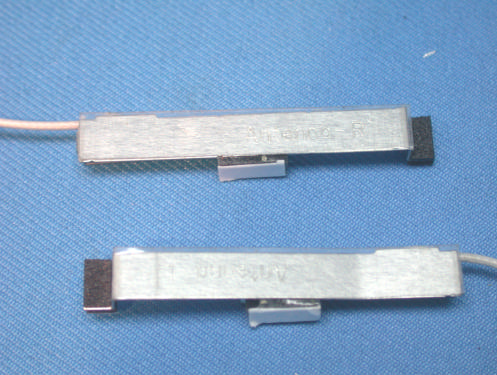

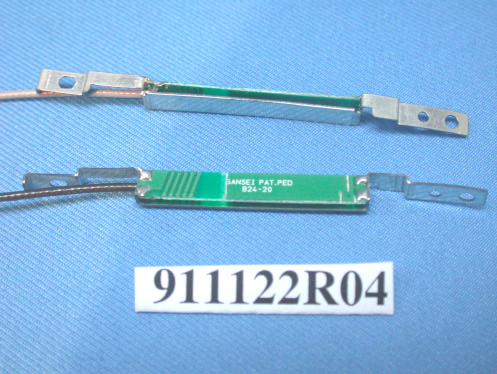

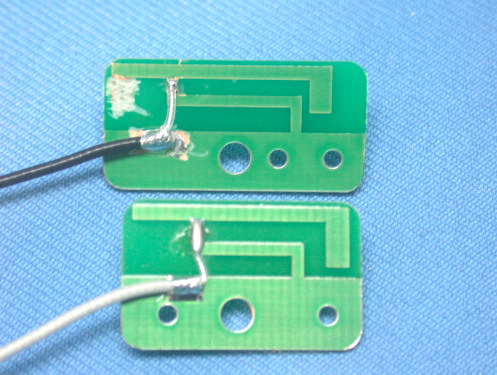

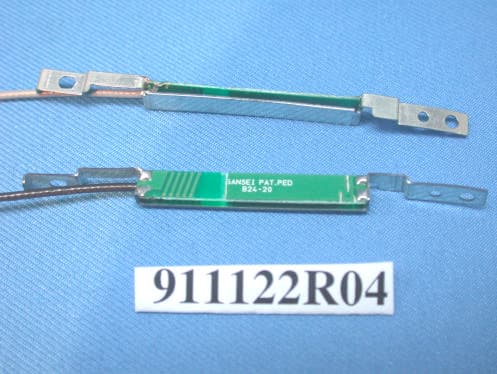

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna No. 1 Page 2 Antenna No. 2 Page 3 Page 4 Antenna No. 3 Page 5 Antenna No. 4 Page 6 Antenna No. 5 Page 7 Page 8 Antenna No. 6 Page 9 Page 10 Antenna No. 7 Page 11 Page 12 Antenna No. 8 Page 13

(Fig. 1) FCC ID: MCLT60H65600 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

IC : 2878C – T60H656 Ambit T60H656 The above is for Canada Label drawing. Contains FCC ID : MCLT60H65600 Ambit T60H656 The above is for USA Label drawing.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: MCLT60H65600 ADT No.911122R04A Operational Description The transmitter of the EUT, 802.11b Wireless LAN MiniPCI Card, is powered by mini- PCI interface. The antennas are PIFA and Inverted F Antennas, and the antenna connector type is UFL. This project is seeking the authorization of limited module approval specific to portable host environment. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: MCLT60H65600 Report No.: RF911122R04A1Issued: Jan. 21, 2003 ADT No.: 911231R04 FCC TEST REPORT REPORT NO.: RF911122R04A MODEL NO.: T60H656 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AMBIT Microsystems Corporation ADDRESS: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu- Cheng City, Taipei,Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: MCLT60H65600 Report No.: RF911122R04A2Issued: Jan. 21, 2003 ADT No.: 911231R04 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: MCLT60H65600 Report No.: RF911122R04A3Issued: Jan. 21, 2003 ADT No.: 911231R04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: MCLT60H65600 Report No.: RF911122R04A4Issued: Jan. 21, 2003 ADT No.: 911231R04 6. Test Results 6.1 Antenna Gain Antenna 5: (Antenna Type: Inverted-F) The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 2.0 (numeric). Antenna 8: (Antenna Type: PIFA) The maximum Gain measured in Fully Anechoic Chamber is 0.31dBi or 1.07 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: Antenna 5: (Antenna Type: Inverted-F) CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 124129.921.40 6243710.501.50 11246210.301.47 Antenna 8: (Antenna Type: PIFA) CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 124129.920.85 6243710.500.91 11246210.300.89 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: MCLT60H65600 Report No.: RF911122R04A1Issued: Jan. 21, 2003 ADT No.: 911231R04 FCC TEST REPORT REPORT NO.: RF911122R04A MODEL NO.: T60H656 RECEIVED: Dec. 31, 2002 TESTED: Jan. 02 to 15, 2003 APPLICANT: AMBIT Microsystems Corporation ADDRESS: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu-Cheng City, Taipei,Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MCLT60H65600 Report No.: RF911122R04A2Issued: Jan. 21, 2003 ADT No.: 911231R04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1TEST INSTRUMENTS.............................................................................................9 4.1.2TEST PROCEDURES...........................................................................................10 4.1.3DEVIATION FROM TEST STANDARD...............................................................10 4.1.4TEST SETUP..........................................................................................................11 4.1.5EUT OPERATING CONDITIONS........................................................................11 4.1.6TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4DEVIATION FROM TEST STANDARD...............................................................20 4.2.5TEST SETUP..........................................................................................................21 4.2.6EUT OPERATING CONDITIONS........................................................................21 4.2.7TEST RESULTS (A)...............................................................................................22 4.2.8TEST RESULTS (B)...............................................................................................26 4.2.9TEST RESULTS (C)...............................................................................................30 4.2.10TEST RESULTS (D)...............................................................................................34 4.2.11TEST RESULTS (E)...............................................................................................38 4.2.12TEST RESULTS (F)...............................................................................................42 4.2.13TEST RESULTS (G)...............................................................................................46 4.2.14TEST RESULTS (H)...............................................................................................50 4.36dB BANDWIDTH MEASUREMENT..................................................................54 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................54 4.3.2TEST INSTRUMENTS...........................................................................................54 4.3.3TEST PROCEDURE..............................................................................................55 4.3.4DEVIATION FROM TEST STANDARD...............................................................55 FCC ID: MCLT60H65600 Report No.: RF911122R04A3Issued: Jan. 21, 2003 ADT No.: 911231R04 4.3.5TEST SETUP..........................................................................................................55 4.3.6EUT OPERATING CONDITIONS........................................................................55 4.3.7TEST RESULTS......................................................................................................56 4.4MAXIMUM PEAK OUTPUT POWER..................................................................60 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............60 4.4.2TEST INSTRUMENTS...........................................................................................60 4.4.3TEST PROCEDURES...........................................................................................61 4.4.4DEVIATION FROM TEST STANDARD...............................................................61 4.4.5TEST SETUP..........................................................................................................61 4.4.6EUT OPERATING CONDITIONS........................................................................61 4.4.7TEST RESULTS...................…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H65600 Report No.: RF911122R04A74Issued: Jan. 21, 2003 ADT No.: 911231R04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60H65600 Report No.: RF911122R04A75Issued: Jan. 21, 2003 ADT No.: 911231R04 RADIATED EMISSION TEST FCC ID: MCLT60H65600 Report No.: RF911122R04A76Issued: Jan. 21, 2003 ADT No.: 911231R04
