FCC ID: MCLT60H67702 ADT No.920618R04 Modular Approval Request Letter Advance Data Technology Jul. 03, 2003 Dear Application Examiner, AMBIT Microsystems Corporation’s 802.11b/g MiniPCI module, FCC ID: MCLT60H67702, would like to have your authorization as a limited modular approval specific to the mobile device such as Notebook. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5212. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is TK71725SCL. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module, so the EUT was tested in the full system configuration. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLT60H67702 ADT No.920618R04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 802.11b/g MiniPCI module MODEL NO.: T60H677.02 TRADE NAME: AMBIT IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: RF920618R04 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: AMBIT Microsytems Corporation To Be Determined. Address: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu-Cheng City, Taipei,Taiwan R.O.C. Contact Person: Nancy Lin Title: R & D Specialist Te l / F a x : +886 2-22676511 +886 2-22676512

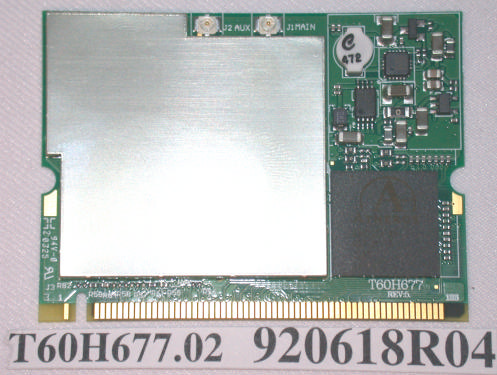

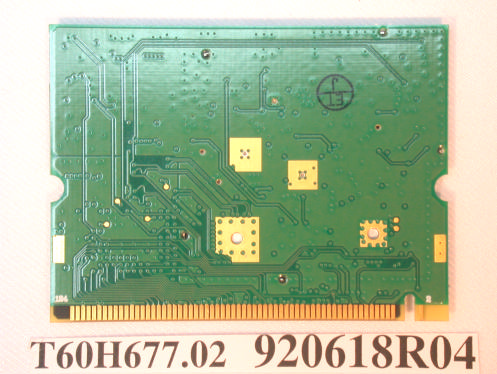

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

IC : 2878C – T60H6772 Ambit T60H677.02. The above is for Canada Label drawing. Contains FCC ID : MCLT60H67702 Ambit T60H677.02. The above is for USA Label drawing.

(Fig. 1) FCC ID: MCLT60H67702 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna No. 1 Page 2 Page 3 Page 4 Antenna No. 2 Page 5 Page 6 Page 7 Antenna No. 3 Page 8 Page 9 Antenna No. 4 Page 10 Page 11 Page 12 Antenna No. 5 Page 13 Page 14

FCC ID: MCLT60H67702 ADT No.920618R04 Operational Description This device is an 802.11b/g MiniPCI module which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g MiniPCI module) is powered by from host equipment. The antenna types used in this product are Inverted F antenna & PIFA Antenna with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: MCLT60H67702 ADT No.: 920618R04 RF EXPOSURE REPORT REPORT NO.: RF920618R04 MODEL NO.: T60H677.02 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AMBIT Microsystems Corporation ADDRESS: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu- Cheng City, Taipei,Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: MCLT60H67702 ADT No.: 920618R04 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: MCLT60H67702 ADT No.: 920618R04 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: MCLT60H67702 ADT No.: 920618R04 6 Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain measured in Fully Anechoic Chamber is -2.83Bi or 0.521 (numeric). Antenna 2: The maximum Gain measured in Fully Anechoic Chamber is -1.98Bi or 0.634 (numeric). Antenna 4: The maximum Gain measured in Fully Anechoic Chamber is 0.78Bi or 1.197 (numeric). Antenna 5: The maximum Gain measured in Fully Anechoic Chamber is -2.6Bi or 0.550 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna 1: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.6450.0036961.0 6243735.1560.0036451.0 11246233.2660.0034491.0 Antenna 1: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241243.2510.0044851.0 6243731.3790.0032941.0 11246226.8530.0027841.0 FCC ID: MCLT60H67702 ADT No.: 920618R04 Antenna 2: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.6450.0044951.0 6243735.1560.0044331.0 11246233.2660.0041951.0 Antenna 2: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241243.2510.0054541.0 6243731.7690.0040061.0 11246226.8530.0033861.0 Antenna 4: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.6450.0084871.0 6243735.1560.0083701.0 11246233.2660.0079201.0 Antenna 4: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241243.2510.0102971.0 6243731.7690.0075641.0 11246226.8530.0063931.0 FCC ID: MCLT60H67702 ADT No.: 920618R04 Antenna 5: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.6450.0038971.0 6243735.1560.0038441.0 11246233.2660.0036371.0 Antenna 5: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241243.2510.0047291.0 6243731.7690.0034731.0 11246226.8530.0029361.0

FCC ID: MCLT60H67702 Report No.: RF920618R041Issed: Jul. , 2003 ADT No.: 920618R04 FCC TEST REPORT REPORT NO.: RF920618R04 MODEL NO.: T60H677.02 RECEIVED: Jun. 18, 2003 TESTED: Jun. 19 to 27, 2003 APPLICANT: AMBIT Microsystems Corporation ADDRESS: 4-1,Ming-Sheng ST., Tu-Cheng Industrial Area, Tu-Cheng City, Taipei,Taiwan R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 84 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: MCLT60H67702 Report No.: RF920618R042Issed: Jul. , 2003 ADT No.: 920618R04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS (A)...............................................................................................22 4.2.7TEST RESULTS (A) - DSSS................................................................................23 4.2.8TEST RESULTS (A) -OFDM.................................................................................26 4.2.9TEST RESULTS (B)...............................................................................................29 4.2.10TEST RESULTS (B) - DSSS................................................................................30 4.2.11TEST RESULTS (B) -OFDM.................................................................................33 4.2.12TEST RESULTS (C)...............................................................................................36 4.2.13TEST RESULTS (C) - DSSS................................................................................37 4.2.14TEST RESULTS (C) -OFDM.................................................................................40 4.2.15TEST RESULTS (D)...............................................................................................43 4.2.16TEST RESULTS (D) - DSSS................................................................................44 4.2.17TEST RESULTS (D) -OFDM.................................................................................47 4.36dB BANDWIDTH MEASUREMENT..................................................................50 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................50 4.3.2TEST INSTRUMENTS...........................................................................................50 FCC ID: MCLT60H67702 Report No.: RF920618R043Issed: Jul. , 2003 ADT No.: 920618R04 4.3.3TEST PROCEDURE..............................................................................................51 4.3.4TEST SETUP..........................................................................................................51 4.3.5EUT OPERATING CONDITIONS........................................................................51 4.3.6TEST RESULTS-DSSS.........................................................................................52 4.3.7TEST RESULTS-OFDM........................................................................................56 4.4MAXIMUM PEAK OUTPUT POWER..................................................................60 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............60 4.4.2TEST INSTRUMENTS...........................................................................................60 4.4.3TEST PROCEDURES...........................................................................................61 4.4.4TEST SETUP..........................................................................................................61 4.4.5EUT OPERATING CONDITIONS............................................…

Text truncated - open the document above for the full version.

Report No.920618R04 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 HIGH PASS FILTER WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No.920618R04 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No.920618R04 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 4 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No.920618R04 4 Ch1 Report No.920618R04 5 Report No.920618R04 6 Ch11 Report No.920618R04 7 Report No.920618R04 8 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 4 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No.920618R04 9 Ch1 Report No.920618R04 10 Report No.920618R04 11 Ch11 Report No.920618R04 12

FCC ID: MCLT60H67702 Report No.: RF920618R0481Issed: Jul. , 2003 ADT No.: 920618R04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60H67702 Report No.: RF920618R0482Issed: Jul. , 2003 ADT No.: 920618R04 RADIATED EMISSION TEST FCC ID: MCLT60H67702 Report No.: RF920618R0483Issed: Jul. , 2003 ADT No.: 920618R04
