MCLT60H67703MiniPCI 802.11a/b/g Module

Ambit Microsystems Corporation 國碁電子 ( 股 ) 公司 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 中華民國臺灣省新竹縣新竹科學園區新安路 5 號 5 樓之 1 電話 886-3-5784975 ，傳真： 886-3-5782924 U S E R ’ S M A N U A L T60H677 Mini-PCI Type IIIB 802.11a/b WLAN CARD Ambit Microsystems Corporation 國碁電子 ( 股 ) 公司 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 中華民國臺灣省新竹縣新竹科學園區新安路 5 號 5 樓之 1 電話 886-3-5784975 ，傳真： 886-3-5782924 Contents SECTION ONE: INTRODUCTION ............................................................................................ 1 1-1 F EATURES .............................................................................................................................. 1 1.1.1 W IRELESS LAN F UNCTION .................................................................................................... 1 1-2 FCC N OTICE .......................................................................................................................... 3 1.2.1 FCC C OMPLIANCE ......................................................... E RROR! BOOKMARK NOT DEFINED. 1.2.2 FCC C LASS B S TATEMENT ...........................................ERROR! BOOKMARK NOT DEFINED. SECTION TWO: WIRELESS LAN INSTALLATION .............................................................. 6 2-1 S YSTEM R EQUIREMENTS ................................................................................................................ 6 2-2 I NSTALLATION AND U NINSTALL P ROCESS ...................................................................................... 6 SECTION THREE: WIRELESS UTILITY AND CONFIGURATION.................................. 14 3-1 W INDOWS 98/ME/2000 W IRELESS U TILITY ................................................................................ 14 SECTION FOUR: WINDOWS XP WIRELESS UTILITY AND CONFIGURATION .......... 22 4-1 W INDOWS XP W IRELESS U TILITY ............................................................................................... 22 APPENDIX A GLOSSARY ............................................................................................................... 29 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. Ambit Microsystems Corporation 國碁電子 ( 股 ) 公司 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 中華民國臺灣省新竹縣新竹科學園區新安路 5 號 5 樓之 1 電話 886-3-5784975 ，傳真： 886-3-5782924 Section One: Introduction Ambit Wireless Mini-PCI Module complied with IEEE 802.11a/b Standard, it can be used to provide a variety of low-cost wireless network interface card to connect your wireless LAN via fitting into the Mini-PCI Type III slot. The Wireless Mini-PCI Module that complies with this specification and combines networking with high- speed Internet access will let people connect to the Internet anywhere, anytime. With seamless roaming, fully interoperability and advanced security with WEP standard, Wireless Mini-PCI Module can allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. 1-1 Features 1.1.1 Wireless LAN Function 802.11a Wireless LAN Compliance IEEE 802.11a Operating Frequency 5.15~5.25GHz (lower band) for US/Canada/Japan 5.25~5.35GHz (middle band) for US/Canada 5.725~5.825GHz (high band) for US Modulation Schemes OFDM, QPSK, BPSK,16-QAM and 64-QAM WLAN Data Rat e 54Mbps with fall back rates of 48, 36, 24, 18, 12, 9, and 6Mbps Media Access Protocol CSMA/CA with ACK Transmitter Output Power Typical 12 dBm for 54, 48Mbps of 5.15 to 5.35GHz Typical 12 dBm for 48Mbps of 5.725 to 5.825GHz Typical 10 dBm for 54Mps of 5.725 to 5.825GHz Typical 15 dBm for 36, 24, 18, 12, 9, 6Mbps Receiver Sensitivity UNII low and middle band (5.15 to 5.35GHz) Typical –70 dBm for 54Mbps @ 10% PER Ambit Microsystems Corporation 國碁電子 ( 股 ) 公司 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 中華民國臺灣省新竹縣新竹科學園區新安路 5 號 5 樓之 1 電話 886-3-5784975 ，傳真： 886-3-5782924 Typical –72 dBm for 48Mbps @ 10% PER Typical –78 dBm for 36Mbps @ 10% PER Typical –81 dBm for 24Mbps @ 10% PER Typical –83 dBm for 18Mbps @ 10% PER Typical –85 dBm for 12Mbps @ 10% PER Typical –87 dBm for 9Mbps @ 10% PER Typical –87 dBm for 6Mbps @ 10% PER UNII high band (5.725 to 5.825GHz) Typical –63 dBm for 54Mbps @ 10% PER Typical –71 dBm for 48Mbps @ 10% PER Typical –78 dBm for 36Mbps @ 10% PER Typical –81 dBm for 24Mbps @ 10% PER Typical –83 dBm for 18Mbps @ 10% PER Typical –85 dBm for 12Mbps @ 10% PER Typical –87 dBm for 9Mbps @ 10% PER Typical –87 dBm for 6Mbps @ 10% PER Current Consumption 600mA at transmit mode (typically) 330mA at receive mode (typically) 20mA at normal power saving mode (typically) 10mA at maximum power saving mode (typically) 802.11b Radio Technology IEEE 802.11b Direct Sequence Spread Spectrum Operating Frequency 2412 ~ 2462MHz ISM band Modulation Schemes DQPSK, DBPSK and CCK Channel Numbers IEEE 802.11b compliant 11 channels for United States 13 channels for Europe Countries Ambit Microsystems Corporation 國碁電子 ( 股 ) 公司 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 中華民國臺灣省新竹縣新竹科學園區新安路 5 號 5 樓之 1 電話 886-3-5784975 ，傳真： 886-3-5782924 14 channels for Japan Data Rate 11Mbps with fall back rates of 5.5, 2, and 1Mbps Spreading 11-chip Barker Sequence Media Access Protocol CSMA/CA with ACK Transmitter…

Text truncated - open the document above for the full version.

AMBIT Af/crosystems Corpontion Address: 5F-1, 5 Hain-An Road Hsinchu,Scienced-Based Indust~1 Area Taiwan. R.O.C. TEL:" 888-3. 578 4~75 FAX:"886.3- 577 5100 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC m: (MCLT60H67703). Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of infonnation accompanying this application as outlined below: (list exhibits here) 1.Scheamtic 2.Block Diagram 3.Operational description-technical specification The above materials contain trade secrets and proprietary infonJlation not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (Signature) - N _/"~ Name: Nancy J Title: R&D Specialist Date: 1/2/2004

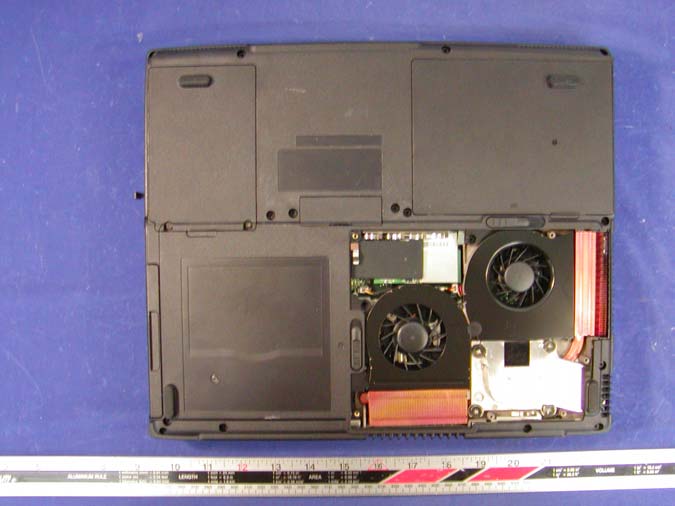

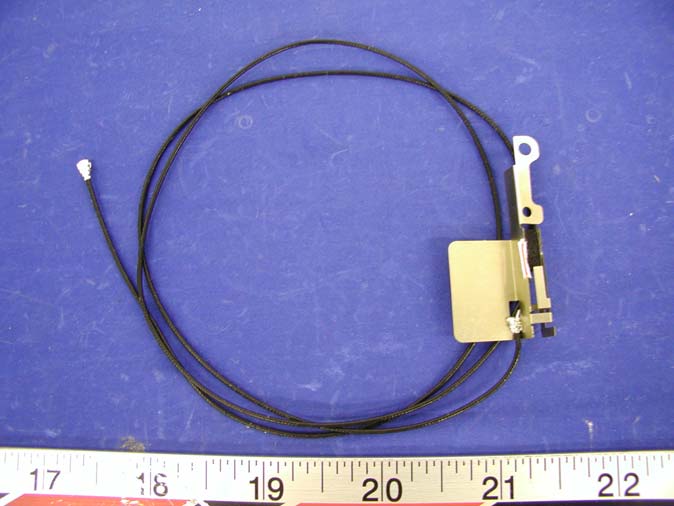

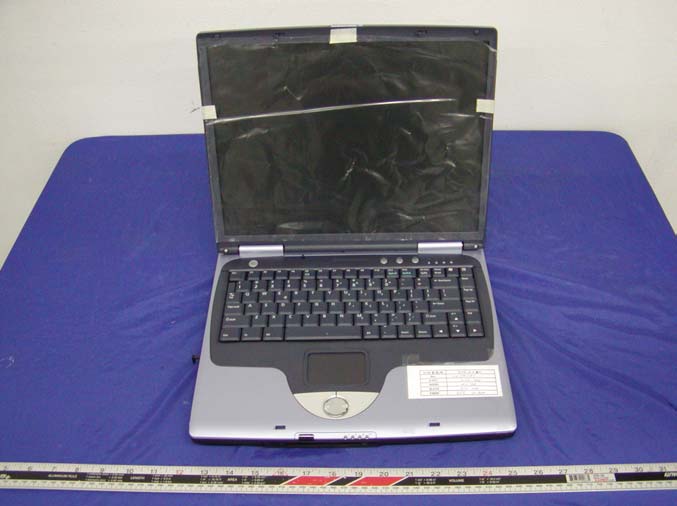

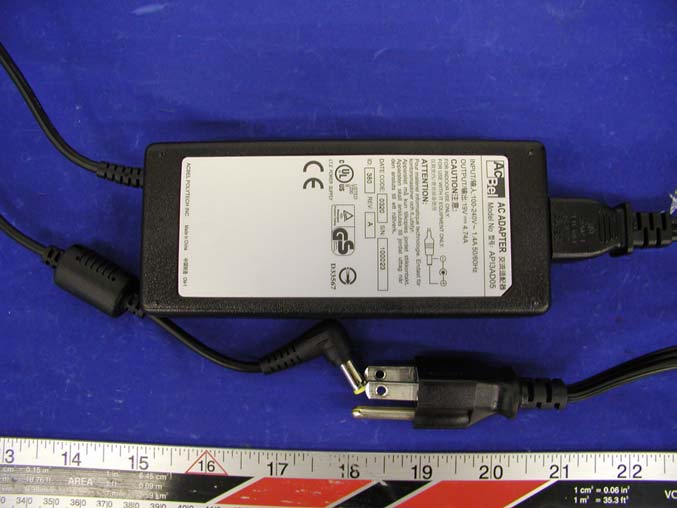

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS Notebook Top View Notebook Front View Antenna Here Laptop Port View Laptop Bottom View EUT Location View EUT Antenna View 1 Antenna View 2 Antenna View 3 AC Power Adapter View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on Notebook Rear Side of Notebook / Label Location FCC ID: MCLT60H67703 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Top View EUT – Cover Removed View EUT – Solder View

§1.1307(b)(1) & §2.1093 - RF EXPOSURE According to §15.247(b)(4) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.7 (dBm ) Maximum peak output power at antenna input terminal: 46.77 (mW) Prediction distance: 20 (cm) Predication frequency: 2400 (MHz) Antenna Gain (typical): 3 (dBi) antenna gain: 2 (numeric) Power density at predication frequency at 20 cm: 0.019 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Maximum peak output power at antenna input terminal: 16.7 (dBm ) Maximum peak output power at antenna input terminal: 46.77 (mW) Prediction distance: 20 (cm) Predication frequency: 5350 (MHz) Antenna Gain (typical): 0.81 (dBi) antenna gain: 1.21 (numeric) Power density at predication frequency at 20 cm: 0.011(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.019 mW/cm, which is below the uncontrolled limit of 1.0mW/cm 2 at 2400 MHz. The power density level at 20 cm is 0.011 mW/cm², which is below the uncontrolled exposure limit of 1.0mW/cm² at 5350 MHz.

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.247 & 15.407 EMI Measurement and TEST REPORT For AMBIT Microsystems Corporation 4-1, Ming Shen Street, Tu Chen Industrial District. Tu Chen, Taipei Hsien 236, Taiwan, R.O.C. FCC ID: MCLT60H67703 2004-01-09 This Report Concerns: Original Report Equipment Type: MiniPCI 802.11a/b/g Combo Module Test Engineer: Ming Jing / Report No.: R0401053 Test Date: 2003-05-13 / 2003-08-13 / 2003-08-15 / 2004-01-07 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 2 of 88 FCC Part 15.247 & 15.407 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................5 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................5 POWER SUPPLY INFORMATION.....................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §1.1307(B)(1) & §2.1093 - RF EXPOSURE.................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................11 STANDARD APPLICABLE............................................................................................................................................11 ANTENNA CONNECTED CONSTRUCTION....................................................................................................................11 §15.205, §15.209(A), §15.407(B)(5), §15.407(B)(6) - SPURIOUS RADIATED EMISSION..................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................13 SPECTRUM ANALYZER SETUP....................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................14 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................14 SUMMARY OF TEST RESULTS.....................................................................................................................................14 §15.207(A) - CONDUCTED EMISSIONS.................................................................................................................26 MEASUREMENT UNCERTAINTY...............................................................................................…

Text truncated - open the document above for the full version.

AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 41 of 88 FCC Part 15.247 & 15.407 Test Report §15.247(a)(2) & §15.407 – 6 DB BANDWIDTH and 26 DB BANDWIDTH Standard Applicable According to §15.247(a)(2), for direct sequence systems, the minimum 6dB bandwidth shall be at least 500 kHz. According to §15.407, 26dB Bandwidth should be shown. Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. Measure the frequency difference of two frequencies that were attenuated 6 dB from the reference level. Record the frequency difference as the emission bandwidth. (6 dB bandwidth for DTS) 4. Same as (3) except 26 dB. (26dB bandwidth for UNII) 5. Repeat above procedures until all frequencies measured were complete. Equipment Lists Manufacturer Model No. Description Calibration Date HP 8565EC Spectrum Analyzer 2003-01-22 Measurement Result Environmental Conditions Temperature: 12° C Relative Humidity: 48% ATM Pressure: 1100 mbar Test Result for 802.11b (15.247) Channel Frequency (MHz) Measured (MHz) Standard (kHz) Result Low 2412 10.25 MHz ≥ 500 Compliant Mid 2442 10.33 MHz ≥ 500 Compliant High 2462 10.50 MHz ≥ 500 Compliant AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 42 of 88 FCC Part 15.247 & 15.407 Test Report Test Result for 802.11g (15.247) Frequency (MHz) Measured (MHz) Standard (kHz) Result 2412 16.83 ≥ 500 Compliant 2442 16.92 ≥ 500 Compliant J1 Port 2462 16.83 ≥ 500 Compliant Test Result for 802.11a MHz Band (15.407) Band Channel Frequency (MHz) Measured (MHz) Low 5150 23.33 Mid 5200 23.25 Low High 5250 23.58 Low 5250 23.83 Mid 5300 23.08 Mid High 5350 23.83 Low 5725 23.00 Mid 5775 23.75 High High 5825 23.50 AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 43 of 88 FCC Part 15.247 & 15.407 Test Report Plots of 6dB Bandwidth for 802.11b (15.247) AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 44 of 88 FCC Part 15.247 & 15.407 Test Report Plots of 6dB Bandwidth for 802.11g (15.247) AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 45 of 88 FCC Part 15.247 & 15.407 Test Report AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 46 of 88 FCC Part 15.247 & 15.407 Test Report Plots of 26dB Bandwidth for 802.11a (15.407) AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 47 of 88 FCC Part 15.247 & 15.407 Test Report AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 48 of 88 FCC Part 15.247 & 15.407 Test Report AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 49 of 88 FCC Part 15.247 & 15.407 Test Report AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 50 of 88 FCC Part 15.247 & 15.407 Test Report AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 51 of 88 FCC Part 15.247 & 15.407 Test Report §15.247(b)(3), §15.407(a)(2) - PEAK OUTPUT POWER MEASUREMENT Standard Applicable According to §15.247(b) (3), for systems using digital modulation in 2400-2483.5 MHz: 1 Watt According to §15.407(a)(1), for the band 5.15-5.25 GHz, the peak transmit power over the frequency band of operation shall not exceed the lesser of 50 mW or 4 dBm + 10logB, where B is the 26-dB emission bandwidth in MHz. According to §15.407(a)(2), for the band 5.25-5.35 GHz, the peak transmit power over the frequency band of operation shall not exceed the lesser of 250 mW or 11 dBm + 10logB, where B is the 26-dB emission bandwidth in MHz. According to §15.407(a)(3), for the band 5.725-5.825 GHz, the peak transmit power over the frequency band of operation shall not exceed the lesser of 1 W or 17 dBm + 10logB, where B is the 26-dB emission bandwidth in MHz. Measurement Procedure 1. Place the EUT on a bench and set it in transmitting mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to a spectrum analyzer. 3. Add a correction factor to the display. Equipment Lists Manufacturer Model No. Description Calibration Date HP 8565EC Spectrum Analyzer 2003-01-22 Measurement Result Environmental Conditions Temperature: 12° C Relative Humidity: 48% ATM Pressure: 1100 mbar EUT SA AMBIT Microsystems Corporation FCC ID: MCLT60H67703 Report # R0401053Rpt.doc Page 52 of 88 FCC Part 15.247 & 15.407 Test Report RF Output Power (15.247) for 802.11b Port Channel Frequency (MHz) Output Power (dBm) Correction Factor (dB) Corrected Output Power (dBm) Output Power (W) Standard (W) Result Low 2412 9.5 7.2 16.70 0.0468 < 1W Compliant Mid 2437 9.17 7.2 16.37 0.0434 < 1W Compliant J1 High 2462 8.67 7.2 15.87 0.0386 < 1W Compliant Note: Correction Factor = 10Log(BW6dB/RBW) = 10Log(10.5/2) = 7.2dB RF Output Power (15.247) for 802.11g Channel Frequency (MHz) Peak Output Power (dBm) Correction Factor (dBm) Corrected Factor (dBm) Output Power (W) Standard (W) Result Low 2412 6.33 9.3 15.63 0.037 < 1 W Compliant Mid 2442 6.50 9.3 15.80 0.038 < 1 W Compliant J1 Port High 2462 6.67 9.3 15.97 0.040 < 1 W Compliant Note: Correction Factor = 10 log (BW6dB/RBW) = 10 log (17/2.0) = 9.3 dBm RF Output Power (15.407) for 802.11a Band Channel (MHz) Frequency (MHz) Output Power (dBm) Correction Factor (dB) Corrected Output Power (dBm) Output Power (W) Standard (mW) Result Low 5150 5.83 10.7 16.53 0.0449 <50 Compliant Mid 5200 6 10.7 16.7 0.0468 <50 Compliant Low High 5250 5.5 10.7 16.2 0.0417 <50 Compliant Low 5250 5.5 10.7 16.2 0.0417 <50 Compliant Mid 5300 5.33 10.7 16.03 0.0401 <50 Compliant Mid High 5330 5…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission - Front View Radiated Emission - Rear View
