MCLT60H813802.11b/g MiniPCI module

Wireless Card User Manual Model Name: T60H813 Chapter 1 About the Wireless MiniPCI Card ............................ 3 1-1 Features .......................................................................... 3 1-2 Applications.................................................................... 3 1-3 Product Kit ..................................................................... 4 Chapter 2 Network Configuring and Planning .......................... 4 2-1 Network Topology.......................................................... 5 2-2 Roaming ......................................................................... 6 Chapter 3 Installation ................................................................ 7 3-1 System Requirements ..................................................... 7 3-2 Inserting the Wireless Card ............................................ 8 3-3 Installation and Uninstall Process .................................. 8 Chapter 4 Wireless Utility and Configuration ......................... 15 4-1 Windows 98/ME/2000 Wireless Utility........................ 15 4-2 Windows XP Wireless Utility ....................................... 20 Appendix A Troubleshooting ................................................... 27 Appendix B Glossary............................................................... 28 Appendix C Specifications for Wireless Card ......................... 29 Chapter 1 About the Wireless Mini-PCI Card This IEEE 802.11g Wireless Card is compatible with notebook computer Mini-PCI slot. As a Plug-and-Play device, Windows 98/2000/ME/XP will automatically recognize the wireless Mini-PCI Card and initiate the installation process. Upon successful installation, the wireless Mini-PCI Card will communicate seamlessly with other IEEE 802.11g wireless products. 1-1 Features 1. Supports up to 54 Mbps data rate. 2. Supports point-to-point and point-to-multipoint access provides increased flexibility. 3. Seamless connectivity to wired Ethernet and PC network LAN’s offers quick, trouble-free integration with existing networks. 4. Direct Sequence Spread Spectrum (DSSS) technology provides secure wireless connection. 5. Wireless connections eliminate the hassle and cost of cabling. 6. Supports a wide range of LAN (Local Area Network) Network Operating Systems (NOS) including Windows 98/2000/ ME/XP 7. Easy Plug and Play installation. 8. Omni - directional antenna provides wide range of reception. 9. Greater flexibility to locate or move networked PC’s 1-2 Applications This wireless Mini-PCI cards offer a fast, reliable, cost-effective solution for wireless client access to the network. Refer below for examples : z Remote access to corporate network information z E-mail, file transfer and terminal emulation z Difficult-to-wire environments z Historic or older buildings without Ethernet wiring. z Buildings with asbestos insulation z Open areas where wiring is difficult to employ z Re-layout frequently environments z Retailers, manufacturers or other organizations that frequently rearrange the workplace or relocate z Temporary LANs for special projects or peak time usage z Trade shows, exhibitions and construction sites that employ temporary networks. z Retailers, airline and shipping companies that need additional workstations for a peak period and auditors that require workgroups at customer sites. z Access to database for mobile workers z Medical, technical and retail specialists that require roaming access to a database or other network resources. z SOHO (Small Office and Home Office) users z Perfect for users that need a small, easy-to-install network that deploys rapidly. 1-3 Product Kit The wireless PCMCIA card includes the following items. Ensure that the items in the following list have been included. If any of the listed items are missing, please contact your local dealer. z One Compact Disk. The CD include 98/2000/ME/XP driver, utility and user manual Chapter 2 Network Configuring and Planning The wireless Mini-PCI card supports legacy Ethernet LAN network configuration options as defined by the IEEE 802.11g. The wireless Mini-PCI card can be configured as: . Ad-Hoc mode for no Access Point wireless environment. . Infrastucture mode for wireless environment with Access Point. 2-1 Network Topology Ad-Hoc Wireless LAN Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Fig.1 Ad-Hoc Wireless LAN An Ad-Hoc wireless LAN is a group of computers. Each computer equipped with a wireless Mini-PCI card that configure to same radio channel in order to communicate with others. Ad-Hoc wireless LAN configurations are appropriate for branch level departments or SOHO operations. 乙太網路 File Server Desktop PC Desktop PC Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Access PointAccess Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig.2 Infrastructure Wireless LAN Configuration Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 A group of wireless users and an Access Point compose a Basic Service Set (BSS). Wireless clients can talk to any computer in both wired and wireless LAN network via the Access Point. 2-2 Roaming Infrastructure mode also supports roaming capabilities for mobile users. More than one BSS can be configured as an Extended Service Set (ESS). The continuous network allows users to roam freely within ESS. All wireless Mini-PCI cards and Access Point within one ESS must be configured with the same ESSID in order to utilize roaming function. Properly Access Point positioning with a clear radio signal can greatly enhance wireless performance. Ess BSS1 BSS2 乙太網路 File Server Desktop PC Desktop PC Desktop PC with T60L198/T60L244 Desktop PC with T60L198/T60L244 Access PointAccess Point Notebook with T60L198/T60L244 Notebook with T60L198/T60L244 Fig.4 Roaming in an Extended Service Set (ESS) Chapter 3 Installation 3-1 System Requirements In order to install and use…

Text truncated - open the document above for the full version.

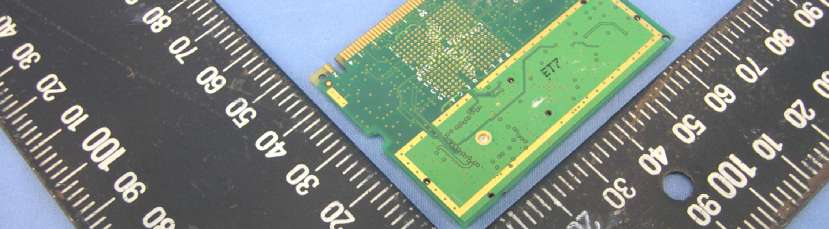

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: MCLT60H813 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

The above is for USA FCC Label drawing. FCC ID: MCLT60H813

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: MCLT60H813 Report No. RF941006H02 Operational Description This device is an 802.11b/g MiniPCI module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g MiniPCI module) is powered by host equipment. The antenna type used in this product is Dipole Antenna with RP- SMA connector. The other instruction, please have a look at the users manual.

FCC ID: MCLT60H813 Report No.: SA941006H02 1 RF EXPOSURE REPORT REPORT NO.: SA941006H02 MODEL NO.: T60H813 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1; FCC Part 1.1310 FCC Part 1.1307; FCC Part 2.1091 APPLICANT: HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: MCLT60H813 Report No.: SA941006H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: MCLT60H813 Report No.: SA941006H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: MCLT60H813 Report No.: SA941006H02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.585(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241242.65800.01351.0 6243742.65800.01351.0 11246242.65800.01351.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241285.11380.02681.0 6243785.11380.02681.0 11246285.11380.02681.0

FCC ID: MCLT60H813 Report No.: RF941006H021Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF941006H02 MODEL NO.: T60H813 RECEIVED:Oct. 06, 2005 TESTED:Oct. 11 to 12, 2005 ISSUED: Oct. 14, 2005 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: MCLT60H813 Report No.: RF941006H022Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 9 3.5DESCRIPTION OF SUPPORT UNITS........................................................ 10 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4TEST TYPES AND RESULTS......................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................11 4.1.2TEST INSTRUMENTS .................................................................................11 4.1.3TEST PROCEDURES................................................................................. 12 4.1.4TEST SETUP .............................................................................................. 12 4.1.5EUT OPERATING CONDITIONS................................................................ 13 4.1.6TEST RESULTS.......................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ................................................... 16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 16 4.2.2TEST INSTRUMENTS ................................................................................ 17 4.2.3TEST PROCEDURES................................................................................. 18 4.2.4TEST SETUP .............................................................................................. 19 4.2.5EUT OPERATING CONDITIONS................................................................ 19 4.2.6TEST RESULTS.......................................................................................... 20 4.2.7TEST RESULTS – DSSS ............................................................................ 21 4.2.8TEST RESULTS – OFDM ........................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS – DSSS ............................................................................ 29 4.3.7TEST RESULTS – OFDM ........................................................................... 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 FCC ID: MCLT60H813 Report No.: RF941006H023Report Format Version 2.0.4 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS – DSSS ............................................................................ 37 4.4.7TEST RESULTS – OFDM ........................................................................... 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS – DSSS ............................................................................ 41 4.5.7TEST RESULTS – OFDM .…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H813 Report No.: RF941006H0257Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60H813 Report No.: RF941006H0258Report Format Version 2.0.4 FCC ID: MCLT60H813 Report No.: RF941006H0259Report Format Version 2.0.4 RADIATED EMISSION TEST FCC ID: MCLT60H813 Report No.: RF941006H0260Report Format Version 2.0.4
