MCLT60H928USB Bluetooth Module

INSTALLATION MANUAL T60H928.00 Bluetooth Module for Acer Laptop Contents SECTION ONE: INTRODUCTION ............................................................................................ 1 1.1 FEATURES.............................................................................................................................. 1 1.1.1 BLUETOOTH FUNCTION............................................................................................................... 1 1.1.2 MODEM FUNCTION...................................................................................................................... 1 1.2 HARDWARE REQUIREMENTS.......................................................................................................... 1 SECTION TWO: BLUETOOTH INSTALLATION .......................................................................... 3 2.1 BLUETOOTH INSTALLATION................................................................................................... 3 SECTION THREE: Warning NOTICE .......................................................................................... 10 3.1 FCC NOTICE........................................................................................................................ 12 3.2 IC Notice ......................................................................................................................... ...13 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. „ Section One: Introduction The Bluetooth Module use a monolithic single-chip, Broadcom BCM2045 and it can compliant Bluetooth 2.0.This Bluetooth module is base on the highly integrated BCM2045 stand-alone baseband processor with an integrated 2.4GHz transceiver. It is fully compliant with the Bluetooth radio specification and incorporates new modulation schemes to support enhanced data rate(EDR) of 3MBps. 1.1 Features 1.1.1 Bluetooth Function o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible with Bluetooth specification version 1.2. o Fully compliant to Bluetooth SIG (BQB) compatibility testing. o USB Pin assignment is to use MDC reserve pin to communicate with Host.interface o Bluetooth Profile Support - General Access Profile - Service Discovery Application Profile - Serial Port Profile - Dial-up Networking Profile - LAN Access Profile - Generic Object Exchange Profile - File Transfer Profile - Object Push Profile - Synchronization Profile o Drivers support Windows 98, 98SE, ME, 2000, XP. o Supports Power Management ACPI 1.94 (or later) o Bluetooth performance must exceed 1.5Mbps, using OBEX. 1.2 Hardware Requirements Supply Voltage 3.3V & 1.8V Frequency Range 2.400-2.4835 GHz Antenna Load 50 Ohm Receive Sensitivity –78 [email protected]% BER Maximum Receiver Signal -20 dBm TX Power 4 dBm maximum (class 2) RF Power Control Step Size 2 dB Range 10 meters at 0 dBm TX power (class 2) Radio Compliant with Bluetooth standard version 1.1 Pico Net 1 master to 7 slaves Operating Channels 79 channels of 1 MHz BW Security Full support of Bluetooth security provisions including hardware support for full length 128 bit encryption keys. Host Interface (USB) USB specification 1.1 compliant and using MDC reserve pin to communicate with Host Software Requirements Windows 98SE, ME, 2000, XP. Mechanical Requirements 26mm x 14mm „ Section Two: Bluetooth Installation The following steps provide instructions for installing Bluetooth. 1. Make sure your Bluetooth device already insert into your notebook. 2. Make sure your notebook operating system support Windows 98SE or ME or 2000 or XP. 2.1 Bluetooth Installation Proceed to the following section. 1. Double click the program “Setup.exe” to execute the setup procedure in the software package： 2. Windows shows the dialog as below to check your operation system version： 3. Windows shows the welcome dialog as below, click the “Next” to begin the process： 4. The license agreement dialog will pop up, please read it carefully. If you agree it, choose “I accept the terms in the license agreement” and click “Next”： 5. Specify the destination folder in your local system, which you want the software install to. You may use the default folder or click “Change” to install to different folder, then click “Next”： 6. The dialog “Ready to install the program” shows. Make sure the driver software is ready to be installed, click “Install”： 7. Windows shows the dialog as below indicate the driver software in installing： 8. The dialog shows the driver hasn’t obtain the digital signature for driver from Microsoft Hardware Quality Labs ( WHQL ), click “Ok” to continue： 9. Setup program detects the Bluetooth device and setups property driver for it： 10. Click “Finish” to exit the setup wizard： 11. Finished the installation, you must restart the system to effect settings, click “Yes”： 12. After starting the Windows, you may check the Bluetooth Icon has show in your system： 13. you could open the Windows “Device Manage” and check the Bluetooth device is running： „ Section Three: FCC Notice 3.1 FCC Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be …

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. FCC ID: MCLT60H928 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL:(02) 22656711 FAX: (02) 22656512 E-mail: [email protected]

FCC ID: MCLT60H928 ADT No. 940513H04 Modular Approval Request Letter Advance Data Technology June 07, 2005 Dear Application Examiner, HON HAI PRECISION IND. CO., LTD.’s USB Bluetooth Module, FCC ID: MCLT60H928, would like to have your authorization as a modular approval specific to the Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM2045NMD 95-PIN. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The USB interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is XC6213B182. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLT60H928 ADT No. 940513H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, , HON HAI PRECISION IND. CO., LTD. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Note: Product name: USB Bluetooth Module Model name: T60H928 Sincerely yours, Signature: Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL:(02) 22656711 FAX: (02) 22656512 E-mail: [email protected]

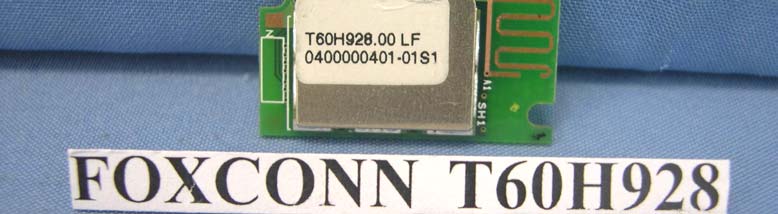

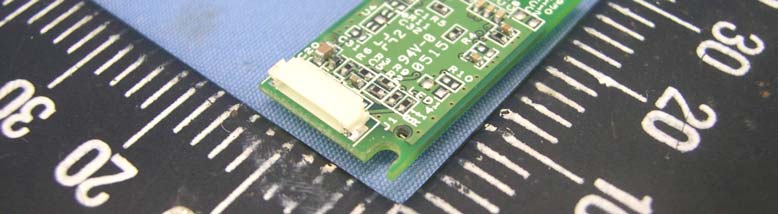

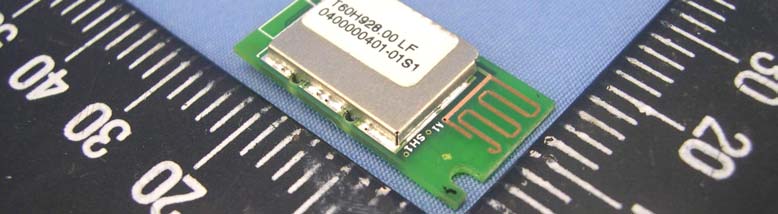

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: MCLT60H928 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

The above is for Canada IC Label drawing. The above is for USA FCC Label drawing. IC ID: 2878D-T60H928 FCC ID: MCLT60H928

Page 3

FCC ID: MCLT60H928 ADT No.: 940513H04 Operational Description The transmitter of the EUT (USB Bluetooth Module) is powered by 3.3V from host equipment, and employing 1 Mbps: GFSK/2 Mbps(EDR): /4-DQPSK/ 3 Mbps(EDR):8DPSK modulation with 79 channels in 2.4 GHz Band. The antenna is Printed antenna and there is no antenna connector used. The other instruction, please have a look at the users manual.

FCC ID: MCLT60H928 ADT No.: SA940513H04 1 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) LowF(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.4022.4802.44124.58 Maximum measured transmitter power: Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 1.1781.972.752 Threshold for no SAR evaluation is 24.58 mW Maximum TX Power is 1.178 mW Conducted and 2.752 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

FCC ID: MCLT60H928 Report No.: RF940513H041Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940513H04 MODEL NO.:T60H928 RECEIVED:May 17, 2005 TESTED:May 23 to 25, 2005 ISSUED: June 07, 2005 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: MCLT60H928 Report No.: RF940513H042Report Format Version 2.0.1 TABLE OF CONTENTS 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 8 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 9 3.5CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4TEST procedures and results.......................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................11 4.1.2TEST INSTRUMENTS .................................................................................11 4.1.3TEST PROCEDURES................................................................................. 12 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 12 4.1.5TEST SETUP .............................................................................................. 13 4.1.6EUT OPERATING CONDITIONS................................................................ 13 4.1.7Test Results................................................................................................. 14 4.2number of hopping frequency used............................................................. 16 4.2.1LIMIT OF HOPPING FREQUENCY USED ................................................. 16 4.2.2TEST INSTRUMENTS ................................................................................ 16 4.2.3TEST PROCEDURES................................................................................. 17 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 17 4.2.5TEST SETUP .............................................................................................. 18 4.2.6TEST RESULTS(MODE 1).......................................................................... 18 4.2.7TEST RESULTS(MODE 2).......................................................................... 20 4.3DWELL TIME ON EACH CHANNEL ........................................................... 22 4.3.1LIMIT OF DWELL TIME USED ................................................................... 22 4.3.2TEST INSTRUMENTS ................................................................................ 22 4.3.3TEST PROCEDURES................................................................................. 23 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 23 4.3.5TEST SETUP .............................................................................................. 23 4.3.6TEST RESULTS.......................................................................................... 24 4.4CHANNEL BANDWIDTH ............................................................................ 28 4.4.1TEST INSTRUMENTS ................................................................................ 28 4.4.2TEST PROCEDURE ................................................................................... 29 4.4.3DEVIATION FROM TEST STANDARD ....................................................... 29 4.4.4TEST SETUP .............................................................................................. 29 4.4.5EUT OPERATING CONDITION .................................................................. 29 4.4.6TEST RESULTS(MODE 1).......................................................................... 30 FCC ID: MCLT60H928 Report No.: RF940513H043Report Format Version 2.0.1 4.4.7TEST RESULTS(MODE 2).......................................................................... 33 4.5HOPPING CHANNEL SEPARATION .......................................................... 36 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION .......................................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURES................................................................................. 37 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 37 4.5.5TEST SETUP .............................................................................................. 37 4.5.6TEST RESULTS(MODE 1).......................................................................... 38 4.5.7TEST RESULTS(MODE 2).......................................................................... 41 4.6MAXIMUM PEAK OUT…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H928 Report No.: RF940513H0444Report Format Version 2.0.1 4.6 MAXIMUM PEAK OUTPUT POWER 4.6.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.6.2 INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZER FSP40100036Nov. 23, 2005 Agilent SIGNAL GENERATOR E8257CMY43320668 Dec. 07, 2005 TEKTRONIX OSCILLOSCOPE TDS 220B027241Jun. 18, 2005 NARDA DETECTOR 4503A0306NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: MCLT60H928 Report No.: RF940513H0445Report Format Version 2.0.1 4.6.3 TEST PROCEDURES 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. The center frequency of the spectrum analyzer is set to the fundamental frequency and using 1 MHz RBW and 3 MHz VBW. 4. Measure the frequency difference of two frequencies that were attenuated 20dB from the reference level. Record the frequency difference as the emission bandwidth. 5. Repeat above procedures until all frequencies measured were complete. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: MCLT60H928 Report No.: RF940513H0446Report Format Version 2.0.1 4.6.5 TEST SETUP For the actual test configuration, please refer to the related Item – Photographs of the Test Configuration. 4.6.6 EUT OPERATING CONDITION The software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER FCC ID: MCLT60H928 Report No.: RF940513H0447Report Format Version 2.0.1 4.6.7 TEST RESULTS(MODE 1) EUTUSB Bluetooth ModuleMODEL T60H928 ENVIRONMENTAL CONDITIONS 20 deg. C, 70%RH, 963 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BYRex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 02402-0.2430PASS 392441-0.5830PASS 782480-1.1430PASS FCC ID: MCLT60H928 Report No.: RF940513H0448Report Format Version 2.0.1 Channel 0 Channel 39 FCC ID: MCLT60H928 Report No.: RF940513H0449Report Format Version 2.0.1 Channel 78 FCC ID: MCLT60H928 Report No.: RF940513H0450Report Format Version 2.0.1 4.6.8 TEST RESULTS(MODE 2) EUTUSB Bluetooth ModuleMODEL T60H928 ENVIRONMENTAL CONDITIONS 20 deg. C, 70%RH, 963 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BYRex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 024021.1930PASS 3924410.9830PASS 7824800. 5230PASS FCC ID: MCLT60H928 Report No.: RF940513H0451Report Format Version 2.0.1 Channel 0 Channel 39 FCC ID: MCLT60H928 Report No.: RF940513H0452Report Format Version 2.0.1 Channel 78 FCC ID: MCLT60H928 Report No.: RF940513H0453Report Format Version 2.0.1 4.6.9 TEST RESULTS(MODE 3) EUTUSB Bluetooth ModuleMODEL T60H928 ENVIRONMENTAL CONDITIONS 20 deg. C, 70%RH, 963 hPa INPUT POWER (SYSTEM) 120Vac, 60 Hz TESTED BYRex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 024020.2430PASS 3924410.0130PASS 782480-0.3630PASS FCC ID: MCLT60H928 Report No.: RF940513H0454Report Format Version 2.0.1 Channel 0 Channel 39 FCC ID: MCLT60H928 Report No.: RF940513H0455Report Format Version 2.0.1 Channel 78 FCC ID: MCLT60H928 Report No.: RF940513H0456Report Format Version 2.0.1 4.7 RADIATED EMISSION MEASUREMENT 4.7.1 LIMITS OF RADIATED EMISSION MEASUREMENT Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted average limits, specified above by more than 20dB under any condition of modulation. FCC ID: MCLT60H928 Report No.: RF940513H0457Report Format Version 2.0.1 4.7.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL HP Spectrum Analyzer 8594E3710A04861Sep. 23, 2005 ADVANTEST Spectrum Analyzer R3271A85060311Jun. 29, 2005 CHASE RF Pre_Amplifier CPA92321057Aug. 06, 2005 HP Pre_Amplifier 8449B3008A01922Oct. 13, 2005 ROHDE & SCHWARZ Test Receiver ESCS30100287Dec. 08, 2005 CHASE Broadband Antenna VULB9168138Dec. 21, 2005 Schwarzbeck Horn_Antenna BBHA9120D124Jun. 16, 2005 Schwarzbeck Horn_Antenna BBHA 9170BBHA9170153Jan. 30, 2006 SCHWARZBECK Biconical Antenna VHBA9123459Jun. 26, 2006 SCHWARZBECK Periodic Antenna UPA61081148Jun. 26, 2006 RF Switches (ARNITSU) CS-2011565157Jul. 15, 2005 RF CABLE (Chaintek) 1GHz-20GHz SF10222054-2Nov. 15. 2005 RF Cable(RICHTEC) 9913-30M STCCAB-30M- 1GHz-021 Jul. 15, 2005 Software ADT_Radiated_V 5.14 NANA CHANCE MOST Antenna Tower AT-1000203NA CHANCE MOST Turn Table TT-1000203NA Note: 1. The calibration interval of the above test instruments is 12 months (36 months for Periodic Antenna)and the calibrations are traceable to NML/ROC and NIST/USA. 2. The horn antenna and HP preamplifier (model: 8449B) are used only for the measurement of emission frequency above 1GHz if tested. 3. The test was performed in ADT Open Site No. C. 4. The FCC Site Registration No. is 656396. 5. The VCCI Site Registration No. is R-1626. 6. The CANADA Site Registration No. is IC 4824-3. 7. The following table is for the measurement uncertainty, which is calculated as per the document CISPR 16-4. MeasurementValue Radiated emissions (30MHz-1GHz)2.98 dB Radiated emissions (1GHz ~18GHz)2.21 dB Radiated emissions (18GHz ~20GHz)1.88 dB FCC ID: MCLT60H928 Report …

Text truncated - open the document above for the full version.

FCC ID: MCLT60H928 Report No.: RF940513H0454Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60H928 Report No.: RF940513H0455Report Format Version 2.0.1 FCC ID: MCLT60H928 Report No.: RF940513H0456Report Format Version 2.0.1 RADIATED EMISSION TEST FCC ID: MCLT60H928 Report No.: RF940513H0457Report Format Version 2.0.1
