1 U S E R ’ S M A N U A L T60H929.00 USB2.0 WLAN CARD 2 Contents SECTION ONE: INTRODUCTION ............................................................................................ 3 1.1 FEATURES...............................................................................................................................3 1.1.1 WIRELESS LAN FUNCTION...................................................................................................... 3 1.2:FCC NOTICE.................................................................................................................................. 4 1.2.1 FCC COMPLIANCE...................................................................................錯誤! 尚未定義書籤。 1.2.2 FCC CLASS B STATEMENT.......................................................................錯誤! 尚未定義書籤。 SECTION TWO: WIRELESS UTILITY AND CONFIGURATION ....................................... 5 2-1 WINDOWS 98/ME/2000 WIRELESS UTILITY...................................................................................... 5 SECTION THREE: WINDOWS XP WIRELESS UTILITY AND CONFIGURATION.......... 10 3-1 WINDOWS XP WIRELESS UTILITY................................................................................................... 10 APPENDIX A GLOSSARY................................................................................................................ 16 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. HON HAI PRECISION IND. CO., LTD. 3 Section One: Introduction The Wireless 802.11b/g USB2.0 Module is available 54 Mbps solution in the 2.4-GHz band, compatible with the IEEE 802.11b standard , the 802.11g standard USB2.0 Specification and USB Electro mechanical Specification Revision 2.0. It allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. The 802.11g data rate provides for 54, 48, 36, 24, 18, 12, 9, 6Mbps, and 802.11b data rate provides for 11,5.5,2,1 Mbps. The 802.11g mode supports encryption using both 64-bit or 128-bit WEP. 1.1 Features 1.1.1 Wireless LAN Function Form Factor & Bus Interface Form Factor : Not standard, Interface: USB 2.0. Wireless LAN Compliance Compatible with IEEE 802.11b standard and IEEE802.11g standard and USB2.0 Specification. Operating Frequency 2.4 ~ 2.497GHz ISM band Modulation Schemes 802.11g: 64QAM(54Mbps,48Mbps),16QAM(36Mbps, 24Mbps), QPSK(18Mbps,12Mbps), BPSK(9Mbps, 6Mbps) 802.11b: CCK (11 Mbps, 5.5Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) Channel Numbers IEEE 802.11b compliant 1 ~ 11 channels for United States 1 ~ 13 channels for Europe 1 ~ 13 or 14 channels for Japan WLAN Data Rate The IEEE802.11g data rate provides for 54 auto fallback 48, 36, 24, 18, 12, 9, 6 and IEEE802.11b data rate provides for 11 auto fallback to 5.5, 2 and 1Mbps. Spreading 11-chip Barker Sequence Media Access Protocol CSMA/CA with ACK Transmitter Output Power Typ. 802.11b 17.5+/-1.5 dBm Typ. 802.11g 13.5+/-1.5 dBm Antenna Type Integrated diversity switch with Printed Antenna. Operating Voltage 5.0VDC Radio On / Off Dynamic Rate Shifting Automatic fallback Network Architecture Ad-hoc, Infrastructure Operating Systems Windows 98/Me/2000/XP HON HAI PRECISION IND. CO., LTD. 4 1.2 FCC Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FOXCONN declared that T60H929 is limited in CH1~11 from 2412 to 2462 MHz by specified firmware controlled in USA. 1.3 Canada Notice Industry Canada Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. HON HAI PRECISION IND. CO., LTD. 5 Section Two: Wireless Utility a…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H929 Report No. RF940427H08 Modular Approval Request Letter Advance Data Technology May 10, 2005 Dear Application Examiner, HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE’s USB RF Module, FCC ID: MCLT60H929, would like to have your authorization as a modular approval specific to the Personal Computer...etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4320. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.3VDC powered. The USB interface provides 5VDC, so there is regulator in front of these chips, the part number of this regulator is MP1567. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLT60H929 Report No. RF940427H08 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

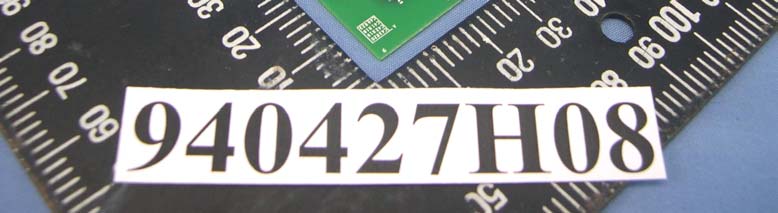

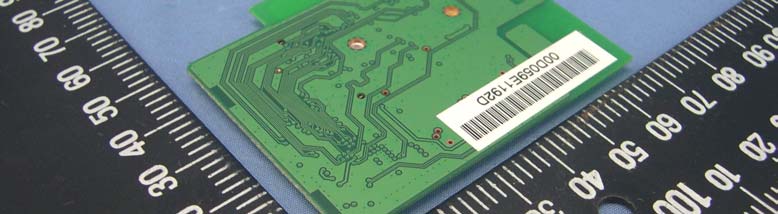

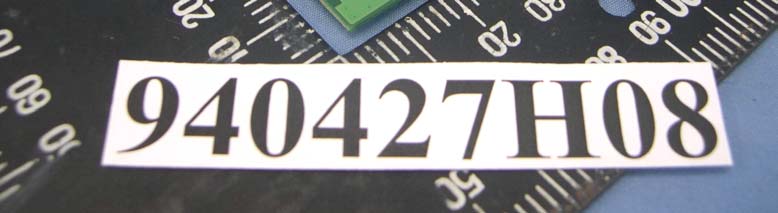

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: MCLT60H929 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

The above is for Canada IC Label drawing. The above is for USA FCC Label drawing. IC ID: 2878D-T60H929 FCC ID: MCLT60H929

Page 3 Page 4 Page 5 Page 6

FCC ID: MCLT60H929 Report No. RF940427H08 Operational Description This device is a USB RF Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (USB RF Module) is powered by host equipment. The antenna type used in this product is Printed PIFA Antenna with MURATA MM8430- 2600 connector. The other instruction, please have a look at the users manual.

FCC ID: MCLT60H929 Report No.: SA940427H08 1 RF EXPOSURE REPORT REPORT NO.: SA940427H08 MODEL NO.: T60H929 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: MCLT60H929 Report No.: SA940427H08 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: MCLT60H929 Report No.: SA940427H08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: MCLT60H929 Report No.: SA940427H08 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.97dBi or 1.574(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412104.71285480.0327890721.0 62437104.47202190.032713661.0 1124621000.0313133211.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241270.631755430.0221171481.0 6243770.794578440.0221681341.0 11246272.443596010.0226844961.0

FCC ID: MCLT60H929 Report No.: RF940427H081Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940427H08 MODEL NO.:T60H929 RECEIVED:April 27, 2005 TESTED:April 28 to May 2, 2005 ISSUED: May 6, 2005 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: MCLT60H929 Report No.: RF940427H082Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4TEST SETUP ...............................................................................................11 4.1.5EUT OPERATING CONDITIONS................................................................ 12 4.1.6TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 15 4.2.2TEST INSTRUMENTS ................................................................................ 16 4.2.3TEST PROCEDURES................................................................................. 17 4.2.4TEST SETUP .............................................................................................. 18 4.2.5EUT OPERATING CONDITIONS................................................................ 18 4.2.6TEST RESULTS.......................................................................................... 19 4.2.7TEST RESULTS – DSSS ............................................................................ 20 4.2.8TEST RESULTS – OFDM ........................................................................... 23 4.36DB BANDWIDTH MEASUREMENT.......................................................... 26 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS – DSSS ............................................................................ 28 4.3.7TEST RESULTS – OFDM ........................................................................... 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 34 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 34 FCC ID: MCLT60H929 Report No.: RF940427H083Report Format Version 2.0.1 4.4.2TEST INSTRUMENTS ................................................................................ 34 4.4.3TEST PROCEDURES................................................................................. 35 4.4.4TEST SETUP .............................................................................................. 35 4.4.5EUT OPERATING CONDITIONS................................................................ 35 4.4.6TEST RESULTS – DSSS ............................................................................ 36 4.4.7TEST RESULTS – OFDM ........................................................................... 37 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 38 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 38 4.5.2TEST INSTRUMENTS ................................................................................ 38 4.5.3TEST PROCEDURE ................................................................................... 39 4.5.4TEST SETUP .............................................................................................. 39 4.5.5EUT OPERATING CONDITIONS................................................................ 39 4.5.6TEST RESULTS – DSSS ............................................................................ 40 4.5.7TEST RESULTS – OFDM ......................................................................…

Text truncated - open the document above for the full version.

FCC ID: MCLT60H929 Report No.: RF940427H0854Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60H929 Report No.: RF940427H0855Report Format Version 2.0.1 RADIATED EMISSION TEST FCC ID: MCLT60H929 Report No.: RF940427H0856Report Format Version 2.0.1
