MCLT60H989802.11b/g WLAN USB Module

 HON HAI PRECISION IND. CO., LTD. WLAN USB MODULE T60H989 USER’S MANUAL  HON HAI PRECISION IND. CO., LTD. Contents SECTION ONE: INTRODUCTION ................................. ................................ ................................ ......... 3 1.1 WLAN F EATURES ................................. ................................ ................................ ................................ ........................ 3 1.2 FCC N OTICE ................................. ................................ ................................ ................................ ................................ 4 1.3 C ANADA N OTICE ................................. ................................ ................................ ................................ ........................... 5 SECTION TWO: WIRELESS UTILITY AND CONFIGURATION ................................ 6 2-1 W INDOWS 98/ME/2000 W IRELESS U TILITY ................................. ................................ ................................ ............... 6 SECTION THREE: WINDOWS XP WIRELESS UTILITY AND CONFIGURATION ................................. ................................ ................................ ................................ ............... 11 3-1 W INDOWS XP W IRELESS U TILITY ................................. ................................ ................................ ............................. 11 APPENDIX A GLOSSARY ................................. ................................ ................................ ................................ .............. 16 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners.  HON HAI PRECISION IND. CO., LTD. Section One: Introduction This WLAN USB Module is in compliance with IEEE 802.11b and IEEE 802.11g Standards. The data rate of 802.11g is capable of up to 54 Mbps with fallback rates of 48, 36, 24, 18, 12, 9 and 6 Mbps. The data rate of 802.11b is capable of up to 11 Mbps with fallback rates of 5.5, 2 and 1 Mbps. ! 1.1 WLAN Features Form Factor & Bus Interface Form Factor: Non-standard, Interface: USB 2.0. Wireless LAN Compliance Compatible with IEEE 802.11b and IEEE802.11g standard and USB2.0 Specification. Operating Frequency 24 12 ~ 24 83.5 MHz ISM band Modulation Schemes 802.11g: OFDM, DQPSK, DBPSK and CCK 802.11b: DQPSK, DBPSK and CCK Channel Numbers IEEE 802.11b compliant 1 ~ 11 channels for United States 1 ~ 13 channels for Europe 1 ~ 13 or 14 channels for Japan WLAN Data Rate 80 2.11g: Up to 54 Mbps with auto fallback to 48, 36, 24, 18, 12, 9 and 6 Mbps. 802.11b: Up to 11 Mbps with auto fallback to 5.5, 2 and 1Mbps. Media Access Protocol CSMA/CA with ACK Transmitter Output Power 802.11b: 17 .5+/-2 dBm 802.11g: 13.5+/-2 dBm Antenna Type Integrated diversity switch with Printed Antenna. Operating Voltage 3.3 VDC Operating Systems Windows 98/Me/2000/XP  HON HAI PRECISION IND. CO., LTD. 1.2 FCC Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FOXCONN declared that T60H989 is limited in CH1~11 from 2412 to 2462 MHz by specified firmware controlled in USA. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional c…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1, 5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C.  Date: 2006/11/27  GENERAL DECLARATION We, HON HAI PRECISION IND. CO., LTD. declares that device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the follow product. Type designation: 802.11b/g USB Dongle Trademark: VGF-UWA1 Product name: Foxconn If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Signature: Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL: +886-2-22676511 FAX: +886-2-22676512 E-mail: [email protected] We,HON HAI PRECISION IND. CO., LTD. declares that device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the follow product. Model name: VGF-UWA1 ˧̅˴˷˸̀˴rk:Foxconn ˣ̅̂duct name: 802.11b/g USB Dongle If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you!

HON HAI PRECISION IND. CO., LTD. 5F-1, 5 Hsin-An Road, Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Date: 2007/4/14 FCC ID: MCLT60H989 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL: +886-2-22676511 FAX: +886-2-22676512 E-mail: [email protected]

FCC ID: MCLT60H989 Report No. RF960411H01 Modular Approval Request Letter Advance Data Technology May 2, 2007 Dear Application Examiner, Hon Hai PRECISION IND.CO., LTD 802.11b/g WLAN USB Module, FCC ID: MCLT60H989, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4326. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.5VDC powered. The USB interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is FDG6316P. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLT60H989 Report No. RF960411H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

  HON HAI PRECISION IND. CO., LTD. 5F-1, 5 Hsin-An Road, Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. $*(1&<$ 87+25,=$7,21/(77(5 Date: 2007-04-14 To whom it may concern: We, the undersigned, HON HAI PRECISION IND. CO., LTD., hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Note: Product name: 802.11b/g WLAN USB Module Model name: T60H989 Sincerely yours, Signature: Jason Lin Compliance Engineer HON HAI PRECISION IND. CO., LTD. TEL: +886-2-22676511 FAX: +886-2-22676512 E-mail: [email protected]

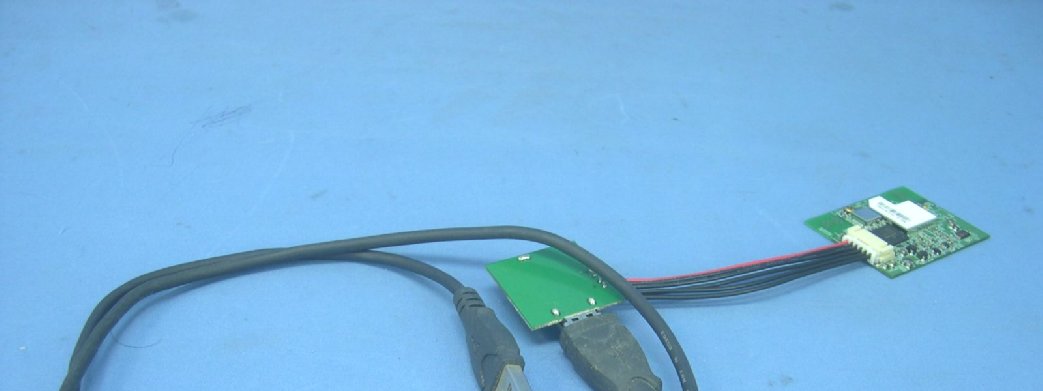

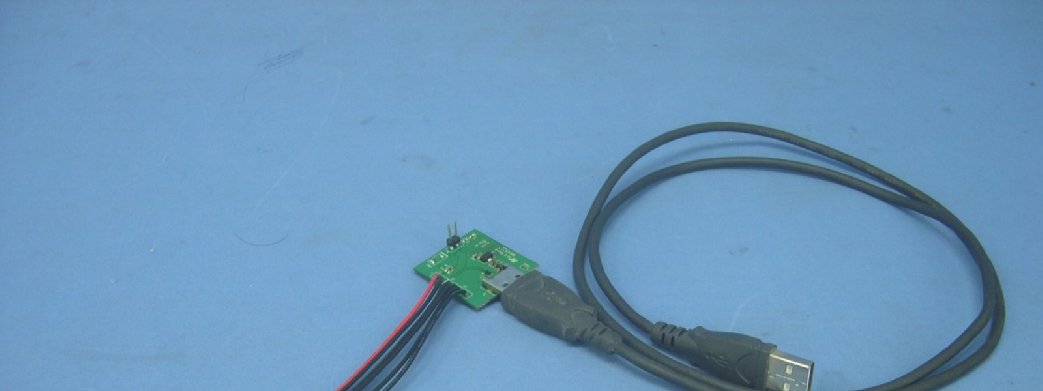

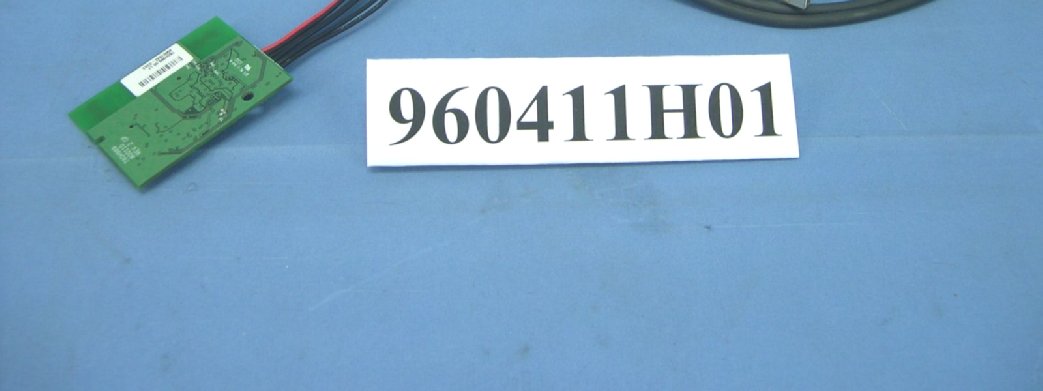

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: MCLT60H989 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4

FCC ID: MCLT60H989 Report No. RF960411H01 Operational Description This device is an 802.11b/g WLAN USB Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g WLAN USB Module) is powered by host equipment. The antenna used in this product is PCB printed antenna without connector. The other instruction, please have a look at the users manual.

Report No.: SA960411H01 1 RF EXPOSURE REPORT REPORT NO.: SA960411H01 MODEL NO.: T60H989 FCC ID: MCLT60H989 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960411H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960411H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960411H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.62dBi or 1.8281 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 91.2011 0.0332 1.0 6 2437 95.4993 0.0347 1.0 11 2462 109.6478 0.0399 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 72.1107 0.0262 1.0 6 2437 75.5092 0.0275 1.0 11 2462 100.0000 0.0364 1.0

Report No.: RF960411H01 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960411H01 MODEL NO.: T60H989 RECEIVED: April 11, 2007 TESTED: April 16 to 18, 2007 ISSUED: April 30, 2007 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960411H01 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION.....................................................................................................4 2 SUMMARY OF TEST RESULTS..............................................................................5 3 GENERAL INFORMATION......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................................7 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS........................................10 3.5 DESCRIPTION OF SUPPORT UNITS...................................................................11 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................................11 4 TEST TYPES AND RESULTS................................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................12 4.1.2 TEST INSTRUMENTS...........................................................................................12 4.1.3 TEST PROCEDURES...........................................................................................13 4.1.4 TEST SETUP........................................................................................................13 4.1.5 EUT OPERATING CONDITIONS...........................................................................14 4.1.6 TEST RESULTS....................................................................................................15 4.2 RADIATED EMISSION MEASUREMENT..............................................................17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................17 4.2.2 TEST INSTRUMENTS...........................................................................................18 4.2.3 TEST PROCEDURES...........................................................................................19 4.2.4 TEST SETUP........................................................................................................20 4.2.5 EUT OPERATING CONDITIONS...........................................................................20 4.2.6 TEST RESULTS....................................................................................................21 4.2.7 TEST RESULTS - DSSS.......................................................................................22 4.2.8 TEST RESULTS - OFDM.......................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT.....................................................................36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................36 4.3.2 TEST INSTRUMENTS...........................................................................................36 4.3.3 TEST PROCEDURE..............................................................................................37 4.3.4 TEST SETUP........................................................................................................37 4.3.5 EUT OPERATING CONDITIONS...........................................................................37 4.3.6 TEST RESULTS –DSSS........................................................................................38 4.3.7 TEST RESULTS-OFDM.........................................................................................41 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................................44 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................44 4.4.2 TEST INSTRUMENTS...........................................................................................44 4.4.3 TEST PROCEDURES...........................................................................................45 Report No.: RF960411H01 3 Report Format Version 2.0.5 4.4.4 TEST SETUP........................................................................................................45 4.4.5 EUT OPERATING CONDITIONS...........................................................................45 4.4.6 TEST RESULTS – DSSS.......................................................................................46 4.4.7 TEST RESULTS –OFDM.......................................................................................47 4.5 POWER SPECTRAL DENSITY MEASUREMENT.................................................48 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................48 4.5.2 TEST INSTRUMENTS...........................................................................................48 4.5.3 TEST PROCEDURE..............................................................................................49 4.5.4 TEST SETUP.........................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
