MCLT60H990Thinkpad Wireless USB HMC

User’s Manual The attachments are parts of the user’s manual of the specific Lenovo host devices that indicates the regulatory notice concerning the FCC Part 2/15/22/24 and IC RSS-102/132/133/210. The regulatory notice consists of the following separate parts. z WLAN/ Bluetooth/ UWB, and Modem features Adobe Acrobat 7.0 Document z WWAN feature (Model MC5725 and MC8775) Adobe Acrobat 7.0 Document And the following electronic contents referred in the above notices are also provided associated with host devices and indicated on each LCD screen z UWB Antenna location Adobe Acrobat 7.0 Document z WLAN and WWAN antenna locations Adobe Acrobat 7.0 Document z FCC ID, IC Certification Number indication Adobe Acrobat 7.0 Document z Installation Instruction of WLAN and WWAN adapters Adobe Acrobat 7.0 Document z Operation Instruction of wireless features Adobe Acrobat 7.0 Document

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE MIN SHENG PLANT 5F-1, 5 Hsin-An Road 4-1 Ming-Sheng St., Hsinchu, Science-Based Industrial Park Tu-Cheng Industrial Area, Taiwan, R.O.C. Taiwan, R.O.C TEL:+886-3-5784975 TEL:+886-2-2267 6511 FAX:+886-3-5775100 FAX:+886-2-2267 6512 Request for Confidentiality Feb. 15, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Foxconn Certification Application FCC ID: MCLT60H990 To Whom It May Concern: Please be advised that the following exhibits are to be held confidential on behalf of Foxconn:
Schematics
Block Diagrams
Bill of Materials This application contains technical information that Foxconn considers to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Rio Chen Deputy Compliance Manager System Quality Div.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE MIN SHENG PLANT 5F-1, 5 Hsin-An Road 4-1 Ming-Sheng St., Hsinchu, Science-Based Industrial Park Tu-Cheng Industrial Area, Taiwan, R.O.C. Taiwan, R.O.C TEL:+886-3-5784975 TEL:+886-2-2267 6511 FAX:+886-3-5775100 FAX:+886-2-2267 6512 Letter Of Agency Feb. 15, 2007 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that HON HAI Precision Ind. Co., Ltd. authorizes TDK RF Solutions to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission (FCC) regarding Ultra-Wideband (UWB) products. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.202(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Rio Chen Deputy Compliance Manager System Quality Div.

MCLT60H990

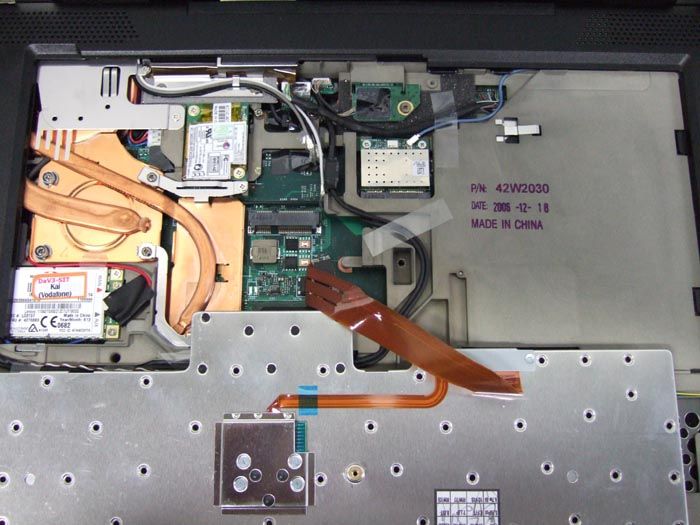

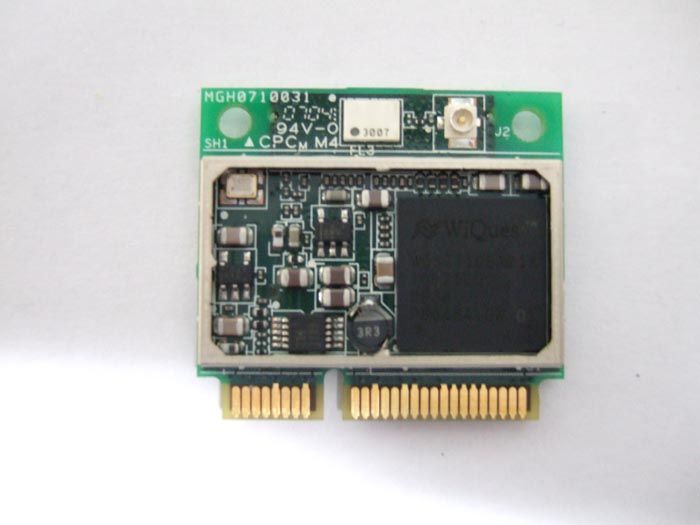

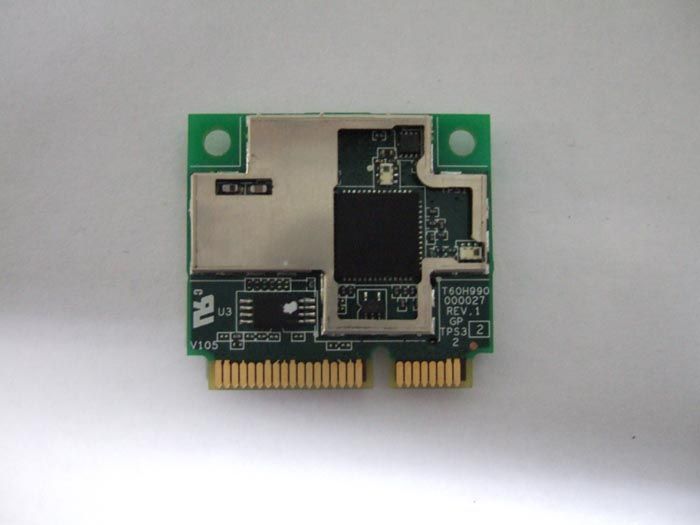

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE MIN SHENG PLANT 5F-1, 5 Hsin-An Road 4-1 Ming-Sheng St., Hsinchu, Science-Based Industrial Park Tu-Cheng Industrial Area, Taiwan, R.O.C. Taiwan, R.O.C TEL:+886-3-5784975 TEL:+886-2-2267 6511 FAX:+886-3-5775100 FAX:+886-2-2267 6512 The ThinkPad Wireless USB Half Mini PCI Express Form Factor Card (HMC) – Theory of Operation The ThinkPad Wireless USB Half Mini PCI Express Form Factor Card (HMC) is a cost-effective, highly- integrated design that provides wireless UWB high-speed services for wired USB devices. The HMC design provides a complete end-to-end solution while leveraging latest breakthrough wireless performance. The ThinkPad Wireless USB HMC is shipped as a complete package including both hardware and software support. The ThinkPad Wireless USB HMC includes a working hardware sample along with user’s guide, and a quick-start guide. The software package includes a Host Wired Adapter (HWA) driver/firmware and DWA firmware along with the Microsoft Windows-based utility which supports device discovery, multiple association options, field upgrade functionality, and comprehensive diagnostics. The ThinkPad Wireless USB HMC is designed around WiQuest’s WQST110 and WQST101, the industry’s leading high-performance ultrawideband (UWB) chipset. The WQST110 includes a WiMedia-based ultrawideband media access controller (MAC) and physical layer (PHY) baseband processor. The WQST101 is a direct conversion UWB RF transceiver. These two devices and related components fit into a standard Half Mini PCI Express form factor. The ThinkPad Wireless USB HMC is an Ultrawideband (UWB) WiMedia Mode 1-compliant device that operates in the 3168-4752MHz Band group. The ThinkPad Wireless USB HMC transmits WiMedia UWB signal that has instantaneous bandwidth (BW) greater than 500MHz, or fractional occupied BW greater than 20 percent. The 1584MHz wide band represents 40 percent bandwidth (fractional bandwidth equals 2*(Fh-Fl)/(Fh+Fl), where Fh is upper boundary and Fl is lower boundary). Band Group 1 is divided into 3 individual bands, each 528MHz wide, with center frequencies of 3432MHz, 3960MHz and 4488MHz, respectively. The ThinkPad Wireless USB HMC transmits either by hopping between the 3 bands or stationary on each band. FCC Part 15 regulation in Subpart F, Section 15.517 and 15.519 specifies maximum average Equivalent Iso-tropically Radiated Power (EIRP) of –41.3dBm (53.9dBuV/m) measured using a resolution bandwidth of 1MHz. EIRP in dBm could be converted to a field strength, in dBuV/m at 3 meters, by adding 95.2dB. Since the ThinkPad Wireless USB HMC occupies approximately 1584MHz while hopping (528MHz instantaneously) the average transmitted power is on the order of -9.3dBm (or -14dBm when not hopping). The 528MHz wide signal is composed of 122 modulated Orthogonal Frequency Division Multiplexed (OFDM) sub- carriers.

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK R&D Corporation. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance report of ThinkPad Wireless USB Adapter Customer: HON HAI Precision IND. CO., LTD. Date: February 23, 2007 TDK Report: TTS-TR-T111-109 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina P. Carson This document contains confidential information and cannot be disclosed outside of HON HAI or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T111-109 page 2 of 48 1. Executive Summary An EMC evaluation to determine compliance of the ThinkPad Wireless USB Adapter with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the ThinkPad Wireless USB Adapter. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.519(b) Yes Radiated Emissions 15.519(c), 15.209 Yes Radiated Emissions in GPS Bands 15.519(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519(e) Yes Labelling Requirements 15.19 Yes Page 3 of 48 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Handheld UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Hand Held Ultra-Wideband System Page 4 of 48 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: HON HAI Precision IND. CO., LTD. Address: 5F-1, 5, Hsin-An Road Hsinchu Science-Based Industrial Park Taiwan Contact Person: Nancy Lin MANUFACTURER Name: Ambit Microsystems (Shanghai) Ltd Address: Number 1925, Nanle Road Songjiang Export Processing Zone, Shanghai, China Contact Person: Page 5 of 48 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name HON HAI Precision IND. CO. Ltd. Product Name ThinkPad Wireless USB Adapter Model Name or Number ThinkPad T61 15.4-inch Widescreen Serial Number Type of Equipment UWB Radio Transmitter Input Power Supply Type PCIe bus powered Classification Hand held Ultra-Wideband system Technical Power Supply Requirements PCIe bus power supply RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation Multiband OFDM Oscillator Frequency 48 MHz EUT Ports None Antenna Connector Type Internal Antenna Description linear polarized inverted F planar Logistics EUT Receive Date February 15, 2007 EUT Receive Condition Good Test Start Date February 15, 2007 Test Completion Date February 22, 2007 Page 6 of 48 2.5.1.Support Eq…
