MCLT60M665Bluetooth Wireless Card

1 INSTALLATION MANUAL T60M665 MDC Bluetooth/Modem Combo Module Ambit Microsystems Corporation 5F-1, 5 Hsin-An Rd., Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-5784975, FAX: 886-3-5782924, Internet: http:\\www.ambit.com.tw\ 2 Contents SECTION ONE: ....................................................................................................... INTRODUCTION 1 1.1 F EATURES................................................................................................................................... 1 1.1.1 BLUETOOTH FUNCTION................................................................................................................ 1 1.1.2 MODEM FUNCTION...................................................................................................................... 1 1.2 HARDWARE REQUIREMENTS........................................................................................................... 2 SECTION TWO: BLUETOOTH INSTALLATION .......................................................................... 3 2.1 B LUETOOTH INSTALLATION........................................................................................................ 3 SECTION THREE: MODEM INSTALLATION ............................................................................... 7 3.1 D RIVER INSTALLATION............................................................................................................... 7 3.2 AT COMMANDS........................................................................................................................ 10 SECTION FOUR: FCC NOTICE ...................................................................................................... 16 4.1 FCC COMPLIANCE.................................................................................................................... 16 4.2 FCC CLASS B STATEMENT....................................................................................................... 16 4.3 EXPOSURE TO RADIO FREQUENCY RADIATION............................................................................. 16 The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners. 1 Section One: Introduction The Bluetooth/Modem Combo Module is a cost-effective wireless access. The Bluetooth circuit of this module is compliant to Bluetooth 1.1 standard. With V.92 technology, the modem part can achieve internet connection rates up to 56 kbits/s with backward compatibility. The V.92 Feature include PCM Upstream, Modem On Hold, Quick Connection and V.44 Data compression. The Audio CODEC will be placed on the notebook and contact with Modem Codec by AC-Link Interface. The combo card complies with MDC Domestic form factor. 1.1 Features 1.1.1 Bluetooth Function o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible with Bluetooth specification version 1.1. o Fully compliant to Bluetooth SIG (BQB) compatibility testing. o USB Pin assignment is to use MDC reserve pin to communicate with Host.interface o Bluetooth Profile Support - General Access Profile - Service Discovery Application Profile - Serial Port Profile - Dial-up Networking Profile - LAN Access Profile - Generic Object Exchange Profile - File Transfer Profile - Object Push Profile - Synchronization Profile o Drivers support Windows 98, 98SE, ME, 2000, XP. o Supports Power Management ACPI 1.94 (or later) o Bluetooth performance must exceed 500 kbps, using OBEX. 1.1.2 Modem Function o AC’97/MC’97 2.2 compliant o Support Modem Digital Line Guard: The product shall incorporate circuitry to sense whenever the current on the line exceeds approximately 130mA, and should immediately go back on hook. 2 o The call progress signal shall be scaled digitally according to the speaker level setting (ATL1, L2, L3) o ITU-T V.92 PCM Upstream and V.90 data rates with auto-fallback to V.34, V.32terbo, V.32bis and fallbacks o TIA/EIA 602 standard for AT Command set o Supports V.42 error correction and V.44, V.42bis/MNP5 data compression o FAX capabilities: ITU-T V.17, V.29, V.27ter, V.21 Ch2 and TIA/EIA 578 Class1 FAX o Support Wake up on Ring and meet WHQL test requirement.. 1.2 Hardware Requirements Supply Voltage 3.3V & 1.8V Frequency Range 2.400-2.4835 GHz Antenna Load 50 Ohm Receive Sensitivity –80 [email protected]% BER Maximum Receiver Signal -20 dBm TX Power 4 dBm maximum (class 2) RF Power Control Step Size 2 dB Range 10 meters at 0 dBm TX power (class 2) Radio Compliant with Bluetooth standard version 1.1 Pico Net 1 master to 7 slaves Operating Channels 79 channels of 1 MHz BW Security Full support of Bluetooth security provisions including hardware support for full length 128 bit encryption keys. Host Interface (USB) USB specification 1.1 compliant and using MDC reserve pin to communicate with Host Software Requirements Windows 98SE, ME, 2000, XP. Mechanical Requirements 27mm x 45mm x 4.7mm(1.2/0.8/2.7mm) 3 Section Two: Bluetooth Installation The following steps provide instructions for installing Bluetooth. 1. Make sure your MDC BT/Modem Combo card already insert into your notebook. 2. Make sure your notebook operating system support Windows 98SE or ME or 2000 or XP. 2.1 Bluetooth Installation Proceed to the following section. 1. Execute the program ‘Setup.exe’ in the CD. Windows displays the dialog as below. Click ‘Next’ to begin the process. 4 2.The “License Agreement” windows will pop up, please read it carefully. If you agree it, and choose ‘I agree the terms in the license agreement’ and click on ‘Next’. 3. “Destination Folder” appears, specify the location of the driver and software to be installed then press ‘Next’ bottom. 5 4. When all the above process are done, it will show ‘Ready to Install the Program” wi…

Text truncated - open the document above for the full version.

AMBIT Microsystems Corporation Taipei Branch: 4-1 Ming-Sheng St., Tu-Cheng Industrial Area, Taiwan, R.O.C. TEL:+886-2-2267 6511 FAX:+886-2-2267 6512 Module Approval Request Letter Date: 3/10/2003 We, Ambit Microsystems Corporation’s Wireless module with antennas BY27, ZG1S and ZI1S, installed in ACER notebook PC , FCC ID:MCLT60M665, would like to apply for Limited Modular approval. We declare that T60M665 meet the following requirement of FCC Public Notice DA00-1407. 1. The modular transmitter must have its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs. 3. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. 4. The FCC ID number will be labeled on the host notebook PC. If you have any problem, please feel free to contact me. Thank you Regards Peter Lan R&D Assistant Manager Ambit Microsystems Corp.

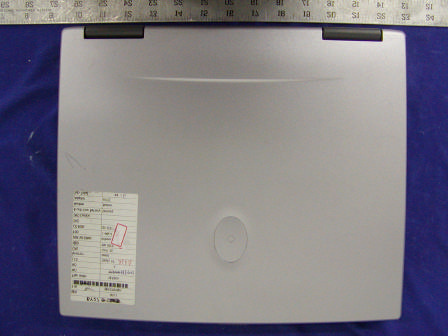

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Host Notebook PC – Front View Host Notebook PC – Rear View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label 2.1875”L x 1.0”W Proposed Label Location on EUT Host Notebook PC rear view /FCC ID Label FCC ID: MCLT60M665 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Side A View EUT – Side A View, Shield off EUT – Side B View Set up – Board View

AMBIT Microsystems Corporation FCC ID: MCLT60M665 BY27 Antenna Right View BY27 Antenna Left View AMBIT Microsystems Corporation FCC ID: MCLT60M665 ZG1S Antenna Right View ZG1S Antenna Left View AMBIT Microsystems Corporation FCC ID: MCLT60M665 ZI1S Antenna Right View ZI1S Antenna Left View

SmartAnt Telecom Co., Ltd. 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 RD ManagerSupervisorRD engineerSales engineer LeoSigmaRomeoLance Compal BY27 Antenna Test Report SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 802.11a.b Antenna Testing Conditions: 1. Testing set up: LCD OPEN 110 LCD CLOSE 250 cm HORN Standard Antenna Network Analyzer Rotator Controller Radiation Pattern Testing - Anechoic Chamber DUT Antenna SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 Test results : Main ANT. VSWR Peak Gain and Average Gain AntennaApplicationPlacementCable dia. Ö mmMaterialCable Vendor Connector VendorConnector typeImpedance BY27802.11abRIGHT1.13MetalNisseiHIROSEHRS50 Antenna Center freg. @MHz BW @MHz VSWR 2.4GHz2.45GHz2.5GHz 2450100 1.8181.6661.584 5.15GHz5.25GHz5.35GHz Main 5250200 1.8991.1871.192 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 2.4GHz2.45GHz2.5GHz5.15GHz5.25GHz5.35GHz Peak gain(dBi)1.26692.06632.89012.60222.20712.95 Average Gain(dBi)-4.3046-3.5179-2.7304-2.4523-3.2355-1.9293 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 -40 -30 -20 -10 0 10 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 2.45 GHz vertical horizontal V + H SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 -40 -30 -20 -10 0 10 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 5.25 GHz vertical horizontal V + H SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 Test results : Sec. ANT. VSWR Peak Gain and Average Gain AntennaApplicationPlacementCable dia. Ö mmMaterialCable Vendor Connector VendorConnector typeImpedance By27802.11abLEFT1.13MetalNisseiHIROSEHRS50 Antenna Center freg. @MHz BW @MHz VSWR 2.4GHz2.45GHz2.5GHz 2450100 1.3871.0731.500 5.15GHz5.25GHz5.35GHz Sec. 5250200 3.1111.9481.853 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 2.4GHz2.45GHz2.5GHz5.15GHz5.25GHz5.35GHz Peak gain(dBi)1.07621.28721.3491.30311.19852.1777 Average Gain(dBi)-2.136-2.3424-2.9396-3.7837-3.8182-1.9663 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 -40 -30 -20 -10 0 10 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 2.45 GHz vertical horizontal V + H SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 -40 -30 -20 -10 0 10 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 5.25 GHz vertical horizontal V + H Test results : BLUETOOTH SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 VSWR Peak Gain and Average Gain AntennaApplicationPlacementCable dia. Ö mmMaterialCable Vendor Connector VendorConnector typeImpedance By27bluetoothhinge1.13MetalNisseiHIROSEHRS50 Antenna Center freg. @MHz BW @MHz VSWR 2.4GHz2.45GHz2.5GHz BT2450100 1.4711.6822.808 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 2.4GHz2.45GHz2.5GHz Peak gain(dBi)-1.7997-0.6418-2.5316 Average Gain(dBi)-6.325-5.8838-6.764 SmartAnt Telecom Co., Ltd. 2003/3/6 6F,No.12, Li-Hsin Road., Science-Based Industrial Park, Hsinchu Taiwan, R.O.C. Tel: 886-3-5783188 Fax: 886-3-5783189 -40 -30 -20 -10 0 10 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 2.45 GHz vertical horizontal V + H

F O X C O N N C C B G Prepared By: NWInG-CABLE-ME Sheng Tai 1 2002/11/12 FOXCONN NWInG Antenna Engineering Test Report Quanta ZI1S BT Antenna Prepared By: NWInG-CABLE-ME Sheng Tai 2 2002/11/12 VSWR of Blue-tooth Antenna 2.4GHz = 1.28 2.45GHz = 1.26 2.5GHz = 1.26 Cable length = 95mm Prepared By: NWInG-CABLE-ME Sheng Tai 3 2002/11/12 HORIZONTAL POLARIZATIONVERTICAL POLARIZATION 2.4GHz ~ 2.5GHz X-Y Plane Radiation Pattern of Blue-tooth Antenna Prepared By: NWInG-CABLE-ME Sheng Tai 4 2002/11/12 X-Y Plane Gain of Blue-tooth Antenna (dBi)2400MHz2450 MHz2500 MHz XY-H-6.56-5.20-3.59 XY-V-9.12-8.42-7.93 XY-AVG.-4.65-3.51-2.23 Average Gain Peak Gain (dBi)2400MHz2450 MHz2500 MHz XY-right-H-0.88-0.070.64 XY-right-V-4.03-2.67-2.53

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For AMBIT Microsystems Corporation 4-1, Ming Shen Street, Tu Chen Industrial District. Tu Chen, Taipei Hsien 236, Taiwan, R.O.C. FCC ID: MCLT60M665 February 25, 2003 This Report Concerns: Original Report Equipment Type: Notebook PC with Bluetooth Wireless Card Test Engineer:Jerry Wang Report No.:R0301173 Test Date:February 16, 2003 Reviewed By:Hans Mellberg Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 AMBIT Microsystems Corporation FCC ID: MCLT60M665 Report # R0301173RptPage 2 of 40 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................4 1.2 OBJECTIVE................................................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................................4 1.5 TEST FACILITY.........................................................................................................................................................................5 1.6 TEST EQUIPMENT LIST............................................................................................................................................................5 1.7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...............................................................................................................6 1.8 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................6 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................7 2.1 JUSTIFICATION.........................................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................................7 2.3 SPECIAL ACCESSORIES............................................................................................................................................................7 2.4 SCHEMATICS / BLOCK DIAGRAM..........................................................................................................................................7 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................................7 2.6 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................8 2.7 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................8 3 - SUMMARY OF TEST RESULTS........................................................................................................................................9 4 - MAXIMUM PEAK OUTPUT POWER............................................................................................................................10 4.1 STANDARD APPLICABLE.......................................................................................................................................................10 4.2 MEASUREMENT PROCEDURE...............................................................................................................................................10 4.3 MEASUREMENT RESULT.......................................................................................................................................................10 4.4 PLOT OF MAXIMUM PEAK OUTPUT POWER.......................................................................................................................10 5 – 20DB BANDWIDTH..............................................................................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................................12 5.2 MEASUREMENT PROCEDURE...............................................................................................................................................12 5.3 MEASUREMENT RESULT.......................................................................................................................................................12 5.4 PLOT OF CHANNEL BANDWIDTH.........................................................................................................................................12 6 - NUMBER OF HOPPING FREQUENCY USED............................................................................................................14 6.1 STANDARD APPLICABLE..........................…

Text truncated - open the document above for the full version.

AMBIT Microsystems Corporation FCC ID: MCLT60M665 APPENDIX B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Rear View AMBIT Microsystems Corporation FCC ID: MCLT60M665 Radiated Emission - Front View Radiated Emission - Rear View
