MCLT60N87100802.11 b/g Mini-PCI

1 Trade Name : T60N871 802.11b/g Wireless LAN MiniPCI module User Manual 2 1. Wireless LAN Configuration Utility Introduction The Wireless LAN Configuration Utility is a powerful application that helps you to configure FOXCONN WLAN card and monitor the statistics of the communication status. Unlike the standard method of configuring the card via the operating system utilities, this application permits the dynamic modification of the configuration parameters while the card is operating. It also offers more configuration options. FOXCONN offers the Wireless LAN Configuration Utility for Windows 95/98/Me/2000/XP. 3 1.1 How to install the driver and Wireless LAN Configuration Utility Double click the “setup” located in “\WLAN_Utility\” Fig 1-1 The program will automatically proceed with installing. Press “Next” to continue. Fig 1-2 4 Press “I accept the terms in the license agreement” to continue the install shield. Or press “I do not accept the terms in the license agreement” quit install process. Then, press “Next” to continue. Fig 1-3 Press “Install” to continue installing Fig 1-4 5 Install Shield is processing Fig 1-5 Choose “Finish” to complete the installation Fig 1-6 6 The usage of Wireless LAN Configuration Utility 2.1 Introduction The Wireless LAN Configuration Utility appears as an icon on the system tray of Windows while the card is running. You can open it by double clinking the icon (Fig 2-1) to show full screen of WLAN Utility. Fig 2-1 icon on the system tray While the station is in infrastructure mode and not associated to an Access Point, the color of the icon is “White (blank)”(Fig 2-2). Fig 2-2 No Connection As soon as the station associates to an Access Point, the icon color automatically turns to “ Green”, “Yellow” or “Red”. Which indicates the receiving signal strength from Access Point. “Green” (Fig 2-3) indicates the signal is “Good”. “Yellow”(Fig 2-4) indicates the signal is “Fair”. “Red”(Fig 2-5) indicates the signal is “Poor”. Fig 2-3 Good Connection Fig 2-4 Fair Connection Fig 2-5 Poor Connection The Wireless LAN Configuration Utility is a powerful and highly integrated application include the following options (tabs), ƒ Status ƒ Site Survey ƒ Statistics ƒ About 7 2.2.1 Status A typical screen of the application in Infrastructure mode is shown in Fig 2-6. The Wireless LAN Configuration Utility contains the following information for Wireless LAN. „ Profile: The profile name which user selected. If there is no profile selected, it would show “default”. „ SSID: The Network Service Set Identification provided by Access Point. „ Link Status: The MAC address of Access Point. „ Network Type: Infrastructure or Ad-Hoc. „ Channel: Operation channel provided by Access Point. „ Tx (Transmit ion) Rate: Current transmit ion rate. „ Signal Strength: The Signal level of Wireless Network. „ Link Quality: The Signal Quality of Wireless Network. „ Network Address: shows the current Network status such as MAC address (Wireless Card), DHCP (Enable or not), IP address, Subnet Mask address, Gateway Address and DNS server address. Fig 2-6 Typical screen of the Wireless LAN Configuration Utility in Infrastructure mode. Users can change the configuration by clicking the “Configuration” Button. 8 2.2.2 Configuration Users can edit Wireless Network setting by pressing “Configuration” button. There are 3 tabs in “Configuration”. „ General „ Encryption „ Advance 9 2.2.2.1 General Page General Page include the following options, (See Fig 2-7) „ Profile Name: Name of Selected Profile. (Default profile name: default). If users want to change settings of profile, please refer to Edit Profile option in “Site Survey” page. „ Network Type: User can choose either Infrastructure or Ad-Hoc mode. „ SSID: Define the SSID. „ Channel: Provided by Access Point in Infrastructure mode. User can only define when choose Ad-Hoc mode in Network Type option. „ Desired Rate: User can choose the desired rate from 1Mbps~11Mbps (associated with 802.11b Access Point) and 1Mbps~54Mbps (associated with 802.11g Access Point). (Default Setting: Automatic). Fig 2-7 10 2.2.2.2 Encryption Page IPN2220 WLAN Utility provides powerful and intelligent setting of WEP Key. The Encryption page include the following options, (see Fig 2-8) „ Encryption Mode: User can choose WEP On or None WEP for the Network. This option will be automatically defined after “Site Survey”. „ Authentication: There are 2 modes of Authentication of 802.11b/g Wireless Network. Open System and Share Key. These are defined by Access Point. IPN2220 WLAN Utility provides the “Auto Switch” option for easy to use. This option can be also automatically defined after “Site Survey”. „ WEP Key Entry (hex): Users have 4 sets of WEP to use. Each will need to be defined by user according to Access Point. The Key value is in Hex format (from 0~9, a~f). „ Encryption Key Length: User can choose 64bits, 128bits or 152bits encryption for the network according Access Point. Fig 2-8 11 2.2.2.3 Advance Page Advance Page provides more advanced options for Wireless Network. This include the followings, (See Fig 2-9) „ Power Saving: Enable or Disable the Power Saving Mode. (Default: Disable) „ Preamble Type: User can choose Long Preamble or Short Preamble type according to Access Point. IPN2220 provides “Auto” setting for choosing “Preamble Type”. „ Fragment Threshold: „ RTS Threshold: „ Receive Antenna: Fig 2-9 12 2.2.3 Site Survey IPN2220 WLAN Utility provides the easy to link “Site Survey” option. This will allow users to connect to Access Point intelligently. By choosing the Site Survey option, you can scan all the channels to find all the Access Points within the range of card. The list includes information about the BSSID and SSID of the access point(s), the Mode (Network Type), whether or not WEP encryption is used, Channel, Signal Strength and Support Rate. In order to update this list, press the “Rescan” button. The “Site Survey” page include, (See Fig 2-10) „ Available Net…

Text truncated - open the document above for the full version.

FCC ID: MCLT60N87100 Report No. RF931027H08 Modular Approval Request Letter Advance Data Technology Nov. 18, 2004 Dear Application Examiner, HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE’s 802.11b/g Mini-PCI, FCC ID: MCLT60N87100, would like to have your authorization as a modular approval specific to the Notebook Computer, Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip IPN2220. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.0VDC powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8801BEEV. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLT60N87100 Report No. RF931027H08 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

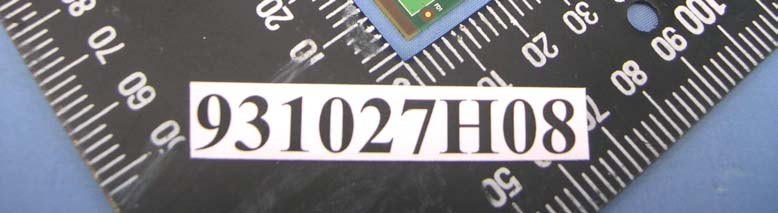

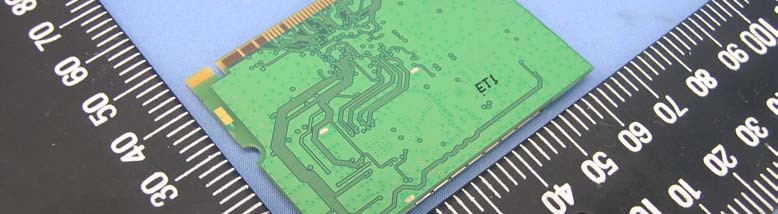

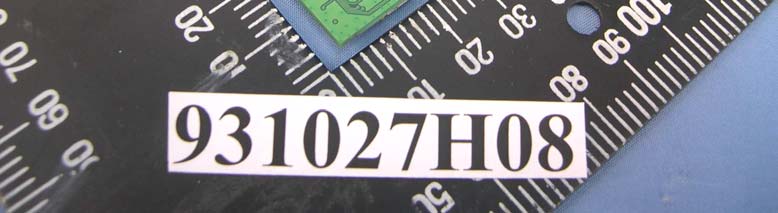

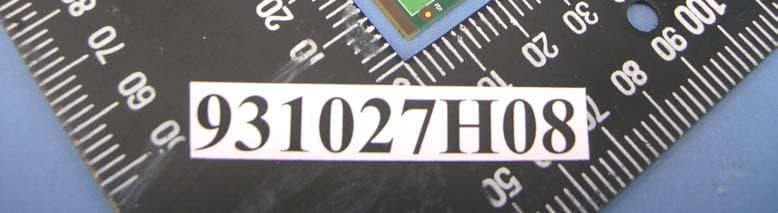

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: MCLT60N87100 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

FCC ID : MCLT60H835 The above is for USA Label drawing.

Page 3 Page 4 Page 5

FCC ID: MCLT60N87100 Report No. RF931027H08 Operational Description This device is an 802.11b/g Mini-PCI, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g Mini-PCI) is powered by host equipment. The antenna type used in this product is Pifa antenna with UFL type connector. The other instruction, please have a look at the users manual.

FCC ID: MCLT60N87100 Report No.: RF931027H081Issued: Nov. 18, 2004 RF EXPOSURE REPORT REPORT NO.: SA931027H08 MODEL NO.: T60N871 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: MCLT60N87100 Report No.: RF931027H082Issued: Nov. 18, 2004 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: MCLT60N87100 Report No.: RF931027H083Issued: Nov. 18, 2004 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: MCLT60N87100 Report No.: RF931027H084Issued: Nov. 18, 2004 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.58489(numeric) 5. Output Power Into Antenna & RF Exposure value at distance 20cm : 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412109.64781960.0345723681.0 62437111.68632480.0352151161.0 112462111.94378830.0352962961.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412178.64875750.0563286221.0 62437181.55156630.0572438891.0 112462177.01089580.0558121981.0

FCC ID: MCLT60N87100 Report No.: RF931027H081Report Format Version 2.0.0 FCC TEST REPORT REPORT NO.:RF931027H08 MODEL NO.:T60N871 RECEIVED:Oct. 29, 2004 TESTED:Nov. 05 to 07, 2004 ISSUED: Nov. 11, 2004 APPLICANT:HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE ADDRESS:5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: MCLT60N87100 Report No.: RF931027H082Report Format Version 2.0.0 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS - DSSS............................................................................. 19 4.2.8TEST RESULTS -OFDM ............................................................................. 22 4.36DB BANDWIDTH MEASUREMENT.......................................................... 25 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 25 4.3.2TEST INSTRUMENTS ................................................................................ 25 4.3.3TEST PROCEDURE ................................................................................... 26 4.3.4TEST SETUP .............................................................................................. 26 4.3.5EUT OPERATING CONDITIONS................................................................ 26 4.3.6TEST RESULTS-DSSS............................................................................... 27 4.3.7TEST RESULTS-OFDM .............................................................................. 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 4.4.5EUT OPERATING CONDITIONS................................................................ 36 FCC ID: MCLT60N87100 Report No.: RF931027H083Report Format Version 2.0.0 4.4.6TEST RESULTS - DSSS............................................................................. 37 4.4.7TEST RESULTS - OFDM ............................................................................ 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS-DSSS............................................................................... 41 4.5.7TEST RESULTS-OFDM ..............................................................…

Text truncated - open the document above for the full version.

FCC ID: MCLT60N87100 Report No.: RF931027H0857Report Format Version 2.0.0 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLT60N87100 Report No.: RF931027H0858Report Format Version 2.0.0 FCC ID: MCLT60N87100 Report No.: RF931027H0859Report Format Version 2.0.0 RADIATED EMISSION TEST FCC ID: MCLT60N87100 Report No.: RF931027H0860Report Format Version 2.0.0
