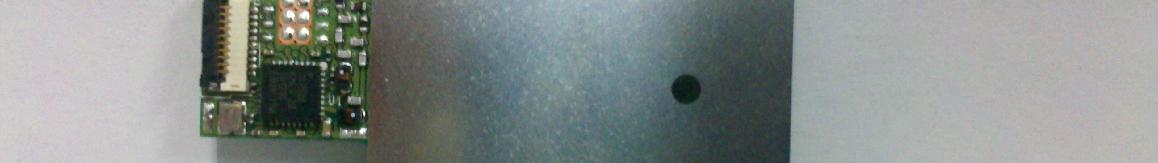

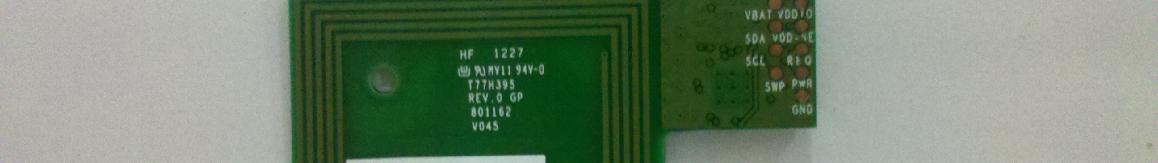

MCLT77H395NFC 13.56MHz RFID transceiver module

COMPANY CONFIDENTIAL 1 T77H395 User Manual Project Name NFC (Near Field Communication) Module Rev. 01 FOXCONN Part No. T77H395 Module Rev. 045 Revision History Revision Date Originator Comment 0.1 2012/07/18 Wei.Liao Initial COMPANY CONFIDENTIAL 2 Content REVISION HISTORY.......................................................................................................................................................1 1. INTRODUCTION..........................................................................................................................................................3 2. NFC STANDARD CONFORMANCE.........................................................................................................................5 3. HARDWARE SPECIFICATION..................................................................................................................................6 4. PRODUCT REQUIREMENTS....................................................................................................................................7 5. INTERFACE OF CONNECTOR.................................................................................................................................7 COMPANY CONFIDENTIAL 3 1. Introduction The T77H395.00 NFC module provides contactless payment, contactless ticketing, service discovery, exchange information etc. This module is based on Broadcom BCM20792S solution, which is integrated NFC subsystem, interfaces, and microprocessor and memory unit. 1.1 Scope The NFC module supports for the ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 Types A, B and B’, Japanese industrial standard (JIS)(X) 6319-4, and ISO/IEC 15693 standards, etc. 1.2 Function • NFC Features - Reader & Writer mode - Peer-to-Peer Communication mode - Card emulation mode • BSC (I 2 C-compatible) for host Interface, support all speed mode: - Low-speed mode (100 kbps) - Fast mode (400 kbps) - High-speed mode (3.4Mbps) • 2-layers PCB printed antenna with 30mmx30mmx0.35mm size and 5 turns design • On board XTAL of 26 MHz (+/- 10ppm) • Option for on board embedded Secure Element (eSE) with 800kBytes flash memory Remark: eSE can be replaced by external SIM memory on platform. • Windows 8 Logo Device Requirement compliant - NFC Forum Wave1 Certification - LLCP - SNEP • RoHS and Green Compliant COMPANY CONFIDENTIAL 4 1.3 Electrical Characteristics Parameter Minimum Typical Maximum Units Frequency Range - 13.56 - MHz VBAT 2.3 - 5.5 V VDD I/O 1.62 - 3.6 V UICC (class C) 1.78 1.88 1.98 V Input Supply Voltage UICC (class B) 2.9 3.1 3.3 V Communication distance 20 - - mm Peer to Peer Communication Speed - - 424 Kbps NFC wake up Wake up NFC module from sleep mode by NFC_WAKE signal via I 2 C command Operating Temperature 0 ~ 70 °C Storage Temperature -20 ~ 85 °C Storage Humidity 0 ~ 85 % COMPANY CONFIDENTIAL 5 2. NFC standard conformance Supported smart card (IC Card) types Read CSN (Card Serial Number) Read/Write application data area Typical operational distance Supported baud rates NFC Forum Type1 Tag Yes Yes 40 106 NFC Forum Type2 Tag Yes Yes 40 106 NFC Forum Type3 Tag Yes Yes 40 212 NFC Forum Type4 Tag Yes Yes 20 106 ISO/IEC 14443 Type A compliance cards Yes Yes 20 106, 212, 424 Mifare Classics 1K,4K No No Mifare DESFire No No Mifare Ultralight Yes Yes Mifare Plus No No (Mifare) SmartMX No No ISO/IEC 14443 Type B compliance cards Yes TBD 20 106, 212, 424 Jyuki (住基 住基住基 住基) cards (*1) issued by Japanese Government TBD TBD FeliCa general card TBD TBD FeliCa Edy card TBD TBD FeliCa Suica card TBD TBD FeliCa PKI Option card TBD TBD HID iCLASS TBD TBD Other card if any Yes Yes 52 Various Other industrial standards and specifications Standard Yes / No Note I 2 C Yes (Mandatory) PC/SC 2.0 Yes (Mandatory) ISO/IEC 18092 (NFCIP-1) Yes (Mandatory) ISO/IEC 15693 Yes (Mandatory) ISO/IEC 21481 (NFCIP-2) Yes (Mandatory) Contact-less EMV Yes PKCS#11 TBD CSP TBD FIPS 201 PIV-II TBD ISO standards at various bit rates ISO/IEC 14443 A and B, Felica, and NFC Forum Modes Standard Reader/Initiator Tag/Target Data Rate (kbps) 106 212 424 106 212 424 ISO/IEC 14443 A v v v v v v ISO/IEC 14443 B v v v v v v ISO/IEC 14443 B - Prime v v v ISO/IEC 18092/ECMA 340 Active v v v v v v ISO/IEC 18092/ECMA 340 Passive v v v v v v JIS(X) 6319-4 FeliCa v v v v COMPANY CONFIDENTIAL 6 3. Hardware Specification 3.1 Antenna Electrical Specification Parameter Typical Units Operating frequency range 13.56 MHz Communication distance > 20 mm 3.2 Antenna smith chart and on board antenna drawing. Network Analyzer used to measure s-parameters of antenna with TDK ferrite and steel plate. Frequency swept from 1 to 101 MHz. Impedance at 13.56MHz = 5.16 + j129 ohms. 3.3 Antenna simulation Reader mode and Tag or Card Emulation frequency response COMPANY CONFIDENTIAL 7 4. Product Requirements 4.1 Hardware Requirements Form factor 42 mm x30mm module with 10-pin FPC connector Host Interface BSC (I 2 C -compatible) interface PCB 4-layer design 4.2 Hardware Architecture The T77H395.00 NFC module is based on Broadcom BCM20792S solution, which is integrated NFC subsystem, interfaces, and microprocessor and memory unit. This module is powered from the host (3.3V) and interfaces to the host with I 2 C signals and with one- printed antennas, one on-board 26 MHz XTAL and option for one Secure Element (eSE) with 800kBytes flash memory. The functional block diagram is shown as below. 5. Interface of Connector Pin definition Pin Symbol I/O Note 1 VBAT Input Power supply from battery (2.3V - 5.5V) 2 VDDIO Input Power supply to I/O (1.62V – 3.6V) 3 VDD_Ext_SE Outpu t Power supply to External Secure Element (1.65V - 1.95V) 4 I 2 C -SDA I/O BSC Serial Data Line, active low 5 I 2 C -SCL I BSC Serial Clock 6 GND G Ground 7 IRQ-NFC O BSC request, active high 8 UIM_PWR Input Power supply to UICC 9 SWP I SWP I/O 0 (Single-Wire Protocol interface) 10 NFC_PRESENCE G Ground S1 GND G Ground S2 GND G Ground COMPANY CONFIDENTIAL 8 6. Test tool and SOP Refer to another docum…
