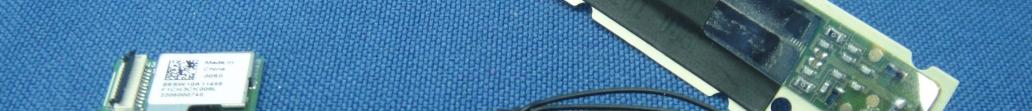

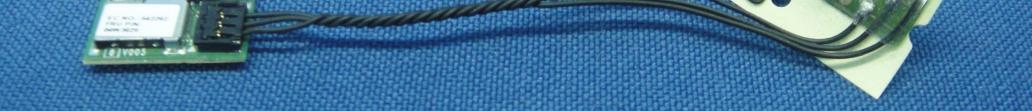

MCLT77H519NFC Module

1 T77H519 NFC Module USER MANUAL Project Name NFC module Revision 00 Foxconn project code T77H519 2 Contents 1. INTRODUCTION ..........................................................................錯誤! 尚未定義書籤。 2. HARDWARE SPECIFICATION .................................................................................... 6 3. PRODUCT REQUIREMENTS ...................................................................................... 6 4. INTERFACE OF CONNECTOR OF NFC MODULE .................................................... 7 5. ANTENNA CONNECTOR OF NFC MODULE.............................................................. 8 6. TEST OPERATING INSTRUCTIONS INFO ................................................................. 9 3 1. Introduction The T77H519 NFC module provides contactless payment, contactless ticketing, service discovery, exchange information etc. This module is based on Broadcom BCM20792M solution, which is integrated NFC subsystem, interfaces, and microprocessor and memory unit. 1.1 Scope The NFC module supports for the ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 Types A, B and B’, Japanese industrial standard (JIS)(X) 6319-4, and ISO/IEC 15693 standards. 1.2 Function • NFC Features - Reader & Writer mode - Peer-to-Peer Communication mode - Card emulation mode • BSC (I 2 C-compatible) and SM bus for host Interface, For I 2 C -Bus support all speed mode: - Low-speed mode (100 kbps) - Fast mode (400 kbps) - High-speed mode (3.4Mbps) • On board XTAL of 26 MHz (+/- 10ppm) • On board embedded Secure Element (eSE) with 800kBytes flash memory(option) • Windows 8x Logo Device Requirement compliant - NFC Forum Wave1 Certification - LLCP (Link Layer Control Protocol) - SNEP (Simple NDEF Exchange Protocol) • RoHS and Green Compliant A. Support Microsoft windows7, Windows 8, Windows 8.1(Blue) platform 4 1.3 Electrical Characteristics Parameter Minimum Typical Maximum Units Frequency Range - 13.56 - MHz VBAT 2.8 3.3 5.5 V VDD I/O 1.62 1.8 3.6 V UICC (class C) 1.78 1.88 1.98 V Input Supply Voltage UICC (class B) 2.9 3.1 3.3 V Reader mode - - 247 mA Writer mode - - 247 mA Peer to peer communication - - 247 mA Polling mode - - 14 mA Target mode - 4.1 - mA Sleep mode - - 7.0 uA Power consumption Snooze standby mode - 94 - uA Communication distance 20 - - mm Peer to Peer Communication Speed - - 424 Kbps NFC wake up Wake up NFC module from sleep mode by NFC_WAKE signal via I 2 C command Operating Temperature 0 ~ 70 °C Storage Temperature -20 ~ 85 °C Storage Humidity 0 ~ 85 % HBM *1 - 2.0K - V ESD Level MM - 200 - V *1 HBM ESD level is base on without ESD protection components on TX1 and TX2. When assemble the ESD protection component, the ESD level can up to 8KV. 5 1.4 BSC (I 2 C -compatible) Characteristics Following are the main features of NFC module I 2 C interface • Slave mode • Low-speed mode (100kbps), fast mode (400kbps), and high-speed mode (3.4Mbps) • 7-bit or 10-bit addressing mode, default boot-up of fixed 7-bit address (0x77), thereafter configurable to 7-bit or 10-bit addresses • Dedicated TX and RX FIFOs, 272 bytes each. BSC Timing waveform I 2 C _REQ is an output signal from the module to the host that it wishes to communicate. The timing diagram as below shows I 2 C _REQ as active high. The I 2 C _REQ signal stays high until after the first byte has been read by the host. I 2 C _REQ timing waveform 6 2. Hardware Specification 2.1 Antenna Electrical Specification Parameter Typical Units Operating frequency range 13.56 MHz Communication distance > 20 mm 3. Product Requirements 3.1 Hardware Requirements of NFC module Form factor 15 mm x15mm module with 11-pin FPC connector Host Interface BSC (I 2 C -compatible) interface PCB 4-layer design 3.2 Hardware Architecture of NFC module The T77H519 NFC module is based on Broadcom BCM20792M solution, which is integrated NFC subsystem, interfaces, and microprocessor and memory unit. This module is powered from the host (3.3V) and interfaces to the host with I 2 C signals and with one- printed antennas, one on-board 26 MHz XTAL and one Secure Element (eSE) with 800kBytes flash memory (option). The functional block diagram is shown as below. 7 4. Interface of Connector of NFC module Manufacturer: JST Manufacturer Part number: 11FHSY-RSM1-GAN-TB(HF) Pin definition Pin Symbol I/O Note 1 VBAT I Power supply from battery (2.8V - 5.5V) 2 VDDIO I Power supply to I/O (1.62V – 3.6V) 3 I 2 C -SDA I/O BSC Serial Data Line, active low 4 I 2 C -SCL I BSC Serial Clock 5 GND G Ground 6 IRQ-NFC O BSC request, active high (Host_Wake) 7 NFC_PRESENCE G Ground 8 REG_UP I NFC Power-on 9 VDD_Ext_SE O Power supply to External Secure Element (1.8V or 3.0V) 10 UIM_PWR I Power supply to UICC (1.78V – 3.3V) 11 SWP I/O SWP I/O 0 (Single-Wire Protocol interface) S1 GND G Ground S2 GND G Ground Remark: The connector is bottom conduct with golden plating of FPC cable Pin 1 Pin 1 8 5. Antenna connector of NFC module Manufacturer: JST Manufacturer Part number: BM03B-ACHKS-GAN-TF(HF) Pin definition Pin Symbol I/O Note 1 TX2 I/O Coil output 2 2 GND G Ground 3 TXI I/O Coil output 1 S1 GND G Ground S2 GND G Ground Top view Pin 1 9 6. Test Operating Instructions Info Please refer to another file named “Test SOP for T77H519 NFC series projects”. COMPANY CONFIDENTIAL Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statemen…
