MCLT77H526802.11ac+802.11abgn + BT4.0+BT3.0+BT2.1/EDR Module

COMPANY CONFIDENTIAL 1 Project Name IEEE802.11 ac/n/a/b/g Bluetooth 4.0 NFC (Near Field Communication) NGFF1216-S3 Card Approval Sheet Rev. 0.2 FOXCONN Part No. T77H526.01 Module Rev. 015 Customer Part No. TBD Prepared by Reviewed by Approved by Wei.Liao Approval Sheet COMPANY CONFIDENTIAL 2 Revision History T77H526.01 is made in China, Manufactured by HongFuJin Precision Industry Co., LTD Manufacture Site: ShenZhen, Chongqing, Nanning http://www.foxconn.com Revision Date Originator Comment 0.1 2013/11/26 Wei.Liao Initial 0.2 2014/03/03 Wei.Liao 1> Add BAW Filter design as option 2> Add RF performance specification 3> Add package type COMPANY CONFIDENTIAL 3 Content REVISION HISTORY.......................................................................................................................................................2 1. INTRODUCTION..........................................................................................................................................................4 2. MODULE HARDWARE OVERVIEW.........................................................................................................................5 3. ELECTRICAL CHARACTERISTICS.........................................................................................................................6 4. MECHANICAL DRAWING..........................................................................................................................................9 5. WLAN RF SPECIFICATION.....................................................................................................................................11 6. REFERENCE PERIPHERAL CIRCUIT..................................................................................................................23 7. SOFTWARE REQUIREMENT..................................................................................................................................26 8. PACKING SPECIFICATION.....................................................................................................................................27 9. ENVIRONMENTAL REQUIREMENTS...................................................................................................................28 10. SOLDERING AND REFLOW CONDITION..........................................................................................................29 COMPANY CONFIDENTIAL 4 1. Introduction The T77H526.01 NGFF1216-S3 Card is based on Marvell 88W8897-B0-CBK2-T solution with WLAN/Bluetooth/NFC functions and provides DSSS and OFDM baseband modulation, MAC, CPU, OTP (one time programmable) memory, host interfaces, power management unit (PMU) and direct conversion WLAN RF radio. 1.1 Scope IEEE 802.11 Standards
802.11 data rates of 1 and 2 Mbps
802.11b data rates of 5.5 and 11 Mbps
802.11a/g data rates of 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11n HT20 with 800ns GI data rates of 6.5, 13, 19.5, 26, 39, 52, 58.5 and 65Mbps
802.11n HT20 with 400ns GI data rates of 7.2,14.4, 21.7, 28.9, 43.3, 57.8, 65 and 72.2Mbps
802.11n HT40 with 800ns GI data rates of 13.5, 27, 40.5, 54, 81, 108, 121.5 and 135Mbps
802.11n HT40 with 400ns GI data rates of 15, 30, 45, 60, 90, 120, 135 and 150Mbps
802.11ac VHT80 with 800ns GI data rates of 29.3, 58.5, 87.8, 117, 175.5, 234, 263.3, 292.5, 351 and 390Mbps
802.11ac VHT80 with 400ns GI data rates of 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390 and 433.3Mbps
802.11n up to 144.4Mbps (20 MHz), 300Mbps (40 MHz) for 2X2 MIMO.
802.11ac up to 173.3Mbps (20 MHz), 400Mbps (40 MHz), 866.7Mbps (80 MHz) for 2X2 MIMO. Bluetooth
Bluetooth 4.0 + HS
Bluetooth Class 2
Bluetooth Class 1
Baseband and radio BDR and EDR packet types—1 Mbps (GFSK), 2 Mbps (π /4- DQPSK), and 3 Mbps (8DPSK)
Supports Low Energy (LE) NFC (Near field communication)
Full protocol support ISO 14443A/B, ISO 18092, ISO 15693,NFCIP-1, NFC Forum, EMV contactless targets with data rates up to 848Kbps.
Support Reader/Writer, Card Emulation, and Peer-to-Peer (P2P) modes. COMPANY CONFIDENTIAL 5 2. Module Hardware Overview Block Diagram Features
IEEE802.11a/b/g/n /ac (2X2 MIMO) + BT4.0 + NFC Module.
2.4GHz + 5GHz bands RF interface.
Host interface for WLAN, Bluetooth and NFC Configure from platform.
PCIE M.2 Type 1216-S3 card with 76 pins Soldered down solution Module.
+3.3V +/- 5% supply power from host platform for VBAT.
+1.8V +/- 5% supply power from host platform for digital IO SDIO.

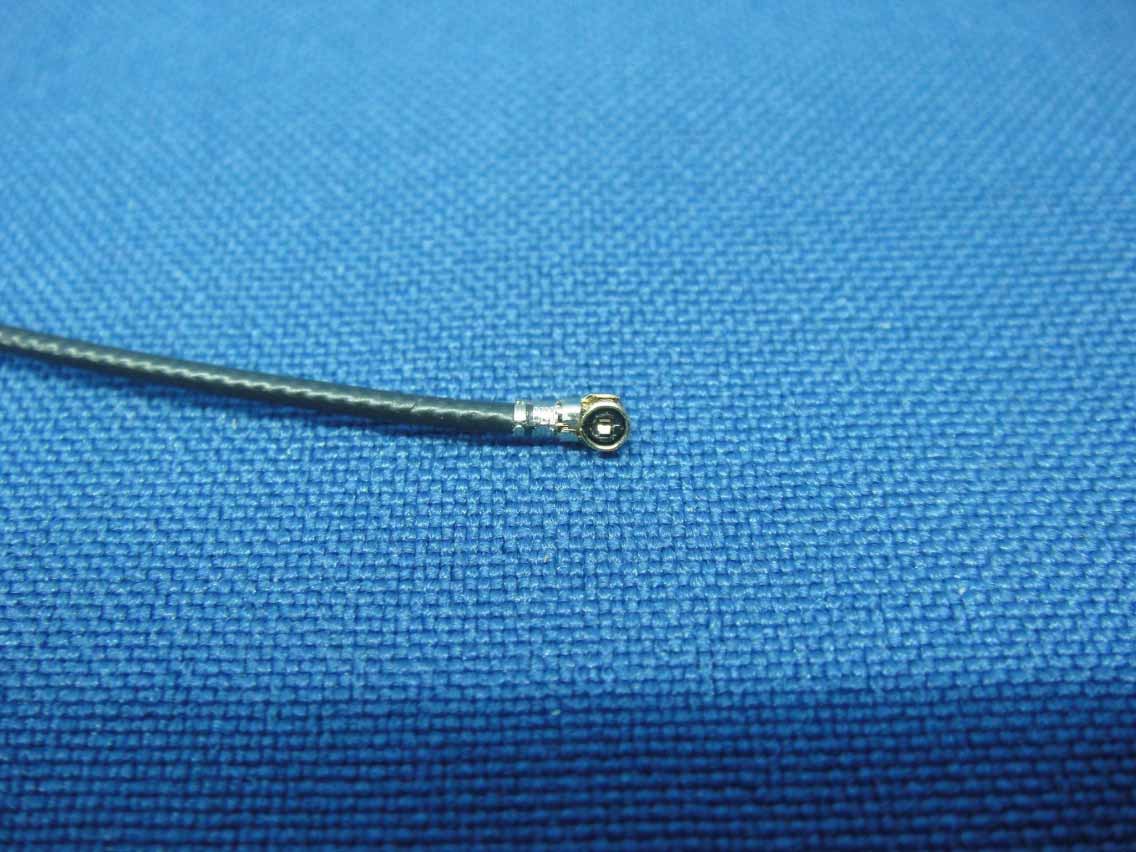

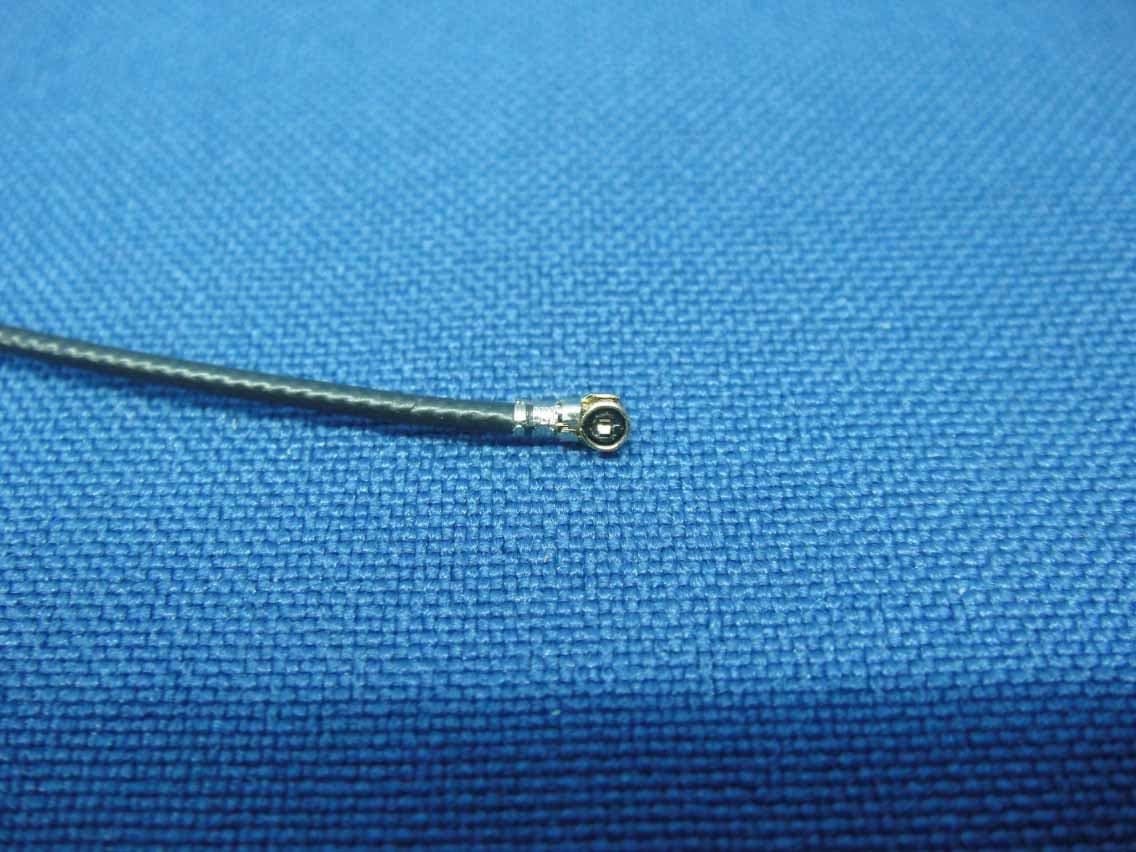

Two RF micro-coaxial connectors (2.0mmx2.0mm), One for Wi-Fi1 antenna port, Another antenna port shared by Wi-Fi2 and BT
Uses MRVL 88W8897 integrated OTP memory instead of external EEPROM.
Use LGA PAD connects for NFC external antenna.
Provide coexistence interface for connecting to an external LTE (Long Term Evolution) device.
RoHS and Green Compliant. COMPANY CONFIDENTIAL 6 3. Electrical Characteristics 3.1 DC Characteristics (recommended operating rating) Parameter Minimum Typical Maximum Units +3.3V (Analog power supply) 2.97 3.3 3.63 V +3.3V_USB (USB power supply) 2.97 3.3 3.63 V 2.97 3.3 3.63 V +VIO (Digital I/O power supply) 1.62 1.8 1.98 V VIO_SD (Digital I/O SDIO power supply) 1.62 1.8 1.98 V Storage Temperature -30 ~ +85 °C Storage Humidity 0 ~ 90 % Operation Temperature 0 ~ 60 °C HBM - 1.0K - V ESD Level MM - 200 - V 3.3 Host interface Configure table Configuration WLAN BT / NFC BTAMPS CONFIG_HOST [3:0] = b1111 PCIE UART N/A CONFIG_HOST [3:0] = b1110 PCIE USB USB CONFIG_HOST [3:0] = b1101 SDIO UART SDIO CONFIG_HOST [3:0] = b0111 SDIO SDIO SDIO CONFIG_HOST [3:0] = b0110 USB USB USB CONFIG_HOST [3:0] = b0010 USB UART USB PCIe Interface The 88W8897 PCI Express Interface Unit (PCIe) functions as a PCI Express endpoint device that conforms to the following standards:
PCI Express Base Specification, Revision 3.0
PCI Express Card Electromechanical Specification, Revision 1.1
PCI Express Bus Power Management Interface Specification, Revision 1.2
PCI Express Mini Card E…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Date: 2014/6/24 GENERAL DECLARATION We, HON HAI PRECISION IND. CO., LTD. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: MCLT77H526 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Declaration for DFS client devices Date: 2014/6/24 FCC ID: MCLT77H526 Dear Examiner: Per KDB# 848637, We, Hon Hai PRECISION IND.CO.,LTD declare that following description truly represent our product in consideration. Please do not hesitate to contact us, if further info is required. Thanks. a). A channel/frequency plan for the device showing the channels that have active scanning or passive scanning. Active scanning is where the device can transmit a probe (beacon) and passive scanning is where the device can listen only without probes. Below is the channel / frequency plan for the device b). For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) or in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies), or modular devices that configure the modes of operations through software; the applicant must provide in the application software and operations description that discuss how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by an end user or an installer. Also, include an attestation that the device complies with the requirements for software configuration control as discussed in KDB #594280. On DFS channels, the WLAN driver on the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. As described in the answer to question a, CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 24172422 24272432243724422447 2452 24572462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 48 52 54 56 58 60 Frequency (MHz) 5180 51905200 52105220524052605270 5280 52905300 Scan Type Active Active Active Active Active ActivePassivePassive Passive PassivePassive CH 62 64 Frequency (MHz) 5310 5320 Scan Type Passive Passive CH 100 102 104 106 108 110 112 116 132 134 136 Frequency (MHz) 5500 55105520 55305540555055605580 5660 56705680 Scan Type Passive Passive Passive PassivePassivePassivePassivePassive Passive PassivePassive CH 140 Frequency (MHz) 5700 Scan Type Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 57555765 57755785579558055825 Scan Type Active Active Active Active Active Active Active Active the device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is locked by proprietary password and cannot be changed or modified by end user. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Date: July 10, 2014 Confidentiality Request FCC ID: MCLT77H526 Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until Oct. 15, 2014 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo Thank you! Sincerely yours, ------------------------------------------------------- Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Date:2014/6/24 FCC ID: MCLT77H526 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operating Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. AGENCY AUTHORIZATION LETTER Date: 2014/6/24 To whom it may concern: We, the undersigned, , HON HAI PRECISION IND. CO., LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C+15E approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

FCC ID: MCLT77H526 Report No.: RF140606E01 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch July 15, 2014 Dear Application Examiner, Hon Hai PRECISION IND.CO.,LTD., 802.11ac+802.11abgn + BT4.0+BT3.0+BT2.1/EDR Module, FCC ID: MCLT77H526, would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip 88W8897. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is 88W8897. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

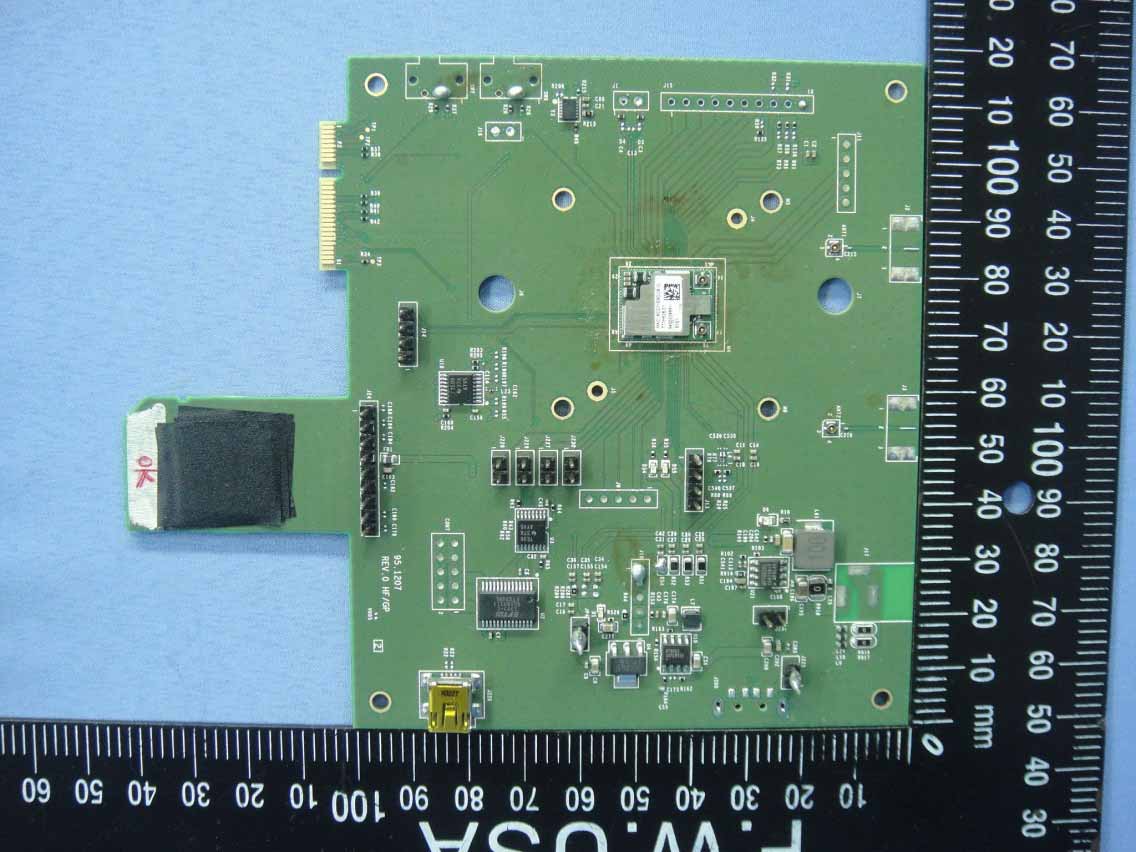

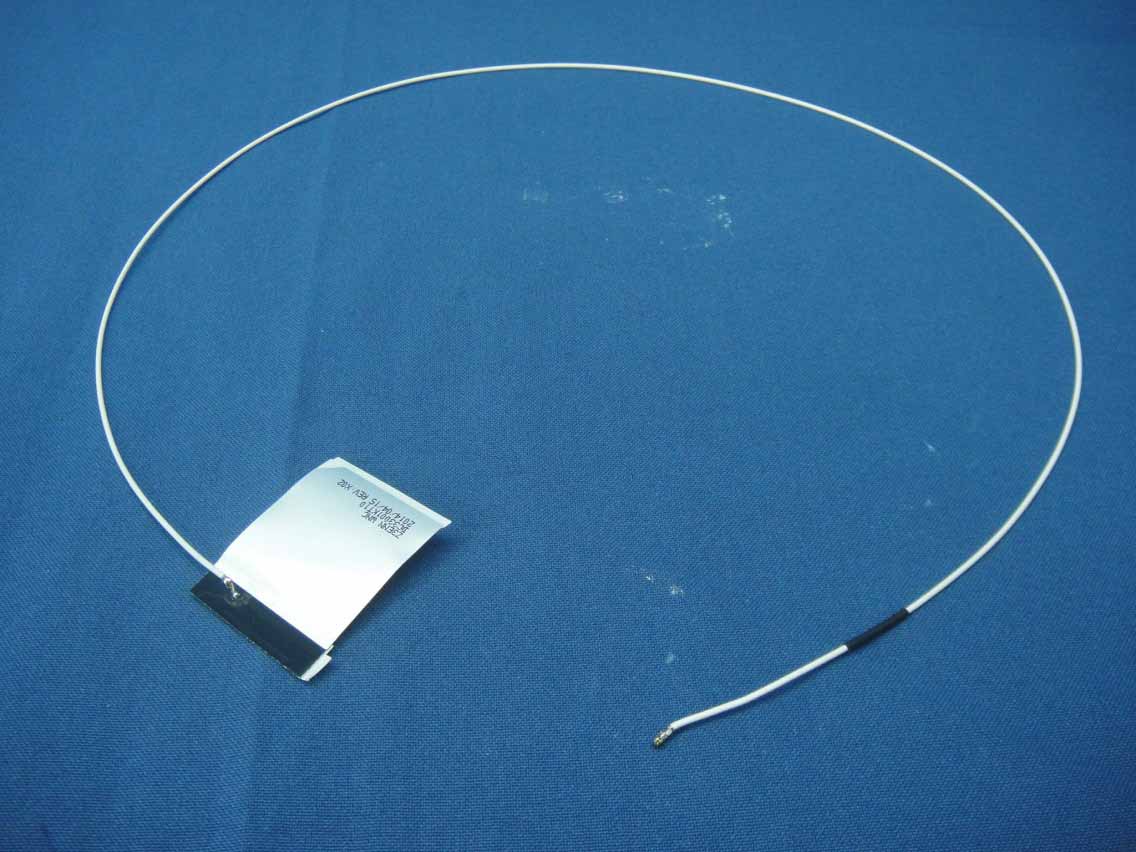

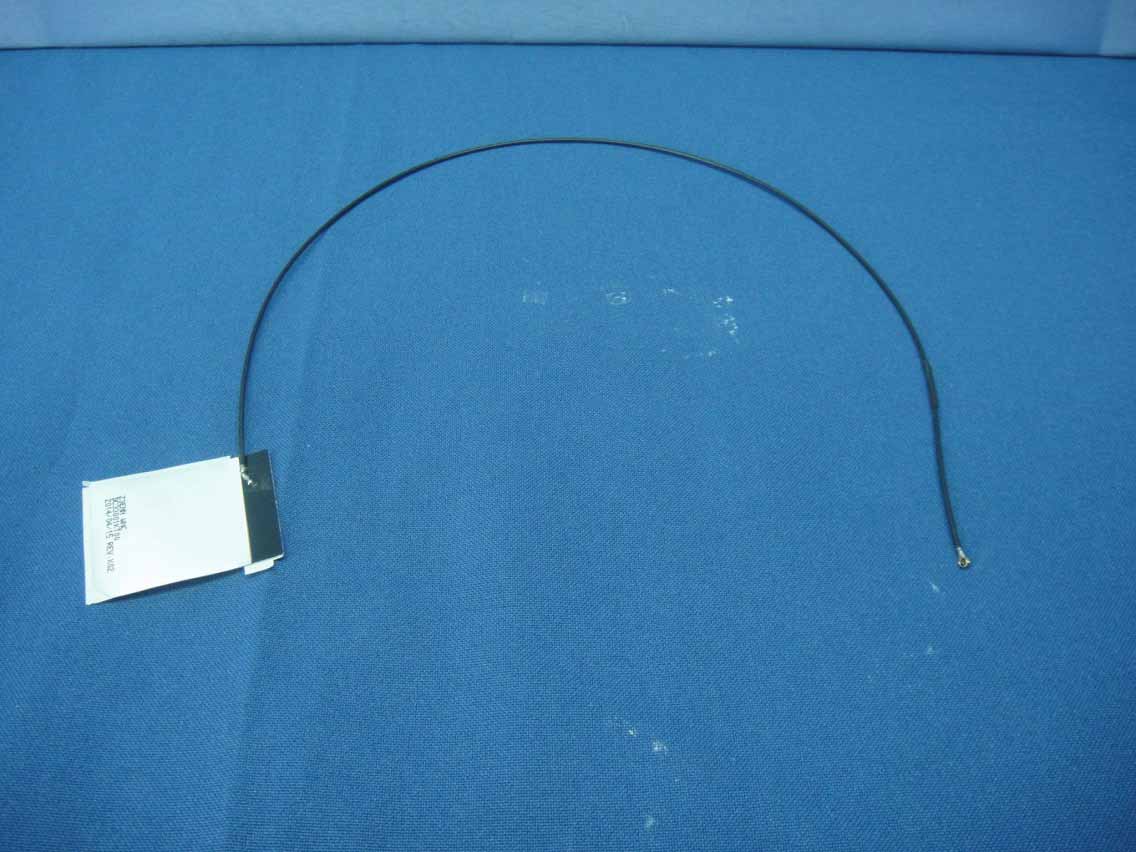

Report No.: 140606E01 Page 1 CONSTRUCTION PHOTOS OF EUT EUT Report No.: 140606E01 Page 4 Report No.: 140606E01 Page 5 Report No.: 140606E01 Page 6 Report No.: 140606E01 Page 7

(Fig. 1) FCC ID: MCLT77H526 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label IC: 2878D-T77H526

Report No.: 140606E01 Page 2 Report No.: 140606E01 Page 3

Report No.: SA140606E01 1 of 9 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140606E01 MODEL NO.: T77H526 FCC ID: MCLT77H526 RECEIVED:June 06, 2014 TESTED:July 01 to 02, 2014 ISSUED:July 09, 2014 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1, Hsin-An Road, Hsinchu, Science Industrial Park, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA140606E01 2 of 9 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 7 Report No.: SA140606E01 3 of 9 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140606E01 Original release July 09, 2014 Report No.: SA140606E01 5 of 9 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA140606E01 6 of 9 Report Format Version 5.0.0 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Antenna No. Transmitter Circuit Brand Model Antenna Gain(dBi) <include cable loss> Cable Loss (dB) Frequency range (MHz to MHz) Antenna Type Connecter Type Cable Length (mm) 1 Chain (0) Wistron Neweb Corporation DC33001KT00 (Main port) 1.54 1.38 2400~2500 PIFA I-PEX 363 1.26 1.98 5150~5350 0.57 2.04 5470~5725 1.23 2.08 5725~5850 2 Chain (1) Wistron Neweb Corporation DC33001KT10 (Aux port) 0.63 2.13 2400~2500 PIFA I-PEX 593 0.16 3.11 5150~5350 0.35 3.21 5470~5725 1.84 3.27 5725~5850 Report No.: SA140606E01 7 of 9 Report Format Version 5.0.0 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) 802.11b FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 113.018 4.11 20 0.05793 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 4.11dBi. 802.11g FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 606.691 4.11 20 0.31095 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 4.11dBi. 802.11n (HT20) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 603.594 4.11 20 0.30937 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 4.11dBi. 802.11n (HT40) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2422 - 2452 472.94 4.11 20 0.24240 1.00 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 4.11dBi. Report No.: SA140606E01 8 of 9 Report Format Version 5.0.0 For WLAN: 15.407(5GHz) 802.11a FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 5180 - 5240, 5260 - 5320, 5500 – 5700 & 5745 - 5825 56.013 4.55 …

Text truncated - open the document above for the full version.

Report No.: RF140606E01-3 1 of 29 Report Format Version 5.2.0 DFS TEST REPORT REPORT NO.: RF140606E01-3 MODEL NO.: T77H526 FCC ID: MCLT77H526 RECEIVED: June 06, 2014 TESTED: June 30, 2014 ISSUED: July 09, 2014 APPLICANT: Hon Hai PRECISION IND.CO.,LTD. ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140606E01-3 2 of 29 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. EUT INFORMATION ................................................................................................. 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT ..................................... 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ....................................................... 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT ..................................... 5 2.4 EUT MAXIMUM CONDUCTED POWER .................................................................. 6 2.5 EUT MAXIMUM EIRP POWER ................................................................................ 7 2.6 TRANSMIT POWER CONTROL (TPC) .................................................................... 8 2.7 STATEMENT OF MAUNFACTURER ....................................................................... 8 3. U-NII DFS RULE REQUIREMENTS ........................................................................ 9 3.1 WORKING MODES AND REQUIRED TEST ITEMS ............................................... 9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ............................................ 11 4. TEST & SUPPORT EQUIPMENT LIST .................................................................. 15 4.1 TEST INSTRUMENTS ........................................................................................... 15 4.2 DESCRIPTION OF SUPPORT UNITS ................................................................... 15 5. TEST PROCEDURE .............................................................................................. 16 5.1 BVADT DFS MEASUREMENT SYSTEM: .............................................................. 16 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: ................................ 17 5.3 DEVIATION FROM TEST STANDARD .................................................................. 18 5.4 CONDUCTED TEST SETUP CONFIGURATION ................................................... 18 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .................................................. 18 6. TEST RESULTS ..................................................................................................... 19 6.1 SUMMARY OF TEST RESULTS ............................................................................ 19 6.2 DETAILED TEST RESULTS ................................................................................... 20 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. ................................................................................................................... 20 6.2.1.1 DFS DETECTION THRESHOLD ........................................................................... 20 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME.................. 21 6.2.1.3 NON- OCCUPANCY PERIOD ................................................................................ 22 6.2.1.4 NON-ASSOCIATED TEST ..................................................................................... 24 6.2.1.5 NON- CO-CHANNEL TEST .................................................................................... 24 7. INFORMATION ON THE TESTING LABORATORIES ........................................... 25 8. APPENDIX-A .......................................................................................................... 26 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ...................................................................................... 29 Report No.: RF140606E01-3 3 of 29 Report Format Version 5.2.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF140606E01-3 Original release July 09, 2014 Report No.: RF140606E01-3 5 of 29 Report Format Version 5.2.0 2. EUT INFORM…

Text truncated - open the document above for the full version.

Report No.: RF140606E01-2 1 of 84 Report Format Version 5.2.0 FCC TEST REPORT (BLUETOOTH/DTS) REPORT NO.: RF140606E01-2 MODEL NO.: T77H526 FCC ID: MCLT77H526 RECEIVED: June 06, 2014 TESTED: June 18 to July 02, 2014 ISSUED: July 09, 2014 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1, Hsin-An Road, Hsinchu, Science Industrial Park, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140606E01-2 2 of 84 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 5 1 CERTIFICATION ...................................................................................................................... 6 2 SUMMARY OF TEST RESULTS ............................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ........................................................................................... 9 3 GENERAL INFORMATION ................................…
