MCLT77N128QUAD-BAND GSM/GPRS/EDGE AND TRI-BAND WCDMA/HSDPA/HSUPA MODULE

FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user„s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure Information This device meets the government‟s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Maximum antenna gain allowed for use with this device is -0.66 dBi. When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: MCLT77N128”  User Manual 1. Insets the devide into the standard PCIe connector of host device (NB/Net-Book/E-Book.) 2. Fix the device following host device‟s design , for example , with SCREW or other fixture tools . 3. Assemble the Main and Aux antenna cable . Take the antenna cable from host device and link the connector with the connector on device .Press and make sure connection ok . 4. Make sure to insert the U-SIM card into host device . 5. Then you can power on host device and check the connection with module device .

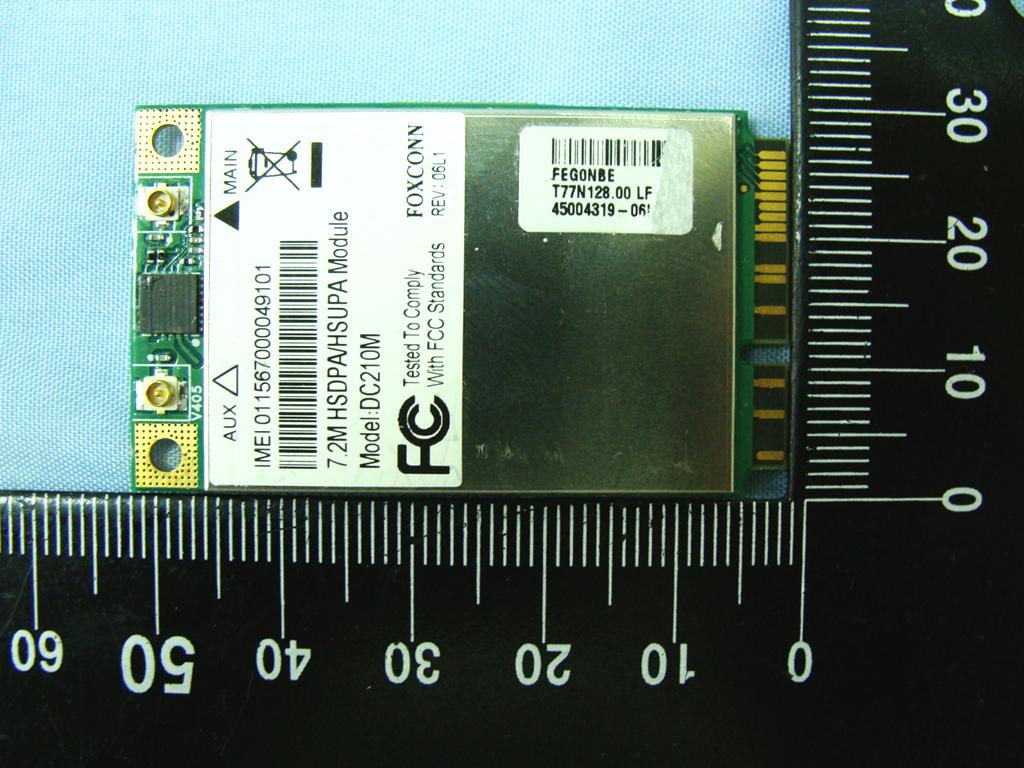

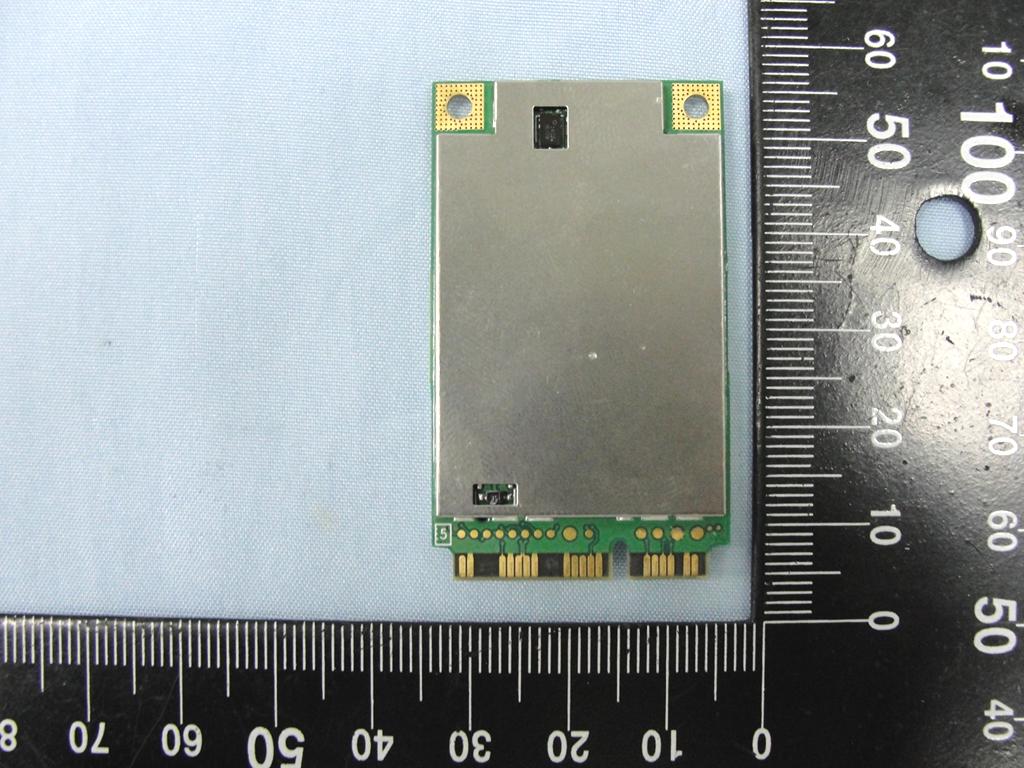

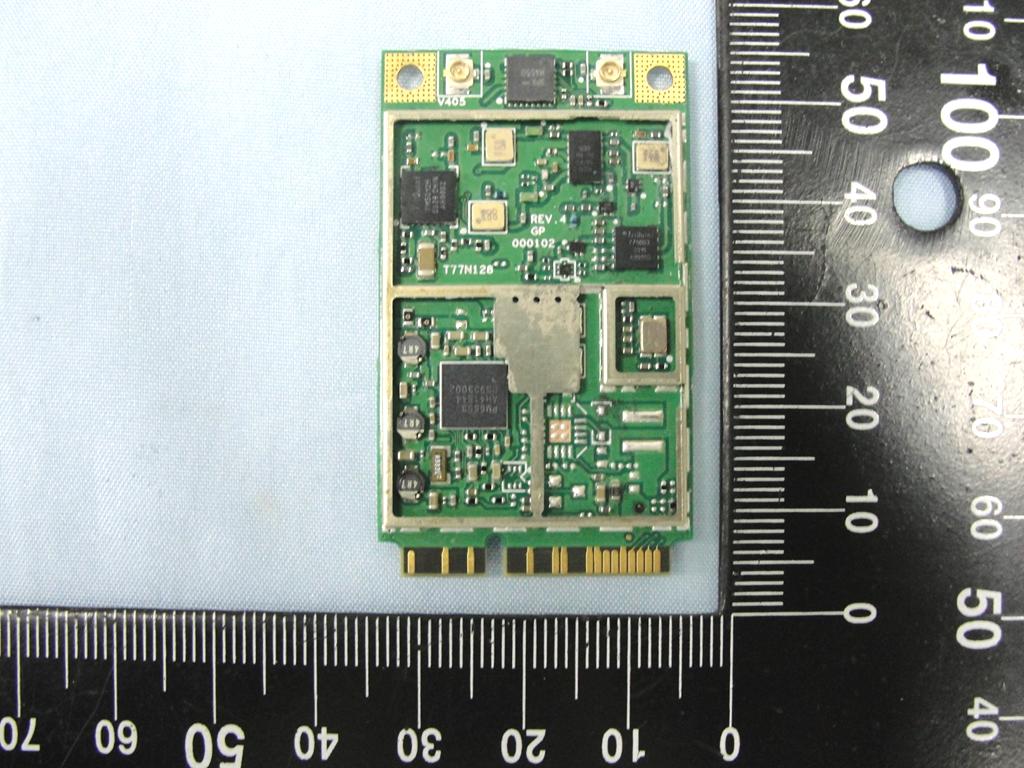

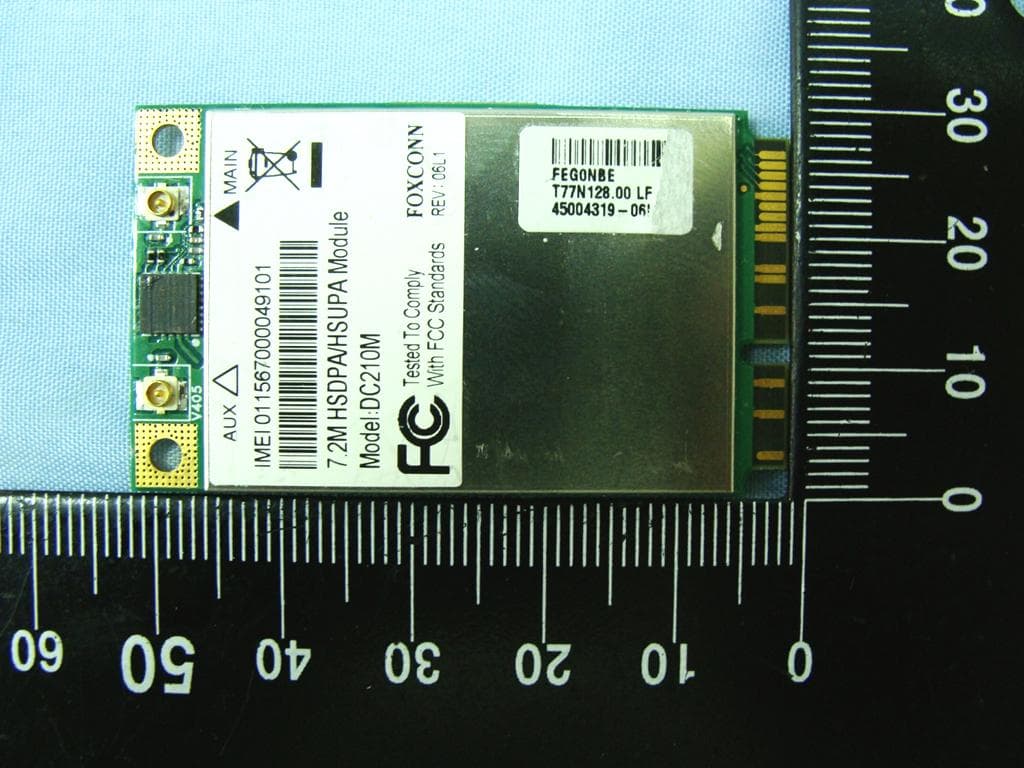

Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 720510

DC210M Label Proposal– 2009.12.07 ¾ Label for top side.PTT Label Paste Location. Note:1ill0# FOXCONN Label 1 :Mater i a l :M yl ar 5 0# 2:Size:28x19mm3.P/N:503.00548.005Label printing definition: 1.Size:13*8mm2.Material: art paper3.Printing definition follows FOXCONN Label printing definition: 1.Font: Arial2.Fong height: 5pt3 Barcode: Code 93 High Density FOXCONN CONFIDENTIAL follows FOXCONN Standards 3 . Barcode: Code 93 , High Density 4.Barcode height; 3mm

090305 Blank label T77N128.00 503.00548.005 Jack Ren 50# Mylar 1 Linda Qin AUXMAIN IMEI 01156700/yyyyyy/z 7.2M HSDPA/HSUPA Module Model: DC210M FCC ID: MCLT77N128 FOXCONNREV: VVSS 091207 King Linda Qin N/A Add FCC ID: MCLT77N128 28mm 19mm Notes: 1.Barcode: Code 93, High Density. 2.Barcode height :3mm 3.Font: A rial 4.Font height: 5pt 5.WEEE Logo height: 6mm 6.Triangle height: 2.2mm 7.Vendor: Cymmetrik or Everything

Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 Photographs of EUT Report No.: EP982203 Model Name: DC210M SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 RF Exposure Evaluation Report Report No. : FA982203 RF Exposure Evaluation Report APPLICANT : HON HAI PRECISION IND., LTD. EQUIPMENT : Quad-Band GSM/GPRS/EDGE and Tri-Band WCDMA/HSDPA/HSUPA Module BRAND NAME : Foxconn MODEL NAME : DC210M FCC ID : MCLT77N128 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 RF Exposure Evaluation Report Report No. : FA982203 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. INTRODUCTION .......................................................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 RF Exposure Evaluation Report Report No. : FA982203 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA982203 Rev. 01 Initial issue of report Dec. 11, 2009 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 RF Exposure Evaluation Report Report No. : FA982203 1. Introduction The report has been prepared on behalf of HON HAI PRECISION IND., LTD. Quad-Band GSM/GPRS/EDGE and Tri-Band WCDMA/HSDPA/HSUPA Module to show compliance with the RF Exposure.  Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Foxconn DC210M is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 RF Exposure Evaluation Report Report No. : FA982203  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 68 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 FCC RF Test Report Report No. : FG982203 FCC RF Test Report APPLICANT : HON HAI PRECISION IND., LTD. EQUIPMENT : Quad-Band GSM/GPRS/EDGE and Tri-Band WCDMA/HSDPA/HSUPA Module BRAND NAME : Foxconn MODEL NAME : DC210M FCC ID : MCLT77N128 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz WCDMA Band V : 826.4 ~ 846.6 MHz / 871.4 ~ 891.6 MHz WCDMA Band II : 1852.4 ~ 1907.6 MHz / 1932.4 ~ 1987.6 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 8) : 0.55 W GSM850 (EDGE 8) : 0.42 W GSM1900 (GPRS 8) : 0.65 W GSM1900 (EDGE 8) : 0.32 W WCDMA Band V (RMC 12.2Kbps) : 0.12 W WCDMA Band II (RMC 12.2Kbps) : 0.11 W EMISSION DESIGNATOR : GMSK : 246KGXW 8PSK : 246KG7W QPSK : 4M18F9W The product was received on Aug. 22, 2009 and completely tested on Dec. 10, 2009. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 68 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 FCC RF Test Report Report No. : FG982203 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 6 1.4 Testing Site........................................................................................................................................ 7 1.5 Applied Standards ............................................................................................................................. 7 1.6 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................ 9 3 TEST RESULT ........................................................................................................................................... 10 3.1 Conducted Output Power Measurement ......................................................................................... 10 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 12 3.3 Occupied Bandwidth Measurement ................................................................................................ 18 3.4 Band Edge Measurement ................................................................................................................ 25 3.5 Conducted Emission Measurement ................................................................................................ 32 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 48 3.7 Frequency Stability Measurement ................................................................................................... 62 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 66 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 67 6 CERTIFICATION OF TAF ACCREDITATION .......................................................................................... 68 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 68 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 FCC RF Test Report Report No. : FG982203 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG982203 Rev. 01 Initial issue of report Dec. 11, 2009 SPORTON INTERNATIONAL INC. Page Number : 4 of 68 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 FCC RF Test Report Report No. : FG982203 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 N/A Conducted Output Power N/A PASS 3.2 §22.913(a)(2) RSS-132(4.4) SRSP-503(5.1.3) Effective Radiated Power < 7 Watts PASS - 3.2 §24.232(c) RSS-133 (6.4) SRSP-510(5…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 FCC RF Test Report Report No. : FG982203 Appendix B. Setup Photographs <Radiated Emission> Front View Rear View SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Dec. 11, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MCLT77N128 FCC RF Test Report Report No. : FG982203 Remote View
