MCLU58H002Cisco Wireless IP Phone 7920

DRAFT - CISCO CONFIDENTIAL Corporate Headquarters: Copyright © 2003 Cisco Systems, Inc. All rights reserved. Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA Regulatory Compliance and Safety Information for the Cisco 7920 Wireless IP Phone Safety Information Follow the guidelines in this section to ensure proper operation and safe use of the client adapter. FCC Safety Compliance Statement The Federal Communications Commission (FCC), with its action in ET Docket 93-62, has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC-certified equipment. The Cisco 7920 Wireless IP Phone meets the uncontrolled environmental limits as stated in OET-65C (01-01) when operated in accordance with the operation guidelines described in this manual. Proper operation of this radio device according to the instructions in this publication will result in user exposure substantially below the FCC recommended limits. Safety Guidelines •Do not touch or move the antenna while the unit is transmitting or receiving. •Do not hold any component containing a radio such that the antenna is very close to or touching any exposed parts of the body, especially the face or eyes, while transmitting. •Do not operate the radio or attempt to transmit data unless the antenna is connected; otherwise, the radio may be damaged. •Use in specific environments: –The use of wireless devices in hazardous locations is limited to the constraints posed by the safety directors of such environments. –The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA). –The use of wireless devices in hospitals is restricted to the limits set forth by each hospital. DRAFT - CISCO CONFIDENTIAL 2 Regulatory Compliance and Safety Information for the Cisco 7920 Wireless IP Phone 78-15421-01 Safety Information Safety Notices These safety notices apply to the Cisco 7920 Wireless IP Phone. Please read the following sections before installing or using your Cisco 7920 Wireless IP Phone. WarningThis warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. WarningRead the installation instructions before you connect the product to its power source. WarningUltimate disposal of this product should be handled according to all national laws and regulations. WarningDo not work on the system or connect or disconnect cables or chargers during periods of lightning activity. WarningThis equipment is not designed for making emergency telephony calls when the power fails. Alternative arrangements should be made for access to emergency services. Access to emergency services can be affected by any call-barring function of this equipment. Battery Safety Notices These battery safety notices apply to the batteries that are approved by the Cisco 7920 Wireless IP Phone manufacturer. •The battery pack is intended for use only with this device. •Do not disassemble the pack. •Do not dispose of the battery pack in fire or water. •To avoid risk of fire, burns, or damage to your battery pack, do not allow a metal object to touch the battery contacts. •Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte, wash the exposed area with soap and water. If the electrolyte has come in contact the eye, flush the eye with water for 15 minutes and seek medical attention. •Do not charge the battery pack if the ambient temperature exceeds 104 degrees Fahrenheit (40 degrees Celsius). •To obtain a replacement battery, contact your local dealer. •Do not expose the battery pack to high storage temperatures (above 140 degrees Fahrenheit, 60 degrees Celsius). •When discarding a battery pack, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries. DRAFT - CISCO CONFIDENTIAL 3 Regulatory Compliance and Safety Information for the Cisco 7920 Wireless IP Phone 78-15421-01 Regulatory Compliance WarningThere is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Regulatory Compliance The Cisco 7920 Wireless IP Phone meets the regulatory compliance and safety standards listed in Tab le 1 SAR Statement The Cisco 7920 Wireless IP Phone handset has been tested for body-worn Specific Absorption Rate (SAR) compliance using the specific belt-clip/holster configuration provided with the handset. The FCC has established the detailed body-worn SAR requirements and has established that these requirements have been met with the specific belt-clip/holster provided with the handset. Other belt-clip/holsters or similar accessories that have not been tested may not comply and therefore should be avoided. Table 1Regulatory Compliance and Safety Standards Regulatory ComplianceStandard Safety •UL 60950 3rd •CSA 22.2 No.950-95 •EN 60950 Second Ed., including Amendments 1-4 with all national deviations EMC/EMI •EN55022-Class B •FCC Part 15.107 & 15.109 Class B •ICES-003 Class B •AS/NZS 3548 Class B •EN55024 •VCCI Class B •EN 301489-1/17 Radio USA •FCC Part 15.247 Canada •RSS-210 Rev 5 Japan •TELEC T66 & 33 EU •EN 300.328 RF Exposure •OET-65C (01-01) •ANSI C95.1 (91) •RSS-102 •AS/NZS 2772 DRAFT - CISCO CONFIDENTIAL 4 Regulatory Compliance and Safety Information for the Cisco 7920 Wireless IP Phone 78-15421-01 Regulatory Compliance RF Exposure Information The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. This model meets the applicable government requirements for exposure to radio …

Text truncated - open the document above for the full version.

FCC Confidential (2455x3420x256 jpeg)

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME :Cisco Wireless IP Phone 7920 MODEL NO : CP-7920 TRADE NAME : Cisco IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920106H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: AMBIT Microsystems Corporation Company name: Cisco Systems, Inc. Address: 5F-1, 5,Hsin-An Road Hsinchu Science-Based Industrial Park, Taiwan, R.O.C Address: 170 W. Tasman Dr. San Jose, CA 95134 USA Contact Person: Ronnie Cheng Contact Person: Tom Lindeland Title: Section Manager Title: Mgr, Hardware Engineering Tel/Fax: Tel:886-2-3367-6511 Fax:886-2- Tel/Fax Tel: 408 902-8296 Fax: 408-902-8387

FCC POA (2363x3161x256 jpeg)

From: [email protected] Sent: Friday, April 18, 2003 1:16 AM To: [email protected] Cc: [email protected]; [email protected]; [email protected]; [email protected] Subject: MCLU58H002 Comments Hi, Bill, For your questions in the attached comment: 9)~11): You can see the revised SAR report in the attached files. 5) You can see the revised DoC letter in the attached file. **There are something wrong with our internet. So we give you the revised file by e-mail. If you have any further question, please contact with us! Thanks! (See attached file: TestRpt-SAR-2_MCLU58H002-revised.pdf)(See attached file: TestRpt-SAR-1_MCLU58H002-revised.pdf)(See attached file: CoverLetter-DoC_MCLU58H002-revised.pdf) Best Regards, Amanda Chu / ???(Embedded image moved to file: pic10465.gif) ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Alan Lane(?? ?/?????) ???? Amanda Chu/ADT@ADT, Bruce Shiau/ADT@ADT ????? 2003/04/03 ??? MCLU58H002 Comments 01:58 AM ----- ??? Alan Lane/ADT ? 2003/04/03 01:58 AM ----- "William Graff" <whgraff@americ ???? "Alan Lane" <[email protected]>, <[email protected]> anTCB.com> ????? ??? MCLU58H002 Comments 2003/04/03 01:34 AM Gentlemen, Please see attached comments. Bill ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff, NARTE Certified ~ President and Director of Engineering ~ AmericanTCB, Inc. ~ 6731 Whittier Ave. ~ McLean, VA 22101 ~ mailto:[email protected] ~ mobile mailto:[email protected] ~ Direct Phone: (480)317-0683 ~ Direct Mobile: (602)790-6788 ~ Corporate Phone: (703)847-4700 ~ Corporate FAX: (703)847-6888 ~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ (See attached file: ATCB Comments 04022003.pdf)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 2, 2003 RE: Ambit Microsystems Corporation FCC ID: MCLU58H002 I have a few comments on this Application. 1.) This equipment is an RF category “Portable” device used at a distance less than 2.5cm to the head with an RF power output in excess of 60mW/f(GHz). Therefore, a SAR evaluation will be required and not an MPE estimation. Why was MPE estimation included in addition to SAR report? 2.) Please better segregate photos into Exterior views, and Interior views. Please also note the ATCB website has separate “pigeon holes” for inside and outside photographs. 3.) Manual does not have language prohibiting modifications as specified in 15.21. 4.) Manual has a reference to a module. For clarity, this should be removed unless Applicant is seeking approval for an RF module. 5.) The DofC attestation is unsatisfactory. The name and address of a US based representative is required. 6.) The operational description will have to be revised. It is not possible for a user to maintain 20cm distance with a held-to-the-ear phone. 7.) The SAR report supplied is incomplete. No plots of any kind were included. Last page included of the SAR report is pp. 16. 8.) Antenna gain claimed in Test Report is 1dBi. This is quite different than that quoted in MPE estimation. 9.) This device is small enough to be slipped into the pocket. Therefore body SAR results must be included 10.) Is there a belt clip or holster associated with this device? If so body SAR must be tested with these devices. 11.) Are their any other accessories (multiple battery configurations, earphones, cameras) which can be included with this device? If so they must be included in the SAR report and listed in the manual. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. l Page 2 April 2, 2003 Any questions about the content of this correspondence should be directed to the sender.

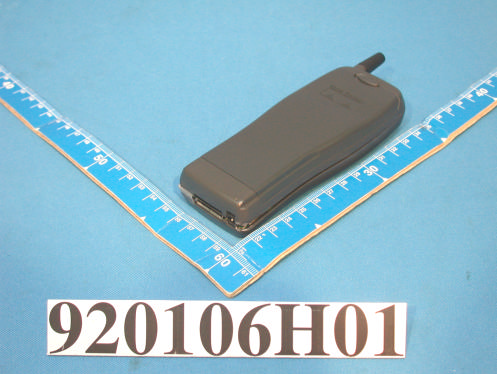

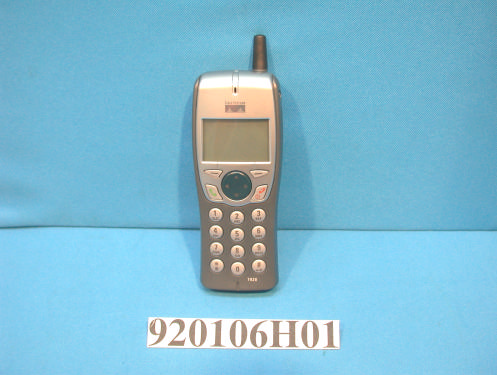

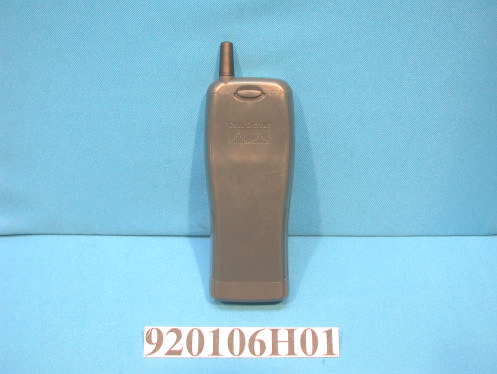

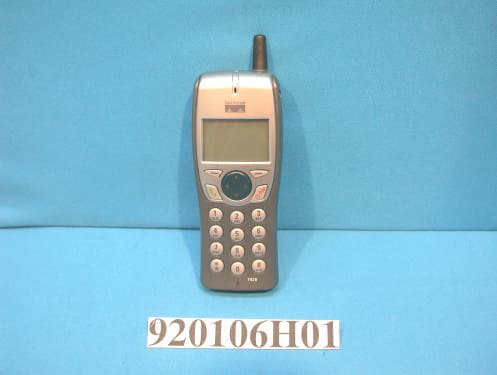

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

(Fig. 1) FCC ID:MCLU58H002 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17

FCC ID: MCLU58H002 ADT No.920106H01 Operational Description The transmitter of the EUT, Cisco Wireless IP Phone 7920, is powered by power adapter, charger and batteries. The antenna is Dipole Antenna without connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: MCLU58H002 Report No.: SA920106H01 1 Issued: April 17 th 2003 SAR TEST REPORT REPORT NO.: SA920106H01 MODEL NO.: CP-7920 RECEIVED: Feb. 08, 2003 TESTED: Feb. 11, 2003 & April 14, 2003 APPLICANT: AMBIT Microsystems Corporation. ADDRESS:5F-1, 5 Hsin-An Road Hsinchu, Science- Based Industrial Park Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 19 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: MCLU58H002 Report No.: SA920106H01 2 Issued: April 17 th 2003 Table of Contents 1.CERTIFICATION .................................................................................................................3 2.GENERAL INFORMATION ................................................................................................. 4 3.1GENERAL DESCRIPTION OF EUT ................................................................................... 4 3.2GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................... 4 3.3GENERAL INOFRMATION OF THE SAR SYSTEM .......................................................... 5 3.4GENERAL DESCRIPTION OF THE PROBE SCAN RULE................................................ 7 4DESCRIPTION OF TEST MODES AND CONFIGURATIONS ........................................... 8 4.1CHEEK POSITION..............................................................................................................8 4.2 TILT POSITION ................................................................................................................... 9 5.TEST RESULTS................................................................................................................ 11 5.1TEST PROCEDURES....................................................................................................... 11 5.2MEASURED SAR RESULT .............................................................................................. 11 5.3SAR LIMITS ...................................................................................................................... 13 5.4EUT CONDUCTED POWER VARIATION ........................................................................ 13 5.5TISSUE ............................................................................................................................. 14 5.6TEST EQUIPMENT FOR TISSUE PROPERTY ............................................................... 15 6.SYSTEM VALIDATION...................................................................................................... 16 7.MEASUREMENT UNCERTAINTIES ................................................................................ 18 8.INFORMATION ON THE TESTING LABORATORIES ..................................................... 19 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: MCLU58H002 Report No.: SA920106H01 3 Issued: April 17 th 2003 1. CERTIFICATION PRODUCT : Cisco Wireless IP Phone 7920 MODEL NO. : CP-7920 BRAND NAME : Cisco APPLICANT : AMBIT Microsystems Corporation STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 11 th Feb. 2003 and 14 th April 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: MCLU58H002 Report No.: SA920106H01 4 Issued: April 17 th 2003 2. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTCisco Wireless IP Phone 7920 MODEL NO.CP-7920 POWER SUPPLY5VDC powered by adapter CLASSIFICATIONPortable device, production unit MODULATION TYPE BPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENCY RANGE2412MHz ~ 2462MHz NUMBER OF CHANNEL11 CONDUCTED OUTPUT POWER 75.5mW ANTENNA TYPEDipole Antenna PEAK SAR0.541mW/g DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA ACCESSORYHolster, earphone 3.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. FCC ID: MCLU58H002 Report No.: SA920106H01 5 Issued: April 17 th 2003 3.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY3 (software 3.1d) consists of high precision robtics system, probe alignment sensor, phantom, robot controller, controlled PC and near-field probe. The robot includes six axis that can move to the precision position of the DASY3 software defined. The DASY3 software can define the area which is detected by the probe. The robot is connected to controlled box. Controlled PC is connected to the controlled robot box. The DAE includes amplifier, signal multiplexing, AD converter, offset measurement, surface detection. It is connected to the Electro-optical coupler (ECO). The ECO performs the conversion form the optical into digital electric signal of the DAE and transfers data to the PC. ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static …

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHz SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FILED PROBE ET3DV6 SN:1687 June 5, 2002 Isotropy Error (Φ), θ = 0 ̊ ET3DV6 SN:1687 June 5, 2002 Frequency Response of E-Field (TEM – Cell:ifi110, Waveguide R22) Dynamic Range f (SAR brain ) (Waveguide R22) 1.E+7 1.E+6 1.E+5 1.E+4 1.E+3 1.E+2 1.E+1 1.E+0 mW/cm 3 not compensated compensated μ μμ μV 0.0001 0.001 0.01 0.1 1 10 100 ET3DV6 SN:1687September 28, 2002 Conversion Factor Assessment

FCC ID: MCLH58H002 Report No.: RF920106H011Issued: Feb. 24, 2003 ADT No. 920106H01 FCC TEST REPORT REPORT NO.: RF920106H01 MODEL NO.: CP-7920 RECEIVED: Jan. 06, 2002 TESTED: Jan. 08 to 14, 2003 APPLICANT: AMBIT Microsystems Corporation ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: MCLH58H002 Report No.: RF920106H012Issued: Feb. 24, 2003 ADT No. 920106H01 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.....................................................................6 3.2DESCRIPTION OF TEST MODES.......................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4DESCRIPTION OF SUPPORT UNITS.................................................................8 4TEST TYPES AND RESULTS...............................................................................9 4.1CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.1TEST INSTRUMENTS...............................................................................................9 4.1.2TEST PROCEDURES.............................................................................................10 4.1.3DEVIATION FROM TEST STANDARD...................................................................10 4.1.4TEST SETUP............................................................................................................11 4.1.5EUT OPERATING CONDITIONS............................................................................12 4.1.6TEST RESULTS.......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT.........................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES.............................................................................................21 4.2.4DEVIATION FROM TEST STANDARD...................................................................21 4.2.5TEST SETUP...........................................................................................................22 4.2.6EUT OPERATING CONDITIONS............................................................................22 4.2.7TEST RESULTS.......................................................................................................23 4.36dB BANDWIDTH MEASUREMENT.................................................................27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................27 4.3.2TEST INSTRUMENTS.............................................................................................27 4.3.3TEST PROCEDURE................................................................................................28 4.3.4DEVIATION FROM TEST STANDARD...................................................................28 4.3.5TEST SETUP...........................................................................................................28 4.3.6EUT OPERATING CONDITIONS............................................................................28 4.3.7TEST RESULTS.......................................................................................................29 4.4MAXIMUM PEAK OUTPUT POWER.................................................................33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................33 4.4.2INSTRUMENTS........................................................................................................33 4.4.3TEST PROCEDURES.............................................................................................34 4.4.4DEVIATION FROM TEST STANDARD...................................................................34 4.4.5TEST SETUP...........................................................................................................34 FCC ID: MCLH58H002 Report No.: RF920106H013Issued: Feb. 24, 2003 ADT No. 920106H01 4.4.6EUT OPERATING CONDITIONS............................................................................34 4.4.7TEST RESULTS.......................................................................................................35 4.4.8LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................36 4.4.9TEST INSTRUMENTS.............................................................................................36 4.4.10TEST PROCEDURE................................................................................................37 4.4.11DEVIATION FROM TEST STANDARD...................................................................37 4.4.12TEST SETUP...........................................................................................................37 4.4.13EUT OPERATING CONDITION...............................................................................37 4.4.14TEST RESULTS....................…

Text truncated - open the document above for the full version.

FCC ID: MCLU58H002 Report No.: RF920106H0147Issued: Feb. 24, 2003 ADT No. 920106H01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MCLU58H002 Report No.: RF920106H0148Issued: Feb. 24, 2003 ADT No. 920106H01 RADIATED EMISSION TEST
