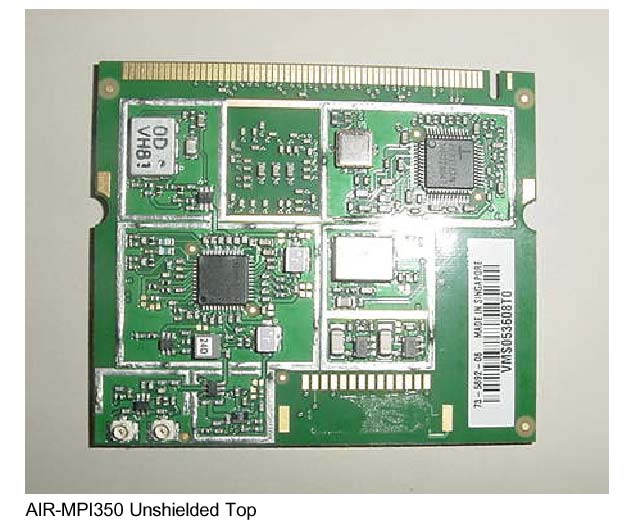

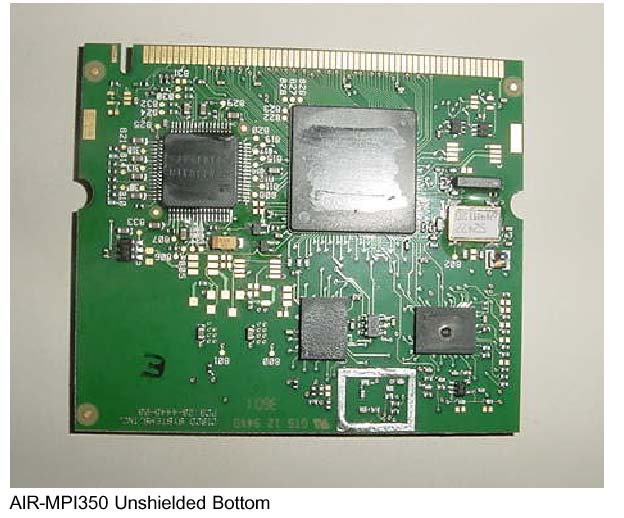

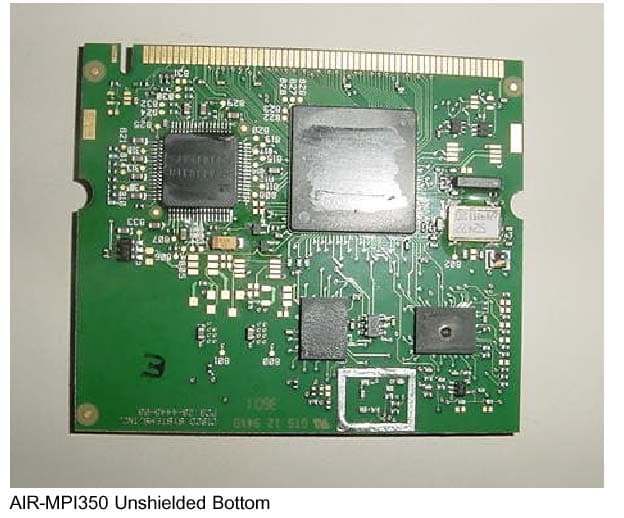

MCLU58H004Wireless LAN 802.11b MiniPCI Card

ThinkPad ® T30 Series Service and Troubleshooting Guide
 ThinkPad ® T30 Series Service and Troubleshooting Guide
 Note Before using this information and the product it supports, be sure to read the general information under Appendix A, “Important safety instructions” on page 39, Appendix B, “Wireless related information” on page 45, Appendix C, “Wireless regulatory notice” on page 47, Appendix D, “Warranty information” on page 53, and Appendix E, “Notices” on page 67. DANGER vTo avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening the covers of this product or attached devices. Use the power cord with a properly grounded outlet. vDo not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn. vTo reduce the risk of electric shock, do not use your computer in or near water. vTo avoid electric shock, do not use your computer with the telephone cable connection during an electrical storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical storm. vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags. vThe battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack away from children and do not put it in trash that is disposed of in landfills. vTo reduce the risk of fire, use only No. 26 AWG or thicker telephone cable. vThe fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care. vDo not disassemble the optical storage drive unit, as this might result in hazardous radiation exposure. vAvoid direct eye exposure with the laser beam contained in some drives. First Edition (March 2002) The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION′′AS IS′′WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. © Copyright International Business Machines Corporation 2002. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp. Important Notice for Users The FCC RF Safety Requirement Users are requested to use IBM ® ThinkPad T30 Series computer with the proper operation for each model shown below. Multiple Transmitters model If you find the FCC ID “ANOCORN1TASUHOP” on the label on the bottom of your ThinkPad computer, your computer is approved as a Multiple Transmitters device that is permitted to use two or more wireless option PC Cards simultaneously in the computer. Please make sure of the following grant conditions. 1.Before you use a Bluetooth option or wireless option PC Card in your ThinkPad T30 computer, visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-39377.htmland confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature. 2.When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off. 3.Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual. Single Transmitter model There is no FCC ID shown on the enclosure of this model. Instead you will find an indicator pointing the location of the FCC ID at the bottom side of your ThinkPad computer. You are prohibited to use the integrated wireless LAN Mini-PCI Card and a wireless option PC Card at once on this model. See Appendix C, “Wireless regulatory notice” on page 47 for more details. © Copyright IBM Corp. 2002iii ivThinkPad ® T30 Series Service and Troubleshooting Guide Finding information with Access ThinkPad Find answers to questions about your computer and view IBM Web sites by pressing the ThinkPad button to open Access ThinkPad, your on-board computer help center. © Copyright IBM Corp. 2002v Take a tour of your ThinkPad computer and learn how to get started, customize your computer, add memory, protect data, recover applications and data files, upgrade, and solve problems. Once you are familiar with the hardware features of your computer, click the Tools and Tips tab to get the most out of those features, like Wireless Networking, Maximizing your battery life, and even personalizing Access ThinkPad. Click Access Helpto open a comprehensive help system t…

Text truncated - open the document above for the full version.

Cisco Systems, Inc. 320 Springside Drive Akron, Ohio 44333 Phone: 330 664-7900 Fax: 330-664-7922 http://www.cisco.com Phone: (330) 664-7362 Fax: (330) 664-7301 E-Mail: [email protected] March 11, 2002 Pin Wen BACL 230 Commercial Street Sunnyvale, CA 94085 USA Re: FCC ID: MCLU58H004 To Pin Wen: The following information is to be held confidential pursuant to 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided is proprietary and contains trade secrets. If made public, the information might be used to the disadvantage of the Cisco Systems, Inc. in the market place. This information is to be withheld from the applicant as well. Block Diagram Schematic Diagrams Technical Description Bill of Materials (Parts List) Best Regards, Jim Nicholson EMC Compliance Engineer

Antenna terminals

Antenna terminals

IBM Japan, Ltd. Document Number: FCC 19-0186-0 Prepared by T. Murota 1/1 RF Exposure Evaluation for IBM ThinkPad T30 Series As shown in the following photos, the transmission antenna position of IBM ThinkPad T30 Series is located at the top of its display (LCD) bezel. And the separation distance between the antenna and the human body is 20cm or more. Therefore the equipment can be categorized as a mobile device by FCC CFR 47 Section 2.1091. The highest conducted peak output power of the applying equipment (FCC ID : MCLU58H004) is 93.3mW(19.7dBm) and the maximum antenna gain is 0.53dBi. Therefore the peak radiated output power(EIRP) is calculated as follows. EIRP = P + G = 19.7 dBm + 0.53 dBi = 20.23 dBm (105.44 mW) Then, the maximum power density at 20cm distance is calculated as : S = EIRP/(4 % R 2 % o) = 0.021 mW/cm 2 When an operator will use the transmitter during 30 minutes continuously in normal operation, the time-averaging exposure is : S % 30 = 0.63 So the source-based time-averaging duty factor is considered as 100% duty. Therefore the applying equipment meets the MPE requirements for general Population/ Uncontrolled exposure. The separation distance between the antenna and the human body is 20cm or longer.

FCC Test Report FCC ID: MCLU58H004 Document Number: FCC-19-0186-0 Emission Test Report Standard: FCC Part 15 Subpart C / IC RSS-210 Document Number : FCC 19-0186-0 Product Model: AIR-MPI 350-U58H004 (with IBM ThinkPad T30 Series, Single Transmitter Model) FCC ID: MCLU58H004 IC: 2878-U58H004 March 28, 2002 Prepared : EMC Engineer Shohei Fujio Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-2589 Fax: +81-46-273-7420 E-Mail: [email protected] Reviewed and Checked : EMC Staff Engineer Toshiya Murota Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-6574 Fax: +81-46-273-7420 E-Mail: [email protected] Approved : Manager, EMC Engineering Akihisa Sakurai Signature: IBM Japan, Ltd. EMC Engineering LAB-S59 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242, Japan Phone: +81-46-215-2613 Fax: +81-46-273-7420 E-Mail: [email protected] FCC Test Report FCC ID: MCLU58H004 Document Number: FCC-19-0186-0 MEASUREMENT / TECHNICAL REPORT – Part 15 Subpart C (Intentional Radiator) AIR-MPI350-U58H004 (with IBM ThinkPad T30 Series, Single Transmitter Model) FCC ID : MCLU58H004 March 28, 2002 This report concerns: (check one) Original Grant ̧ Class I change Class II change Equipment type: Wireless LAN device This report shall not be reproduced except in full, without the written permission of this test lab. The measurement results contained in this report relate only to the item which was tested. Measurement procedure used is ANSI C63.4-1992 unless otherwise specified. Other test procedure: The FCC has issued provisional acceptance of this test laboratory for Declaration of Conformity testing per letter dated 1997. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes, see 47 CFR 1.2002(b). Yes or No “Report shall not be reproduced except in full, without the written approval of the laboratory” “the report must not be used by the client to claim product endorsement by NVLAP or any agency of the US government” Prepared by: Takeshi Asano IBM Japan Corporation, Yamato EMC Enginnering LAB-S59, 1623-14, Shimotsuruma, Yamato-shi Kanagawa-ken 242-8502, Japan Tel: +81-46-215-4779 Fax: +81-46-273-7420 FCC Test Report FCC ID: MCLU58H004 Document Number: FCC-19-0186-0 Prepared by T. Asano - 1 - - Index - MEASUREMENT / TECHNICAL REPORT – PART 15 SUBPART C..........................................................................2 A. GENERAL INFORMATION.............................................................................................................................................3 A.1TEST METHODOLOGY..............................................................................................................................................3 A.2TEST FACILITY / NVLAP ACCREDITATION...........................................................................................................3 A.3EUT DETAILS............................................................................................................................................................3 B. SUMMARY OF TEST RESULTS.....................................................................................................................................4 C. OPERATION MODE OF EUT..........................................................................................................................................5 D. TEST INSTRUMENTS....................................................................................................................................................6 E. JUSTIFICATION.................................................................................................................................................................7 F. MEASUREMENT UNCERTAINTY..............................................................................................................................7 G. RELATED SUBMITTAL(S)/GRANT(S)/NOTES.........................................................................................................7 1. BANDWIDTH AT 6 DB BELOW......................................................................................................................................8 1.1TEST PROCEDURE.....................................................................................................................................................8 1.2TEST INSTRUMENTS AND MEASUREMENT SETUP..................................................................................................8 1.3MEASUREMENT RESULTS.........................................................................................................................................8 1.4TRACE DATA..............................................................................................................................................................9 2. OCCUPIED BANDWIDTH / BAND-EDGE (AT 20 DB BELOW), AND OUT OF BAND EMISSIONS...........12 2.1TEST PROCEDURE...................................................................................................................................................12 2.2TEST INSTRUMENTS AND MEASUREMENT SETUP................................................................................................12 2.3MEASUREMENT RESULTS OF OCCUPIED BANDWIDTH / BAND-EDGE................................................................12 2.4MEASUREMENT RESULTS OF OUT OF BAND …

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Certification Report For: Cisco System Page 36 Document Number: 2001041 Revision 3 19 PROCESSING GAIN REPORT Cisco Confidential 1 03/07/2001 Radio Circuit Description The MPI350 Spread Spectrum Transceiver operates in the 2.4 GHz ISM band, using Direct Sequence modulation techniques. The transmit/receive and data packetization operations are under the control of a protocol processor (MAC) internal to the transceiver assembly. Logic Section: A digital ASIC is employed in the logic section of the radio, providing the following functions: 1) Generation of the spreading code, combination of the code with the incoming data stream. 2) Despreading and demodulation of the incoming baseband spread signal. 3) Determination of the transmit/receive sequence. RF Section (refer to MPI350 radio block diagram): The transmitter chain includes a shaping bandpass filter followed by a vector modulator. This signal is further filtered by a saw filter at the IF frequency of 374 MHz. This signal is then mixed up to the 2400-2483.5 MHz band. A RF filter at the output of the mixer removes any other mixing products. A power amplifier chain brings the signal up to the final output level of 100 mW. Through the Tx/Rx switch, the signal is passed through a dielectric bandpass filter to the antenna port. The radio has diversity, so two antenna ports are provided. Transmitter frequency is determined by the 44.0 MHz reference oscillator, with ± 25 ppm accuracy. The receiver utilizes the same antenna filtering and Tx/Rx, followed by a LNA. A mixer circuit brings the signal to the 374 MHz IF, where a SAW filter shapes the IF spectral envelope. This filter provides the primary rejection against adjacent channel interference. An IF amplifier followed by an IF limiter brings the signal up to the level needed for the I and Q vector demodulator. A buffer amplifier and filter are used to shape the signal for the PHY digital ASIC which despreads and decodes the signal. The 374 MHz voltage controlled oscillator is controlled by a synthesizer/PLL system comprised of a prescaler and programmable dividers. The 2026-2450 MHz voltage controlled oscillator is also controlled by a synthesizer/PLL system. Both local oscillators use a reference signal for the PLL which is derived from the 44.0 MHz master reference oscillator. Cisco Confidential 2 03/07/2001 PRODUCT NAME: Cisco MPI350 Radio NAME OF TEST: The Processing Gain of a Direct Sequence System. FCC Part 15.247(e) specifies that the processing gain of a direct sequence system shall be at least 10 dB. Guidance on measurement by FCC The processing gain may be measured using the CW jamming margin method (refer to figure 1). The test consists of stepping a signal generator, in 50kHz increments, across the passband of the system. At each point, the generator level required to the produce the recommended Bit Error Rate (10-5) is recorded. This is the jammer level. The output power of the transmitting unit is measured at the same point. The Jammer to Signal (J/S) ratio is then calculated, discarding the worst 20% of the J/S data points. The total losses in a system, including transmitter and receiver, should be assumed to be no more than 2 dB. Processing Gain = S/N + Mj + Lsys Where: S/N = Signal to noise ratio required at the receiver output for 10-5 error rate of a ideal receiver for your demodulation scheme Mj = Jammer to signal ratio Lsys = System losses (2dB max) Test Results for 1 mb data rate: S/N = 13.0 dB; taken from Wireless Information Networks by Pahlavan & Levesque Mj = - 4.2 dB; worst case jamming margin from tests in lab Lsys = 2.0 dB; system losses therefore the processing gain at 1mb is 13.0 dB – 4.2 dB + 2.0 dB = 10.8 dB for 2 mb data rate: S/N = 13.0 dB; taken from Wireless Information Networks by Pahlavan & Levesque Mj = - 4.2 dB; worst case jamming margin from tests in lab Lsys = 2.0 dB; system losses therefore the processing gain at 2mb is 13.0 dB – 4.2 dB + 2.0 dB = 10.8 dB for 5.5 mb data rate: S/N = 13.6 dB; taken from Harris CCK encoding modulation Mj = - 4.9 dB; worst case jamming margin from tests in lab Lsys = 2.0 dB; system losses therefore the processing gain at 5.5mb is 13.6 dB – 4.9 dB + 2.0 dB = 10.7 dB for 11 mb data rate: S/N = 16.0 dB; taken from Harris CCK encoding modulation Mj = - 7.4 dB; worst case jamming margin from tests in lab Lsys = 2.0 dB; system losses Cisco Confidential 3 03/07/2001 therefore the processing gain at 11mb is 16.0 dB – 7.4 dB + 2.0 dB = 10.6 dB Figure 1 Signal Generator Power Meter sum split Transmitter Receiver Bit Error Rate Tester Eng: Jim NahraDate: 3/2/01 Drawn: Diane Simon Jamming Test Setup CISCO Confidential RF Systems Engineering 2.4GHz Spread Sperctrum Radio - Jammer Test Cisco Confidential 4 03/07/2001 MPI350 Spread Spectrum Transceiver Alignment Procedures ß Put the radio in Tx mode ß Set the power out (using the power meter) ß Use +20 dBm ± 1 dB for 100 mW power setting ß Use +17 dBm ± 1 dB for 50 mW power setting ß Use +15 dBm ± 1 dB for 30 mW power setting ß Use +13 dBm ± 1 dB for 20 mW power setting ß Use 0 dBm ± 1 dB for 1 mW power setting ß Turn the Tx on, ch 12-84 ß Set the power amp output power by adjusting voltage to the IF attenuator in the Tx chain. Note: This is done by software, which changes the DAC voltage output.

CONDUCTED AND RADIATED MEASUREMENT PHOTOS Radiation setup photos ThinkPad T30 (M/T 2366) ThinkPad T30 (M/T 2366) Radiated measurement setup photo Radiated measurement setup photo Front view Rear view Conduction setup photos ThinkPad T30 (M/T 2366) ThinkPad T30 (M/T 2366) Conducted measurement setup photo Conducted measurement setup photo Front view Side view
