MCLU98Z058802.11b/g/n WLAN Module

COMPANY CONFIDENTIAL U98Z058.02 USB WiFi Module User Manual Rev. 1.0 Prepared by Reviewed by Approved by Hans Dang Gallon Tao Index COMPANY CONFIDENTIAL 1. REVISION HISTORY...................................................................................................................................................3 2. INTRODUCTION..........................................................................................................................................................4 3. PRODUCT SPECIFICATION.....................................................................................................................................5 4. PRODUCT REQUIREMENTS AND CHARACTERISTIC......................................................................................7 5. ANTENNA SPECIFICATION.....................................................................................................................................9 6. MECHANICAL DRAWING.......................................................................................................................................14 7. SCHEMATIC...............................................................................................................................................................14 8. BOM LIST....................................................................................................................................................................16 9. PCB LAYOUT.............................................................................................................................................................17 10. PACKING..................................................................................................................................................................22 11. REGULATORY.........................................................................................................................................................26 12. ENVIRONMENTAL REQUIREMENTS AND SPECIFICATIONS.....................................................................26 COMPANY CONFIDENTIAL 1. Revision History Date Change Note REV Note 2010-06-17 Initial Release 1.0 COMPANY CONFIDENTIAL 2. Introduction Project Name: 802.11 b/g/n wireless card This documentation describes the product specification of the 802.11b/g/n WiFi Module. It is Compliant with IEEE Std 802.11b-1999, IEEE Std 802.11g-2003 and IEEE Std 802.11n-2009. It is a confidential document of Foxconn. 2.1 Scope This 802.11 b/g/n Module is available in the 2.4-GHz ISM band, it is compatible with the IEEE 802.11 b/g standard and the 802.11n standard. It allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping. The 802.11 g data rate provides for 54, 48, 36, 24, 18, 12, 9, 6Mbps, 802.11b data rate provides for 11, 5.5, 2, 1 Mbps, it can also support 11n high data rate up to MCS7 with PHY data rate to 135Mbps. 2.2 Function  Single stream 802.11 support for both 20MHz and 40MHz (optional) channels provide PHY layer rates up to MCS7(150Mbps).  Support IEEE 802.15.2 external 3-wire additional co-located wireless technologies such as Bluetooth, GPS, WiMax or UWB.  Provides a small form factor solution and ultra low power consumption to support low cost requirement.  Host interface supports USB, SDIO is not used in this product. COMPANY CONFIDENTIAL 3. Product Specification 3.1 WiFi RF Specification Wireless LAN Standards IEEE 802.11 b/g/n standard Operating Frequency 2.400 – 2.4835 GHz WLAN Data Rate 802.11g: 54Mbps with fall back of 48, 36, 24, 18, 12, 9, 6Mbps. 802.11b: 11Mbps with fall back rates of 5.5, 2, and 1Mbps 802.11n: Data Rate (MCS0~MSC7) refer to Table A-1 and Table A-2 Modulation Schemes 802.11g: 64QAM (54Mbps, 48Mbps), 16QAM (36Mbps, 24Mbps), QPSK (18Mbps, 12Mbps), BPSK (9Mbps, 6Mbps) 802.11b: CCK (11 Mbps, 5.5Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) 802.11n: refer to Table A-1 and Table A-2 COMPANY CONFIDENTIAL * 40MHz bandwidth is optional for transmit and receive. Transmitter AV Output Power 11b CCK: 17.5+/-1.5 dBm 11g OFDM: 14.0 +1/-2 dBm 11n MCS0~MCS7: 14.0 +1/-2 dBm Receiver Sensitivity Typical -87dBm @11Mbps (PER<8%) Typical -75dBm @54Mbps (PER<10%) Typical -70dBm @MCS7 (PER<10%) 3.2 Electrical Specification Absolute Maximum Ratings These specification indicate levels where permanent damage to the device can occur. Functional operation is not guaranteed under these conditions. Operation at absolute maximum conditions for extended can adversely affect long-term reliability of the device. Recommended Operating Condition Value Element Symbol Minimum Typical Maximum Unit DC supply voltage for the device VDD_USB 3.0 3.3 3.63 V Function operation is not guaranteed outside this limit, and operation outside this limit for extended periods can adversely affect long-term reliability of the device. Rating Symbol Value Unit DC supply voltage for the device VDD_USB -0.5 to +4.1 V Maximum chip junction temperature Tj 125 ºC COMPANY CONFIDENTIAL Current Consumption Standby: typically 120mA @3.3V Transmit: 802.11b: typically 320mA @3.3V (Tx Power=17.5dbm) 802.11g: typically [email protected] (Tx Power=14dbm) 802.11n: typically [email protected] (Tx Power=14dbm) Receive: typically 220mA @3.3V 4. Product Requirements and Characteristic 4.1 Hardware Characteristic Form factor 44.5x40(mm 2 ) module with 2x4 pin connector Host Interface USB 2.0 PCB 4-layer single side Antenna &RF connector Two printed Antenna, with one for diversity. One U.FL switched RF connector for testing and can be also used for external antenna 4.2 Hardware Architecture This 802.11b/g/n device is operating at 2.4 GHz ISM band, it supports 20 MHz and 40 MHz (optional) channels. The WiFi design is based on Broadcom BCM4319 chipset. The Broadcom BCM4319 is a highly integrated single chip solution for 2.4GHz 802.11n-ready wireless local area network that enables a high performance 1X1 configuration for wireless station maximum throu…

Text truncated - open the document above for the full version.

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Date: July 6, 2010 Confidentiality Request FCC ID: MCLU98Z058 Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information until October.23, 2010 of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo Thank you! Sincerely yours, ------------------------------------------------------- Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

HON HAI PRECISION IND. CO., LTD. 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. AGENCY AUTHORIZATION LETTER Date: 2010-07-06 To whom it may concern: We, the undersigned, , HON HAI PRECISION IND. CO., LTD. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature: Rio Chen Compliance Manager HON HAI PRECISION IND. CO., LTD. TEL: +886-3-5784975 FAX: +886-3-5775100 E-mail: [email protected]

FCC ID: MCLU98Z058 Report No.: RF990623E04 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Jul. 19, 2010 Dear Application Examiner, Hon Hai PRECISION IND.CO.,LTD., It’s a 802.11b/g/n WLAN Module. FCC ID: MCLU98Z058would like to have your authorization as a modular approval specific to the mobile device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4319. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is BCM4319. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB cable to extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: MCLU98Z058 Report No.: RF990623E04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

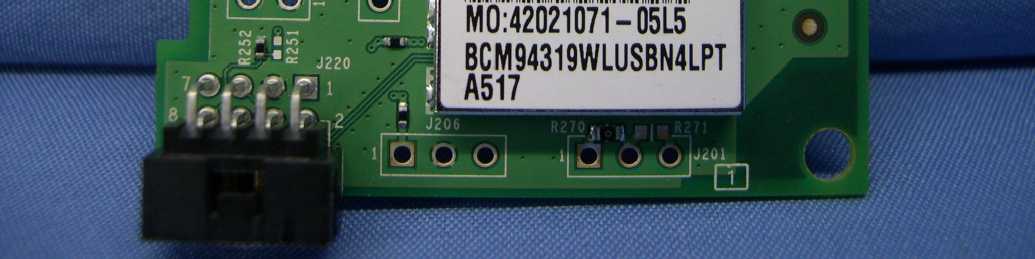

Page 1 CONSTRUCTION PHOTOS OF EUT

HON HAI Precision Ind. Co., Ltd. Foxconn T77H134 MCLT77H134 U98Z058 FCC ID: MCLU98Z058 IC: 2878D-U98Z058

(Fig. 1) FCC ID: MCLU98Z058 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

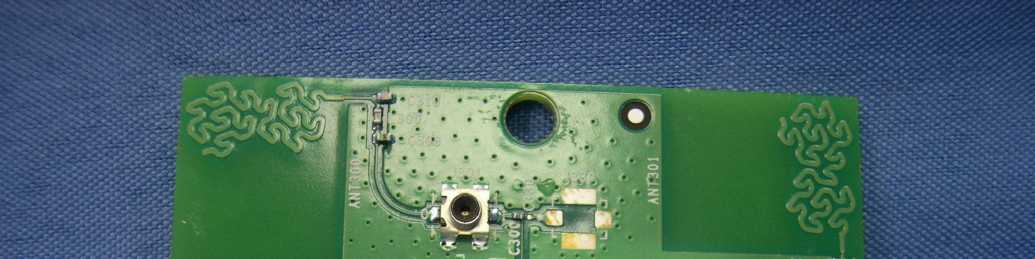

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: MCLU98Z058 Report No.: RF990623E04 Operational Description This device is an 802.11b/g/n WLAN Module, which operates in the 2.4GHz frequency spectrum with throughput of up to 135Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 135Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The other instruction, please have a look at the users manual.

Report No.: SA990623E04 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990623E04 MODEL NO.: U98Z058 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan. Report No.: SA990623E04 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990623E04 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device Report No.: SA990623E04 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain The maximum Gain is 3dBi or 1.995262 (numeric) The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.584893 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 295.1 0.117 1.0 6 2437 239.9 0.095 1.0 11 2462 166.0 0.066 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 182.0 0.072 1.0 6 2437 389.0 0.154 1.0 11 2462 173.8 0.069 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 208.9 0.083 1.0 6 2437 363.1 0.144 1.0 11 2462 208.9 0.083 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 131.8 0.052 1.0 4 2437 263.0 0.104 1.0 7 2452 123.0 0.049 1.0 --- END ---

Report No.: RF990623E04 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990623E04 MODEL NO.: U98Z058 FCC ID: MCLU98Z058 RECEIVED: June 23, 2010 TESTED: July 06 to 12, 2010 ISSUED: July 16, 2010 APPLICANT: Hon Hai PRECISION IND.CO.,LTD ADDRESS: 5F-1,5 Hsin-An Road Hsinchu, Science-Based Industrial Park Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF990623E04 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION................................................................................................4 2. SUMMARY OF TEST RESULTS.........................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3. GENERAL INFORMATION..................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................7 3.2 DESCRIPTION OF TEST MODES......................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.......................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................13 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................14 4. TEST TYPES AND RESULTS...........................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT......................................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................15 4.1.2 TEST INSTRUMENTS......................................................................................15 4.1.3 TEST PROCEDURES.......................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD..............................................................16 4.1.5 TEST SETUP...................................................................................................17 4.1.6 EUT OPERATING CONDITIONS......................................................................17 4.1.7 TEST RESULTS...............................................................................................18 4.2 RADIATED EMISSION MEASUREMENT..........................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................20 4.2.2 TEST INSTRUMENTS......................................................................................21 4.2.3 TEST PROCEDURES.......................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD..............................................................22 4.2.5 TEST SETUP...................................................................................................23 4.2.6 EUT OPERATING CONDITIONS......................................................................23 4.2.7 TEST RESULTS...............................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT.................................................................53 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................53 4.3.2 TEST INSTRUMENTS......................................................................................53 4.3.3 TEST PROCEDURE.........................................................................................53 4.3.4 DEVIATION FROM TEST STANDARD..............................................................53 4.3.5 TEST SETUP...................................................................................................53 4.3.6 EUT OPERATING CONDITIONS......................................................................53 4.3.7 TEST RESULTS...............................................................................................54 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................58 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................58 4.4.2 INSTRUMENTS................................................................................................58 4.4.3 TEST PROCEDURES.......................................................................................58 4.4.4 DEVIATION FROM TEST STANDARD..............................................................58 Report No.: RF990623E04 3 Report Format Version 3.0.1 4.4.5 TEST SETUP...................................................................................................58 4.4.6 EUT OPERATING CONDITIONS......................................................................58 4.4.7 TEST RESULTS...............................................................................................59 4.5 POWER SPECTRAL DENSITY MEASUREMENT..............................................61 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................61 4.5.2 TEST INSTRUMENTS......................................................................................61 4.5.3 TEST PROCEDURE.........................................................................................61 4.5.4 DEVIATION FROM TEST STANDARD..............................................................61 4.5.…
