MCQ-50M1768Sigma Pumps Integrated 802.11abg Module

Northwest EMC TCB Compliance Opinion Rev. 7/1/10 DGII0055 Information about the Applicant Grantee (Company Name) Digi International FCC Contact Person Frank Artner Address 11001 Bren Road East City, State, Zip Minnetonka, MN 55343 Job Number DGII0055 Model Sigma Pumps Integrated 802.11abg Module FCC ID MCQ-50M1768 Agent Slava Gekht Approval Type Original Single Modular Equipment Class DTS Digital Transmission System NII Unlicensed National Information Infrastructure Tx Rule Part 15.247 , 15.407 (15C) Overview This application is for the original modular approval of Sigma Pumps Integrated 802.11abg Module, FCC ID: MCQ-50M1768. The device contains a microprocessor, capable of running custom applications and an 802.11 a\b\g compliant radio module. Confidentiality requested for allowed files. Request is properly addressed and referenced. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 6/19/2012

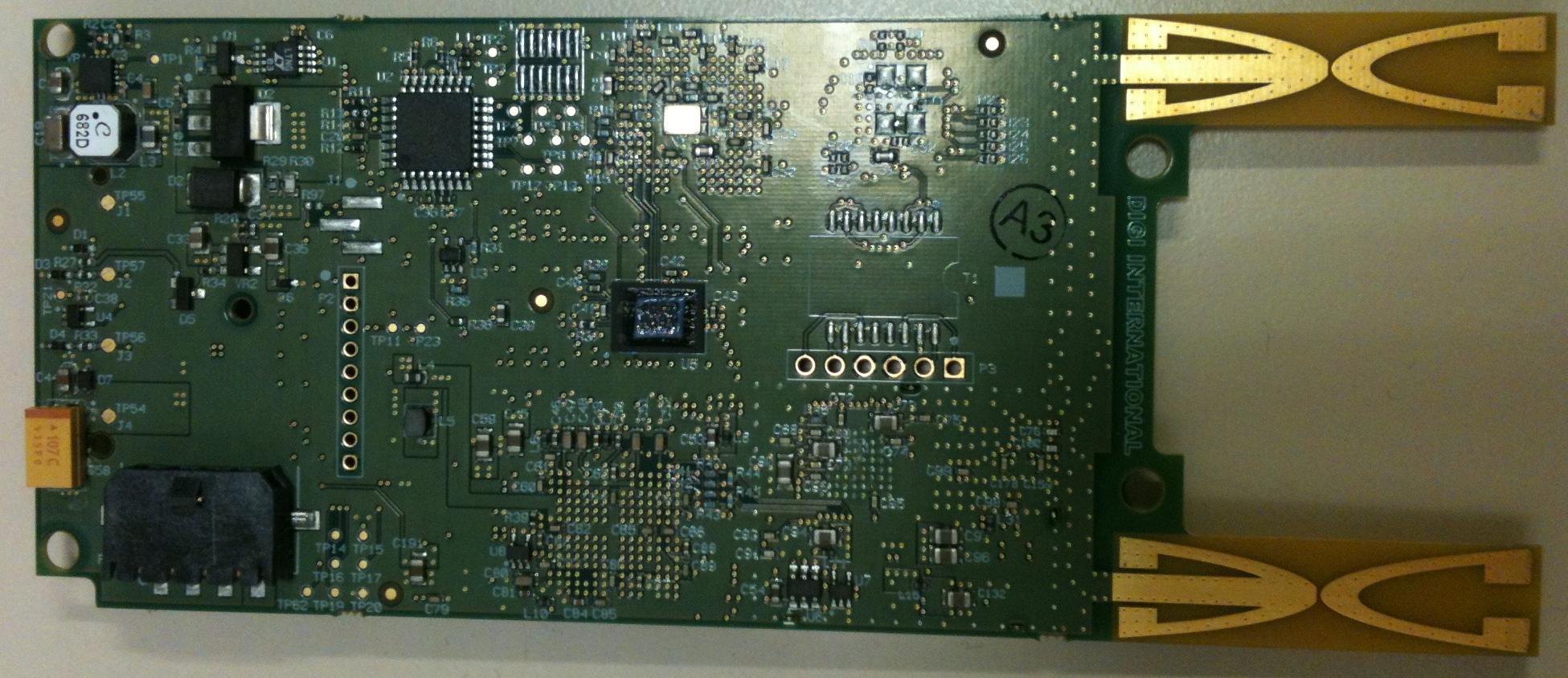

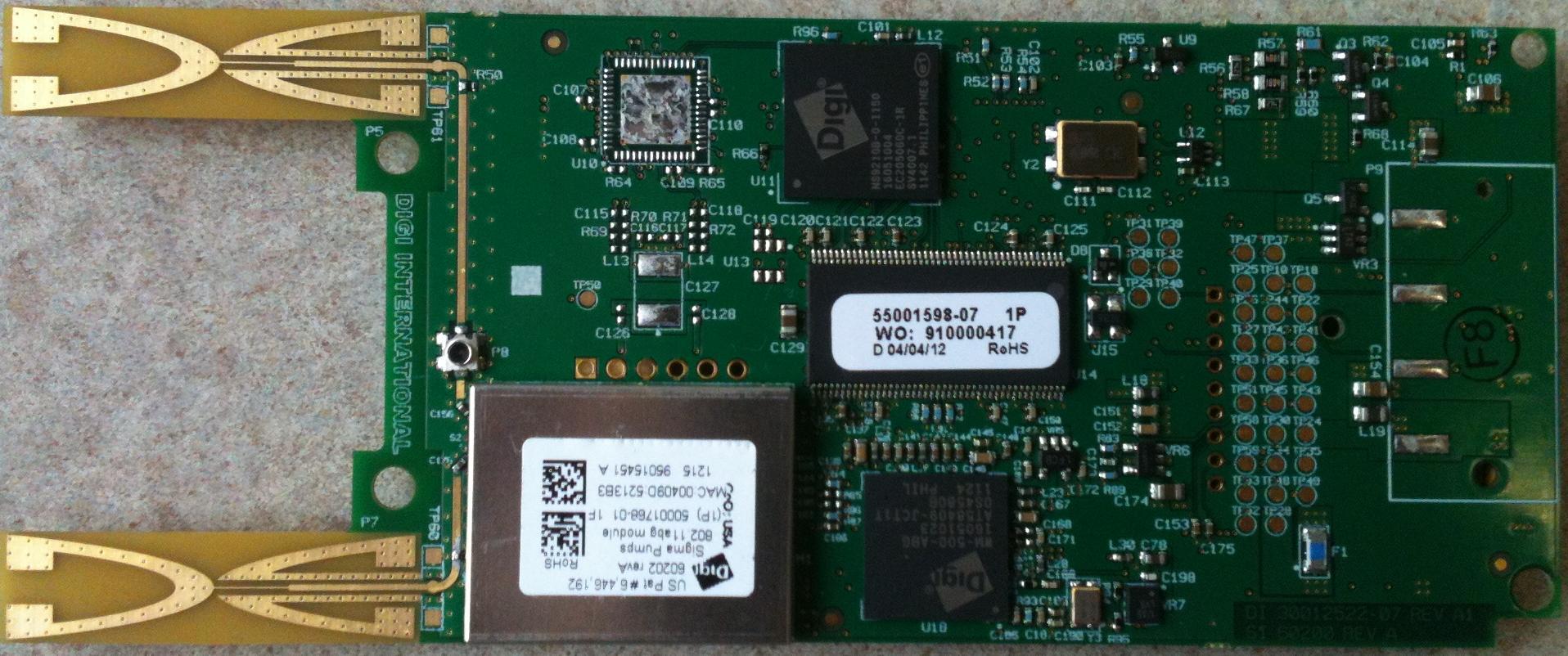

Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax © 2012 Digi International Inc. Confidential and Proprietary April 27, 2012 Subject: Internal Photos FCC ID: MCQ-50M1768 IC: 1846A-50M1768 Applicant: Digi International FRN: 0010283307 Model: Sigma Pumps Integrated 802.11abg Module TOP View Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax © 2012 Digi International Inc. Confidential and Proprietary Bottom View with Shield Bottom View without Shield

Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax © 2012 Digi International Inc. Confidential and Proprietary June 6, 2012 Subject: Internal Photos FCC ID: MCQ-50M1768 IC: 1846A-50M1768 Applicant: Digi International FRN: 0010283307 Model: Sigma Pumps Integrated 802.11abg Module Label: Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax © 2012 Digi International Inc. Confidential and Proprietary The Label is located on top of the RF shield:

Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax © 2012 Digi International Inc. Confidential and Proprietary April 27, 2012 Subject: Internal Photos FCC ID: MCQ-50M1768 IC: 1846A-50M1768 Applicant: Digi International FRN: 0010283307 Model: Sigma Pumps Integrated 802.11abg Module TOP View Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax © 2012 Digi International Inc. Confidential and Proprietary Bottom View with Shield Bottom View without Shield

Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax April 17, 2012 Subject: Antenna Compliance FCC ID: MCQ-50M1768 Applicant: Digi International FRN: 0010283307 To whom it may concern: The device related to the above FCC ID contains an integral PCB antenna with no provision for exchange or replacement in compliance with paragraph 15.203 of the FCC rules. The antenna has the following design specifications: Manufacturer: Digi International Model number: 31000003-01 Gain: 0db at 2.4 GHz and 3.5 dB at 5.5 GHz Type: BALANCED elliptical DUAL-BAND Integral PCB EMBEDDED ANTENNA detailed in PTO977.196_us1 Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax Antenna Top View Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax Antenna Bottom View Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 tel 952-912-4991 central fax Sincerely, Slava Gekht Lead Hardware Engineer Digi International Inc. [email protected] office: 952-912-3444 x3225

Digi International Sigma Pumps Integrated 802.11abg Module Report No. DGII0053.3 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Evaluation Date of Evaluation June 6, 2012 Digi International Model: Sigma Pumps Integrated 802.11abg Module Emissions Description of Evaluation Specification Evaluation Method Pass/Fail Maximum Permissible Exposure FCC 2.1091:2012 OET Bulletin 65, Supplement C Ed 01-01 Pass Approved By: Don Facteau, IS Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Report No. DGII0053.32 of 9 REV 2012.05.24 REVISION HISTORY Revision Number Description Date Page Number 00 None Report No. DGII0053.33 of 9 REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Report No. DGII0053.34 of 9 REV 2012.05.24 LOCATIONS Oregon Labs EV01-EV12 22975 NW Evergreen Pkwy, #400 Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-OC13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs WA01-WA04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-MN08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs SU01-SU07 14128 339 th Ave. SE Sultan, WA 98294 (360) 793-8675 VCCI EV01: C-1071, R-1025, G-84 EV07: C-2687, T-1658 EV11: R-2318 OC06: C-2766, T-1659 OC07: G-548 OC08: R-1943, G-85 OC10: A-0029 MN03: C-3464, T-1634 MN04: R-3125 MN05: G-141 SU01: C-3265, T-1511 SU02: R-871, G-83 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 Report No. DGII0053.35 of 9 Product Description Revision 09/01/11 Client and Equipment Under Test (EUT) Information Company Name: Digi International Address: 11001 Bren Road East City, State, Zip: Minnetonka, MN 55343 Test Requested By: Slava Gekht Model: Sigma Pumps Integrated 802.11abg Module Date of Evaluation: June 6, 2012 Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): Sigma Pumps Integrated 802.11abg Module. It operates in the 2.4, 5.2, 5.3, 5.6, and 5.8 GHz bands. Objective: To demonstrate compliance with FCC requirements for RF exposure for 2.1091 mobile devices Report No. DGII0053.36 of 9 WD.12.29.11 Maximum Permissible Exposure (MPE) OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the stated field strength and power density limits may not necessarily imply no…
