MCQ-XBLR XBLR

9350 Excelsior Blvd. · Hopkins, Minnesota, 55420 · United States

Test Firm

Element Materials Technology Minneapolis -BrooklynElliot Martinez

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	902.3 MHz - 914.9 MHz	124.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power is conducted. Single modular approval. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The grantee must provide antenna installation instructions and transmitter operating conditions to satisfy RF exposure compliance and on restrictions of use, for continuing compliance of the module.

Other Applications from Digi International Inc

MCQ-XBHXR

XBee Sub-GHz Radio Module

Aug 05, 2026

Equipment Class

MCQ-XB3P9XR

XBee3 Sub-GHz and 2.4GHz Radio Module

Mar 31, 2026

Equipment Class

MCQ-XBP9XR

XBee Sub-GHz Radio Module

Mar 31, 2026

Equipment Class

6ID - 15E 6 GHz Low Power Indoor Access Point

MCQ-DIW732

WIFI 7 Module

Feb 11, 2026

Equipment Class

MCQ-XBLPX

Digi Xbee XR 900

Sep 18, 2024

Equipment Class

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Text truncated - open the document above for the full version.

Users Manual

Text truncated - open the document above for the full version.

Internal Photos

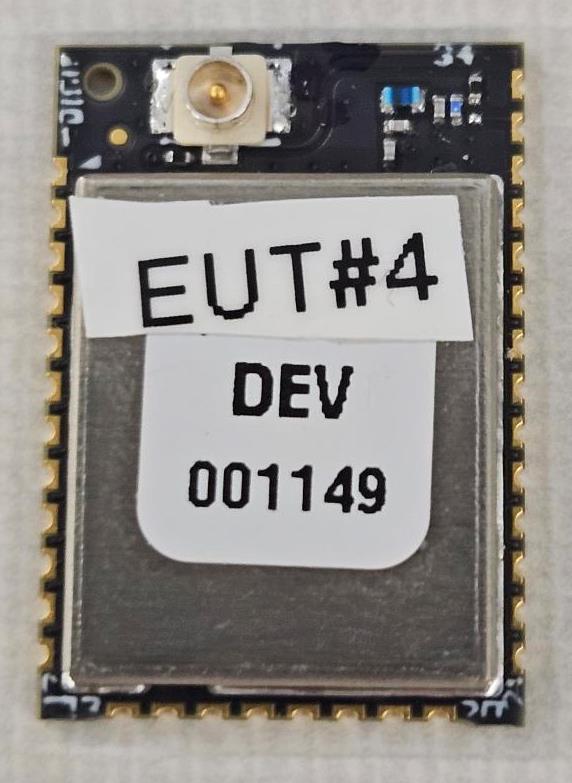

XBLR Internal Photos 11/27/2024 Digi International Inc. XBLR FCC: MQC-XBLR IC: 1846A-XBLR

Test Setup Photos

Test Report

Text truncated - open the document above for the full version.

Test Report

This report must not be used to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This Report shall not be reproduced, except in full without written approval of the laboratory. Digi International Inc Digi XBee LR RF Module for LoRaWAN FCC 15.247:2025 RSS-Gen Issue 5:2018+A1:2019+A2:2021 RSS-247 Issue 3:2023 LoRa DTS Transceiver Report: DGII0507.1 Rev. 01, Issue Date: August 11, 2025 TABLE OF CONTENTS 2023.04.17 Section Page Number Certificate of Test ............................................................................................ 3 Revision History .............................................................................................. 5 Facilities .......................................................................................................... 6 Measurement Uncertainty ............................................................................... 7 Test Setup Block Diagrams ............................................................................. 8 Product Description ......................................................................................... 11 Power Settings and Antennas ......................................................................... 12 Configurations ................................................................................................. 13 Modifications ................................................................................................... 17 Powerline Conducted Emissions (Transmitter) ............................................... 18 Spurious Radiated Emissions ......................................................................... 23 Duty Cycle ....................................................................................................... 33 Output Power .................................................................................................. 37 Equivalent Isotropic Radiated Power (EIRP) ................................................... 40 Band Edge Compliance .................................................................................. 42 Emission Bandwidth (dB) ................................................................................ 45 Occupied Bandwidth (99%) ............................................................................. 48 Spurious Conducted Emissions ...................................................................... 51 Power Spectral Density ................................................................................... 55 End of Report .................................................................................................. 58 Report No. DGII0507.1 Rev 012/58 CERTIFICATE OF TEST 2022.04.01 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. As indicated in the Statement of Work sent with the quotation, Element’s standard process is to always use the latest published version of the test methods even when earlier versions are cited in the test specification. Issuance of a purchase order was de facto acceptance of this approach. Otherwise, the client would have advised Element in writing of the specific version of the test methods they wanted applied to the subject testing. Last Date of Test: February 20, 2025 Digi International Inc EUT: Digi XBee LR RF Module for LoRaWAN Radio Equipment Testing Standards Specification Method FCC 15.247:2025 ANSI C63.10:2020 + Corr.1:2023 RSS-Gen Issue 5:2018+A1:2019+A2:2021 RSS-247 Issue 3:2023 Note: FCC 15.247:2024 has been updated to FCC 15.247:2025 superseding prior issues. A gap analysis was performed, and the changes between the specifications do not affect the results of the prior testing. The manufacturer attests that no changes have been made to the product. Guidance FCC KDB 558074 v05r02:2019 Results Test Description Result FCC Section(s) RSS Section(s) ANSI C63.10 Section(s) Comments Powerline Conducted Emissions (Transmitter) Pass 15.207 RSS-Gen 8.8 6.2 Spurious Radiated Emissions Pass 15.247(d), KDB 558074 -8.6, 8.7 RSS-247 5.5 6.5, 6.6, 11.12.1 Occupied Bandwidth (99%) Pass KDB 558074 -2.1 RSS-Gen 6.7 6.9.3 Duty Cycle Pass 15.247, KDB 558074 -6.0 RSS-Gen 3.2 11.6 Emissions Bandwidth (dB) Pass 15.247(a), KDB 558074 -8.2 RSS-247 5.2(a) 11.8.2 Output Power Pass 15.247(b), KDB 558074 -8.3 RSS-247 5.4(d) 11.9.2.2.4 Equivalent Isotropic Radiated Power (EIRP) Pass 15.247(b), KDB 558074 -8.3 RSS-247 5.4(d) 11.9.2.2.4 Band Edge Compliance Pass 15.247(d), KDB 558074 -8.5 RSS-247 5.5 11.11 Power Spectral Density Pass 15.247(e), KDB 558074 -8.4 RSS-247 5.2(b) 11.10.2 Spurious Conducted Emissions Pass 15.247(d), KDB 558074 -8.5 RSS-247 5.5 11.11 Report No. DGII0507.1 Rev 013/58 CERTIFICATE OF TEST 2022.04.01 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. As indicated in the Statement of Work sent with the quotation, Element’s standard process is to always use the latest published version of the test methods even…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.
